Full HD Mini Pan and Tilt Dome Network Camera

DCS-5615

  • Product Status: Phased Out

The DCS-5615 Full HD Mini Pan & Tilt Dome Network Camera features industry-leading high definition (Full HD 1080p) 2 megapixel resolution and H.264 compression that enable high-quality video footage to be recorded. The DCS-5615 connects to a network to provide high-quality live video over the Internet.


Download the datasheet.

List Retailers

The DCS-5615 Full HD Mini Pan & Tilt Dome Network Camera features industry-leading high definition (Full HD 1080p) 2 megapixel resolution and H.264 compression that enable high-quality video footage to be recorded. The DCS-5615 connects to a network to provide high-quality live video over the Internet.

Full HD Surveillance

The DCS-5615 delivers Full HD 16:9 widescreen IP video surveillance and provides vivid high-quality video, making it easier to view and monitor footage. With the included D-ViewCam™ 32-channel recording software, the DCS-5615 provides a complete solution for high-quality live viewing and reliable recording. The camera also has a built-in microSD card slot which can be used for local backup by storing important events on an easily retrievable microSD card1.

Multiple Video Streams

The DCS-5615 supports simultaneous streaming of H.264, MPEG-4, and MJPEG video to provide both high-quality and bandwidth-efficient compression formats. H.264 produces a small file size, making it useful for extended recording with a high level of detail or for use in low bandwidth networks. MJPEG delivers excellent file integrity, ideal for situations which require extensive image detail. Additionally, the DCS-5615 supports multicast H.264 streaming, allowing users to view the camera feed by subscribing to a multicast IP address on the network.

Sharp Image Monitoring from Different Angles

With accurate, responsive pan/tilt movement and digital zoom, the DCS-5615 gives you full control, so you can quickly scan a wide area from a variety of angles and 16x digital zoom lets you zoom in on specific areas for more detail. The DCS-5615 can also be set to automatically move to specific preset positions, allowing the camera to patrol particular areas of interest within a surveillance area.

Flexible Connectivity

The DCS-5615 includes an input port for connectivity to external devices such as IR sensors, switches, and alarm relays. The DCS-5615 also incorporates Power over Ethernet (PoE), allowing it to be easily installed in a variety of locations without the need for supplemental power cabling.

Tamper-proof

Tamper-proof features make the DCS-5615 camera suitable for tamper‑prone locations such as transportation hubs, schools or correctional facilities. The electronic tamper detection system can sense whenever the camera has been redirected, de-focused, blocked or spray-painted, and respond promptly with a visible or audible alarm.

D-ViewCam™ for Management

The included D-Link D-ViewCam™ is sophisticated software which allows users to manage up to 32 network cameras, set e-mail alert notifications, create recording schedules, and use motion detection to record important events directly to a hard drive. D-ViewCam™ also allows users to upload a floor plan to create a realistic layout of the premises where the cameras are located, further simplifying the management process.

1. MicroSD card not included

Related Products

Gigabit Smart+ Managed Switches
DGS-1210-10, DGS-1210-10P, DGS-1210-10MP, DGS-1210-20, DGS-1210-26, DGS-1210-28, DGS-1210-28P, DGS-1210-28MP (Max PoE), DGS-1210-52, DGS-1210-52P, DGS-1210-52MP (Max PoE)
Find out more
Gigabit Stackable Smart Managed Switches
DGS-1510-20, DGS-1510-28, DGS-1510-28X, DGS-1510-28P, DGS-1510-28XMP, DGS-1510-52, DGS-1510-52X, DGS-1510-52XMP
Find out more
Outdoor Full HD Vandal-Resistant Mini Fixed Dome Network Camera
DCS-6210
Find out more
HD PoE Mini Dome Cloud Camera
DCS-6004L
Find out more
2-Bay Professional Network Video Recorder
DNR-326
Find out more

Technical Specifications

Functions & Features

Features

Camera

  • 1/2.7” Full HD progressive 2 megapixel CMOS sensor
  • Fixed lens 4mm, F1.5
  • Tamper detection
  • Advanced event management
  • Advanced web user interface

Video & Audio

  • Real-time H.264/MPEG-4/MJPEG
  • Max. resolution:
    • 1920 x 1080 at 15 fps
    • 1280 x 720 at 30 fps
  • Three simultaneous streams
  • Built-in microphone
  • Motion detection
  • Privacy mask

Flexible Surveillance

  • Record continuously, based on event triggers, or according to a schedule
  • Pan & tilt manually or define points of interest for automated monitoring
  • Onboard microSD slot for direct recording or as a backup in the event of network link failure1
  • Manage up to 32 cameras using the included D-ViewCam™ software

Technical Specifications

Camera

Hardware profile

  • 1/2.7 ” Full HD progressive 2 megapixel CMOS sensor
  • Fixed lens 4mm
  • Aperture F1.5
  • 16 x Digital Zoom
  • Minimum illumination 0.12 lux
  • Minimum Object Distance 40 cm
  • Angle of view:
    • (H) 77.4°
    • (V) 45.1°
    • (D) 88°

Pan & Tilt

  • Pan/Tilt range
    • Pan range: 360° (-180 to 180)°
    • Tilt range: 80° (10 to 90°)
  • Pan/Tilt speed:
    • Pan speed: 101°/second
    • Tilt speed: 101°/second

Image Features

  • Configurable image size, quality, and bit rate
  • Time stamp and text overlays
  • 3 configurable motion detection windows
  • Flip & mirror
  • Configurable white balance, shutter speed, brightness, saturation, contrast, sharpness

Video Compression

  • H.264/MPEG4/MJPEG simultaneous format compression
  • JPEG for still image
  • H.264/MPEG-4 multicast streaming

Video Resolution

  • 1920 x 1080 at 15 fps
  • 1600 x 904 at 20 fps
  • 1360 x 768 at 25 fps
  • 1280 x 720 at 30 fps
  • 640 x 480 at 30 fps
  • 384 x 216 at 30 fps
  • 176 x 144 at 30 fps

Audio Support

  • GSM-AMR
  • G.711
  • MPEG-4 AAC

External Device Interface

  • DI for external sensor and alarm

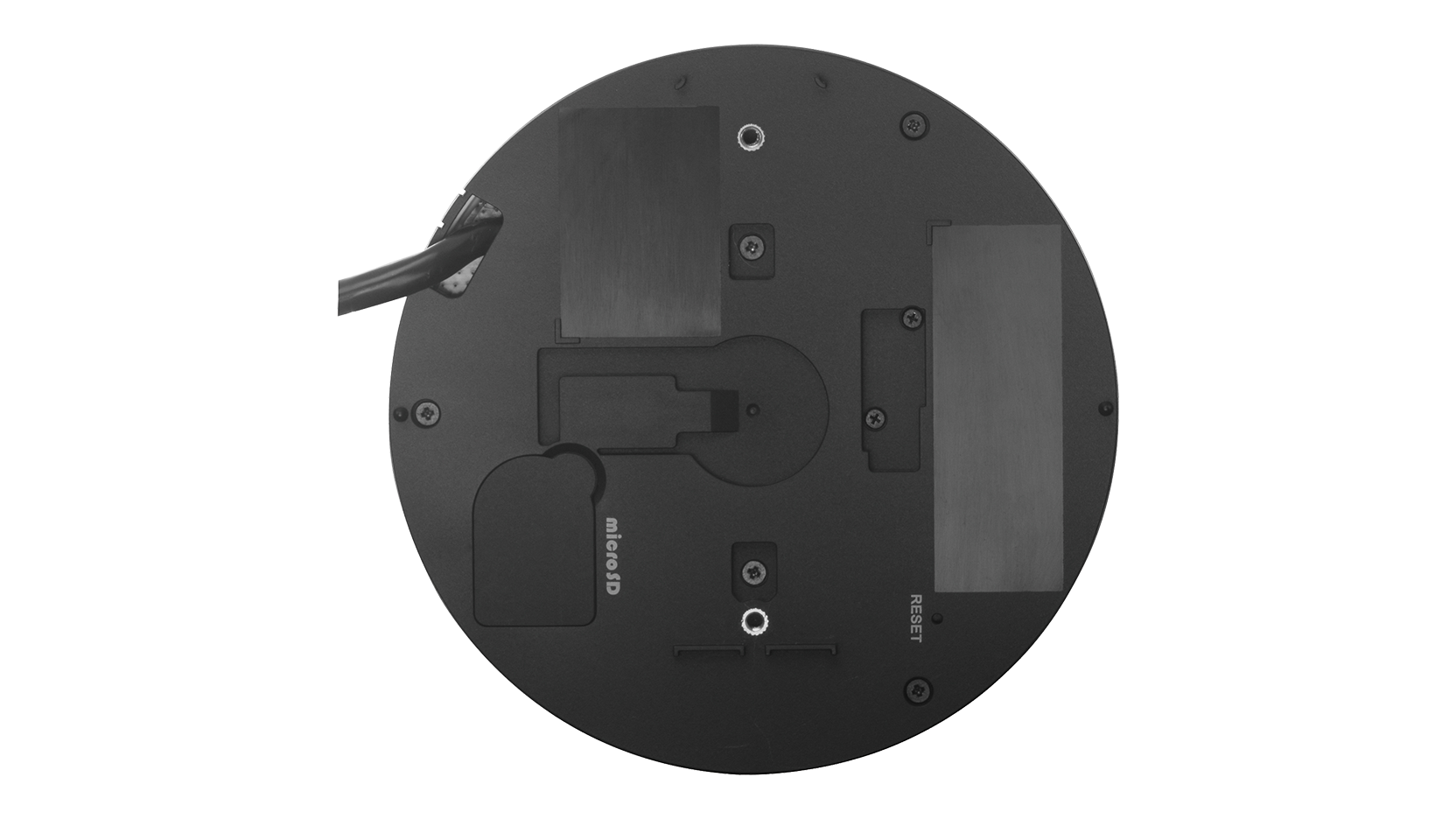

  • microSD card slot1
  • 10/100 BASE-TX Ethernet port with PoE
  • 12V DC jack

Network

Network Protocols

  • IPv4
  • IPv6
  • TCP/IP
  • UDP
  • ICMP
  • DHCP Client
  • NTP Client (D-Link)
  • DNS Client
  • DDNS Client (D-Link)
  • SMTP Client
  • FTP Client
  • HTTP/HTTPS
  • Samba Client
  • PPPoE
  • UPnP Port Forwarding
  • RTP/RTSP/RTCP
  • IP filtering
  • LLTD
  • CoS/QoS
  • SNMP
  • IGMP
  • 802.1x

Security

  • Administrator and user group protection
  • Password authentication
  • HTTPS streaming
  • Remote client access control

System Integration

System Requirements

  • Operating system: Microsoft Windows 7, Vista, XP, 2000
  • Browser: Internet Explorer 7 or higher

D-ViewCam™ System Requirements for Web Interface

  • Operating System: Microsoft Windows 7, Vista, XP
  • Web Browser: Internet Explorer 7 or higher
  • Protocol: Standard TCP/IP

Event Management

  • Motion detection
  • Tamper detection
  • Event notification and upload snapshots/video clips via HTTP, SMTP or FTP
  • Multiple event notification
  • Multiple recording methods for easy backup
  • Supports multiple HTTP, SMTP and FTP servers

Remote Management

  • Take snapshots/video clips and save to local hard drive via web browser
  • Configuration accessible via web browser

Surveillance Software Function

  • Supports all management functions provided in web interface
  • Scheduled motion triggered, or manual recording options
  • Remote management/control of up to 32 cameras
  • Viewing of up to 32 cameras on one screen

General

Power

  • 12 V DC 1.5 A, 50/60 Hz, IEEE 802.3af PoE

Max. Power Consumption

  • 5.8 W
  • PoE (DC 48V) 5.8 W

Operating Temperature

  • 0 to 40 ˚C (32 to 104 ˚F)

Storage Temperature

  • -20 to 70 ˚C (-4 to 158 ˚F)

Humidity

  • 90% non-condensing
  • Storage: 5% to 95% non-condensing

Weight

  • 210 g (0.46 lbs)

Certifications

  • CE (Class A)
  • CE LVD (EN60965-1)
  • FCC (Class A)
  • ICES-003
  • C-Tick

Dimensions

  • Ø116.34 x 56.7 mm

1. MicroSD card not included
