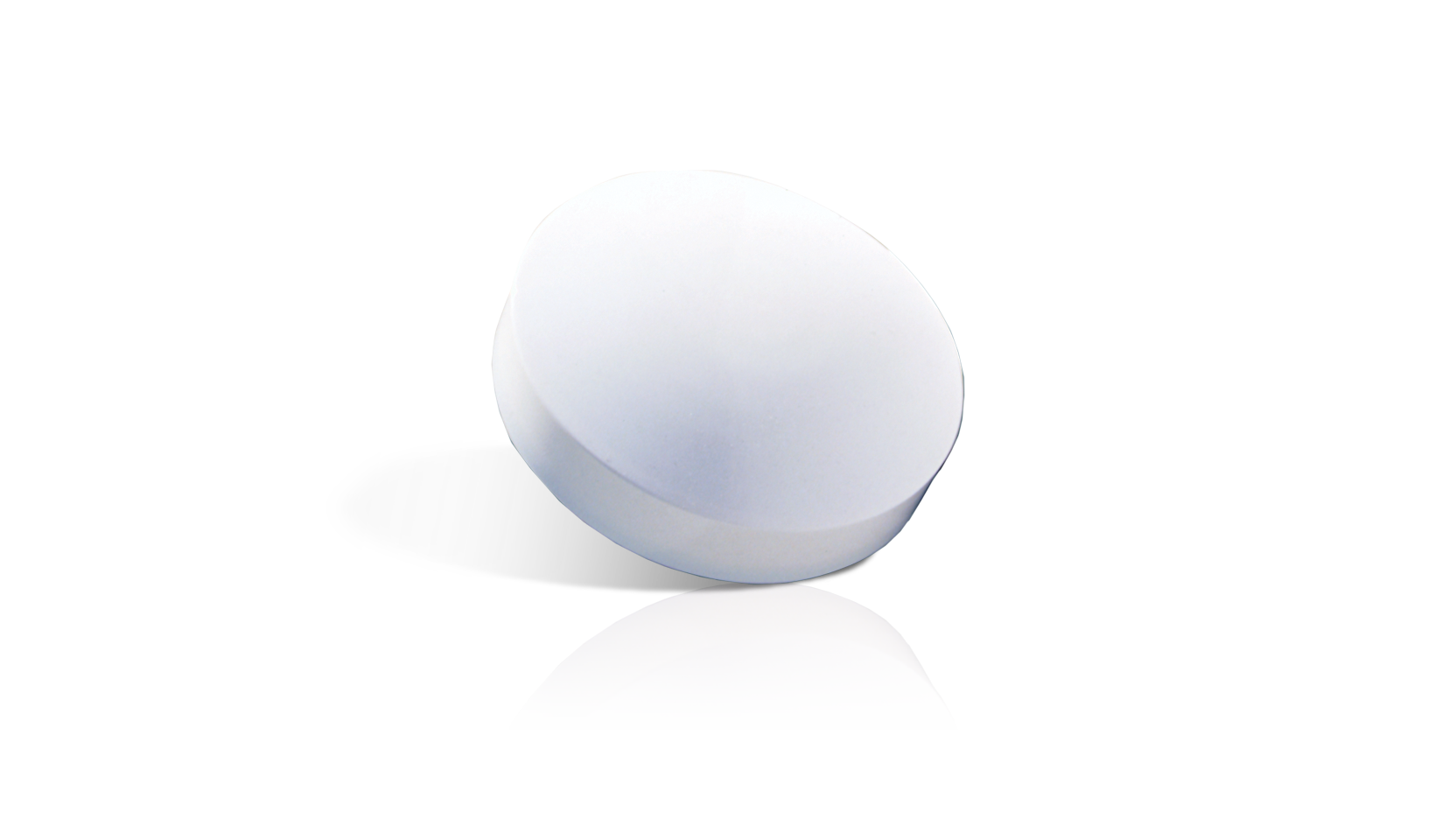

Indoor 4dBi Omni-Directional Ceiling Antenna

ANT24-0401

  • Product Status: Phased Out

Technical Specifications

Electrical Specification

Frequency range
  •  2400 MHz - 2500 MHz
Gain
  •  3.5 dBi
VSWR
  •  1.8 : 1 Max.
Polarization
  • Linear, vertical

HPBW / horizontal

  •  360
Downtilt
  • 40
HPBW / vertical
  •  63 (each lobe,2 lobes)
Power handling
  •  20 W (cw)
Impedance
  •  50 Ohms
Connector
  •  SMA female
Version
  • 1.0

Environmental & Mechanical Characteristics

Temperature

  • - 40o C to +80o C
Humidity
  •  100% @ 25oC
Lightning protection
  •  DC ground
Radome color
  •  White
Radome material
  •  ABS
Weight
  •  100 gw
Dimensions
  •  132 x 42 mm

FAQ

  • What is the maximum recommended length of cable that can be used with 2.4GHz antennas? Read Answer
  • My router or access point has two antennas which antenna connection should I connect my external antenna to? Read Answer
  • How do I mount this antenna? Read Answer
  • Can wireless antennas for IEEE 802.11b be used with IEEE 802.11g products? Read Answer
