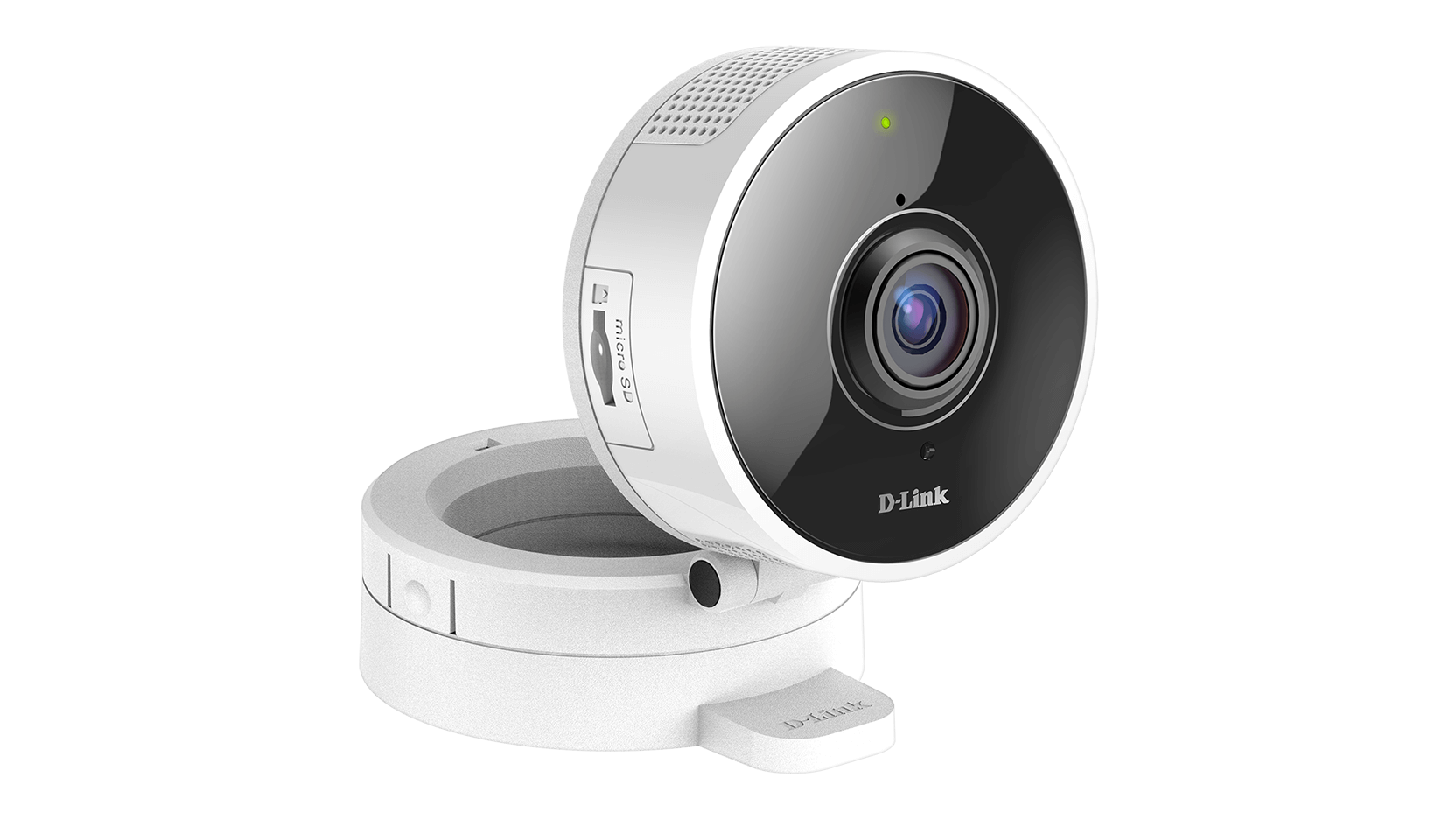

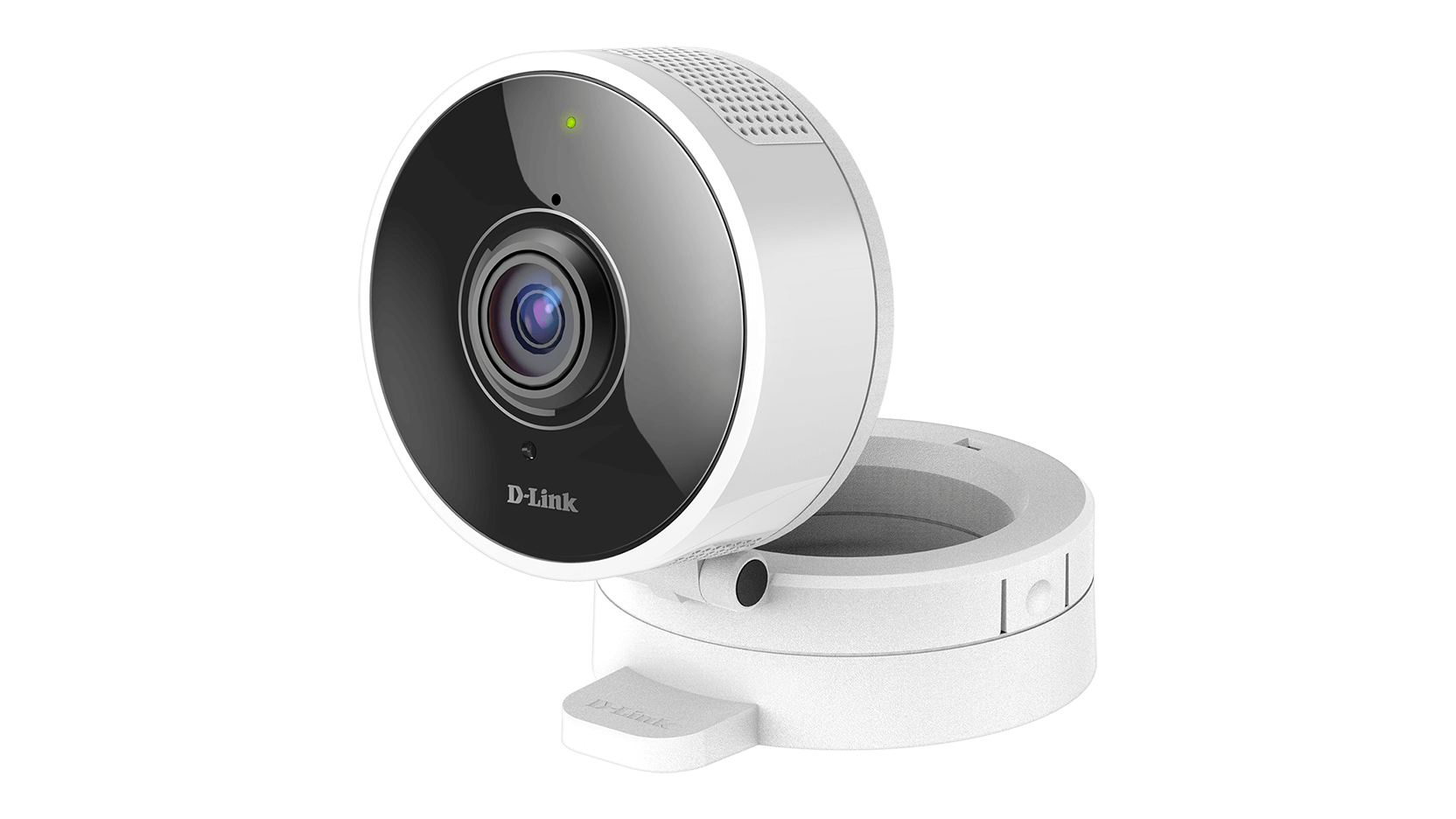

HD 180 Degree Wi-Fi Camera

DCS-8100LH

  • Product Status: Live
The HD 180 Degree Wi-Fi Camera allows you to monitor, day or night, whether you are at home or away. Built-in night vision together with motion and sound detection, alerts you instantly when something unexpected happens, giving you extra peace of mind with the latest in home security cameras.
List Retailers

Your Home, only Smarter.

The HD 180 Degree Wi-Fi Camera allows you to monitor, day or night, whether you are at home or away. Built-in night vision together with motion and sound detection, alerts you instantly when something unexpected happens, giving you extra peace of mind with the latest in home secuirty cameras.

Key Features

Wide Field of Vision

A panoramic 180 degree field of vision

Two-Way Audio

Listen and talk through your mobile device

Compact Size

Our smallest camera allows for discreet placement

High Definition Clarity

720p HD quality video

Day & Night

See up to 5 metres in the dark

Sound and Motion Detection

Instant alert notifications

Video Recording

Save live view video clips to your mobile device

Remote Access

View from anywhere for free with the mydlink app

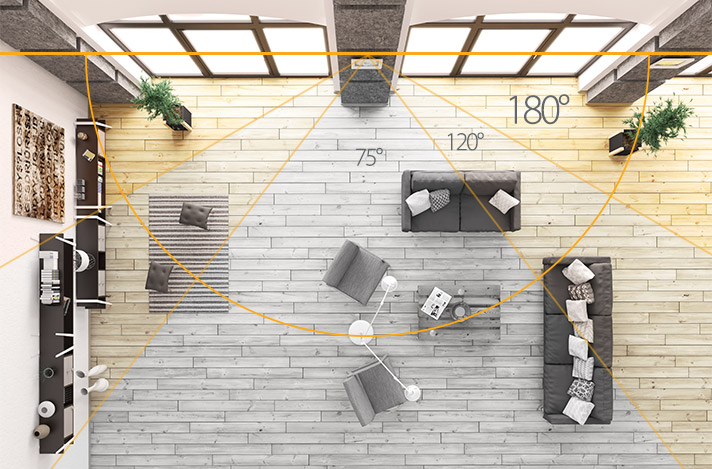

See it all with a 180-Degree Wide-Angle Lens

D-Link’s unique 180-degree technology allow you to see just about everywhere and everything. Compared to conventional network cameras the HD 180 Degree Wi-Fi Camera offers the advantage of being able to view an entire room without a blind spot. You can also zoom in at 4x with the digital pinch-to-zoom function.

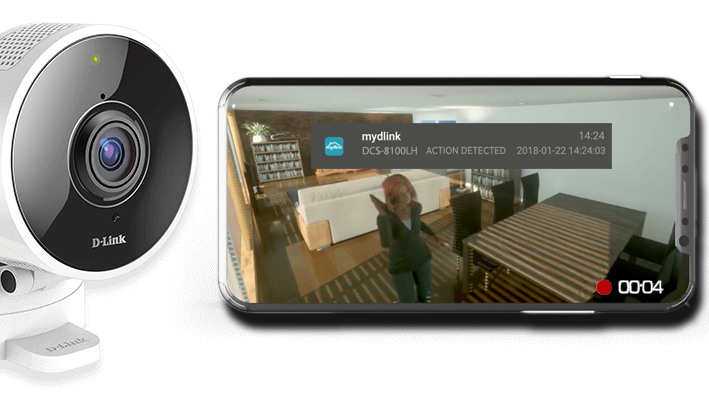

Alerts

Receive alerts immediately on your smartphone or tablet when motion or sound is detected.

Night Vision

See your home, even in complete darkness, so that you know what’s happening at home 24/7 with built-in infrared LED.

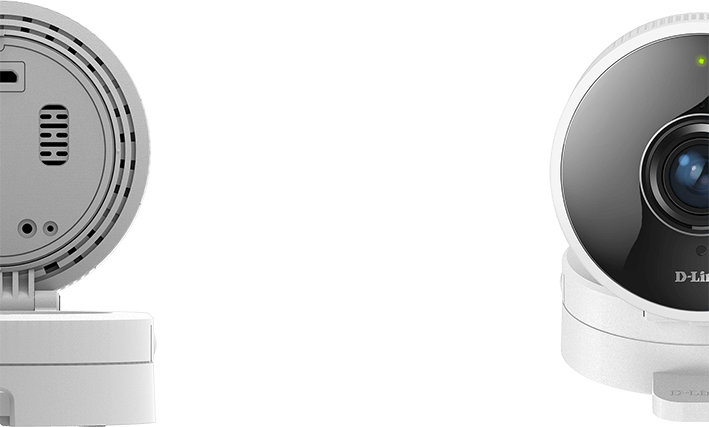

Two-Way Audio

The DCS-8100LH features two-way audio so you can talk to family members using the built-in microphone and speaker while viewing them on your screen.

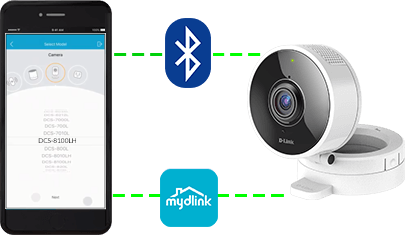

Simple Setup

Setting up the camera quick and easy with the mydlink Lite app. Simply download and install the app on your smartphone or tablet and follow the step-by-step instructions. You can also set up the camera using Bluetooth.

Peace of Mind, Wherever You Are with mydlink

With the mydlink Lite app or through the mydlink web portal, you can easily monitor your home and look after what’s important to you, while you are away. Receive notifications and check-in on those you love at any time. You can even record precious moments directly onto your phone through the mydlink Lite app.


iTunes App Store Google Play Store

Related Products

Mini HD WiFi Camera
DCS-8000LH
Find out more
HD 180 Panoramic Camera
DCS-960L
Find out more
Wide Eye Full HD 180° Panoramic Camera
DCS-2530L
Find out more
HD Wi-Fi Camera
DCS-936L
Find out more

Technical Specifications

Technical Specifications

Camera

Camera Hardware Profile

  • 1/2.7” 1-megapixel progressive CMOS sensor
  • Minimum illumination:
    • B/W mode (LEDs on): 0 lux
  • Minimum object distance: 50 cm
  • Lens focal length: 1.8 mm
  • Aperture: F2.2
  • 5 metre  IR illumination distance
  • Angle of view:
    • Horizontal: 180°
    • Vertical: 80°
    • Diagonal: 180°
  • Built-in Infrared-Cut Removable (ICR) Filter
  • Built-in microphone and speaker

Image Features

  • 4x Digital zoom
  • Configurable sound detection level
  • Time stamp and text overlay
  • Configurable resolution
  • Configurable motion detection windows

Video Compression

  • H.264 / MJPEG format compression
  • H.264 streaming
  • JPEG for still images

Video Resolution

  • 1280 x 720 at up to 30 fps

Audio Support

  • AAC (32 kbps)

Connectivity

  • 802.11n/g/b wireless with WPA/WPA2 encryption
  • microSD card slot

Network Protocols

  • IPv4, IPv6, ARP, TCP, UDP, ICMP
  • DHCP client
  • RTP/RTSP
  • MPEG2.TS

Features

Event Management

  • Motion detection
  • Sound level detection
  • Event recording to an SD card2
  • Event notification and snapshot/video clip download to mobile device

Mobile Support

  • mydlink Lite mobile app for iPhone, iPad, iPod touch, and Android devices1,3

Physical

Weight

  • 155.3 grams (5.48 ounces) ± 5%

Power Adapter

  • Input: 100 to 240 V AC, 50/60 Hz
  • Output: 5 V DC 2 A (Micro-USB)

Power Consumption

  • Maximum:  7.8 watts ± 5%

Temperature

  • Operating: 0 to 40 °C (32 to 104 °F)
  • Storage: -20 to 70 °C (-4 to 158 °F)

Humidity

  • Operating: 20% to 80% non-condensing

Certifications

  • CE
  • CE LVD
  • FCC
  • ICES
  • RCM

1. Smartphone or tablet must have access to the Internet via Wi-Fi or mobile Internet.
2. Use of audio or video equipment for recording the image or audio of a person without their knowledge and consent is prohibited in certain countries or jurisdictions. The end-user assumes all liability for compliance with applicable local laws.
3. Please refer to the mobile app’s store page to check whether your device is compatible.
