2-Megapixel Panoramic Wireless Cloud Camera

DCS-6010L

  • Product Status: Phased Out

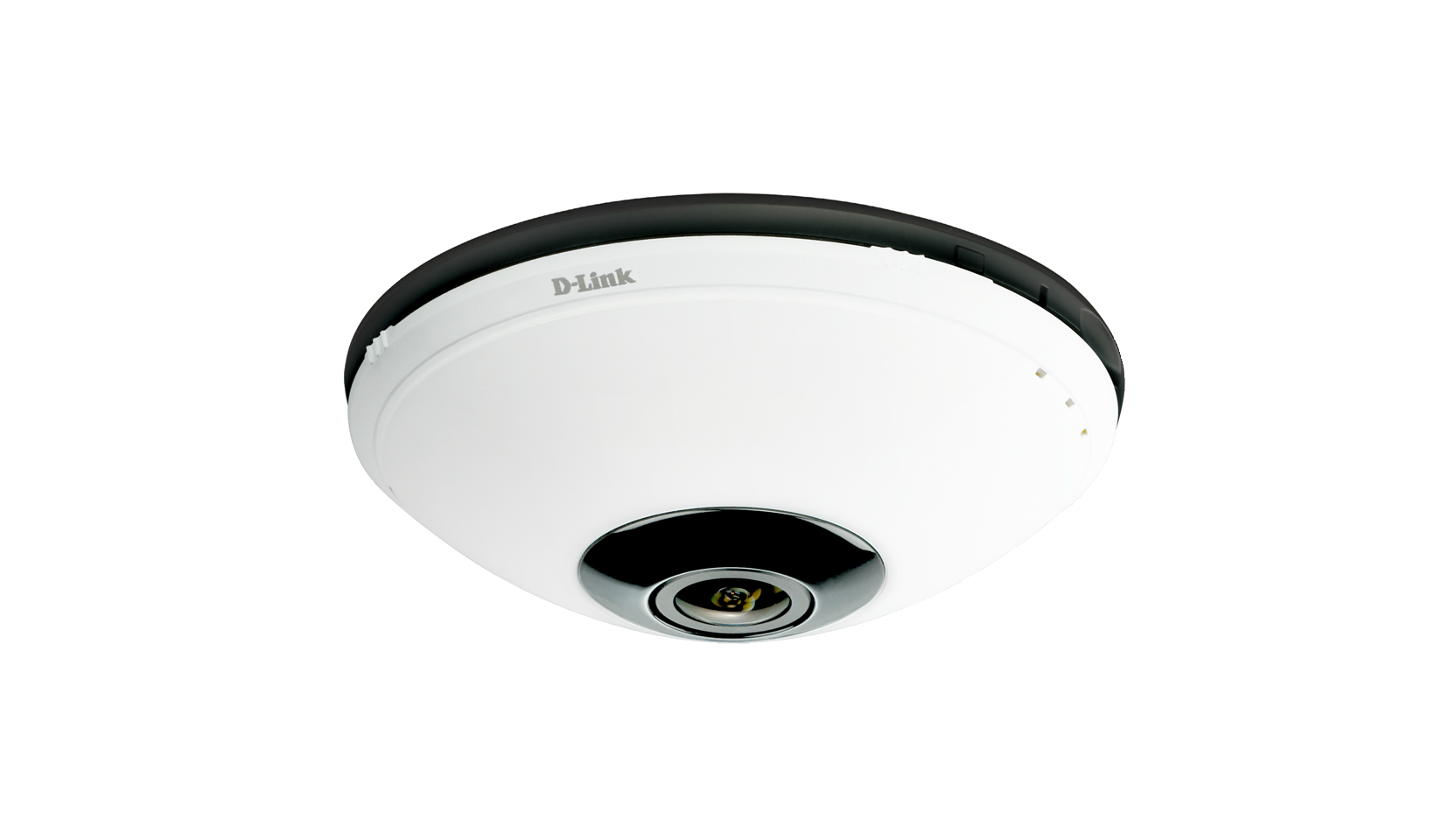

The DCS-6010L 2-Megapixel Panoramic Wireless Cloud Camera is a mydlink™-enabled IP Surveillance camera built with a fisheye lens and a 2 megapixel sensor, making it ideal for monitoring large areas with a single camera.

Download the datasheet.

List Retailers

The DCS-6010L 2-Megapixel Panoramic Wireless Cloud Camera is a Cloud-enabled IP Surveillance camera built with a fisheye lens and a 2 megapixel sensor, making it ideal for monitoring large areas with a single camera.

360 Degree Surveillance

The DCS-6010L uses a fisheye lens to provide incredible wide angle coverage; simply place it on a wall for a panoramic 180° view of a room, or place it on a ceiling for a full 360° view without blind spots. Distortion correction fixes the camera video so you can use ePTZ to zoom in, zoom out, and pan across your camera’s video and survey a large area easily.

Anywhere Access with mydlink™

The 2-Megapixel Panoramic Wireless Cloud Camera is mydlink™-enabled, which means that you can access and configure your camera remotely, no matter where you are. Using the free mydlink™ mobile app for iOS and Android smartphones and tablets, you can connect and setup your mydlink™ camera without the need of a computer. A step-by-step guide has your camera up and running in a matter of minutes. Through the mydlink™ mobile app, you can set up a free mydlink™ account allowing you to view and manage your camera from any Internet connected computer. If you have more than one camera, you can add it to your existing mydlink™ account and watch all your cameras from a single location. See your camera’s live view through the mydlink™ website, or download the mydlink™ mobile app and view your camera directly on your iOS or Android mobile device. You can even talk back through the app with 2-way audio support. Keep an eye on your home while you’re at work, or check on the office when you’re out on the road; mydlink™ makes it all possible.

Zero Configuration

If you have a mydlink™-enabled Cloud Router, setting up and configuring your DCS-6010L is a snap, thanks to mydlink™ Zero Configuration. Simply connect your camera to its power adapter and then connect your camera to your Cloud Router with an Ethernet cable - the camera will automatically be added to your account. mydlink™ does the hard work for you, allowing users to set up and use their Cloud-enabled cameras immediately.

Open Network Video Interface Forum (ONVIF) Profile S compliant

The Open Network Video Interface Forum (ONVIF) is standards relating to open IP video networking. The DCS-6010L is ONVIF Profile S compliant and therefore interoperable with other manufacturer’s products on the same network such as cameras, storage systems, video analytics products and Video Management Systems. For more information on ONVIF and compatible D-Link network cameras, please click here.


Centralised management with D-ViewCam™

The included D-Link D-ViewCam™ (DCS-100) is a sophisticated video management software which enables you to manage up to 32 network cameras, set e-mail alert notifications, create recording schedules, and trigger motion detection to record directly to your hard drive or network folder. D-ViewCam™ also allows you to upload a floor plan of your premises, and create a realistic layout according to the locations of your cameras, further simplifying the management process.

Product Awards

German Design Award

Technical Specifications

Camera Hardware Profile
  • 1/3.2” 2 megapixel progressive CMOS sensor
  • Minimum illumination: 2 lux
  • Built-in microphone and speaker
  • 10x digital zoom
  • Focal length: 1.25 mm
  • Aperture: F2.0
Angle of view
  • (H) 180°
  • (V) 180°
  • (D) 180°
Image Features
  • Configurable image size, quality, frame rate, and bit rate
  • Fisheye distortion correction
  • Time stamp and text overlays
  • Configurable brightness, saturation, contrast,and sharpness
  • Configurable motion detection windows
Video Compression
  • Simultaneous H.264/MPEG-4/MJPEG format compression
  • H.264/MPEG-4 multicast streaming
  • JPEG for still images
Video Resolution
  • 1600 x 1200, 1200 x 900, 800 x 600, 400 x 300 up to 15 fps recording1
Audio Support
  • G.726
  • G.711
External Device Interface
  • 10/100 BASE-TX Fast Ethernet port
  • 802.11n wireless

FAQ

  • How do I change the storage location in D ViewCam v3 x Read Answer
  • How do I setup the D ViewCam Mobile app with a PC running D ViewCam Read Answer
How to install and use the Mydlink Lite app on your iPhone/iPad
How to remove a camera from your Mydlink account
How to Log into a Mydlink camera
How to Setup and Install a Mydlink camera
How to configure time on a Mydlink camera
How to record to the SD card on a Mydlink camera
How to configure Motion Detection on a Mydlink camera
This product was phased out on: 5.4.2017
Version Date Type File Size
Datasheet - PDF 1.98mb Download
IP Surveillance Product Guide - PDF 3.58mb Download
Version Description Date Type File Size
Manual Manual 6.6.2012 PDF 8.94mb Download
Version Description Date Type File Size
1.00 Quick Installation Guide 27.6.2012 PDF 2.06mb Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date
1.15.03

Release notes included

15.11.2016 Download
1.14.00

Release notes included

16.10.2015 Download
Firmware Release notes included 1.13.00

Firmware
Release notes included

6.10.2015 Download
Firmware Release notes included 1.12.02

Firmware
Release notes included

15.5.2015 Download
Version Description Date
Setup Wizard You can find the latest version of the Setup Wizard on the Mydlink Download page. Click Download to go there now.
Make sure to select the correct model and version.
13.1.2016 Download
D-ViewCam 3.60 + Device Pack 3.60

D-ViewCam 3.60 + Device Pack 1.5.4

18.2.2014 Download
Device Pack 1.5.4

Device Pack

18.2.2014 Download
Version Description Date
DNR_2020_04P_Cam_Support_list DNR-2020-04P Camera Support List 22.9.2016 Download
DEU_IP_Surveillance_Cheat_Sheet - 6.6.2014 Download
How_to_enable_Java_on_Mac_OS_X_for_mydlink How to enable Java on Mac OS X for mydlink 12.8.2013 Download
Declaration of conformity Declaration of conformity 14.8.2012 Download
