11g Enterprise Managed Wireless AP with PoE

DWL-3200AP

  • Product Status: Phased Out

The DWL-3200AP is a Wi-Fi certified 802.11g wireless Access Point with PoE, ideal for indoor deployment in business-class environments.


Download the datasheet.

List Retailers

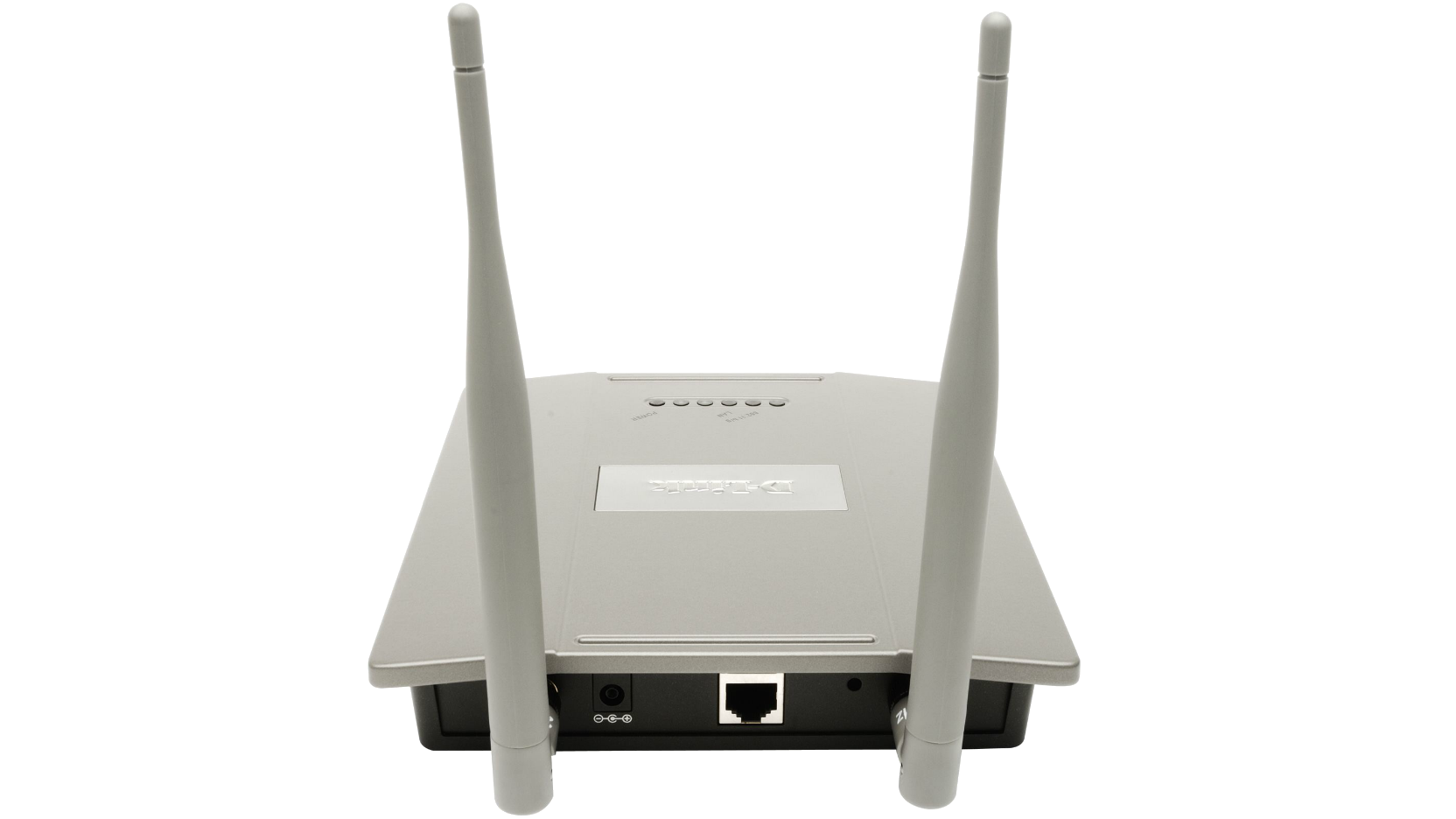

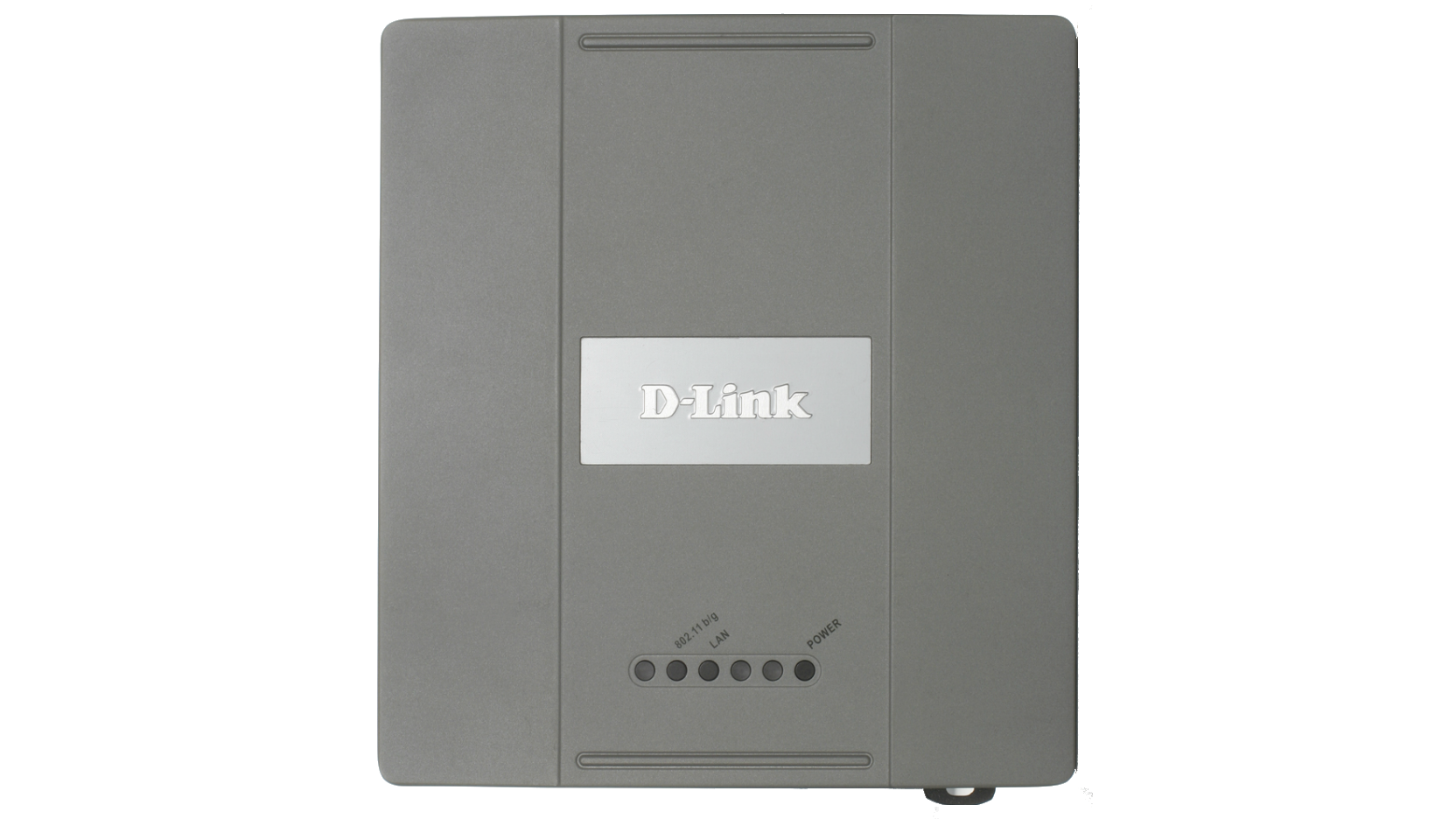

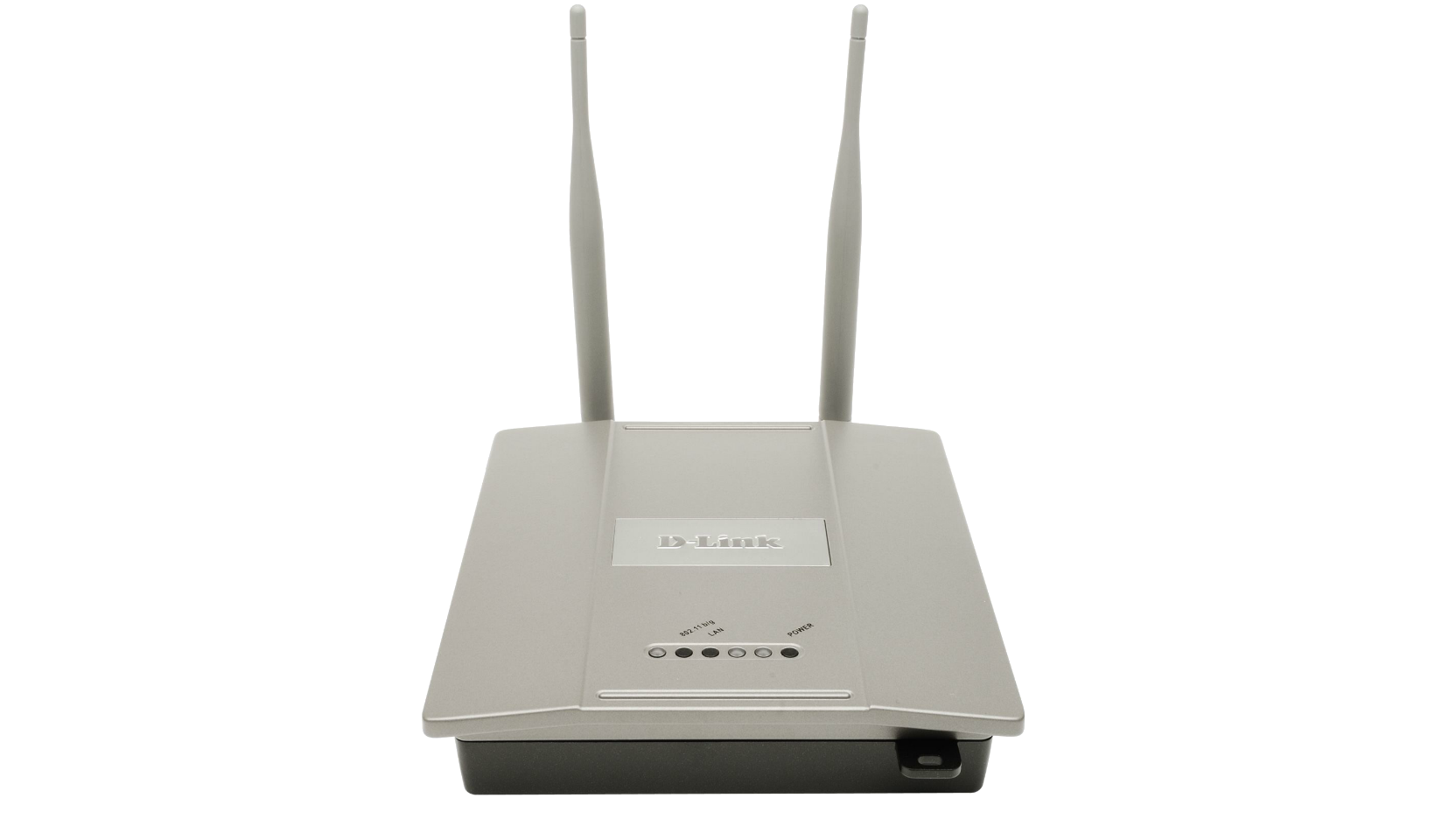

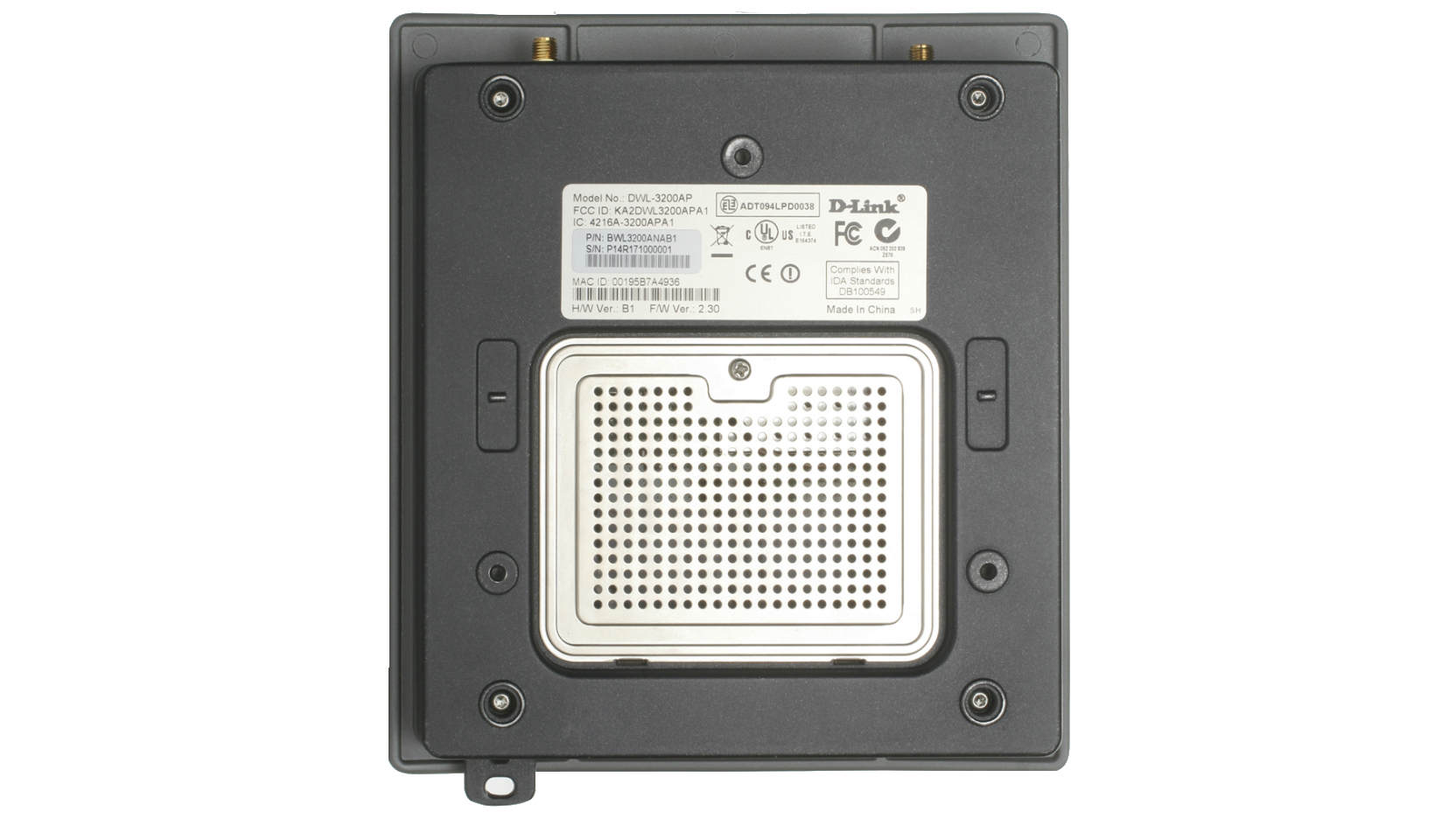

The D-Link AirPremier DWL-3200AP is a powerful and reliable wireless Access Point for business-class enterprise environments. Designed for indoor installation, this access point provides secure options for network administrators to deploy a highly manageable and extremely robust wireless network. This access point supports Power over Ethernet (PoE) and provides two high-gain antennae for optimal wireless coverage.



Solid Hardware with PoE support

Enclosed in a sturdy metal chassis, the DWL-3200AP passed the strict UL 2043 testing, achieving “Plenum Rating” with its material which has been proven as fire-resistant and would furthermore produce low levels of smoke if the occasion were to arise.

For installations in areas where power outlets are not readily available, the access point integrates 802.3af Power over Ethernet (PoE), to ensure flexibility and easy set-up.





Up to 108Mbps Wireless Speed

The DWL-3200AP delivers extremely reliable wireless performance with standard 802.11g wireless throughput rates of up to 54Mbps. It has the added capability of reaching maximum wireless signal rates of up to 108Mbps (Turbo mode) powered by D-Link 108G technology*. At the same time, the DWL-3200AP remains fully compatible with the IEEE 802.11b and 802.11g standards.



Advanced Wireless Security

The DWL-3200AP provides industrial grade wireless security by supporting both WPA and WPA2-Enterprise as well as 802.1X to ensure complete network protection. MAC-address filtering is also possible.



WDS (Wireless Distribution System) Support

To maximize total return on investment, the DWL-3200AP can be configured to operate as an access point (AP mode), a point-to-point bridge or a

point-to-multipoint bridge (WDS mode). In the WDS mode, the DWL-3200AP only communicates with other wireless bridges, without allowing wireless clients or stations to access them.



Cost Saving and Increased Network Flexibility

The DWL-3200AP supports multiple SSIDs, allowing you to logically divide your access point into several virtual access points, all within a single hardware platform. For instance, you can enable encryption and authentication on one SSID to protect private applications and opt to not enable security on another SSID to maximize open connectivity for public usage.

With multiple SSIDs, the number of physical APs deployed may be reduced, minimizing interference and keeping costs down.

In addition, the number of users associated to a particular SSID may be capped, providing a form of bandwidth control for particular applications.

Advanced Network Management

Network administrators can manage all the DWL-3200AP's settings via its web-based configuration utility or with Telnet. D-Link's AP Manager or D-View SNMP management module may also be used to configure and manage multiple access points from a single location. In addition to a streamlined

management process, network administrators can also verify and conduct regular maintenance checks without wasting resources by sending personnel out to physically test that the device is functioning correctly.

Utseendet på produkten kan eventuellt avvika i jämförelse med bilden på den här sidan.

Related Products

Wireless N PoE Access Point
DAP-2360
Find out more

Technical Specifications

Hardware
• Sturdy Plenum rated Metal Chassis
• Built-in 802.3af Power over Ethernet (PoE)
• Two detachable high-gain antennae
• Power over Ethernet (PoE) Base Unit provided
• Locking Brackets included

Operation Modes
• Access Point
• Point-to-Point bridge
• Point-to-Multipoint bridge

High Performance Connectivity
• 802.11g Wireless Speeds
• Up to 54Mbps Wireless Data Transfer Rates*
• 108Mbps Wireless Speed with D-Link 108G Technology*
* Maximum wireless signal rate based on IEEE standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors may lower actual data throughput rate.

Security
• 64/128/152-bit WEP Data Encryption
• WPA Personal/WPA Enterprise
• WPA2 Personal/WPA2 Enterprise
• 802.1X User Authentication
• AES
• 802.1Q Multiple SSIDs/Network Segmentation
• MAC Address Filtering

Management
• AP Manager
• Web Browser (HTTP)
• Telnet
• SNMP v.3

Version Date Type File Size
Datasheet (English) - PDF 0.89mb Download
Version Description Date Type File Size
Manual (English) Manual (English) - PDF 3.56mb Download
Version Description Date Type File Size
Quick Installation Guide (English) - PDF 0.83mb Download
Version Description Date
Firmware 2.56 rc550 Firmware 2012-04-04 Download
Version Description Date
APManagerfor firmware v2.55-rc515 2.55-r31

AP Manager for firmware v2.55-rc515

2011-12-09 Download
MIB File for AP Manager 2.55 rc515 MIB File for AP Manager II for Firmware
2.55
2010-06-09 Download
D-View Module for Firmware 2.55 2.55 r19 D-View Module for Firmware 2.55 2010-06-07 Download
D-View MIB file for firmware 2.55 rc515 D-View MIB file for firmware 2.55 2010-06-07 Download
Version Description Date
CE Declaration vers B2 - (English, French) CE Declaration vers B2 - (English, French) 2009-09-17 Download
CE Declaration vers B1 CE Declaration vers B1 2008-07-30 Download
DEU_CE_Declaration_3_RevB CE Declaration ver B1 2006-02-24 Download
CE Declaration ver A1 CE Declaration ver A1 2005-03-31 Download
SE_Configure_multi_ssid_with_vlan_RevA How to configure Multi SSID with VLAN - Download
SE_How_to_use_grouping_RevA How to use grouping - Download
SE_why_10_clients_per_AP_RevA Why 10 clients per AP - Download
