Unified Service Router

DSR-1000N

  • Product Status: Phased Out

D-Link’s DSR-1000N Wireless N Dual-Band Unified Service Router is a secure, high performance networking solution to address the growing needs of small and medium businesses. Integrating dual-band Wireless N and mobile 3G support, the DSR-1000N offers comparable performance to traditional wired networks but with fewer limitations.


Download the datasheet.

List Retailers

Integrated services in one box: Dualband Wireless N, firewall, 3G support, bandwidth management all on the same device, to address the networking needs of organisations of up to 50 users.

Powerful VPN Engine: Hardware-based data encryption and authentication to facilitate branch office connectivity through encrypted virtual links.

Professional Intrusion Prevention System (IPS): Automatic updates from a comprehensive IPS signature database focus on attack payloads to protect the network against zero-day attacks.

WAN Link Load-Balancing and Fault-Tolerance: Multiple WAN ports support traffic load balancing and failover, thus guaranteeing Internet availability and bandwidth.

D-Link GreenTM: Power-saving technology that reduces the electricity bills and increases the product’s lifespan.

D-Link’s DSR-1000N Unified Services Router is a secure, high performance networking solution to address the growing needs of small and medium businesses. Integrating dualband Wireless N and mobile 3G support, the DSR-1000N offers comparable performance to traditional wired networks but with fewer limitations. Optimal network security is provided via features such as virtual private network (VPN) tunnels, IP Security (IPSec), Point-to- Point Tunneling Protocol (PPTP), Layer 2 Tunneling Protocol (L2TP), and Secure Sockets Layer (SSL), making it ideal for SMB and branch offices that need a secure, reliable connection to remote resources.

Comprehensive Management Capabilities

The DSR-1000N includes dual-WAN Gigabit Ethernet which provides policy-based service management, ensuring maximum productivity for your business operations. The Outbound Load Balancing feature1 adjusts outgoing traffic across two WAN interfaces and optimises the system performance resulting in high availability. The second WAN port can be configured as a DMZ port allowing you to run isolated servers on your LAN.

Superior Wireless Performance

Designed to deliver superior wireless performance, the DSR-1000N includes Wireless N on either the 2.4 GHz or 5 GHz radio bands. Multiple In Multiple Out (MIMO) technology allows DSR-1000N to provide high data rates with minimal “dead spots” throughout the wireless coverage area.

Flexible Deployment Options

The DSR-1000N supports 3G mobile connectivity via its USB ports2.This capability offers an additional secure data connection for networks that provide critical services. The DSR-1000N can be configured to automatically switch to a 3G network whenever a physical link is lost.

Robust VPN Features

A fully featured virtual private network (VPN) provides your mobile workers and branch offices with a secure link to your resources. Site-to-site VPN tunnels use IP Security (IPSec) Protocol, Point-to-Point Tunneling Protocol (PPTP), or Layer 2 Tunneling Protocol (L2TP) to facilitate branch office connectivity through encrypted virtual links.

Efficient Green Technology

As a concerned member of the global community, D-Link is devoted to providing eco-friendly products, which save power and money while extend the product’s lifespan. The D-Link Green WLAN Scheduler reduces wireless power automatically during off-peak hours. Likewise the D-Link Green Ethernet technology adjusts power usage based on the detected cable length and link status. In addition, compliance with RoHS (Restriction of Hazardous Substances) and WEEE (Waste Electrical and Electronic Equipment) directives make D-Link Green certified devices the environmentally responsible choice

1 Available in next firmware upgrade

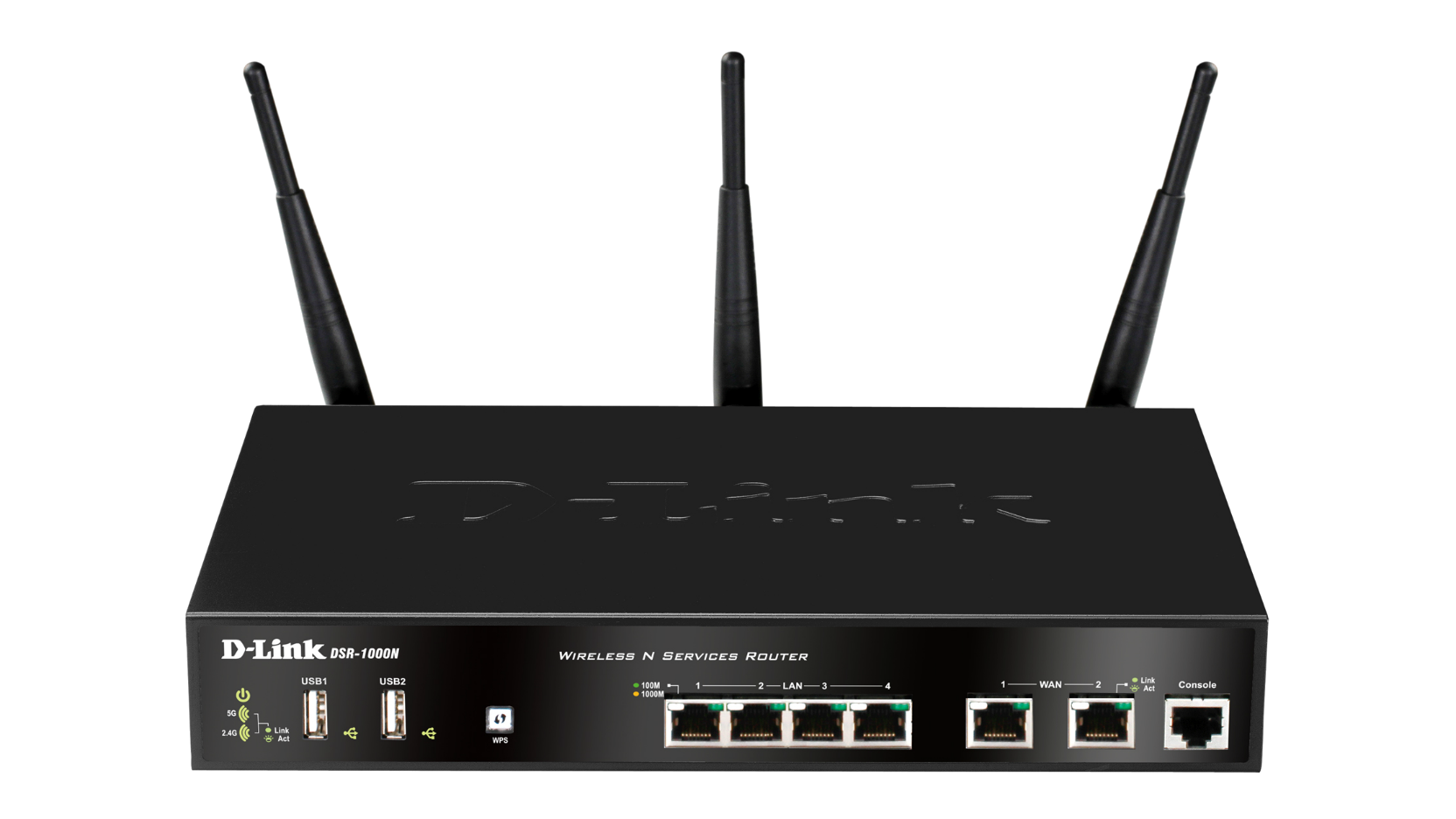

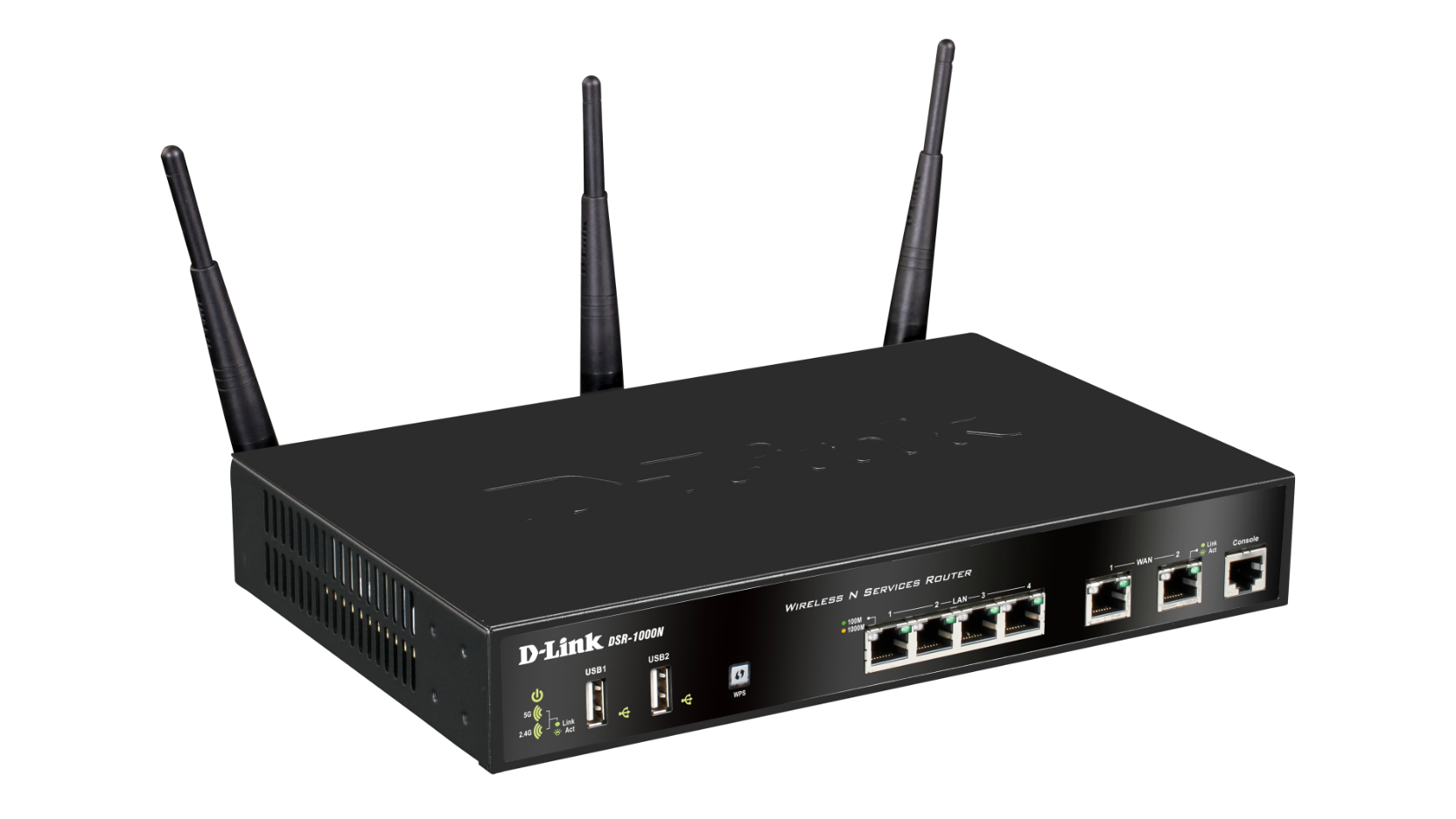

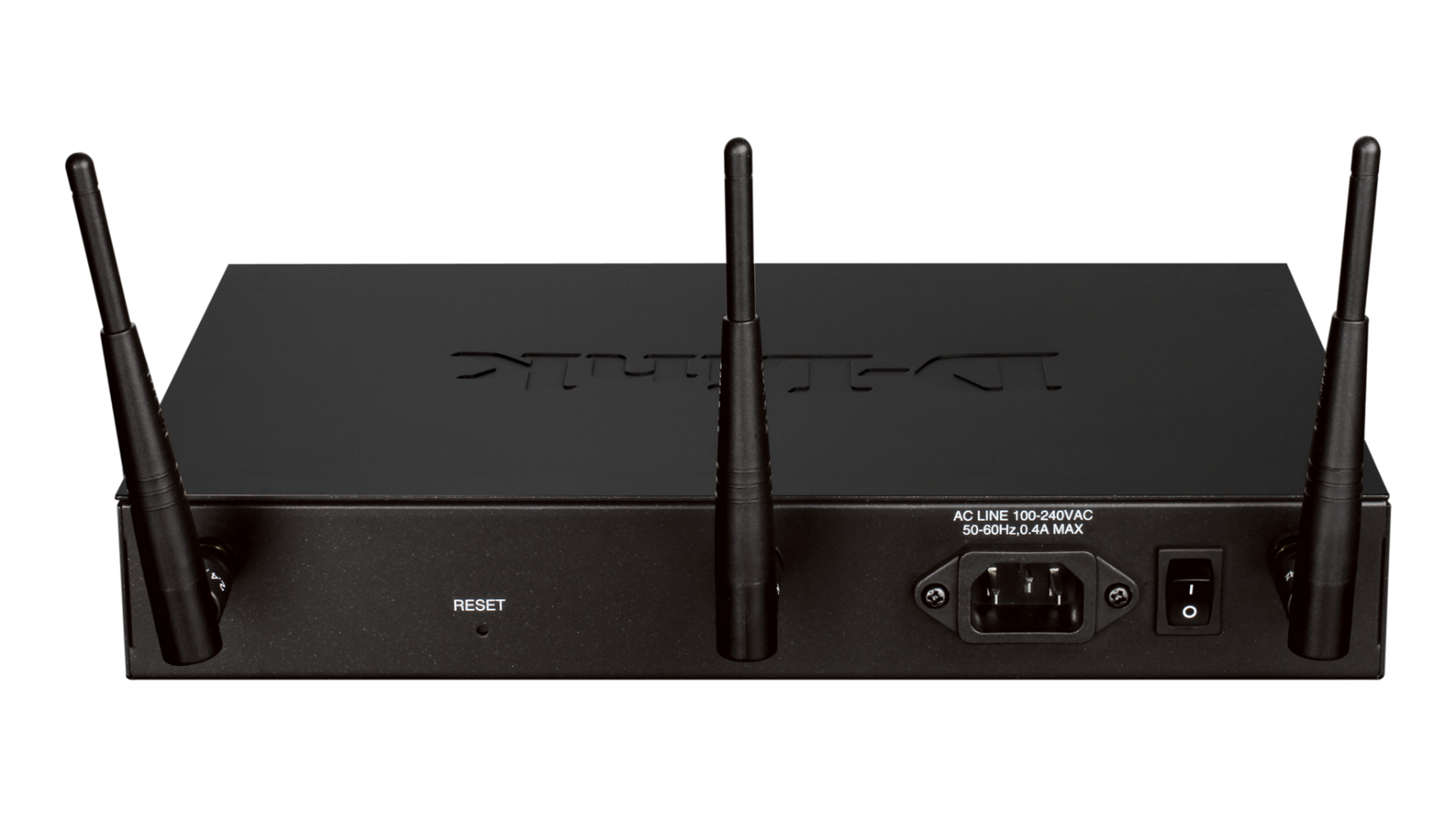

Utseendet på produkten kan eventuellt avvika i jämförelse med bilden på den här sidan.

Wireless VPN Security Router
Find out more
Unified Service Router
Find out more
Unified Services Router
Find out more

Technical Specifications

Interfaces

  •     2x Gigabit WAN Port
  •     4x Gigabit LAN Port
  •     1x RJ-45 (console)
  •     2x USB2.0



 System Performance1

  •     Firewall Throughput2: 130 Mbps
  •     VPN Throughput3: 70 Mbps
  •     Concurrent Sessions: 60,000
  •     New Sessions: 600 per second
  •     Policies: 100 (each feature), 600 (firewall rule)



Internet connection type

  •     Static/Dynamic IP
  •     PPoE/Multiple PPoE
  •     L2TP
  •     PPTP



Firewall system

  •     Static route
  •     RIPv1, v2
  •     OSPF4
  •     Dynamic DNS
  •     Inter-VLAN route
  •     NAT, PAT
  •     Web Content Filtering (static URL, keywords)
  •     Intrusion Prevention System (signature package included in firmware)



Networking

  •     DHCP Server/Client
  •     DHCP Relay
  •     IEEE 802.1q VLAN (port-based)
  •     IP multicast
  •     IPv6
  •     Route failover
  •     3G redundancy
  •     Outbound load balancing4



Wireless

  •     802.11a/b/g/n
  •     Multiple SSID
  •     SSID-to-VLAN mapping
  •     WEP/WPA/WPA2 Personal/Enterprise


Virtual Private Network (VPN)

  •     VPN tunnels: 70
  •     Encryption: DES, 3DES, AES, Twofish, Blowfish, CAST-128, NULL
  •     IPSec/PPTP/L2TP servers
  •     IPSec NAT traversal
  •     Dead Peer Detection
  •     IP ESP
  •     IP AH
  •     VPN keep-alive
  •     Hub-and-spoke



SL Virtual Private Network (SSL VPN)

  •     SSL VPN tunnels: 20
  •     SSL encryption: DES, 3DES, AES
  •     SSL Message Integrity: MD5, SHA1
  •     Advanced IDP/IPS Subscription



Bandwidth management

  •     Maximum bandwidth limitation
  •     Bandwidth control (3 classes, port-based QoS)



System management

  •     Web-based user interface (HTTP, HTTPS)
  •     Command line
  •     SNMP v1, v2c, v3


Physical & Environmental

  •     Internal Power Supply (12VDC, 2.5A)
  •     Dimensions: 180 x 280 x 44 mm (11” Rack-Mount)
  •     Operating Temperature: 0° to 40° C
  •     Storage Temperature: -20° to 70° C
  •     Operating Humidity: 5% to 95% non-condensing
  •     EMI: FCC Class A, CE Class A, C-Tick, VCCI
  •     Safety: UL LVD (EN60950-1)
  •     MTBF: 260,000 hours


1 Actual performance may vary depending on network conditions and activated services.
2 The maximum Firewall plaintext throughput is based on RFC2544 testing methodologies.
3 VPN throughput is measured using UDP traffic at 1420 byte packet size adhering to RFC 2544.
4 Available with next firmware update.
