Wireless AC750 Dual-Band VDSL/ADSL Modem Router

DSL-3682

Share

The DSL-3682 Wireless AC750 Dual-Band VDSL/ADSL Modem Router is a versatile, high-performance router for the home and small office. With integrated VDSL, supporting download speeds of up to 100 Mbps, the latest Wireless AC Wi-Fi technology, firewall protection, Quality of Service (QoS) and 4 Fast Ethernet switch ports, the DSL-3682 provides all the functions needed to establish a secure and high-speed connection to the Internet.

Fast and Reliable Home Network

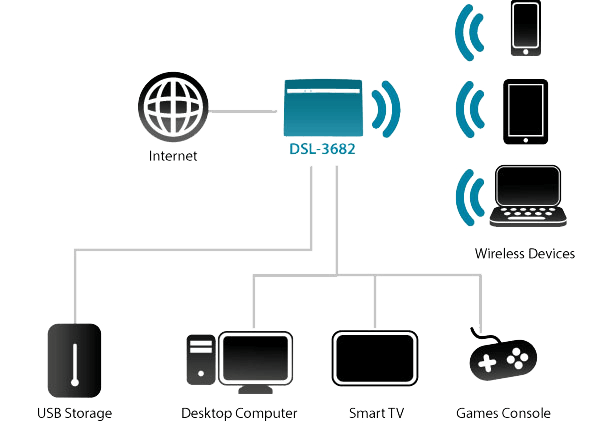

This Modem Router creates a blazing fast home network that connects all of your devices to your broadband Internet connection. Concurrent dual-band 802.11ac brings you the future of high-bandwidth wireless connectivity, allowing you to stream HD video, make Internet voice calls, and surf the Internet from every corner of your home without interruption. Fast Ethernet ports provide high-speed wired connections for up to four PCs or other devices. It's stylish, easy to use, and provides you with a reliable network for today and tomorrow.

Smooth Streaming with Wireless AC

The DSL-3682 uses Wireless AC technology, which provides a combined Wi-Fi speed of up to 750Mbps. The router operates on both the 2.4 GHz and 5 GHz wireless bands at the same time using concurrent dual-band technology and internal antennas. This allows you to browse the web, chat and e-mail using the 2.4 GHz band on your smartphone or tablet, while simultaneously streaming digital media, playing online games, or making Internet voice calls using the 5 GHz band on your computer.

File Sharing Right at Your Fingertips

The DSL-3682 lets you connect a USB storage device and instantly share documents, movies, pictures, and music. You can put your music library on a USB drive and share it with your entire home. You can show photos on the living room TV while a family member watches a movie on their computer. You can stream media files to multiple devices without interruption, or save them to your device for offline playback. The intuitive interface lets anyone immediately connect to a variety of entertainment options stored securely on your own storage device.



Works with Your Existing Devices

The Wireless AC750 Dual-Band VDSL/ADSL Modem Router is backward compatible with existing 802.11n, 802.11g and 802.11b wireless equipment, ensuring compatibility with a wide range of wireless devices. In addition, it includes four Ethernet ports for connecting Ethernet-enabled PCs, print servers, and other devices, making the DSL-3682 the logical choice for users wanting a versatile and fast Wi-Fi modem router.



Easy to Set Up and Secure

Getting started is simple with the easy setup wizard. Simply log onto the web-based configuration through your browser and follow a few easy steps to get your home network up and running. You can also set up a secure network with the touch of a button using Wi-Fi Protected Setup (WPS). Simply press the respective WPS buttons on each devices to instantly establish a secure connection to a new device. Rest assured that your network is secure with WPA/WPA2 wireless encryption and built-in dual active firewalls (SPI and NAT) so you can shop online and do your online banking with confidence.


* Maximum wireless signal rate derived from IEEE Standard 802.11ac, 802.11n, 802.11g, and 802.11b specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range. Wireless range and speed rates are D-Link relative performance measurements based on the wireless range and speed rates of a standard Wireless G product from D-Link. Maximum throughput based on D-Link 802.11ac devices.

Specifications
Features

High-Speed Connectivity

  • The latest 802.11ac wireless specification delivers blazing fast wireless connectivity with increased range and reliability
  • RJ11 VDSL/ADSL port for speedy Internet access

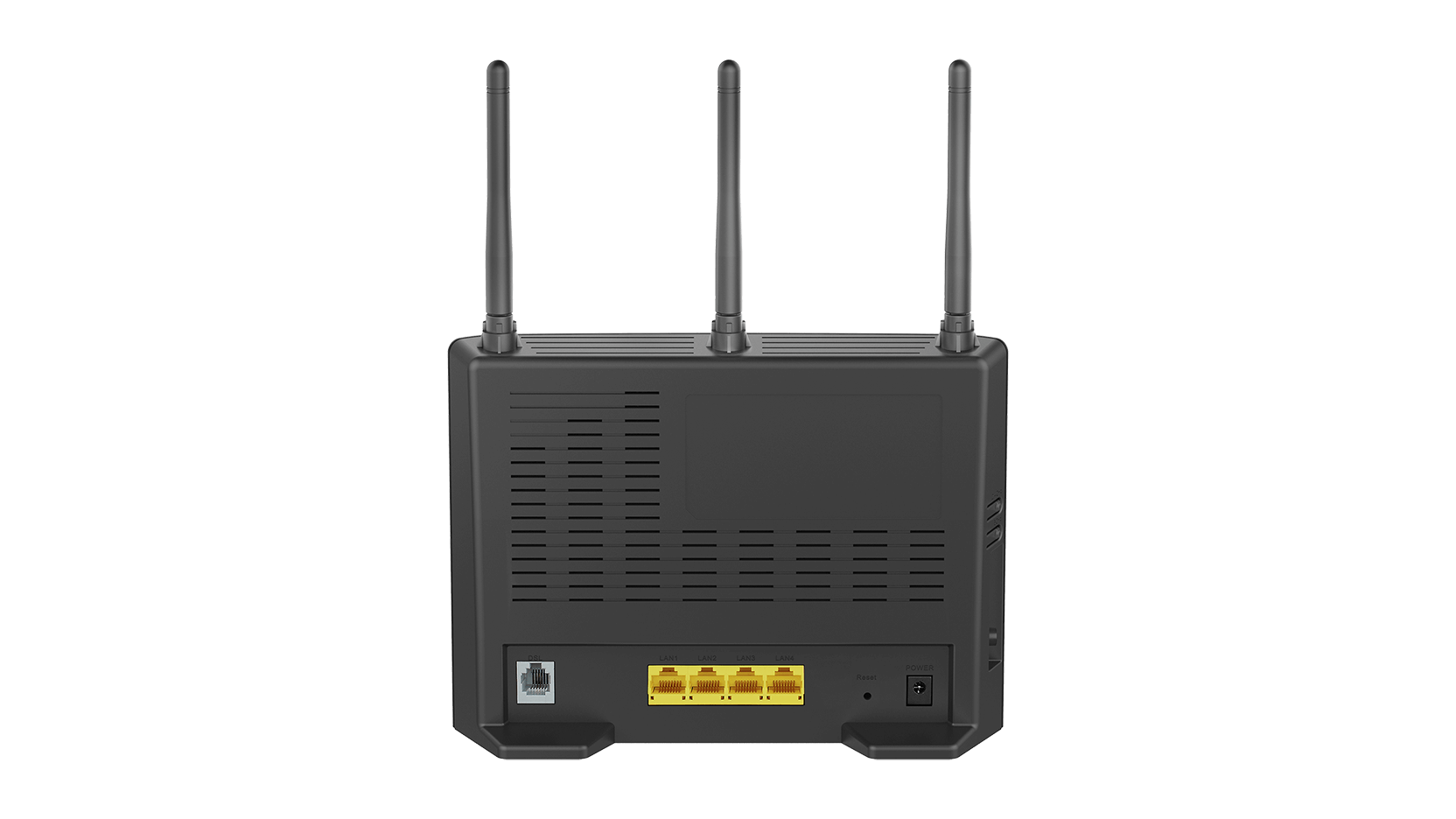

  • Four 10/100 Fast Ethernet LAN ports give you high-speed wired connectivity

Flexible Bandwidth

  • Concurrent dual-band wireless for combined connections of up to 750 Mbps
  • QoS engine to prioritise important traffic and deliver uninterrupted bandwidth

Setup and Management

  • Setup wizard to guide you through the configuration process
  • Firewall and access control options to prevent attacks and restrict access to your network

Technical Specifications

General

Device Interfaces

  • 802.11 ac/n/g/b Wireless LAN
  • Four 10/100 Fast Ethernet LAN ports
  • One RJ-11 Broadband port

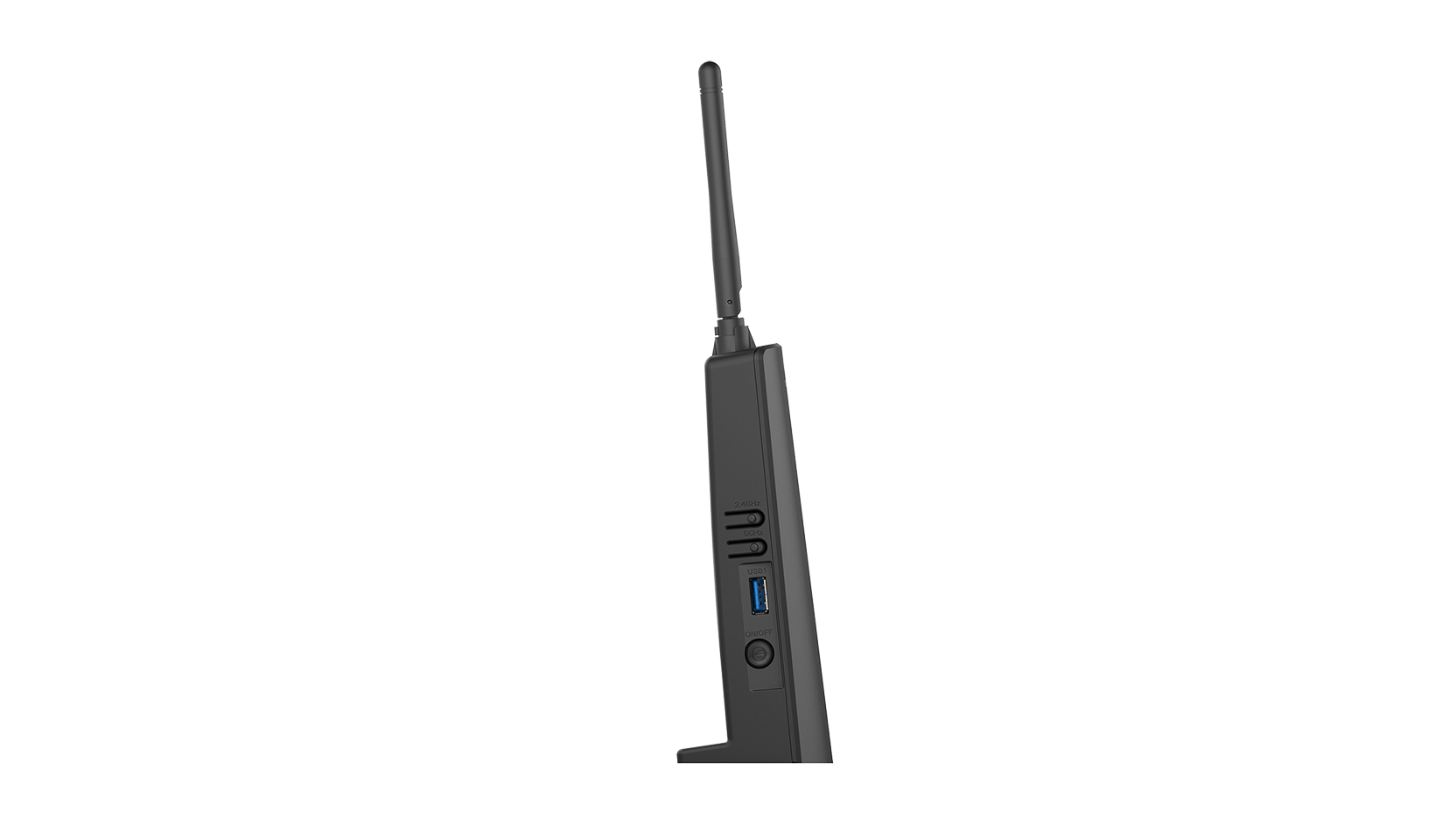

  • One USB 2.0 port

ADSL Compliance

  • ADSL Standards
    • Multi-mode
    • Full-rate ANSI T1.413 Issue 2
    • ITU-T G.992.1 (G.dmt) Annex A/C/I
    • ITU-T G.992.2 (G.lite) Annex A/C
    • ITU-T G.994.1 (G.hs)
  • ADSL 2 Standards
    • ITU-T G.992.3 (G.dmt.bis) Annex A/J/L/M
  • ADSL 2+ Standards
    • ITU-T G.992.5 Annex A/L/M

VDSL Compliance

  • ITU-T G.993.1
  • ITU-T G.993.2
  • 8a, 8b, 8c, 8d, 12a, 12b, 17a

ATM/PPP Support

  • Multiprotocol over AAL5 (RFC 1483/2684)
  • Bridged and routed Ethernet encapsulation
  • LLC encapsulation
  • VC-based multiplexing
  • ATM Forum UNI3.1/4.0 PVC (up to 8 PVCs)
  • ATM Cell Format ITU-T Rec. I.361
  • ATM Adaptation Layer Type 5 (AAL5)
  • PPPoA (RFC2364)
  • PPPoE (RFC2516)
  • PPP Link Control Protocol (RFC 1661)
  • Internet Protocol Control Protocol (RFC 1332)
  • PPP Authentication Protocol (RFC 1334)
  • PPP Challenge Handshake Authentication Protocol (RFC 1994)
  • Microsoft PPP CHAP extensions (RFC 2433)

WLAN Specifications

  • Wi-Fi Protected Setup (WPS)
  • Multiple SSIDs
  • Automatic rate adapting
  • Auto channel selection
  • WMM support
  • 64-bit & 128-bit WEP
  • WPA-PSK & WPA2-PSK
  • MAC address filtering

Antenna Type

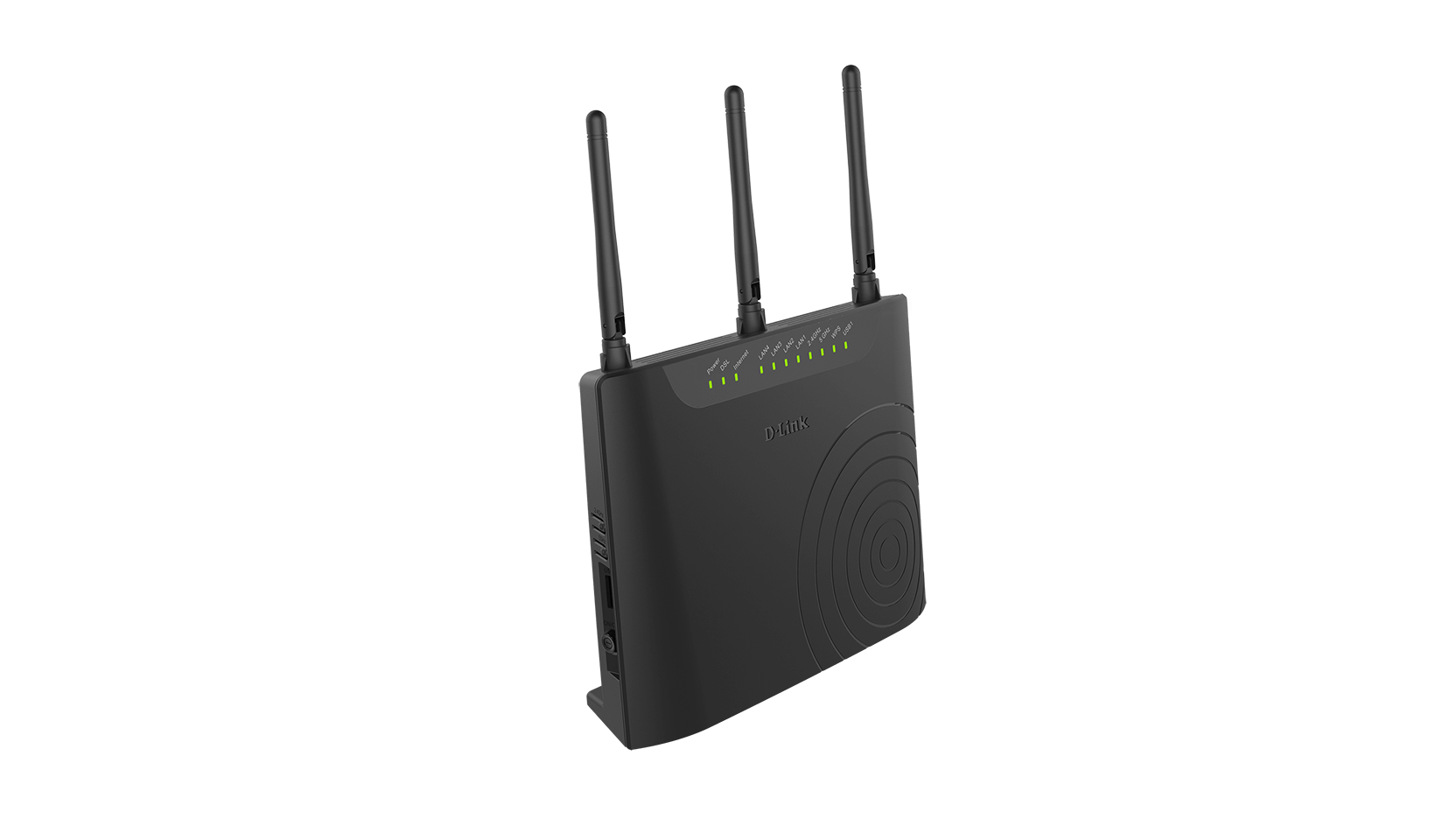

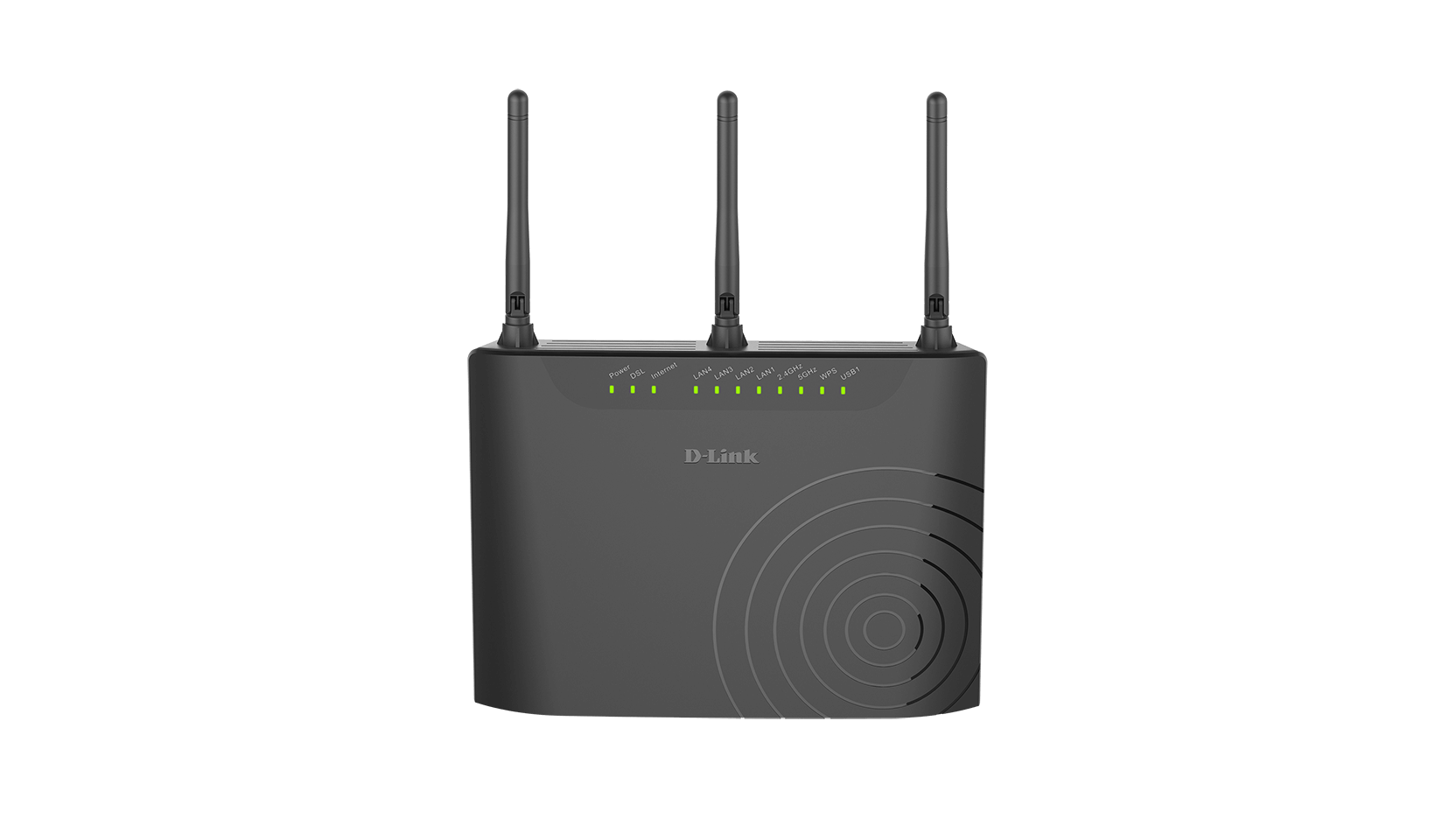

  • Three fixed external antennas

Data Signal Rate

  • 2.4 GHz 802.11 n/g/b
    • Up to 300 Mbps*
  • 5 GHz 802.11 ac/a
    • Up to 433 Mbps*

Network Services

  • IPv4
  • DHCP server/client/relay
  • DNS relay
  • Dynamic DNS (DDNS)
  • Routing Information Protocol (RIP) v1/v2
  • NAT AGLs
    • PPTP
    • L2TP
    • FTP
    • RTSP (RealTime Streaming Protocol)
    • SIP v1/v2
    • IPsec
  • Internet Control Message Protocol (ICMP)
  • Virtual server (Port forwarding)
  • Simple Network Time Protocol (SNTP)
  • 802.1d MAC Bridge (up to 256*8 MAC addresses)
  • QoS
    • IPP/ToS
    • DSCP QoS in 4-priority queues
    • Application QoS in 4-priority queues
    • Strict priority
    • VLAN QoS in 4-priority queues
    • QoS remarking based on IPP/ToS, DSCP and 802.1p
    • TOS transparency through NAT
    • Mapping to queue according to DSCP bits and physical port
    • 802.1Q
  • IGMP proxy v1/v2
  • IGMP snooping v1/v2/v3

Standards

  • IEEE 802.11ac
  • IEEE 802.11n
  • IEEE 802.11g
  • IEEE 802.11b
  • IEEE 802.3
  • IEEE 802.3u

Minimum System Requirements

  • Windows 8/7/Vista/XP SP3 or Mac OS X 10.4 or higher
  • Microsoft Internet Explorer 6 or higher, Firefox 1.0 or higher, Safari 1.2 or higher, or other Java-enabled browser
  • Ethernet network interface
  • Subscription with an Internet Service Provider (ISP)

Functionality

Universal Plug and Play Support

  • UPnP based auto-configuration
  • UPnP based port forwarding
  • UPnP IGD 1.0

Device Management

  • Web configuration
  • Telnet management
  • Webpage/TFTP firmware upgrade
  • Diagnostic tools for ADSL and IP Ping

Advanced Features

  • Dual-active firewall
    • Network Address Translation (NAT)
    • Stateful Packet Inspection (SPI)
  • UPnP support
  • 802.1p QoS

Physical

Dimensions

  • 198 x 146 x 54 mm (7.79 x 5.74 x 2.12 inches)

Weight

  • 302 grams (9.6 oz)

Power

  • Input: 100 ~ 240 V AC
  • Output: 12 V DC, 1A

Temperature

  • Operating: 0 to 40 °C (32 to 104 °F)
  • Storage: -20 to 65 °C (-4 to 149 °F)

Humidity

  • 5 % to 95 % non-condensing

Certifications

  • CE
  • Wi-Fi
  • Wi-Fi Protected Setup (WPS)
* Maximum wireless signal rate derived from IEEE standard specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.
