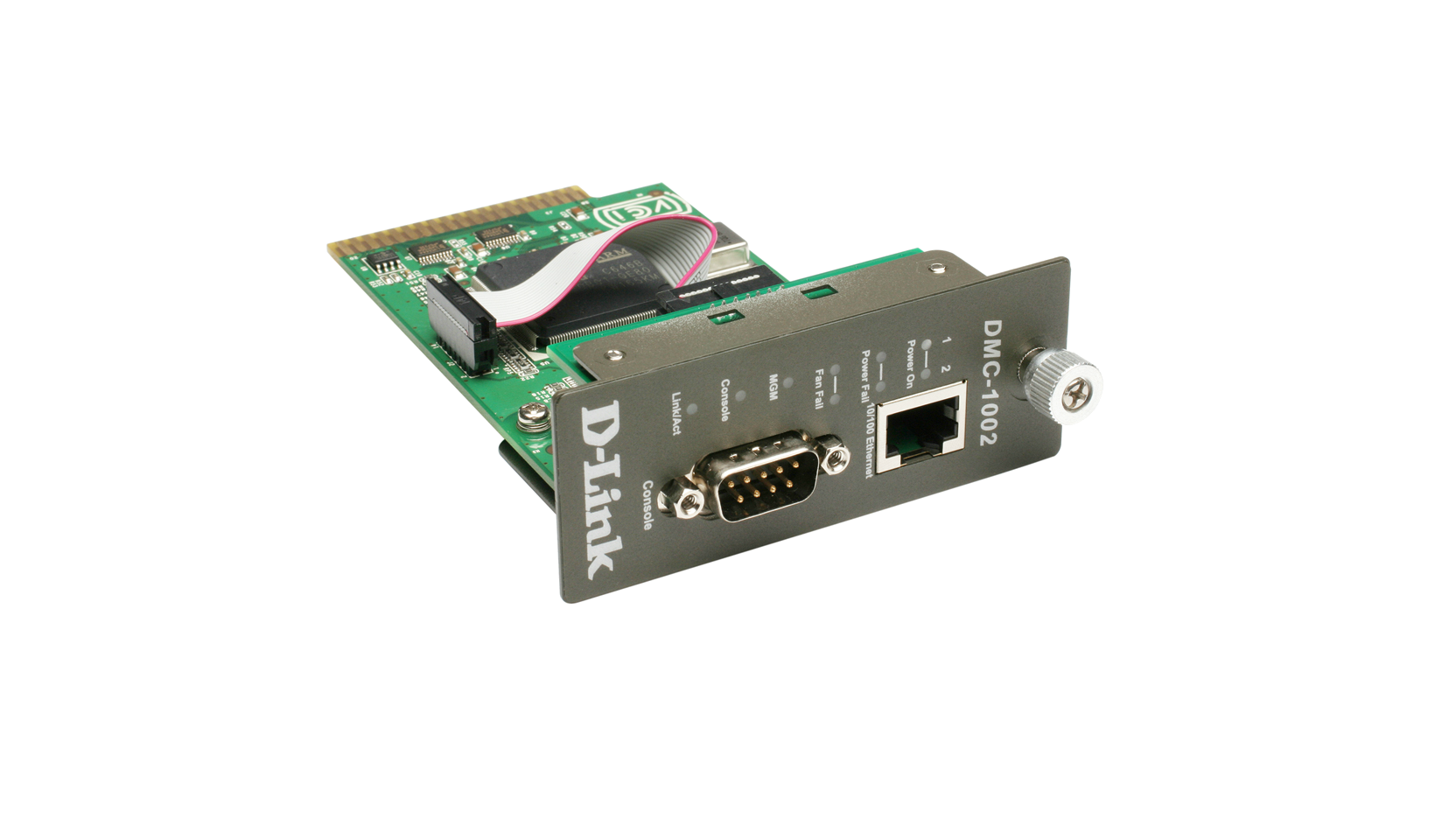

SNMP-modul för chassi DMC-1000
DMC-1002
- Product Status (Revision A): End of Life
Description
The optional SNMP/network management software allows for web-based management and is designed for use with the DMC-1000 chassis.
This module provides SNMP-based and web-based management of all media converter and power supply modules installed in the DMC-1000 chassis. It features a 32-bit, high performance RISC microprocessor executing a real-time operating system. It provides a 10/100Mbps Fast Ethernet port for network connection, allowing you to configure and monitor the system through an SNMP management station or from a PC running an Internet browser. An RS-232 port is also provided to let you connect to a console (PC) to set configuration. The management module periodically polls all converters and power supplies in the chassis to collect information regarding status and configuration settings. It also receives traps for events such as module hot-swaps and power failures as soon as they occur, as well as warning traps, upon which alarms may be sounded out to alert you.
The optional SNMP/network management software allows for web-based management and is designed for use with the DMC-1000 chassis.
This module provides SNMP-based and web-based management of all media converter and power supply modules installed in the DMC-1000 chassis. It features a 32-bit, high performance RISC microprocessor executing a real-time operating system. It provides a 10/100Mbps Fast Ethernet port for network connection, allowing you to configure and monitor the system through an SNMP management station or from a PC running an Internet browser. An RS-232 port is also provided to let you connect to a console (PC) to set configuration. The management module periodically polls all converters and power supplies in the chassis to collect information regarding status and configuration settings. It also receives traps for events such as module hot-swaps and power failures as soon as they occur, as well as warning traps, upon which alarms may be sounded out to alert you.
Specs
- Stödjer hot-swap
- Automatisk inställning av halv duplex/full duplex på TX port
- Statusindikation för typ av konverterare, vilka platser som är upptagna, strömförsörjning, fläkt samt link aktivitet - Mediakonverterarna kan fjärrmanövreras (enable/disable).
Support
This product was phased out on: 09/08/2015
This product's last date of support is on: 08/08/2017
| Version | Date | Type | File Size | |
|---|---|---|---|---|
| Datasheet (English) | - | 0.30mb | Download |
| Version | Description | Date | Type | File Size | |
|---|---|---|---|---|---|
| Manual v1 (English) | Manual v1 (English) | - | 0.55mb | Download |
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:
http://tsd.dlink.com.tw/GPL.asp
The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
http://tsd.dlink.com.tw/GPL.asp
The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
| Version | Description | Date | |
|---|---|---|---|
| DMC 1002 MIB Software v1.16 1.16 | DMC 1002 MIB Software v1.16 | 2006-11-14 | Download |
