16-bitars 10/100Mbps PC-Card (PCMCIA)

DFE-670TXD

  • Product Status: Phased Out

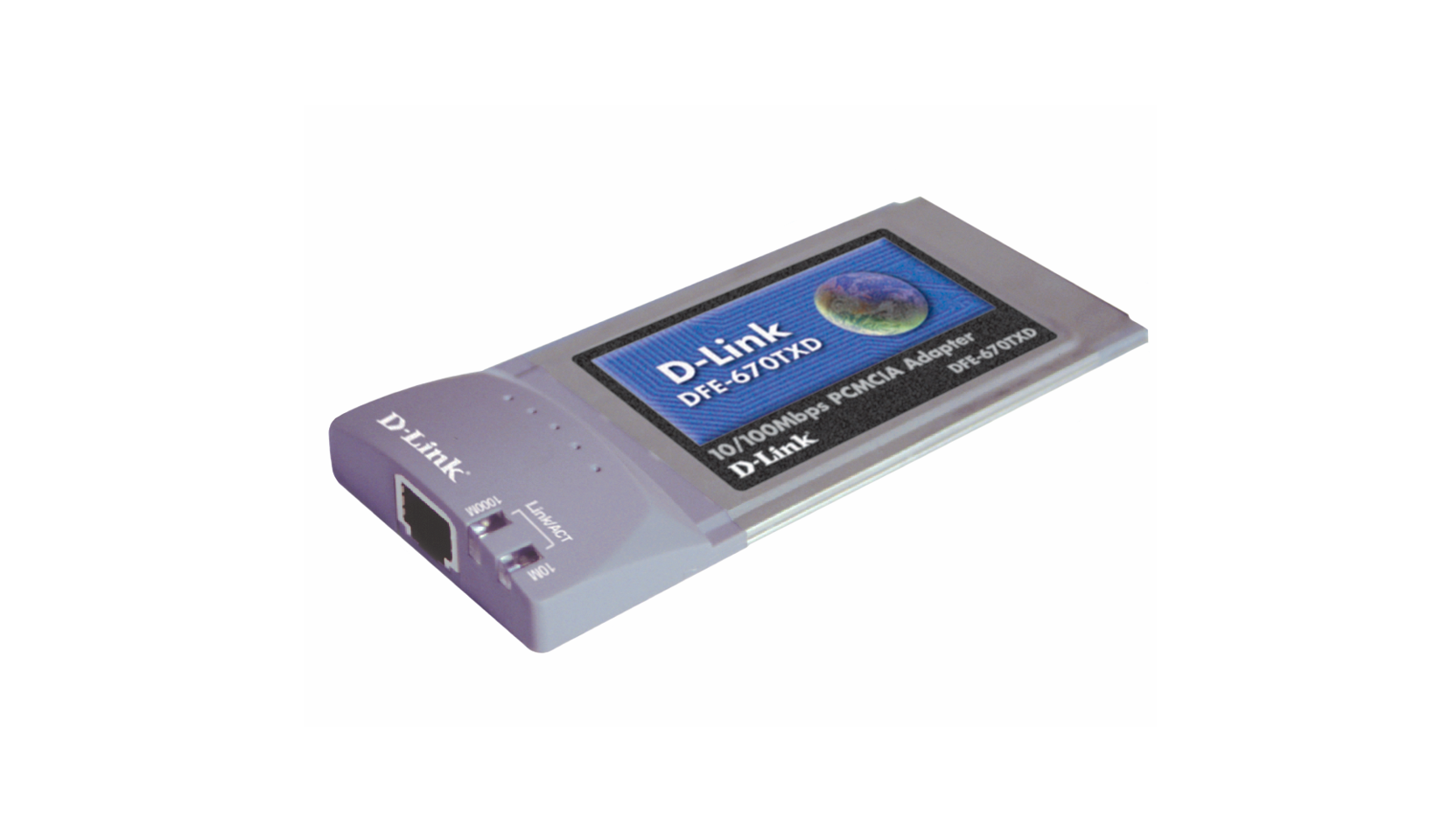

The D-Link DFE-670TXD is a 10/100Mbps Fast Ethernet 16-bit PC Card adapter for notebooks. With the built-in connector, a RJ-45 LAN cable can be directly plugged into a notebook computer. The DFE-670TXD provides instant connectivity for mobile users. Enabling easy access to a network - users can access databases and resources in diverse environments.

The DFE-670TXD adheres to IEEE 802.3 and IEEE 802.3u standards, which specify existing 10BASE-T and 100BASE-TX Ethernet technology supporting both half and full duplex modes with data rates up to 10/100Mbps and 20/200Mbps. The DFE-670TXD also utilizes auto-negotiation to adjust the speed to any 10BASE-T or 100BASE-TX network automatically.

With the DFE-670TXD's RAM data buffer, all incoming data is processed and stored into temporary memory and eventually filtered out, resulting in smooth data flow. The DFE-670TXD's extensive diagnostic LED’s show link connectivity for both 10Link/Activity and 100Link/Activity.

Designed with a plug-and-play feature, the DFE-670TXD is simple to install and operate. With built-in hot swapping capabilites, the DFE-670TXD can be removed while the computer is still in operation.

Technical Specifications



 Drivers Supported

    Windows XP/Me/2000/98SE/98/95, NT 3.51 and NT 4.0
    NDIS 2.0 for Microsoft LAN Manager for DOS
    NDIS 2.0 for Microsoft Network Client 3.0 for Workgroup 3.11
    Packet Driver for NCSA
    Packet Driver for WinSock
    Novell Netware DOS ODI Driver
    Novell Netware Server v3.12, v4.x and v5.0
    Linux 2.2

  Standards

    IEEE 802.3 10Base-T Ethernet
    IEEE 802.3u 100Base-TX Fast Ethernet
    ANSI/IEEE 802.3 NWay Auto-Negotiation
    PCMCIA 2.x
    Type II 16-bit Cardbus

  Network Media

    Ethernet: UTP Cat3, 4, 5 EIA/TIA-568 100-ohm screened twisted-pair (STP)
    Fast Ethernet: UTP Cat5, EIA/TIA-568 100-ohm screened twisted-pair (STP)

  Diagnostic LEDs

    10M Link/Activity
    100M Link/ Activity

  Host Interface  PCMCIA Type II 16-bit Cardbus
  Power Requirements

   Normal Operation +3.3V DC, 380mA max.
   Sleep Mode +3.3V DC, 80mA max.

  Network Data Transfer Rate

    Ethernet: 10Mbps (Half-duplex)
    Ethernet: 20 Mbps (Full-duplex)
    Fast Ethernet: 100Mbps (Half-duplex)
    Fast Ethernet: 200Mbps (Full-duplex)

  Temperature

    Operating: -10~50% °C
    Storage: -10~70% °C

  Humidity

    Operating: 10%~90%
    Storage: 5%~90%
