Optical Fiber Fast Ethernet PCI Adapter

DFE-551FX

  • Product Status: Live
  • 100Base-FX Fast Ethernet specification, up to 200 Mbps in full duplex
  • “Works with Windows Vista™” logo
  • Wake-on-LAN (WOL) power management
  • IEEE 802.1Q VLAN support
  • IEEE 802.1p Priority Tagging
  • Compatible with Windows, MAC and Linux Operating Systems

The DFE-551FX Optical Fibre Fast Ethernet PCI Adapter connects your desktop PC to a fibre network. The adapter plugs into a PCI expansion slot on the PC’s motherboard and transmits data at 200 Mbps full duplex. Supporting advanced functions including VLAN and traffic priority queues, this adapter provides a secure environment to let you run bandwidth-demanding applications, such as IP telephony and video conferencing.

Reliable fibre connection


Fibre optics connectivity makes the adapter suitable for environments with high electro-magnetic interference. The DFE-551FX adapter allows you to connect a workstation or server to a Fast Ethernet switch at a distance of up to 2 km.

Wake-On-LAN power management

The adapter supports Advanced Configuration Power Interface (ACPI) Wake-On-LAN (WOL), allowing your computer to be powered ON/OFF at will from a remote location.

Flow Control to minimise packet loss

When connected to a Fast Ethernet switch that supports Flow Control, the adapter receives signals from the switch regarding buffer overrun during peak usage periods. The adapter then delays transmission until the switch is ready again to accept data again, avoiding data loss.

IEEE 802.1Q VLANs

The adapter supports IEEE 802.1Q multiple Virtual LANs, allowing you to segment the network to smaller domains to improve performance and security. The adapter provides a VLAN table for the following functions: filtering packets by recognising VLAN tags, stripping VLAN tags on receive, and inserting VLAN tags on transmit.

IEEE 802.1p priority queues


With packet prioritisation capability, the adapter allows traffic to be queued as critical and non-critical, permitting your computer to run voice over IP, video-conference and multimedia applications where packets are delivered at best-effort speeds.

RPL and PXE Remote Boot options


Administrators can choose to set up a security scheme for diskless workstations to boot from servers using the traditional Remote Program Load (RPL) or Intel’s Preboot Execution Environment (PXE). Stations with boot ROMs installed on the on-board socket can boot O.S. from NetWare, NT and other servers to run applications designated by the administrator.

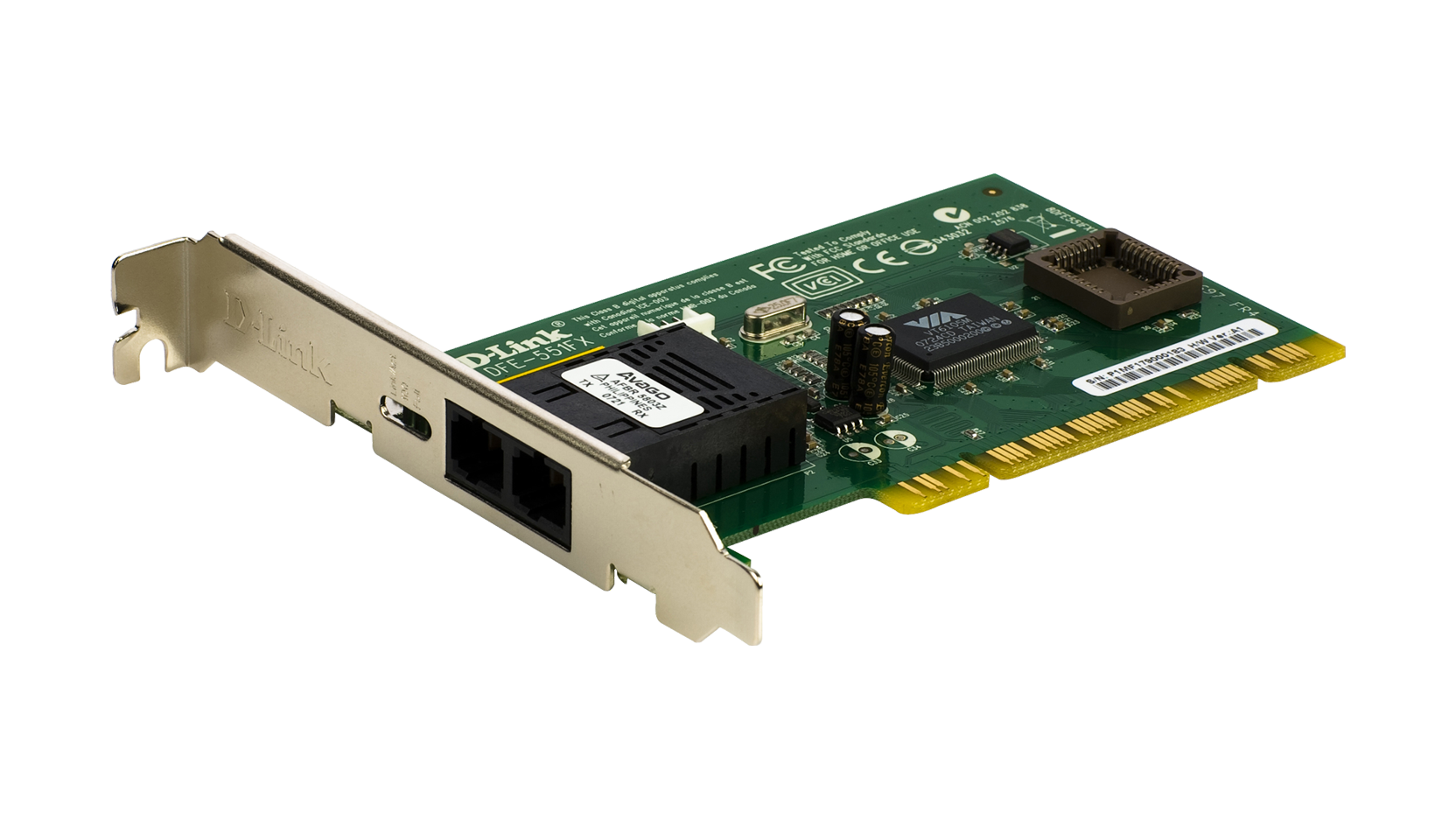

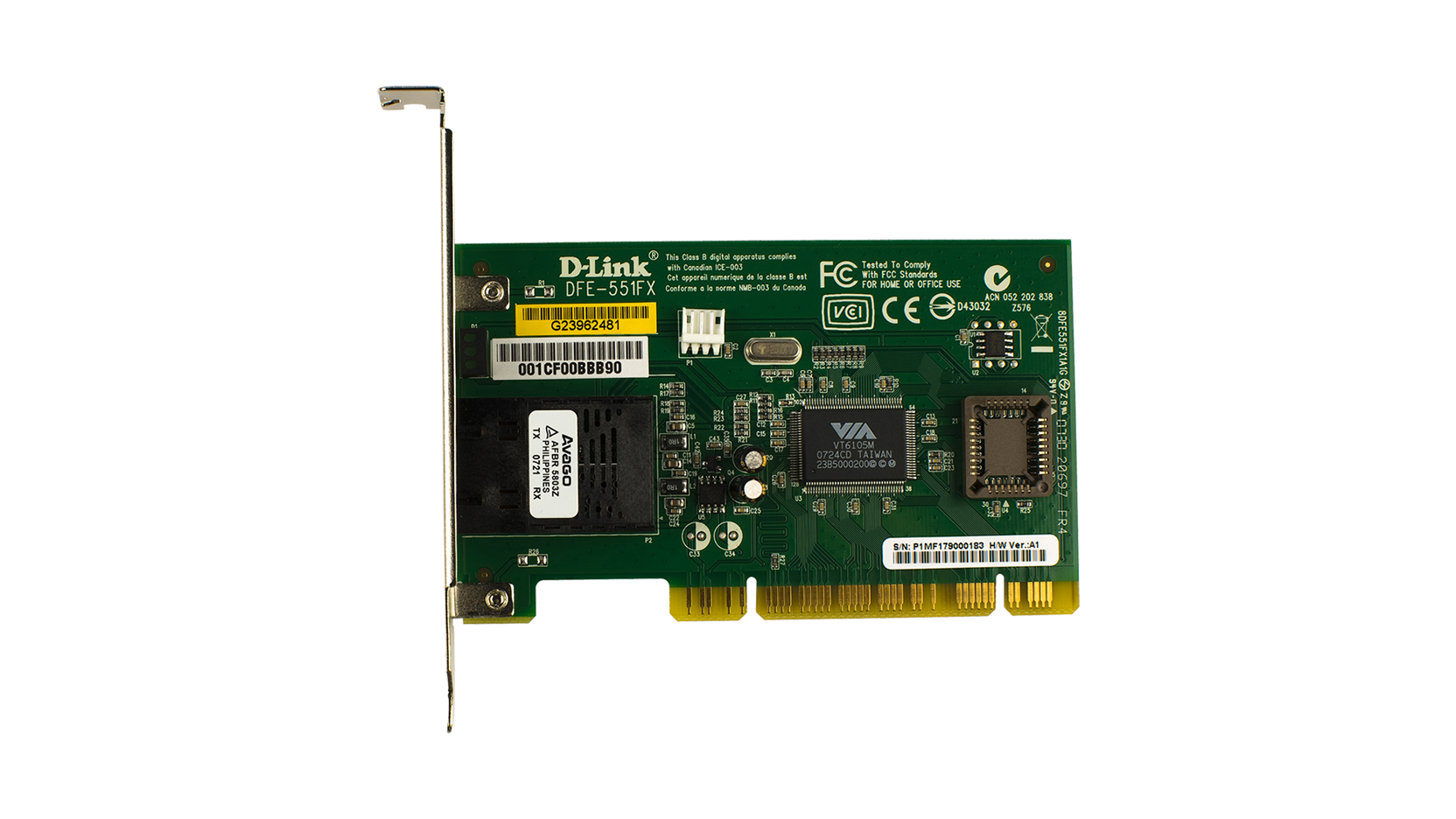

Utseendet på produkten kan eventuellt avvika i jämförelse med bilden på den här sidan.

Technical Specifications

Hardware
  • 100Base-FX Fast Ethernet specification, up to 200 Mbps in full duplex
  • 62.5/125 or 50/125 micron multimode fibre-optics (up to 2 km at full-duplex)
  • SC fiber connector
  • PCI local bus 2.2 specification
  • Optional Boot ROM for remote program load from servers

Advanced Functions
  • Wake-on-LAN (WOL) power management support
  • IEEE 802.3x Full-Duplex Flow Control
  • IEEE 802.1Q VLAN support
  • IEEE 802.1p Priority Tagging
  • SNMP v1 management

Operating Systems
  • Windows 95/95OSR2/98/98SE/ME
  • Windows 2000/XP/server 2003/Vista x64/x86
  • Windows NT 3.51/4.0
  • Novell NetWare Server 5.x/6.x + Packet Driver
  • Linux Kernel 2.4.x to 2.6.x + NDIS2 for DOS
  • Mac OS 10.3.x
