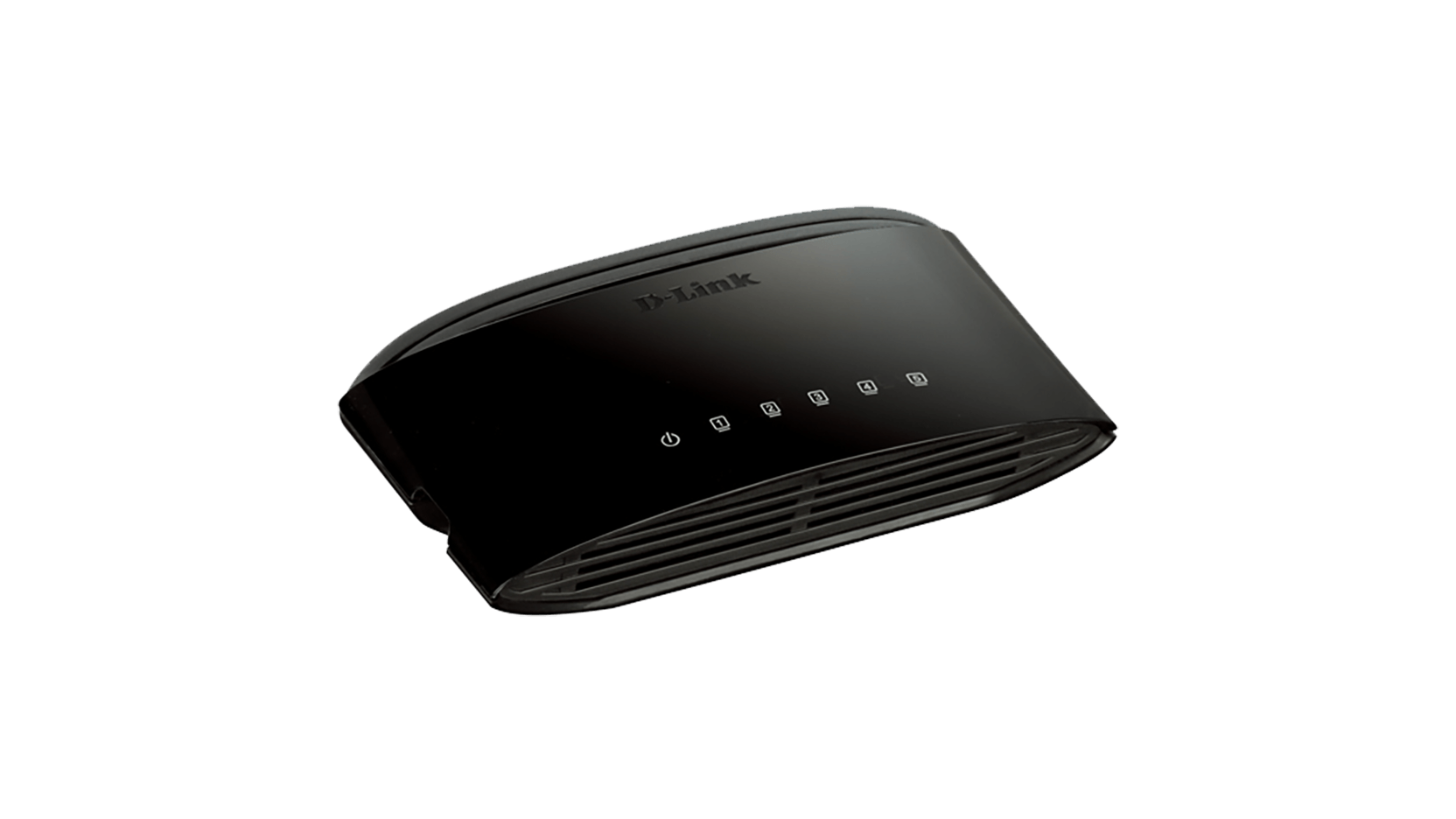

5-Port Fast Ethernet Unmanaged Desktop Switch

DES-1005D

  • Product Status: Live

The DES-1005D 5-Port Fast Ethernet Unmanaged Desktop Switch is a five port fast Ethernet switch that allows you to quickly set up a wired network. Connect the DES-1005D to multiple computers together to share files and folders, or connect it to a router to share an Internet connection.


Download the datasheet.

List Retailers

The DES-1005D 5-Port Fast Ethernet Unmanaged Desktop Switch is a five port fast Ethernet switch that allows you to quickly set up a wired network. Connect the DES-1005D to multiple computers together to share files and folders, or connect it to a router to share an Internet connection.

Auto-Sensing 10/100 Ports

The DES-1005D 5-Port Fast Ethernet Unmanaged Desktop Switch uses auto-sensing 10/100 Mbps ports, allowing a small workgroup to flexibly connect to Ethernet and Fast Ethernet devices to create an integrated network. These ports detect the network speed and auto-negotiate between 10BASE-T and 100BASE-TX, as well as between full and half-duplex, allowing you to get the maximum speed possible for each device connected to your network.

Auto MDI/MDIX Crossover

All ports support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables.

Flow Control for Secure Transmission

802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full. This gives you a more reliable connection for all of your connected devices.

Technical Specifications

Key Features

  • Inexpensive Fast Ethernet solution for Home/SOHO

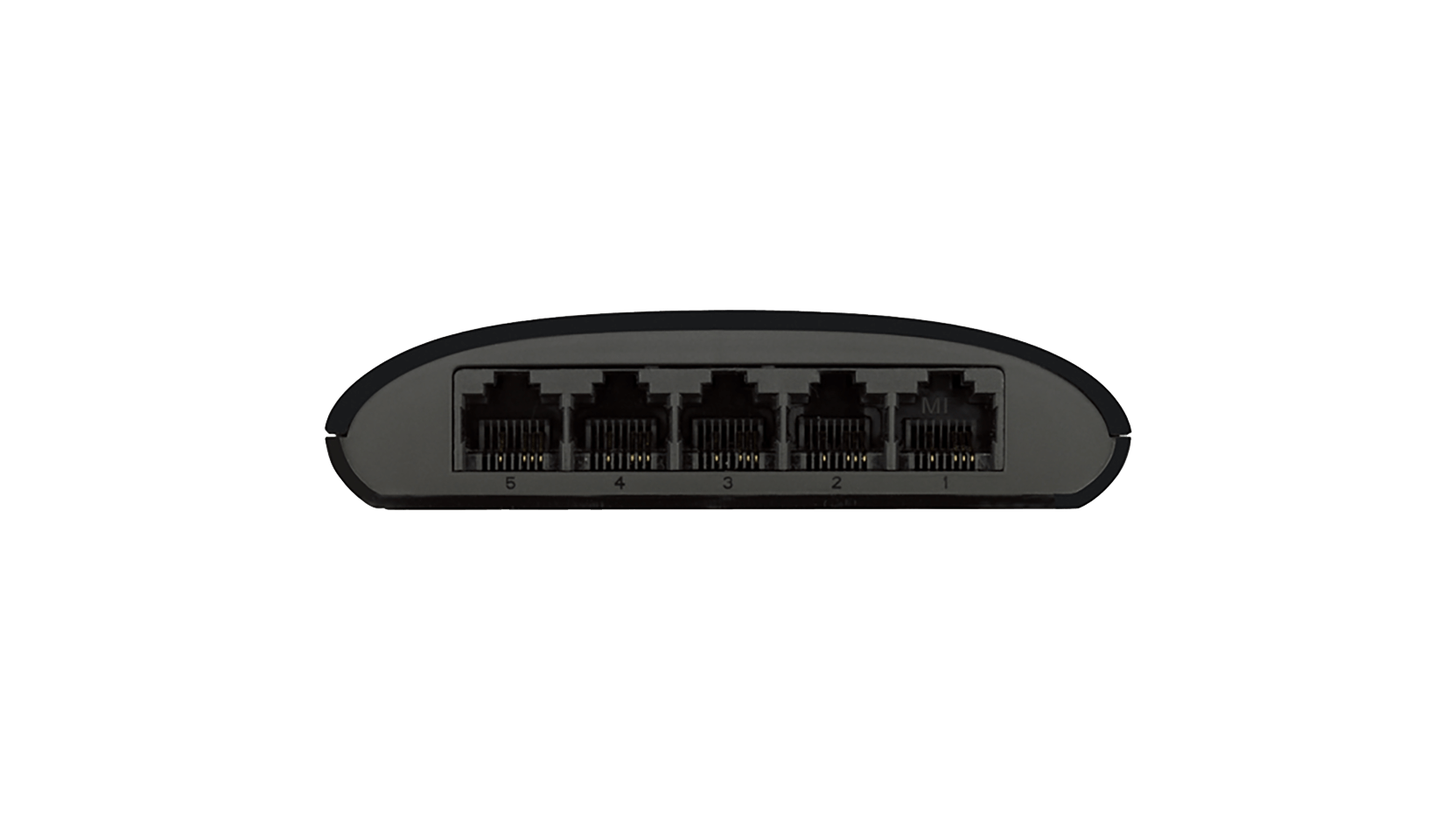

  • Five 10/100 Mbps Fast Ethernet ports
  • Auto MDI/MDIX crossover for all ports
  • Store-and-forward switching scheme
  • Full/half-duplex for Ethernet/Fast Ethernet speeds
  • IEEE 802.3x Flow Control
  • Plug-and-play installation
  • RoHS compliant

Switching Fabric

  • 1.0 Gbps switching fabric



Standards

  • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
  • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
  • ANSI/IEEE 802.3 NWay auto-negotiation
  • IEEE 802.3x flow control



Protocol

  • CSMA/CD



Data Transfer Rates

  • Ethernet:
    • 10 Mbps (half duplex)
    • 20 Mbps (full duplex)
  • Fast Ethernet:
    • 100 Mbps (half duplex)
    • 200 Mbps (full duplex)



Topology

  • Star



Media Interface Exchange

  • Auto MDI/MDIX adjustment for all ports



Network Cables

  • 10BASE-T:
    • UTP CAT 3/4/5/5e (100 m max.)
    • EIA/TIA-586 100-ohm STP (100 m max.)
  • 100BASE-TX:
    • UTP CAT 5/5e (100 m max.)
    • EIA/TIA-568 100-ohm STP (100 m max.)

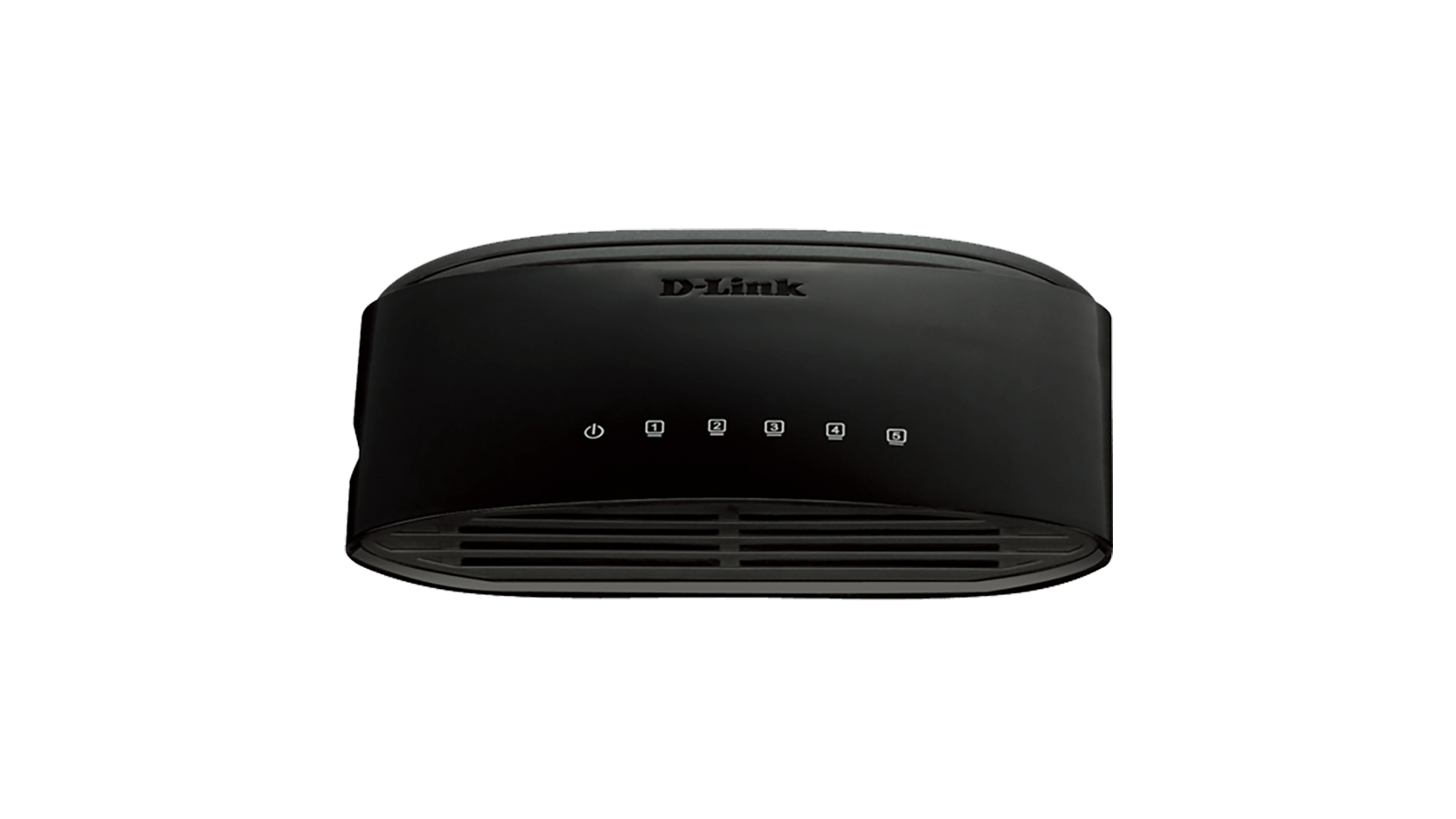

LED Indicators

  • Per port:
    • Link/Activity
  • Per device:
    • Power



Transmission Method

  • Store-and-forward



MAC Address Table

  • 2K entries per device



MAC Address Learning

  • Automatic update



Packet Filtering/Forwarding Rates

  • Ethernet: 14,880 pps per port
  • Fast Ethernet: 148,800 pps per port



RAM Buffer

  • 48 KB per device

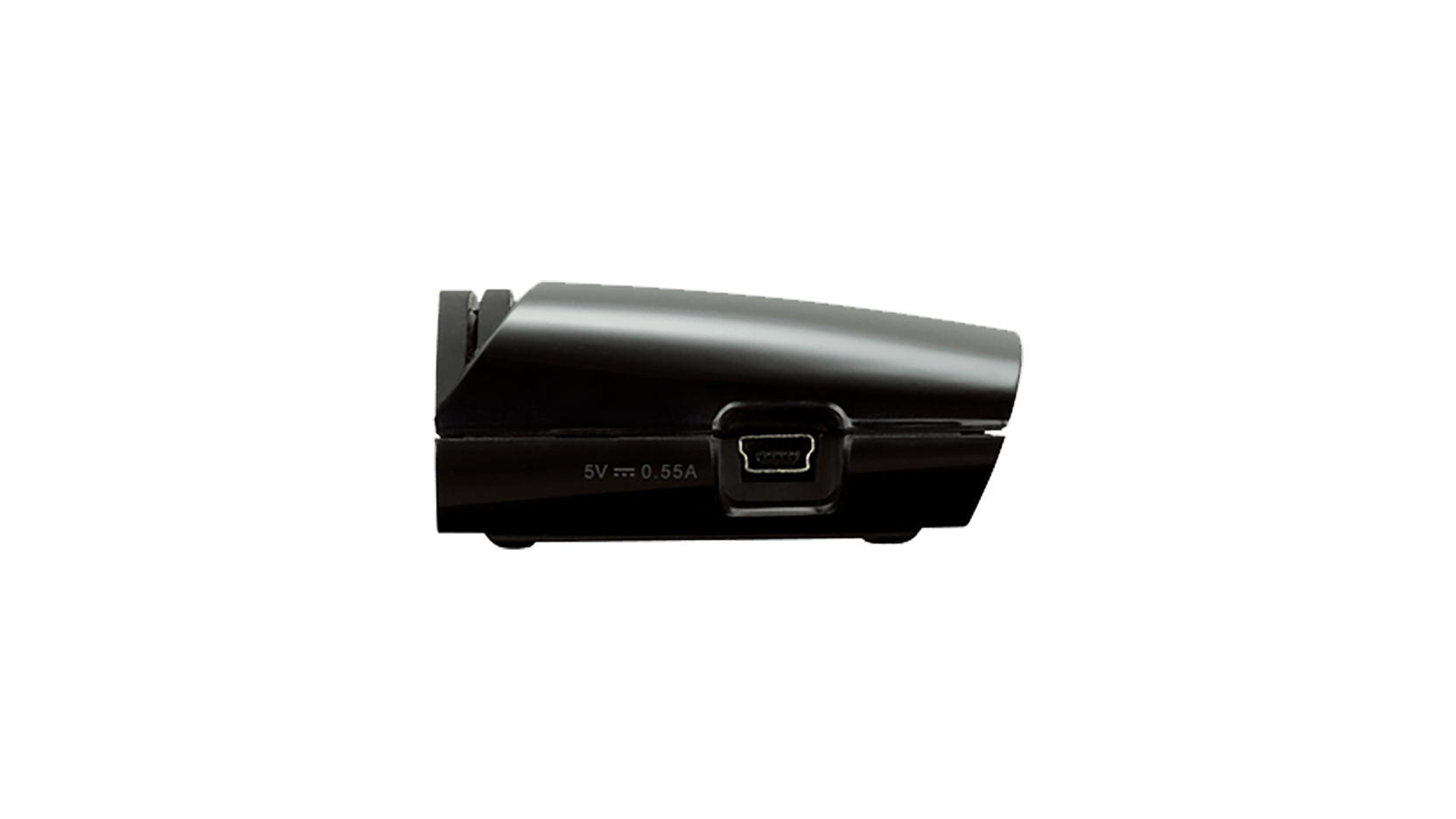

DC Input

  • External 5 V / 1 A power adapter



Power Consumption

  • Power On (Standby):
    • DC input: 0.4 watts
    • AC input: 0.9 watts
  • Maximum:
    • DC input: 2.18 watts
    • AC input: 2.5 watts



Heat Dissipation

  • Power On (Standby):
    • AC input: 2.728 BTU/h
  • Maximum:
    • AC input: 8.528 BTU/h



Operating Temperature

  • 0 to 50 ˚C (32 to 122 ˚F)



Storage Temperature

  • -10 to 70 ˚C (14 to 158 ˚F)



Operating Humidity

  • 10% to 90% RH non-condensing



Storage Humidity

  • 5% to 90% RH non-condensing



Device Dimensions (W x D x H)

  • 125.3 x 83.4 x 29.1 mm (5.0 x 3.3 x 1.2 inches)



Certifications

  • FCC Class B
  • ICES-003 Class B
  • CE Class B
  • C-Tick Class B
  • VCCI Class B
  • cUL
  • CB
