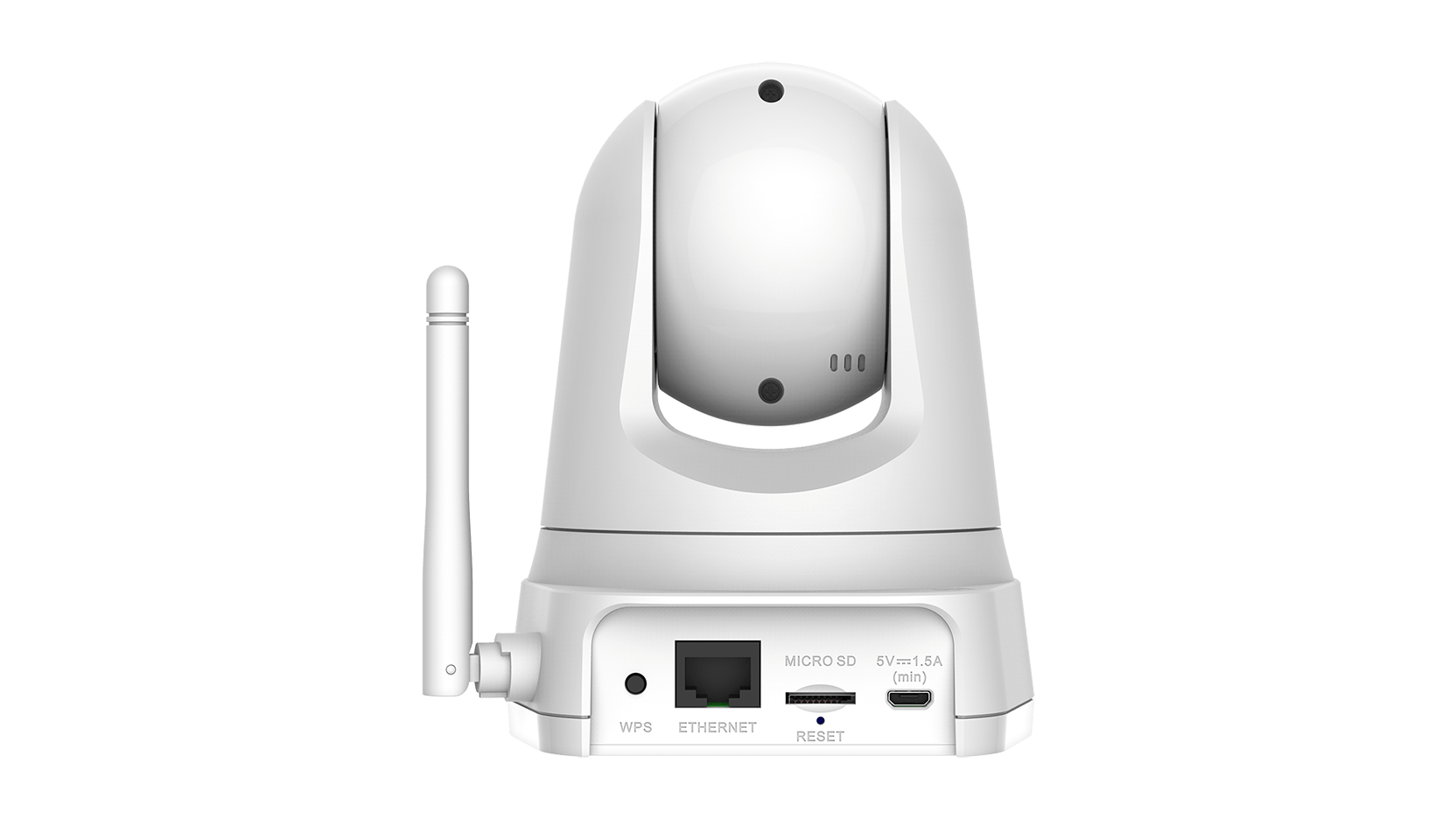

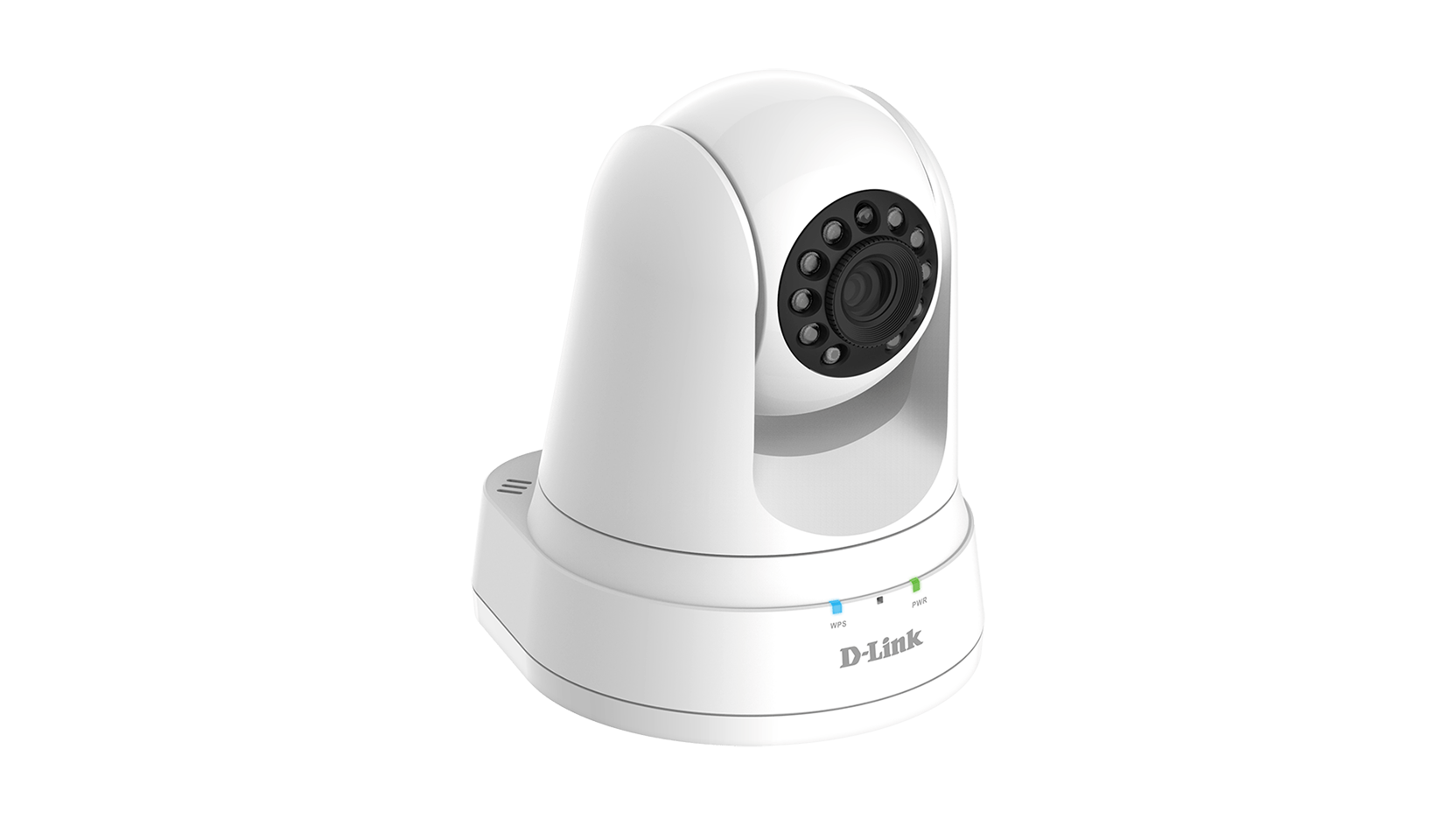

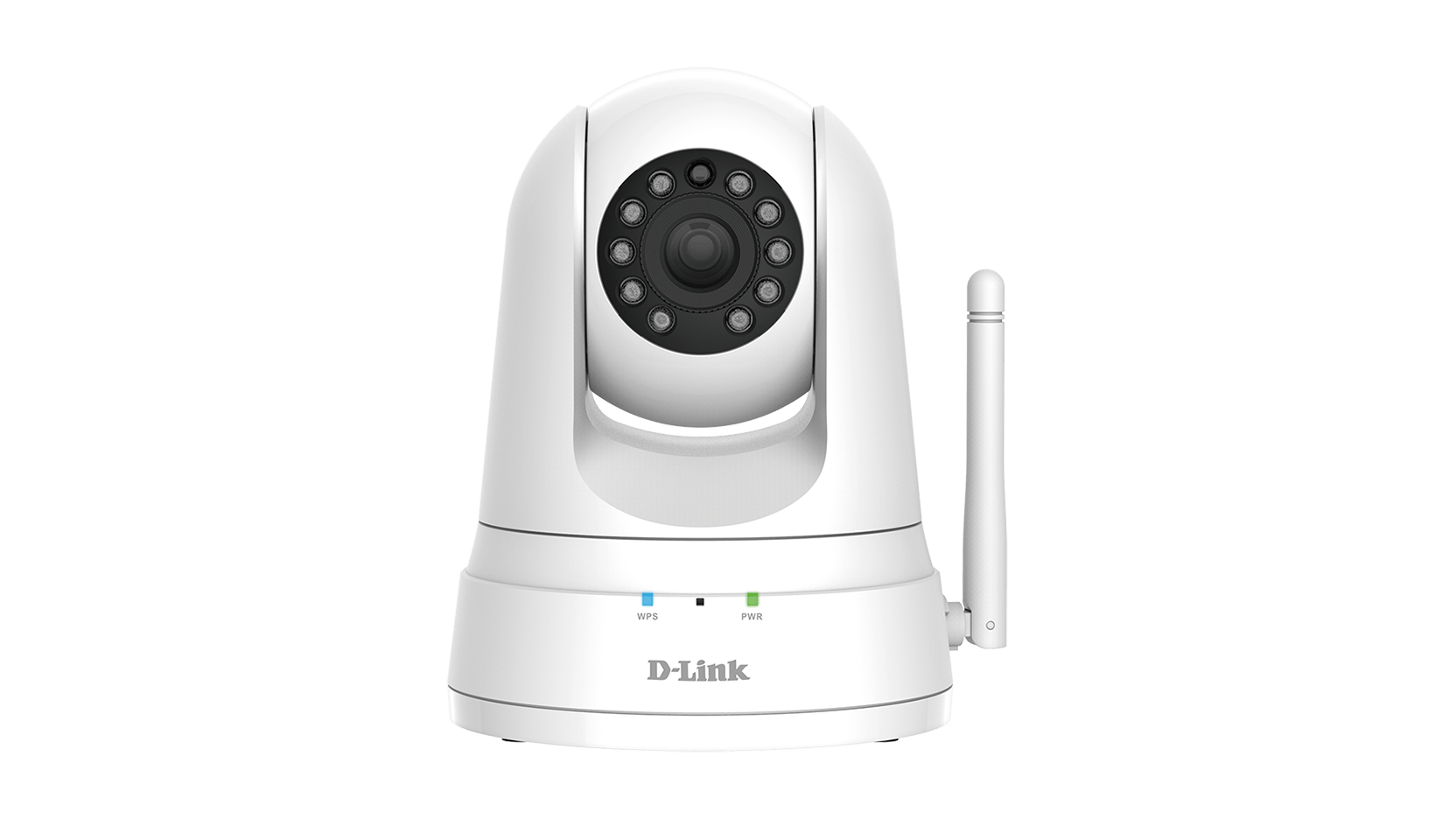

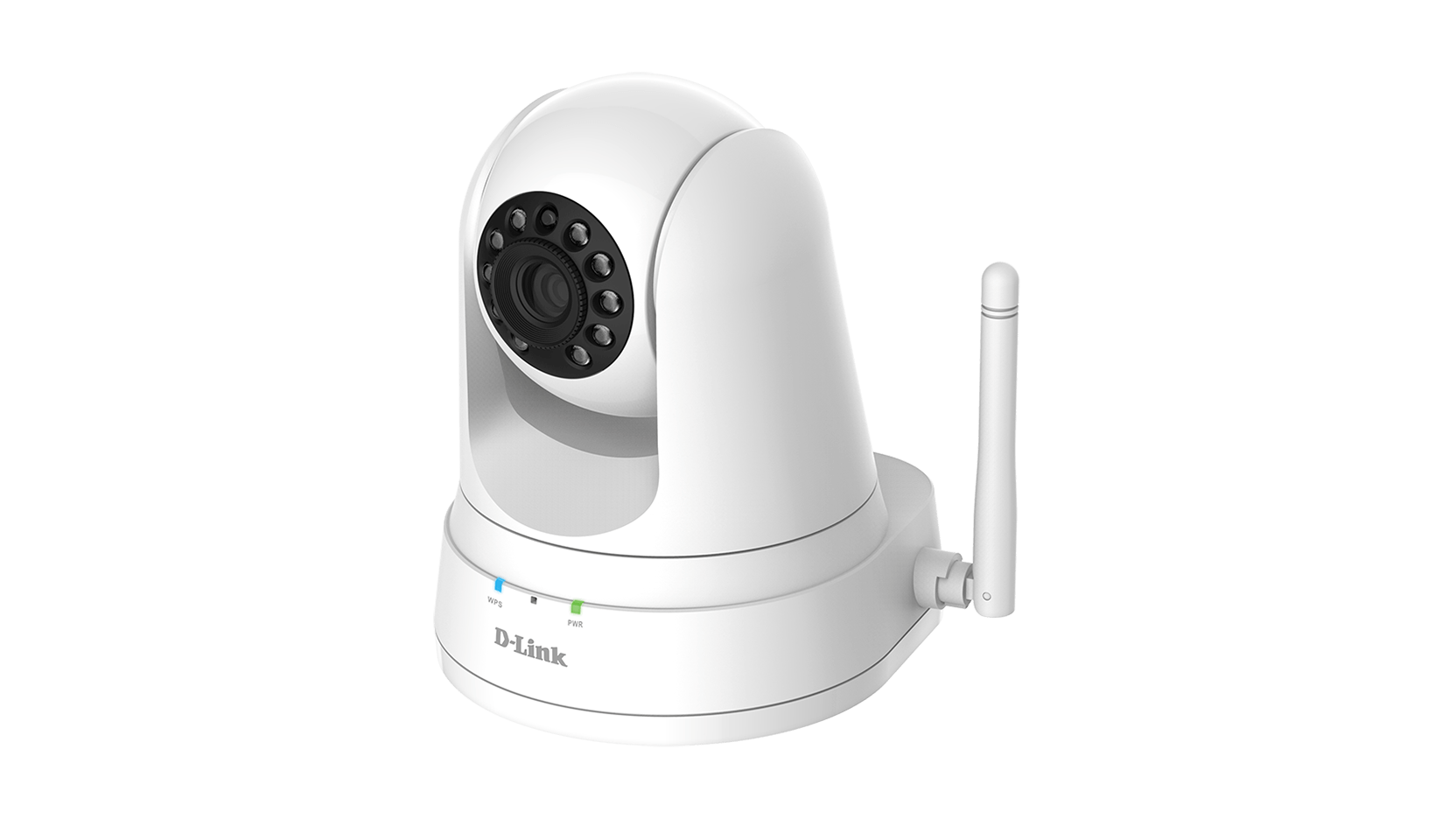

HD Pan & Tilt Wi-Fi Day/Night Camera

DCS-5030L

Share

HD Pan & Tilt Wi-Fi Day/Night Camera

Effectively monitor
your home 24/7

Free app for iOS, Android and Windows


Remote Viewing

Check in from anywhere on your mobile devices


Night Vision

Peace of mind when the sun goes down


Pan & Tilt

See more with easy pan & tilt control

Sound &
Motion Detection

Smart alerts sent to your phone

HD Video
HD 720p Video
Crisp, clear live and recorded video so you never have to wonder.
Auto Recording
Auto Recording
Record now and review later on.
Simple Setup
Simple Setup
Out of the box and into your home in minutes.
No monthly fees
No Monthly Fees
No additional fees.

See more of your spaces

With easy pan & tilt control allowing you to monitor large areas and see more in greater detail.

Security in High Definition



Home security in high definition.

Sharp and clear HD video gives you a clear view of what's going on. Home security with an eye for detail.

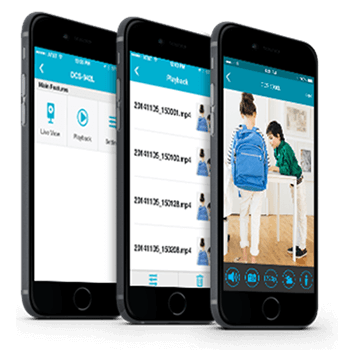

Never miss a thing.

Never miss a thing.

Receive notifications when sound or motion is detected.

Record directly to the camera's integrated microSD card slot*, with recording beginning automatically when it detects changes in your home.
(* up to 128 GB)



Be there.
Even when you're
not.

Check in on the people and places you love
whenever you like with our free mydlink Lite app.mydlink lite



*The DCS-5030L is not supported by or compatible
with the mydlink Home app or
mydlink Connected Home product series

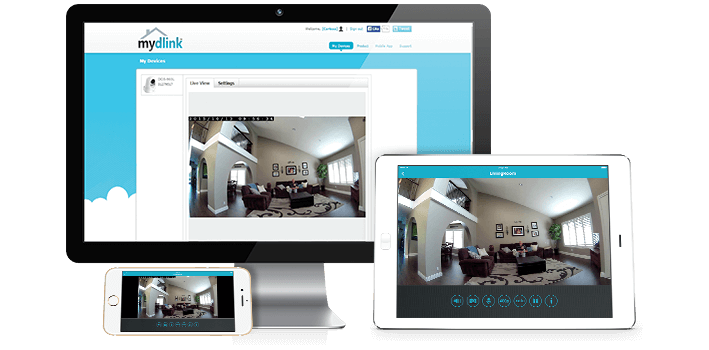

Easy to set up with mydlink.

The free mydlink Lite app makes it easy to access your camera from wherever you are, whenever it’s convenient for you. A step-by-step guide has your camera up and running in a matter of minutes.

Learn more about mydlink



Easy to set up with mydlink.



What's in the box



Pan & Tilt HD Wi-Fi Camera (DCS-5030L)

Pan & Tilt HD
Wi-Fi Camera
(DCS-5030L)

microUSB Power Adapter

microUSB
Power Adapter

Mounting Kit

Mounting Kit

Ethernet Cable

Ethernet Cable

Quick Install Guide

Quick Install
Guide

Functions & Features

Features

Camera

  • High quality CMOS sensor for crystal clear images
  • Pan and Tilt functions to cover a large area
  • Built-in IR LEDs to capture video in low-light environments

Wi-Fi Connectivity

  • Wireless 802.11n gives increased speed, range, and reliability
  • Place anywhere without the need for additional network cabling

Sound and Video

  • Real-time H.264 and MJPEG compression for reduced video file size
  • Sound and motion detection

Remote and Mobile Access

  • Support for mydlink Lite lets you manage your camera from anywhere with Internet access
  • Remote video monitoring via the mydlink website

Ease Of Use

  • Supports WPS for simple, secure wireless setup
  • Send snapshots or video clips to an FTP site or through E-mail

Technical Specifications

Camera

Camera  Hardware Profile

  • 1/4” HD progressive CMOS sensor
  • 5 metre IR illumination distance
  • Minimum illumination:
    • 0 lux with IR LEDs on
    • 1 lux (color), 0.5 lux (B&W) with IR LEDs off
  • Built-in Infrared-Cut Removable (ICR) Filter module
  • Lens: Fixed length 2.38 mm
  • Aperture: F2.2
  • 4X digital zoom
  • Angle of view:
    • (H) 94.36°
    • (V) 59.3°
    • (D) 110.44°
  • Built-in microphone
  • microSD card slot1

Image Features

  • Configurable image size and quality
  • Time stamp and text overlays
  • Configurable motion detection windows
  • Pre-event snapshot/recording

Video Compression

  • Simultaneous H.264/MJPEG format compression
  • JPEG for still images

Video Resolution

  • H.264: 1280 x 720 (default), 640 x 480, 320 x 240 at frame rates up to 30 fps
  • MJPEG: 1280 x 720 (default), 640 x 480, 320 x 240 at frame rates up to 30 fps

Audio Compression

  • G.711 μ-law

Pan /Tilt

Pan Range

  • -170° to +170° (total 340°)

Tilt Range

  • -20° to +90° (total 110°)

Angular Velocity

  • 16° per second

Step Setting

  • Pan 1°/2°/3°/4°/5°(default)/10°/15°/20°/25°/30° per click
  • Tilt: 1°/2°/3°/4°/5°(default)/10°/15°/20°/25°/30° per click

Network

Connectivity

  • 10/100 BASE-T Fast Ethernet port
  • Single-band 1T 1R mode supports a maximum data rate of 72.2 Mbps (PHY rate) using the 20 MHz band
  • 802.11n/g/b wireless

Network Protocols

  • IPV4, ARP, TCP, UDP, ICMP
  • DHCP Client
  • NTP Client (D-Link)
  • DNS Client
  • DDNS Client (D-Link)
  • SMTP Client
  • FTP Client
  • HTTP Server
  • PPPoE
  • UPnP Port Forwarding
  • LLTD

Security

  • WPS
  • WPA-PSK, WPA2
  • HTTP digest encryption
  • Password authentication

Advanced Features

System Requirements for Web Interfaces

  • Operating system: Microsoft Windows Vista/7/8/102, Mac OS X 10.7
  • Browser: Internet Explorer 8/Firefox 12/Safari 6/Chrome 203 or higher with Java and/or ActiveX installed and enabled2

Event Management

  • Motion detection
  • Sound level detection
  • Event notification and uploading of snapshots/video clips via e-mail (SMTP) or FTP

Remote Access

Remote Management

  • Configuration accessible via web browser

Mobile support

  • mydlink Lite app for iOS and Android
  • mydlink+ app for iOS and Android

General

Weight

  • Device: 292.4 grams (0.64 lbs)
  • Stand: 60.8 grams (0.13 lbs)

Power

  • 5 V DC 1.5 A,  50/60 Hz

Power Consumption

  • 5.56 W

Temperature

  • Operating: 0 to 40 °C (32 to 104 °F)
  • Storage: -25 to 70˚ C (-13  to 158 ˚F)

Humidity

  • Operating: 20% to 80% non-condensing
  • Storage: 5% to 90% non-condensing

Certifications

  • CE, CE LVD, FCC Class B, ICES

Dimensions

  • 116.4 x 109.1 x 133.6 mm (4.58 x 4.29 x 5.26 inches) (Camera only)
  • 116.4 x 109.1 x 230.0 mm (4.58 x 4.29 x 9.06 inches) (Including mounting bracket)
1. MicroSD card not included. Supports card capacities up to 32 GB.
2. Microsoft Edge is not supported.
3. mydlink Portal only.

Warranty Document
Datasheets
Description Type File Size
Download PDF 0.35mb
Manuals
Description Type File Size
Download PDF 4.45mb
Quick Installation Guides
Version Description Date Type File Size
Download 1.00
Quick Installation Guide
Show moreShow less
PDF 2.58mb
Firmware
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date
Download 1.13 2017-01-25 00:00:00
Download 1.02.13 2016-11-15 00:00:00
Additional Downloads
Version Description Date
Download
DCS-5030L CE DoC
Show moreShow less
Download 1.20
DCS-5030L CE DoC
Show moreShow less
2017-09-22 00:00:00

Get the  HD Pan & Tilt Wi-Fi Day/Night Camera

Buy From Retailer

List Retailers

The DCS-5030L HD Pan & Tilt Wi-Fi Day/Night Camera provides a range of features to help you effectively monitor large areas of your home or small office at all hours of the day. An integrated microSD card slot allows you to record videos directly onto the camera, without the need of a computer. You can set up the camera to record only when motion or sound is detected.
