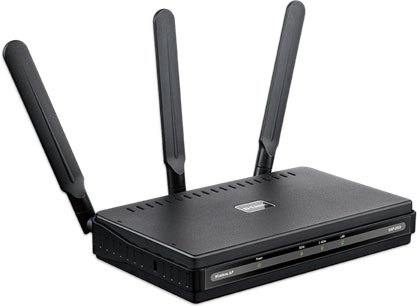

AirPremier N Dualband PoE Access Point

DAP-2553

  • Product Status: Phased Out

The D-Link DAP-2553 AirPremier N Dualband PoE Access Point provides businesses with a solution for deploying 802.11n Local Area Networks (LANs). Designed for indoor installation, this Access Point enables network administrators to deploy a highly manageable, robust and secure wireless network.


Download the datasheet.

List Retailers

Versatile Hardware with PoE support

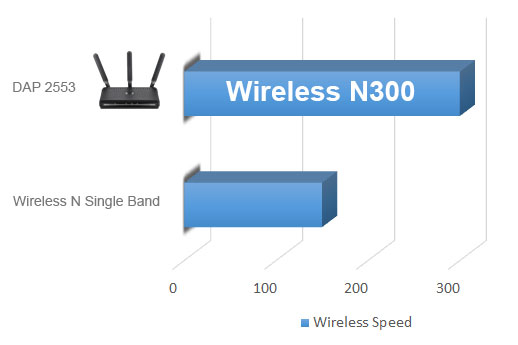

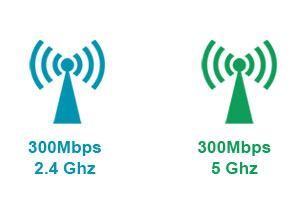

The DAP-2553 delivers reliable Wireless N performance with no dead spots and rates of up to 300 Mbps in either the 2.4 GHz or 5 GHz wireless band1.

For installations in areas where power outlets are not readily available, the Access Point integrates 802.3af Power over Ethernet (PoE), to ensure flexibility and easy set-up.



Enhanced performance

Support for the Wi-Fi Multimedia™ (WMM) Quality of Service feature makes the DAP-2553 an ideal solution for audio, video, and voice applications. Additionally, this Access Point supports load balancing to optimise high volumes of traffic.



Advanced wireless security

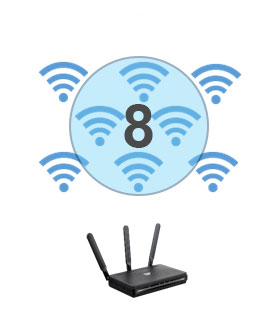

The DAP-2553 provides industrial grade wireless security by supporting both Personal and Enterprise versions of WPA and WPA2 (802.11i) with support for RADIUS server backend. This Access Point also includes MAC Address filtering, Wireless LAN segmentation, Disable SSID Broadcast and rogue AP detection. The AirPremier N Dual Band PoE Access Point includes support for up to 4 VLANs for implementing multiple service set identifiers (SSIDs) to further help segment users on the network. With multiple SSIDs, the number of physical APs deployed can be reduced, hence keeping costs to a minimum.

The DAP-2553 also includes a wireless client isolation mechanism to prevent direct client-to-client communication and a wireless scheduler to shut down the wireless LAN at certain times of the day.



Multiple operation modes

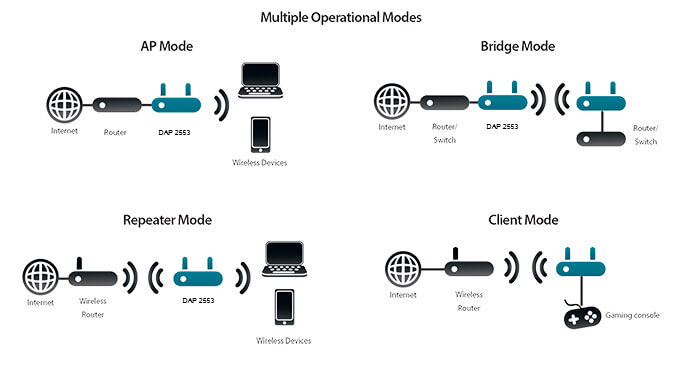

The DAP-2553 can be configured in any one of its multiple operation modes: Access Point, Wireless Distribution System (WDS) with Access Point, WDS/Bridge (No AP Broadcasting) and Wireless Client. With WDS support, network administrators can set up multiple DAP-2553s throughout a facility and configure them to bridge with one another while also providing network access to individual clients.

Advanced Network Management

Network administrators can manage all the DAP-2553's settings via its web-based configuration utility (HTTP), Secure Sockets Layer (SSL), Secure Shell

(SSH), or with Telnet. D-Link's AP Manager or D-View SNMPv3 management module may also be used to configure and manage multiple Access Points from a single location. In addition to a streamlined management process, network administrators can also verify and conduct regular maintenance checks without wasting resources by sending personnel out to physically test that the device is functioning correctly.



1Maximum wireless signal rate based on IEEE standard 802.11g, 802.11a and draft 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors lower actual data throughput rate.

Technical Specifications

Hardware

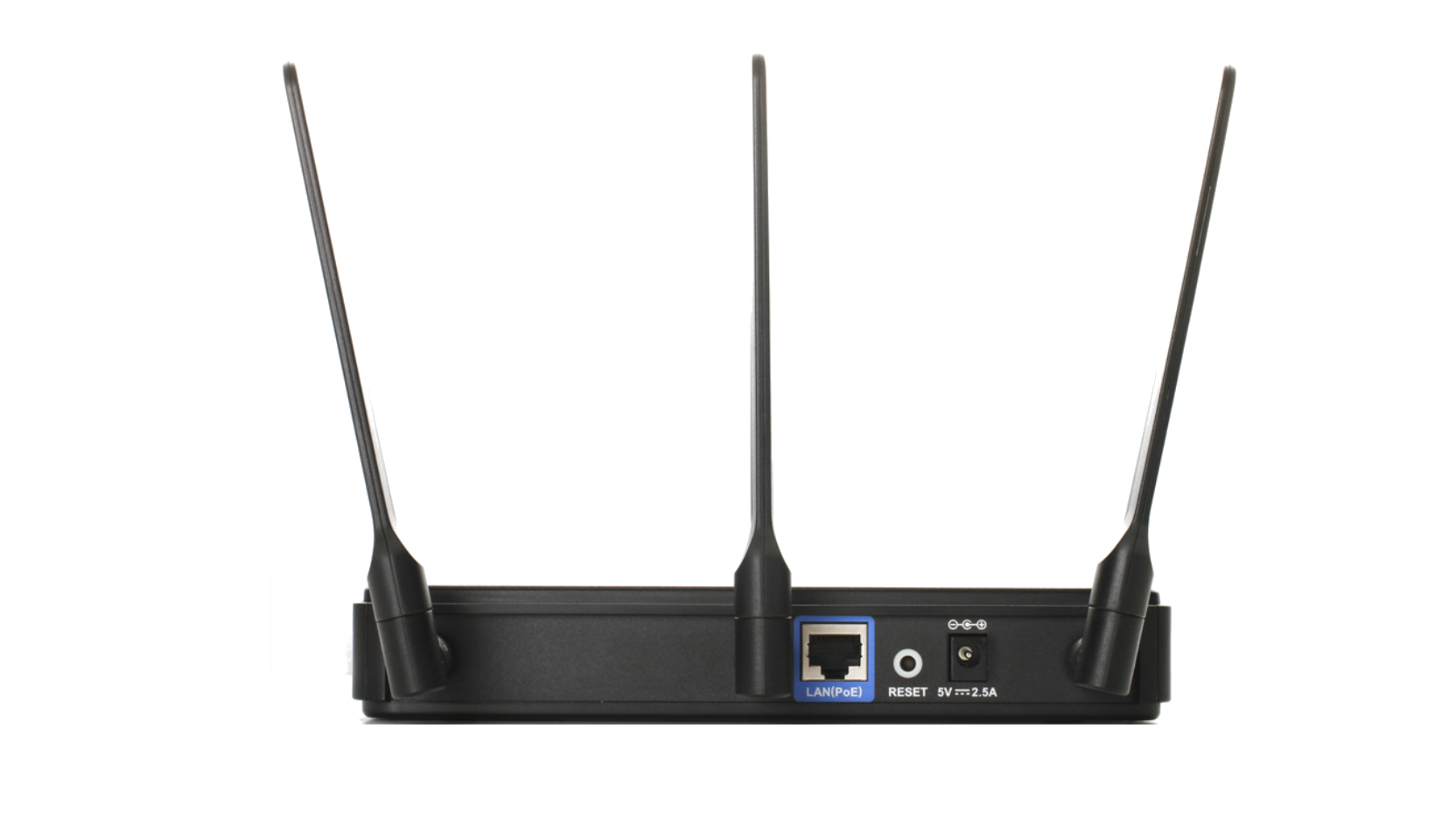

  • One 10/100/1000 Mbps Gigabit LAN port with built-in 802.3af Power over Ethernet (PoE)
  • Selectable dualband connectivity

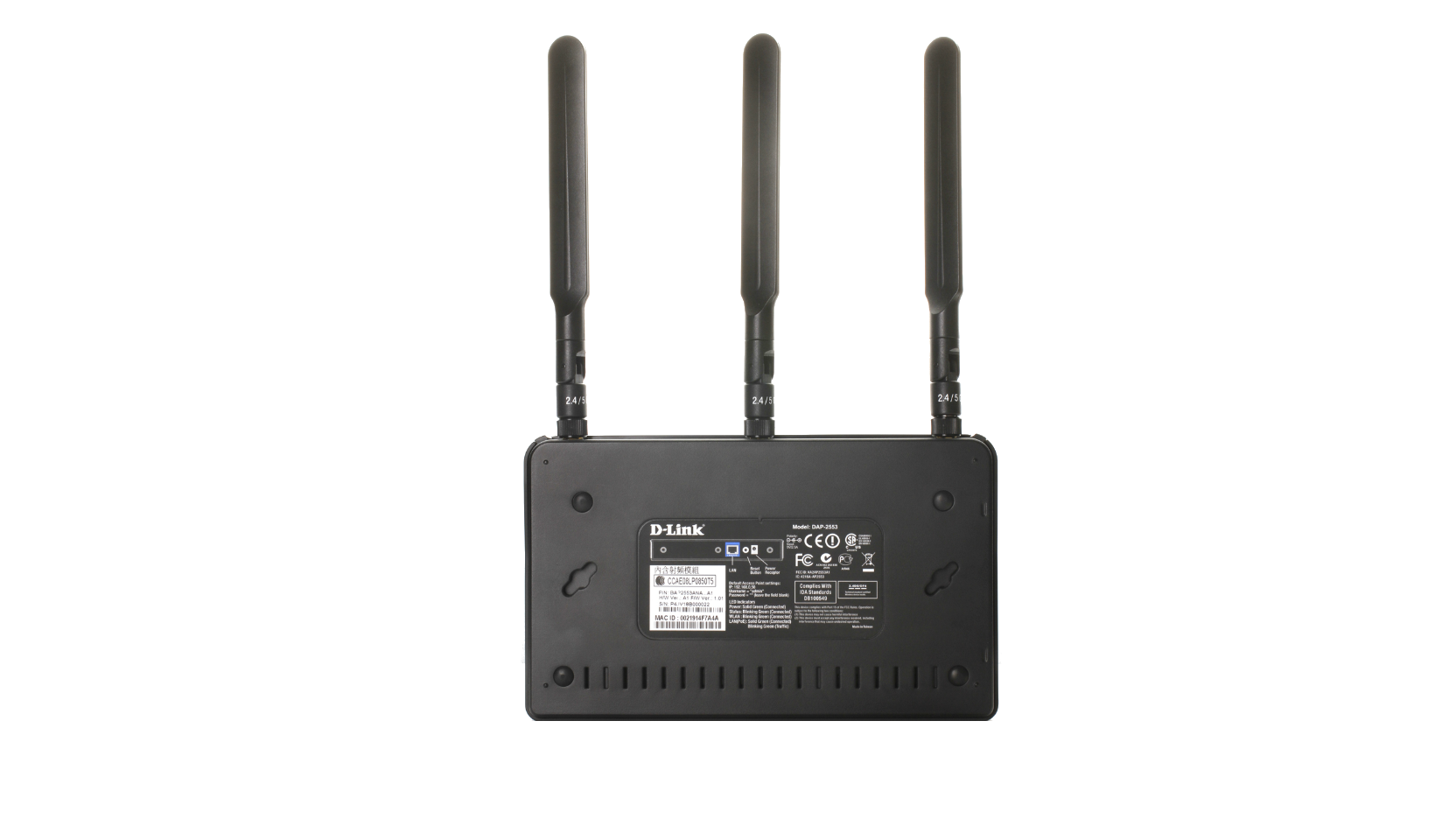

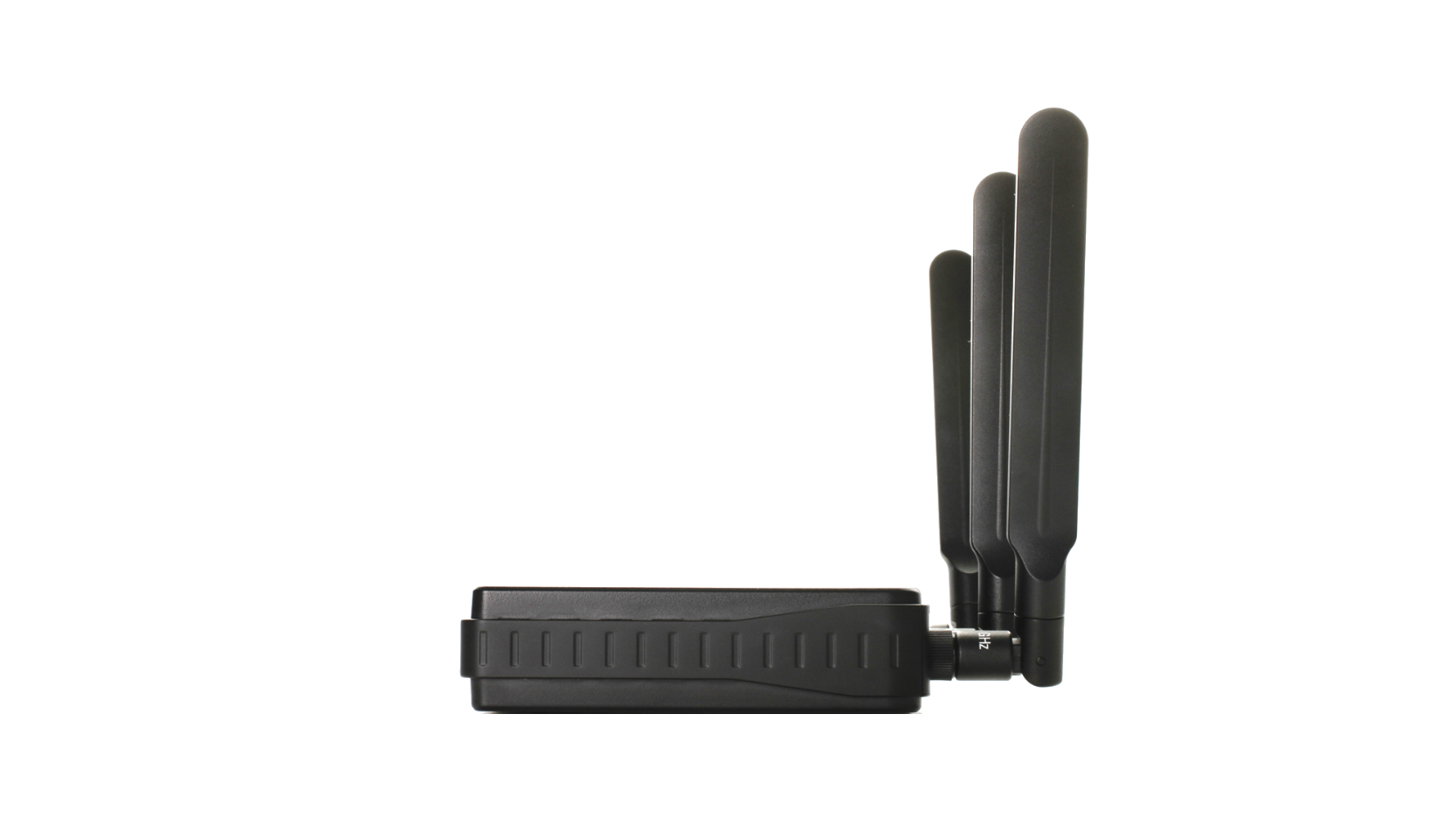

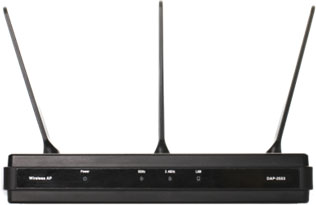

  • Three detachable dualband antennas

Operation Modes

  • Access Point
  • Wireless Distribution System (WDS), for either Point-to-Point or Point-to-Multipoint bridge
  • WDS with AP
  • Wireless client

High Performance Connectivity

  • IEEE 802.11n specification
  • Up to 300 Mbps wireless data transfer rates*

* Maximum wireless signal rate based on IEEE standard 802.11g, 802.11a and draft 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors may lower actual data throughput rate.

Security

  • WPA™ Personal/WPA™ Enterprise
  • WPA2™ Personal/WPA2™ Enterprise
  • WPA2-PSK/AES over WDS
  • MAC Adress Filtrering

Administration
  • AP Manager II
  • Web Browser (HTTP/HTTPS)
  • Telnet
  • SSH
  • SNMP v1, v2c, v3
  • D-View 5.1 and 6.0

FAQ

  • What is the advantage of using WPA over WEP security? Read Answer
How to change wireless channel on the DAP-2553
How to change wireless channel on the DAP-2553

Downloads can vary across product revisions. Please select the correct hardware revision.


This product was phased out on: 2016-12-20
