Wireless G Access Point

DAP-1160

  • Product Status: Phased Out

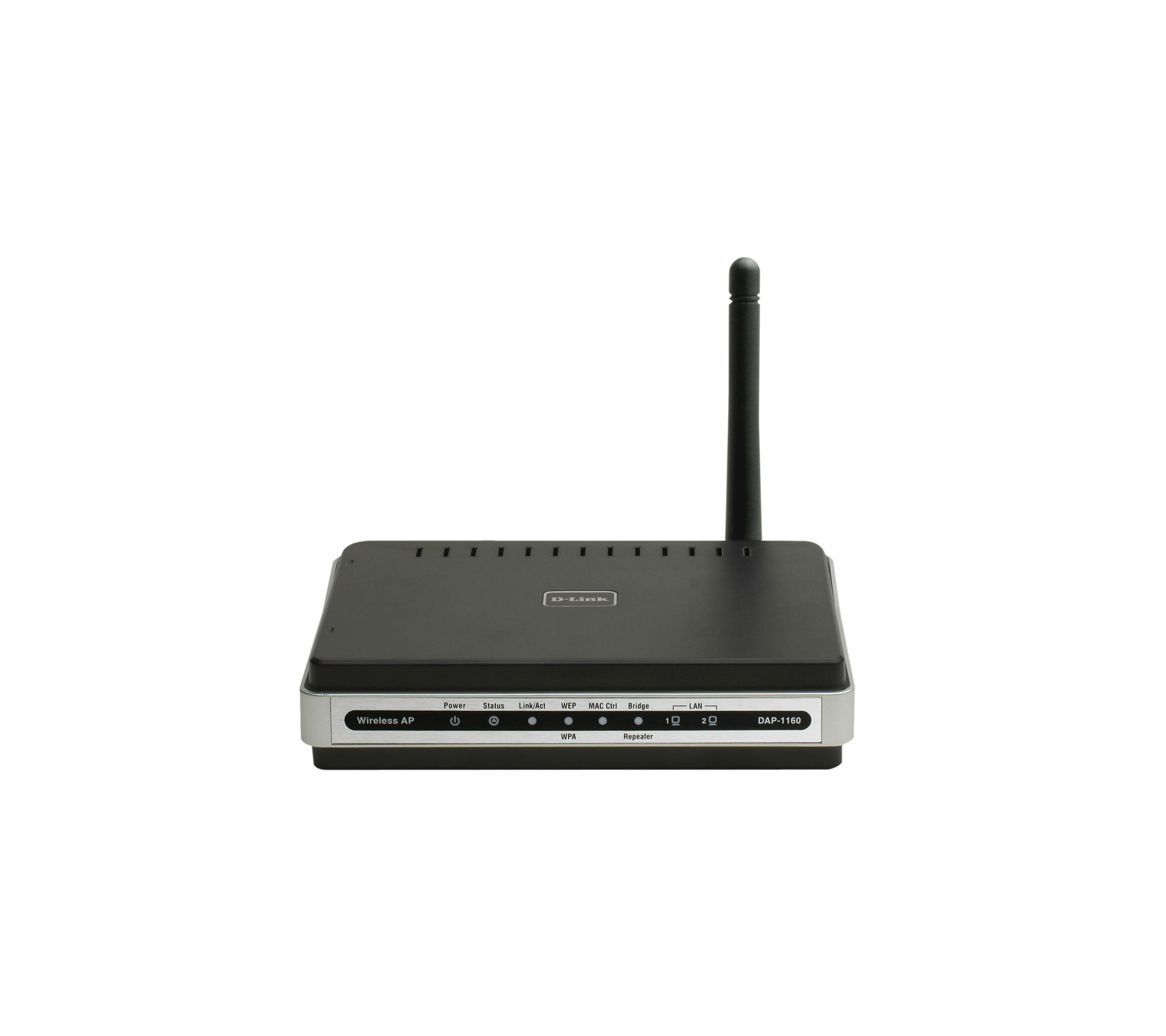

The D-Link DAP-1160 is a wireless Access Point (AP) compliant with the IEEE 802.11g standard. By connecting the DAP-1160 to a broadband router, users will be able to share high-speed Internet access wirelessly and create a secure wireless network to share photos, files, music, video, printers and network storage.

Download the datasheet.

List Retailers
Linux-Based Platform

Based on the Realtek RTL8186 chipset, the DAP-1160 can be upgraded with any bespoke firmware based on the provided Software Development Kit (SDK)*. This allows programmers to make full use of the 4MB Flash memory and 16MB SDRAM to include advanced features of their choice.



Wireless Network and Data Protection

The DAP-1160 provides 64/128-bit WEP encryption and WPA/WPA2 security to protect your network and wireless data. In addition, it also provides MAC address filtering and the ''Disable SSID Broadcast'' function to prevent outsiders' access to your home or office network.



Versatility for Use in Different Applications

The DAP-1160 can be configured to operate as

an Access Point to act as a central hub for wireless users
an AP Client to connect to another Access Point
a Workgroup Bridge to join two workgroups together wirelessly
a Workgroup Bridge with AP to act as wireless hub and a bridge at the same time
a Repeater to extend the wireless coverage to cover all ''dead spots''



In addition two Wireless Internet Service Provider (WISP) modes are supported**, which could allow several homes to wirelessly share a single link to the Internet without the need for extra routers: WISP Client Router and WISP Repeater, respectively linking to wired only or wired/wireless computers.



Easy to Install and Use


With D-Link's Click'n Connect (DCC) Wizard, you can set up your wireless network in minutes. It configures your DAP-1160's operation mode, makes it easy to add new wireless devices onto the network and helps you create a simple wireless network for your home and office.

*available on request

** function available in a future firmware upgrade
Wireless N AP
Find out more
Xtreme N Duo Wireless N Access Point
Find out more
Wireless N Pocket Router & Access Point
Find out more

Technical Specifications

Network Standards
  • 802.11g wireless LAN
  • 802.11b wireless LAN
  • 802.3/802.3u 10BASE-T/100BASE-TX Ethernet
  • ANS/1EEE 802.3 NWay auto-negotiation

Devices Interfaces
  • 802.11g wireless LAN
  • 2 10/100BASE-TX Ethernet LAN ports

Operating Frequency
  • 2.4 to 2.4835 GHz

Radio & Modulation Schemes
  • DQPSK, DBPSK, CCK, OFDM

Antenna
  • 2dBi Gain detachable omni-directional antenna with RP-SMA connector

Security
  • 64/128-bit WEP encryption
  • WPA-PSK, WPA2-PSK
  • WPA-EAP, WPA2-EAP
  • TKIP, AES
  • MAC address filtering
  • SSID broadcast disable function

Device Management
  • Web-based management through Internet Explorer v.6 or later, Netscape Navigator v.6 or later or other Java-enabled browser

Power Input
  • 5VDC 2A
  • External power adapter

Diagnostic LEDs
  • Power
  • Status
  • Link/Act
  • WEP/WPA
  • MAC Ctrl
  • BRIDGE/REPEATER
  • LAN1
  • LAN2

Warranty
  • 2-year warranty
