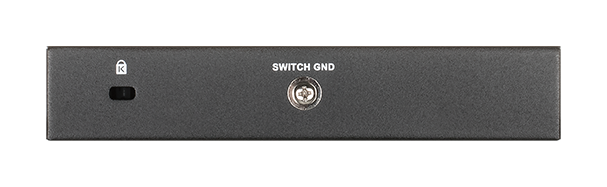

5-Port Gigabit PoE-Powered Smart Managed Switch

DGS-1100-05PD

Share

D-Link’s DGS-1100-05PD 5-Port Gigabit PoE-Powered Smart Managed Switch provides an affordable solution for SOHOs and Small and Medium Businesses as well as enterprise deployment, such as in branch offices and meeting rooms that require simple network management. The 5-port DGS-1100-05PD can be powered by a PoE switch, making it ideal for deployment in places where no power socket is available. With its PoE-passthrough feature, it can power 2 additional PoE-enabled devices with a PoE power budget of up to 18W1. It come in a compact desktop-sized metal case with fanless design for silent operation. Advanced management features, diagnostic and troubleshooting tools, and energy efficient technologies provide a flexible solution to suit your networking requirements.

Auto Surveillance/Voice VLAN and Bandwidth Control

The DGS-1100-05PD supports Auto Surveillance VLAN (ASV) which ensures the quality of real-time video for monitoring and control without compromising the transmission of conventional network data. The DGS-1100-05PD also supports Auto Voice VLAN, which is best suited for VoIP deployments. This enhances the VoIP service by automatically placing voice traffic from an IP phone to an assigned VLAN. With higher priority and individual VLAN, these features guarantee the quality and security of VoIP traffic. Bandwidth Control can reserve bandwidth on a per port basis for important functions that require larger bandwidth or have high priority.

Advanced Features

DGS-1100-05PD is equipped with advanced security features such as Static MAC, Storm Control, and IGMP Snooping. Static MAC allows users to create a MAC whitelist for specific ports, helping administrators limit network access to authorised devices only. Storm Control monitors broadcast, multicast, or unknown unicast traffic and will start blocking or discarding packets which could flood the network when the defined threshold is exceeded. IGMP Snooping is able to reduce the loading of L3 multicast routers and save bandwidth in network throughput.

Easy Troubleshooting

The DGS-1100-05PD features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily. Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognise the cable type, and detect cable errors.

Easy to deploy

The DGS-1100-05PD supports an intuitive D-Link Network Assistant Utility and a web-based management interface. The D-Link Network Assistant Utility allows customers to discover all switches in the D-Link Smart Managed Switch family within the same L2 network segment. With this utility, users do not need to change the IP address of their PC, which also makes the initial setup of the Smart Managed Switches quick and easy. Switches within the same L2 network segment that are connected to the user’s PC are displayed on-screen for instant access. This allows for extensive switch configuration and basic setup of discovered devices, including password changes and firmware upgrades. The graphic web-based management interface provides a user-friendly interface that enables network administrators to remotely control their network down to the port level.

1 When powered by PoE device supporting 802.3at. PoE power budget is up to 8 W when powered by PoE device supporting 802.3af.
Features

Physical
  • Powered by PoE
  • PoE-passthrough connects and powers 2 additional PoE-enabled devices
  • Fanless design for silent operation

Green Technology

  • Link Status detection
  • IEEE 802.3az compliant

Advanced Features

  • Bandwidth Control
  • IEEE 802.1Q VLAN traffic segregation
  • Port-based VLAN
  • IEEE 802.1p QoS
  • Surveillance VLAN
  • Voice VLAN

Management Features

  •  Client-based utility or web-based GUI


Technical Specifications

Interface

Number of 10/100/1000BASE-TX ports

  • 5 ports

PoE Standard

  • 802.3af

Number of PoE Ports

  • 2 ports

Maximum PoE Power Budget

  • 18 W with 802.3at input power
  • 8 W with 802.3af input power

Performance

Switch Capacity

  • 10 Gbps

Maximum Forwarding Rate

  • 7.44 Mpps

MAC Address Table Size

  • 2K

Packet Buffer

  • 1 Mbits

Flash Memory

  • 2 Mbytes

Diagnostic LED Indicators

Power (Per Device)

  • Yes

Link/Activity/Speed (Per Port)

  • Yes

Physical & Environmental

Power Consumption (Maximum)

  • DGS-1100-05PD -23.92W (PoE on)

Power Input

  • 802.3af/at PoE input only (no power supply)

Dimensions (W x D x H)

  • 150 x 97 x 28 mm

Weight

  • 0.38 kg

Ventilation

  • Fanless

MTBF

  • 2,346,941 hours

Temperature

  • Operating: 0° to 40°C (32° to 104°F)
  • Storage: -10° to 70°C (14° to 158°F )

Humidity

  • Operating: 0% ~ 90% Non-condensing

EMI/EMC

  • FCC Class B, CE Class B, VCCI Class B, BSMI, CCC

Safety

  • cUL, CE LVD, CB, BSMI, CCC



Software Features

VLAN

  • Port-based VLAN
  • 802.1Q tagged VLAN
  • Surveillance VLAN
  • Voice VLAN
  • Management VLAN
  • VLAN Group
    • Supports 32 static VLAN groups
    • Max. 4094 VIDs

L2 Features

  • Flow Control
    • 802.3x Flow Control
    • HOL Blocking Prevention
  • Jumbo Frames up to 9216 Bytes
  • IGMP Snooping
    • IGMP v1/v2 Snooping
    • Supports 32 Groups
  • Static Trunk
    • 2 groups, 2-4 ports per group
  • Loopback Detection
  • Cable Diagnostics
  • Port Mirroring
    • One-to-One
  • Statistics
    • Tx Ok
    • Tx Error
    • Rx Ok
    • Rx Error

Quality of Service (QoS)

  • 802.1p Quality of Service
  • 4 queues per port
  • Queue Handling
    • Strict
    • Weighted Round Robin (WRR)
  • Bandwidth Control
    • Port-based (Ingress/Egress, min. granularity 8 Kb/s)

Security

  • Static MAC Address
    • Up to 32 entries
  • Broadcast/Multicast/Unknown Unicast Storm Control

Management

  • Web-based GUI (Supports IPv4)
  • Client-based Utility (SmartConsole Utility)

D-Link Green

  • Power Saving by
    • Link Status, Cable Length
  • Compliant with IEEE 802.3az Energy Efficient Ethernet
  • Compliant with RoHS 6

RFC Standard List

  • RFC 768 UDP
  • RFC 791 IP
  • RFC 792 ICMP
  • RFC 793 TCP
  • RFC 826 ARP
  • RFC 951 BootP client
  • RFC 1542 BootP/DHCP client
  • RFC 1945 HTTP/1.0
  • RFC 2647 802.1p
  • RFC 2236, 4451 IGMP Snooping
