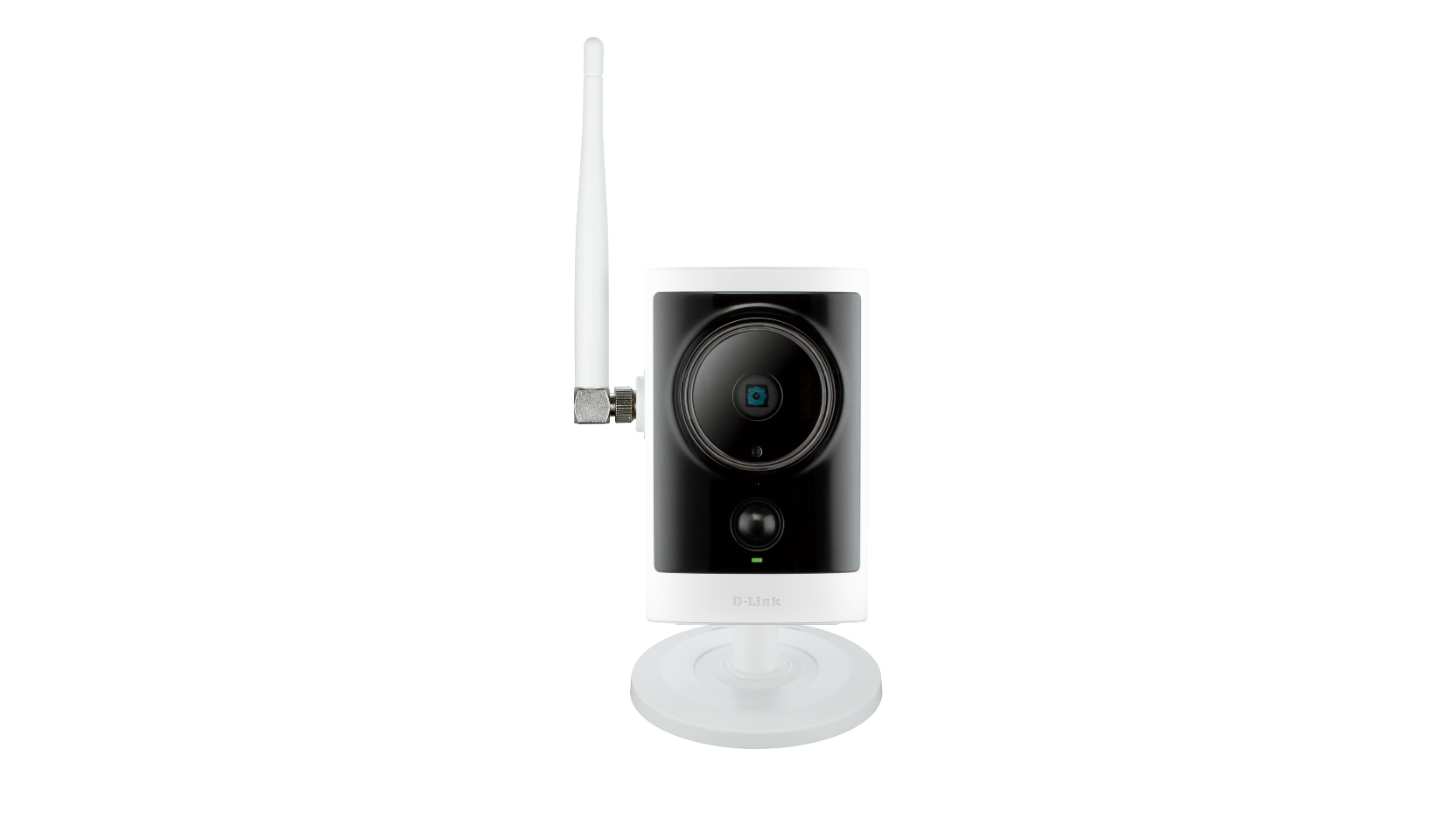

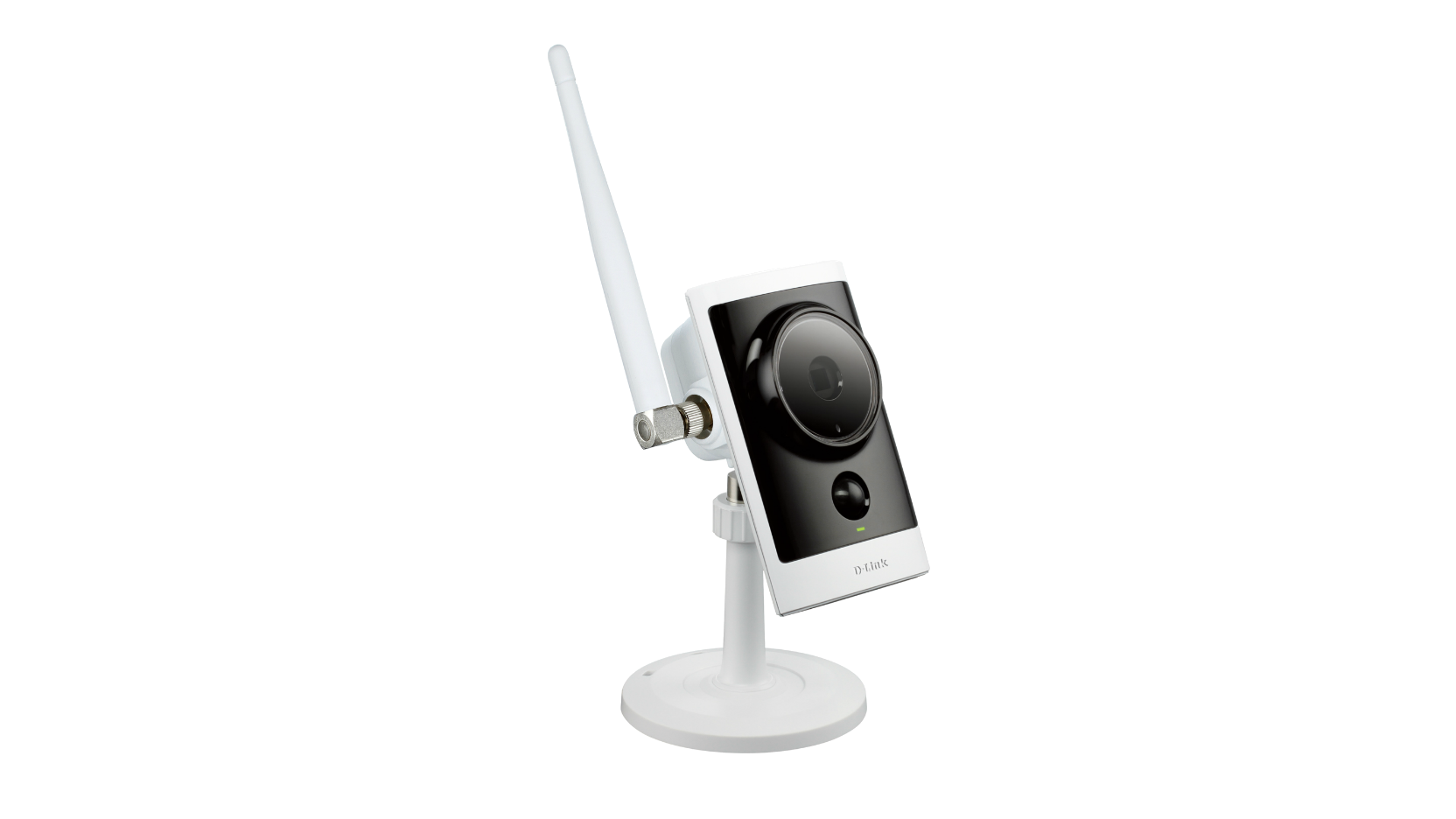

Outdoor HD Wireless Day/Night Cloud Camera

DCS-2332L

  • Product Status: Phased Out

The DCS-2332L HD Wireless Outdoor Cloud Cameras are built for outdoor use, with weatherproof housing that protects them from dust and rain. A megapixel image sensor gives you high-quality snapshots and video with resolutions of up to 720p HD. You can even get a closer look with ePTZ viewing, which lets you zoom in, zoom out, and pan across, so you can survey a large area easily.


Download the datasheet.

List Retailers
The DCS-2332L HD Wireless Outdoor Cloud Cameras are built for outdoor use, with weatherproof housing that protects them from dust and rain. A megapixel image sensor gives you high-quality snapshots and video with resolutions of up to 720p HD. You can even get a closer look with ePTZ viewing, which lets you zoom in, zoom out, and pan across, so you can survey a large area easily.

mydlink™: the easiest way to setup up your camera and monitor your home


Connecting a camera on your network and accessing it has traditionally required complex configuration. mydlink™ makes it easy to access your camera from wherever you are, whenever it’s convenient for you. Using the free mydlink™ Lite app for iOS and Android smartphones and tablets, you can connect and setup your mydlink™ camera without the need of a computer. A step-by-step guide has your camera up and running in a matter of minutes.
Through the mydlink™ Lite app, you can set up a free mydlink™ account allowing you to view and manage your camera from any Internet connected computer. If you have more than one camera, you can add it to your existing mydlink™ account and watch all your cameras from a single location.
Accessing your cameras on the go is easy too. Just download the free mydlink™ Lite app for your iPhone or Android and you can quickly and easily view your camera feed from anywhere with a wireless or 3G/4G LTE connection. You can even talk back through the app with 2-way audio support. Thanks to this app, you can monitor on-the-go even if you don’t have access to a computer.

Outdoor 24/7 HD Surveillance


These Cloud Cameras have a megapixel image sensor to give you high-quality snapshots and video with resolutions of up to 720p HD.. Get a closer look with ePTZ, which lets you zoom in, zoom out, and pan across your camera’s video so you can survey a large area easily. An infrared cut removable (ICR) filter is also built into these Cloud Cameras, which blocks infrared light during the day for improved image quality. At night, it moves out of the way to use all available light for low-light surveillance, and paired with the IR LED illuminator, these cameras can monitor an area even in complete darkness.

Zero Configuration


If you have a D-Link Cloud Router, setting up and configuring your Cloud Camera is easy, thanks to Zero Configuration. Simply connect your camera to its power adapter and then connect your camera to your Cloud Router with an Ethernet cable -the camera will automatically be added to your mydlink™ account. Setting up cameras has never been so easy.

Built for versatility


Both Outdoor Cloud Cameras comes with a wealth of features that enhance their home monitoring capabilities, making them ideal for any situation. A passive infrared (PIR) sensor detects motion near the camera, allowing it to automatically record video and send you a notification when motion is detected. A built-in microphone and speaker allow for 2-way communication, which is ideal for use in entryways.

A complete, surveillance solution1


These HD Cloud Cameras are a self-sufficient home monitoring solution, capable of recording snapshots and video to a MicroSD card2 without requiring a PC or network storage device. If you want to expand your surveillance options, D-View Cam management software is also included, giving you the ability to manage up to 32 cameras with a robust set of features, including multi-camera views and automated e-mail alerts to keep you informed of suspicious or unusual activities.
1 D-ViewCam software included is not Mac-compatible.
2 microSD not included.

Product Awards

PCM Best Getest Award
Tech Awards Platinum

Technical Specifications

System requirements for Web Interface

  • Browser: Internet Explorer, Firefox, Chrome

Event Management

  • Motion detection
  • Event notification and uploading of snapshots/video clips via e-mail or FTP
  • Supports multiple SMTP and FTP servers
  • Multiple event notifications
  • Multiple recording methods for easy backup

Remote Management

  • Take snapshots/video clips and save to local hard drive or NAS via web browser
  • Configuration interface accessible via web browser


Mobile Support

  • Windows 7/Vista/XP system, Pocket PC, or mobile phone
  • mydlink™ mobile app for iOS and Android mobile devices


D-ViewCam™ System Requirements

  • Operating System: Microsoft Windows 7/Vista/XP
  • Web Browser: Internet Explorer 7 or higher
  • Protocol: Standard TCP/IP


D-ViewCam™ Software Functions

  • Remote management/control of up to 32 cameras
  • Viewing of up to 32 cameras on one screen
  • Scheduled motion triggered, or manual recording options
  • Supports all management functions in web interface


Weight

  • 235 g ± 5%


Power

  • 5 V DC, 1.2 A through external power adapter or PoE connection (FOR PoE version only)
  • External Power Adapter Input: 100 to 240 V AC, 50/60 Hz


Power Consumption

  • 5.3 watts max.


Temperature

  • Operating: -25 to 50 °C (-13 to 122 °F)
  • Storage: -20 to 70 °C (-4 to 158 °F)


Humidity

  • Operating: 20% to 80% non-condensing
  • Storage: 5% to 95% non-condensing


Certifications

  • CE
  • CE LVD
  • FCC
  • C-Tick

FAQ

  • How do I change the storage location in D ViewCam v3 x Read Answer
  • How do I setup the D ViewCam Mobile app with a PC running D ViewCam Read Answer
How to install and use the Mydlink Lite app on your iPhone/iPad
How to remove a camera from your Mydlink account
How to Log into a Mydlink camera
How to Setup and Install a Mydlink camera
How to configure time on a Mydlink camera
How to record to the SD card on a Mydlink camera
How to configure Motion Detection on a Mydlink camera
This product was phased out on: 01/05/2017
Version Date Type File Size
Datasheet (English) - PDF 2.92mb Download
IP Surveillance Product Guide - PDF 3.58mb Download
Version Description Date Type File Size
Manual Manual 25/02/2013 PDF 7.23mb Download
Version Description Date Type File Size
1.00 Quick Installation Guide 25/02/2013 PDF 1.33mb Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date
1.08.03 Firmware 23/11/2016 Download
1.07.00 Firmware 16/10/2015 Download
Firmware 1.06.00 Firmware 06/10/2015 Download
Firmware 1.05.02 Firmware - Download
Version Description Date
Setup Wizard Find the latest Setup Wizard on our Mydlink site.
Make sure to select the correct model and version.
13/01/2016 Download
D-ViewCam 3.60 + Device Pack 3.60

D-ViewCam 3.60 + Device Pack 1.5.4

18/02/2014 Download
Version Description Date
DNR_2020_04P_Cam_Support_list DNR-2020-04P Camera Support List 22/09/2016 Download
DEU_Quick_Guide_on_mydlink_Cameras_Rev Quick Guide on mydlink Cameras 03/12/2014 Download
CE declaration rev. A1 CE declaration rev. A1 14/10/2014 Download
CE declaration rev. A2 CE declaration rev. A2 14/10/2014 Download
DEU_IP_Surveillance_Cheat_Sheet

IP Surveillance Cheat Sheet

25/04/2014 Download
