Description

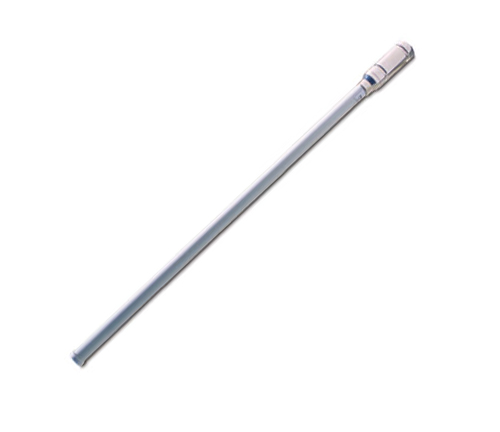

The D-Link ANT24-0500 antenna provides extended coverage for an existing 802.11b and 802.11g wireless network. This 5dbi Omni-Directional antenna has a 3 meter cable with N-Female to RP-SMA adapter for easy connections to most wireless access points.
The D-Link® ANT24-0500 Indoor/Outdoor Omni-Directional Antenna connects to a variety of D-Link Wireless PCI Adapters, Routers, and Access Points. Using a reverse SMA adapter on its 3m (9.8 feet) cable the D-Link ANT24-0500 easily connects to other wireless networking devices.
The D-Link ANT24-0500 antenna provides extended coverage for an existing 802.11b/g wireless local area network (WLAN). The ANT24-0500 antenna is a 5dBi omni-directional antenna, giving you 360° of increased wireless signal range. This 5dBi antenna also improves signal quality, reducing dead spots in your wireless coverage.
The ANT24-0500's 5dbi signal strength and omni-directional design gives you increased wireless signal range in all directions. Avoid the cost of adding additional access points or wireless repeaters when you can easily use the ANT24-0500 indoors.
* Works with any 802.11b/802.11g compliant devices with a reverse SMA connector only.
Features
- 2.4GHz Frequency Range
- Omni Directional
- Includes Cable that Converts N-Female to Reverse SMA
- Works with 802.11b and 802.11g Compliant Devices*
Specifications
| Electrical Specifications | | Frequency range | 2.4 -2.5GHz | | Gain | 5 dBi | | VSWR | 2:1 Max | | Polarization | Linear, vertical | | HPBW | - horizontal - 360°
- vertical- 32°
| | Downtilt | 40° | | Power handling | 20W (cw) | | Impedance | 50 Ohms | | Connector | N female | | Cable | (N-male to RP-SMA plug) - 3 meters - 0.83db lost per meter | | Environmental & Mechanical Characteristics | | Temperature | -40°F to 176°F ( -40°C to 80°C) | | Humidity | 100%@ 77°F (25°C) | | Lightning protection | DC ground | | Radom color | Gray-white | | Radom material | Fiberglass | | Radiator material | Micro Striple line | | Weight | 1.76 lbs (0.8kg) | | Dimensions | 13 x 0.75 in. (330 x 19mm) | | Survival wind speed | 112 miles/hr (180 km/hr) | | Warranty | One Year |
|
