Description

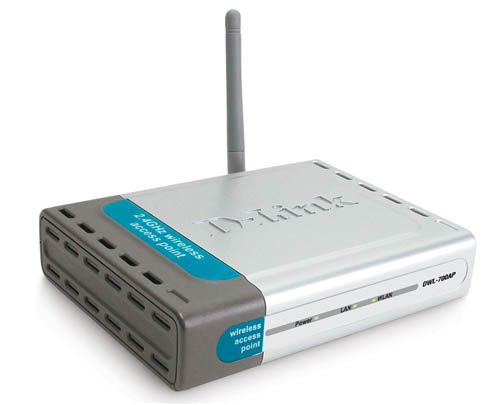

D-Link, the industry pioneer in wireless networking, introduces the new D-Link Air DWL-700AP Access Point capable of transfer rates of up to 11Mbps. The DWL-700AP gives you the ability to create a cost-effective wireless network easily at home or at the office.
D-Link, the industry pioneer in wireless networking, introduces the new
D-LinkAirTM DWL-700AP Access Point capable of transfer data with a maximum wireless signal rate of up to 11Mbps
*. The DWL-700AP gives you the ability to create a cost-effective wireless network easily at home or at the office.
The DWL-700AP is Wi-Fi compatible, meaning that it can connect and interoperate with other 802.11b compatible wireless routers, access points, and adapters. With its quick and easy installation along with web-based setup wizard, the DWL-700AP ensures that you will be running on a wireless network in just a matter of seconds.
The DWL-700AP features up to 64/128-bit WEP encryption to provide a level of security for wireless data communications. It also includes an embedded DHCP server that once enabled will automatically assign IP addresses to wireless clients. With easy web-based management and great technical support provided by D-Link, the DWL-700AP provides a simple and low-cost solution to build Wireless Local Area Networks (WLAN) for people.
* Maximum wireless signal rate based on IEEE Standard 802.11b specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate.
Features
- Up to 11 Mbps* and 802.11b Compatible
- Easy Web-based Configuration and Management
- Cost-effective Solution
Specifications
Standards
| - IEEE 802.11b
- IEEE 802.3
- IEEE 802.3u
| | Ports | (1) 10/100 Mbps Fast Ethernet | Data Rates
With Automatic Fallback | - 11Mbps*
- 5.5Mbps
- 2Mbps
- 1Mbps
| | Encryption | 64-, 128-bit WEP | Media Access Control
| CSMA/CA with ACK | Frequency Range
| 2.4GHz to 2.4835GHz | Operating Range**
| - Indoors: Up to 328 feet (100 meters)
- Outdoors: Up to 1,312 feet (400 meters)
| Sensitivity-92 dBm
(DBPSK@1Mbps) | - -92 dBm (DQPSK@2Mbps)
- -88 dBm (CCK@5.5Mbps)
- -84 dBm (CCK@11Mbps*)
| | Power Input | External Power Supply: DC 5V, 2.4A | LEDs
| - Power
- WLAN (Wireless Local Area Network)
- Local Network (Ethernet)
| Output Power
| 17dBm (50mW) +- 2dB | External Antenna Type
| 2.0dB gain with reverse SMA connector | Device Management
| - Web-Based – Internet Explorer or Netscape Navigator v6 or later
- Access Point Manager
| Temperature
| - Operating: 32°F to 122°F (0°C to 50°C)
- Storing: -4°F to 149°F (-20°C to 65°C)
| | Humidity | 5% to 95% maximum, non condensing | Certifications
| - FCC part 15 class B
- Wi-Fi
| Dimensions
| - L = 5.59 inches (142mm)
- W = 4.29 inches (109mm)
- H = 1.22 inch (31mm)
| | Weight | ~0.44 lbs (0.2kg) | | Warranty | 1 Year |
|
* Maximum wireless signal rate based on IEEE Standard 802.11b specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate.
** Environmental conditions may adversely affect wireless signal range.
