Description
See what goes on behind your back but in front of your D-Life® camera, all on a 7-inch LCD screen.

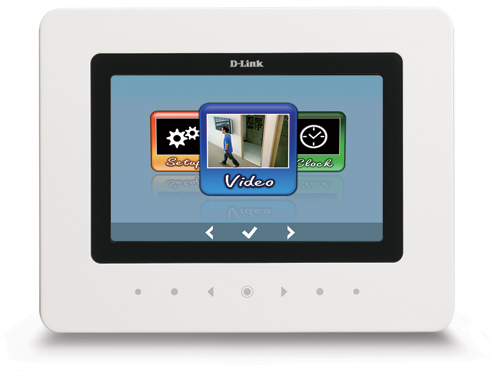

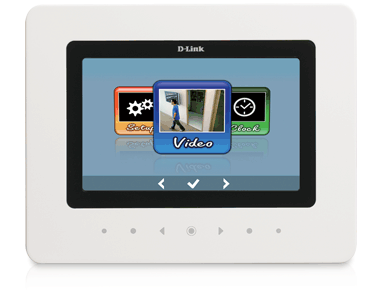

The DHA-330 Internet Surveillance Video Player (CamPlayer®) is a Powerline networking enabled Internet camera viewer. The CamPlayer lets you easily monitor any D-Life Internet Camera connected to your home network from any room in your house. Users can navigate the user-friendly interface using the touch-sensitive buttons along the bottom of the screen. The CamPlayer also includes a clock mode, which displays an attractive analog or digital clock with alarm.
VIEW LIVE VIDEO FROM YOUR D-LIFE INTERNET CAMERAS
View video from all of your D-Life Internet Cameras, whether they are at home or across the Internet. A built-in speaker lets you listen to what your camera’s microphone picks up, making it easy to monitor any room in your home. The CamPlayer is ideal for use as a baby monitor, so you can keep an eye on your baby while you are in another room.
EFFORTLESS INSTALLATION
Simply connect your CamPlayer to an electrical outlet and it automatically connects to your Powerline network. After registering it on the D-Life website, it will automatically detect your local D-Life Internet Cameras, giving you instant access to your home’s surveillance system. The D-Life website allows you to easily manage your remote camera list from a web browser.
EASY VIEWING OF YOUR D-LIFE CAMERAS
The Internet Surveillance Video Player CamPlayer® can automatically detect any D-Life camera on your home network. You can also add remote D-Life cameras to your CamPlayer, allowing you to easily view any one of your D-Life cameras at the press of a button.
CLOCK WITH ALARM
The CamPlayer also functions as a clock and an alarm. Choose from an analog or digital display complete with time and date. An alarm function is included to let you set a reminder or wake up time. The clock can also function as a screen saver when the CamPlayer is inactive.
KEY FEATURES
- Large 7-inch LCD screen
- Built-in Powerline networking connects to your Powerline network automatically by simply plugging it in
- View live video from D-Life cameras at home or over the Internet
- Receive motion trigger notifications from your cameras
- Built-in speaker for camera audio playback
- Clock mode with analog or digital display
- Alarm function
- Touch-sensitive buttons
- Can be placed on a desktop or mounted on a wall
Features
- Monitor Your Home’s D-Life™ Internet Cameras from Any Room in Your House
- Receive Motion Trigger Alerts from Local D-Life Internet Cameras When They Detect Motion
- Watch Video from Remote D-Life Internet Cameras over the Internet
- Built-in Powerline Networking Connects to Your Powerline Network Automatically by Simply Plugging It in
Specifications
| Technical Specifications |
| LCD Specifications | | | LCD Panel: 7” Diagonal, 16:9 ratio | | | LCD Resolution: 480 x 234 pixels | | | Viewing Area: 5.3” x 3.3” (134.4 mm x 83.0 mm) |
|
| Device Interfaces | | | LAN: 10/100Mbps, Auto MDI/MDI-X, RJ-45 | | | Powerline: through power socket |
|
| IP Interfaces | |
| Device Mode | |
| Video Mode | | | Format: MPEG-4 | | | Live video stream from IP camera | | | Motion detection notification from IP camera |
|
| Clock Mode | | | Analog and digital display modes | | | Supports Manual and Auto Sync mode | | | Alarm |
|
| Setup Mode | | | Motion Trigger Settings | | | Time Settings | | | Screen Saver Settings | | | System Info |
|
| Audio | | | Speaker: 1W; 0.9W effective output | | | Codec: ADPCM |
|
| Power | | | Input: 100~240 VAC, 50/60Hz | | | Consumption: 12W maximum |
|
| Temperature | | | Operating: 32° to 104°F (0° to 40°C) | | | Storage: -4° to 167°F (-20° to 75°C) |
|
| Humidity | | | 20% to 80% RH Non-condensing |
|
| Dimensions | | | 8.1” x 1.7” x 6.4” (206 x 42 x 162.5mm) |
|
| Weight | |
| Certifications | | | FCC | | | CE | | | C-Tick | | | UL | | | RoHS & WEEE compliant |
|
| Minimum System Requirements | | | Internet Surveillance Camera Starter Kit (DHA-390) | | | Available power outlet | | | Subscription with an Internet Service Provider (ISP)| | 256Kbps minimum for remote video viewing |
| | | Computer with:| | Internet Explorer® 6 or higher with ActiveX® Support | | | Windows Vista®, Windows® XP SP2 |
|
|
| Package Contents | | | Internet Surveillance Video Player | | | Wall Mounting Kit | | | Power Cord | | | Ethernet Cable | | | Quick Install Guide | | | Registration Card | | | Warranty Card |
|
Product specifications, size and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
