Description

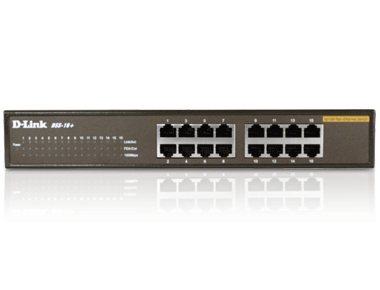

The DSS-16+ Unmanaged Desktop switch adds up to fifteen additional computers or other Ethernet-enabled devices to increase the functionality of your business network.
SIMPLE SOLUTION FOR EXPANDING YOUR NETWORK The D-Link 16-Port 10/100 Desktop Switch (DSS-16+) provides a simple solution for expanding your network. Connect this 16-port Desktop Switch to a router and add up to fifteen additional computers or other Ethernet-based devices such as a printer, Network-Attached Storage (NAS), or Internet camera to increase the functionality of your network.
IDEAL FOR VOIP AND GAMING
This 16-port Desktop Switch includes a Quality of Service (QoS) feature that can help improve the delivery of time-sensitive applications such as voice, video, and gaming traffic. With the support for QoS, it enables you to enjoy jitter-free Voice over IP (VoIP) and experience lag-free network gaming*.
SPACE-SAVING DESIGN AND INSTALLATION OPTIONS
This 16-port Desktop Switch is compact in size, making it ideal for desktops with limited space. It is also rackmountable, taking up only one rack unit (rackmount kit included).
EASY TO INSTALL AND USE
This 16-port Desktop Switch does not require any configuration or software, making installation simple and hassle-free. With Auto-MDI/MDI-X support, there is no need for crossover cables when you are connecting to another switch or to a computer. Additionally, the DSS-16+ will automatically sense if the connected network devices are running at 10Mbps or 100Mbps and adjust accordingly. Equipped with a comprehensive LED display, you can monitor the status and activity of every port at a glance.
Offering great performance and features packed in a slim chassis, the D-Link 16-Port 10/100 Desktop Switch (DSS-16+) is an excellent choice for expanding your network.
* All attached devices must support 802.1p queuing to allow QoS functionality.
Features
- Add More Computers or Other Ethernet-based Devices to the Network
- No Software or Configuration Required
- Delivers up to 200Mbps Throughput per Port in Full-Duplex Mode
Specifications
| Technical Specifications | | Standards | | | IEEE 802.3 10Base-T Ethernet | | | IEEE 802.3u 100Base-TX Fast Ethernet | | | IEEE 802.3 Nway Auto-negotiation | | | IEEE 802.3x Flow Control | | | IEEE 802.1p Qos Prioritization |
| | Features | | | Number of Ports: Sixteen 10/100BASE-TX | | | MAC Address Table: 8k | | | Switch Fabric: 3.2Gbps | | | Buffer Memory:160KB | | | Transmission Method: Store-and-forward |
| | Network Data Transfer Rate | | | Ethernet: 10Mbps (Half-duplex) | | | Ethernet: 20Mbps (Full-duplex) | | | Fast Ethernet: 100Mbps (Half-duplex) | | | Fast Ethernet: 200Mbps (Full-duplex) |
| | Interface Options | | | RJ-45: 10BASE-T, 100BASE-TX Universal UTP Cable Recognition for Straight-through or Crossover cables |
| | Certifications | | | Led | | | Per unit: Power | | | Per port: Link/Activity | | | Duplex/Collision Speed |
| | Power Consumption | | | Power Supply | | | Internal Power Supply: 100 – 240 VAC, 50/60Hz |
| | Operating Temperature | | | 32°F to 104ºF (0°C to 40°C) |
| | Humidity | | | Operating: 10% to 90% RH (Non-condensing) | | | Storage: 5% to 95% RH (Non-condensing) |
| | Dimensions | | | Item (WxDxH): 11.1” x 7.1” x 1.7” | | | Packaging (WxDxH): 11.4” x 3.5” x 9.8” |
| | Weight | | | Item: 4.2 lbs | | | Packaging: 4.3 lbs |
| | Warranty | | | Minimum System Requirements | | | Devices Supporting 802.3 Ethernet or 802.3u Fast Ethernet | | | CAT5 Ethernet Cable | | | Network Interface Card for Each Computer | | | CD-ROM Drive to View Product Documentation |
| | Package Contents | | | 16-Port 10/100 Desktop Switch | | | Rackmount Kit | | | CD-ROM** with:| | Product Documentation | | | Special Offers |
|
|
|
* 3-Year Warranty available only in the U.S.A and Canada.
** Latest software and documentation are available at http://support.dlink.comAll references to speed are for comparison purposes only. Product specifications, size and shape are subject to change without notice, and actual product appearance may differ from that depicted on the package. See inside package for warranty details.
