Description

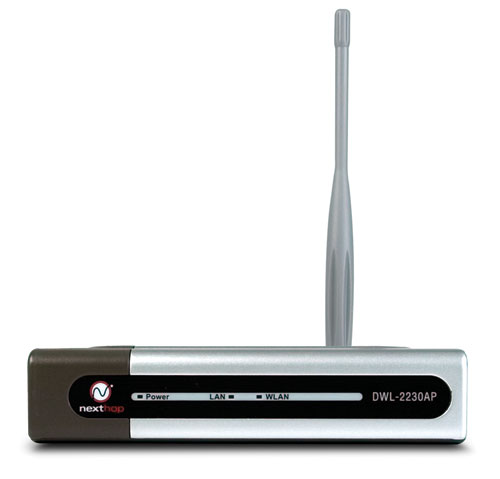

Designed specifically for business-class environments, D-Link's DWL-2230AP 802.11g Wireless PoE Access Point provides your network with a secure and manageable wireless LAN option.
D-Link DWL-2230AP Access Point is designed specifically for business-class environments such as large or enterprise corporations, to provide secure and manageable wireless LAN options for network administrators.
The DWL-2230AP is based on the 802.11g standards and is backward compatible with 802.11b, ensuring compatibility with a wide range of wireless devices.
For advanced installations, this new high-speed Access Point has an integrated 802.3af Power over Ethernet (PoE) support, allowing installation of this device in areas where power outlets are not readily available.
Since wireless security remains a strong concern among businesses, the DWL-2230AP provides Enhanced Wireless Security Features to ensure your data is protected from hackers. Support for WEP, WPA and WPA2 encryption guarantees the privacy of your network data. Rogue AP detection and containment ensure only the APs you install are able to function on your network.
Designed for use with:
DXS-3227 (Requires purchase of DS-710 or DS-725 AP license)
DXS-3227P (Requires purchase of DS-710 or DS-725 AP license)
DXS-3250 (Requires purchase of DS-710 or DS-725 AP license)
DWS-3227
DWS-3227P
DWS-3250
Features
- Designed for Use with xStack 3200 Series Wireless Switches
- Supports WPA2 Encryption
- Supports 802.11b, 802.11g Standards
- Supports Power over Ethernet for Use with DXS/DWS-3227P
Specifications
| IEEE 802.11b |
| Standard | |
| Radio and Modulation Type | |
| Operating Frequency | |
| Channel Numbers | |
| Data Rate* | |
| Media Access Protocol | |
| Transmitter Output Power* | | | Typical 18dBm at 11, 5.5, 2 and 1Mbps |
|
| Receiver Sensitivity* | | | -84dBm for 11Mbps @ 8% PER | | | -89dBm @ 5.5Mbps | | | -90dBm for 2Mbps @ 8% PER | | | -93dBm @ 1Mbps |
|
| IEEE 802.11g |
| Standard | |
| Radio and Modulation Type | | | BPSK, QPSK, 16QAM, 64QAM, OFDM |
|
| Operating Frequency | | | 2400 - 2483.5MHz ISM Band |
|
| Channel Numbers | |
| Data Rate* | | | 54, 48, 36, 24, 18, 12, 9 and 6Mbps |
|
| Media Access Protocol | |
| Transmitter Output Power* | | | +15dBm at 54Mbps | | | +16dBm at 48Mbps | | | +17dBm at 36Mbps | | | +18dBm at 24, 18, 12, 9, and 6Mbps |
|
| Receiver Sensitivity* | | | Typical Sensivity @ which frame (1000-byte PDUs) Error Rate = 10% | | | -85dBm at 6Mbps | | | -84dBm at 9Mbps | | | -82dBm at 12Mbps | | | -80dBm at 18Mbps | | | -77dBm at 24Mbps | | | -73dBm at 36Mbps | | | -69dBm at 48Mbps | | | -68dBm at 54Mbps |
|
| General Product Specifications |
| Interface | | | Power Jack | | | Factory Reset Button | | | 10/100Base-TX (UTP) | | | Wireless Dipole Antenna |
|
| External Antenna Type | | | Dipole antenna with 2dBi gain for 2.4GHz |
|
| Internal Antenna Type | | | Printed antenna for 2.4GHz |
|
| Ethernet Standard | | | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
|
| LEDs | |
| Physical Specifications |
| Dimensions (W x D x H) | | | 4.25" x 5.59" x 1.25" (142 x 108 x 31mm) |
|
| Electrical & Emissions |
| Operating Voltage | |
| Current Consumption | | | Maximum 6W (8W with PoE) |
|
| Safety Agency Certifications & Environmental |
| Operating Temperature | | | 32°F to 104°F (0°C to +40°C) |
|
| Non-Operating Temperature | | | -4°F to 149°F (-20°C to +65°C) |
|
| Operating Humidity | | | 10% to 90% RH Non-condensing |
|
| Non-Operating Humidity | |
| USA |
| EMI (802.11g/b) | | | FCC part 15.247, 15.205, 15.209 |
|
| Safety | |
| Canada |
| EMI (802.11g/b) | | | Power limits: RSS-210 6.2.2 (91) |
|
| Safety | |
| Ordering Information |
| Part Number | |
| DWL-2130AP | | | xStack Access Point, 802.11g |
|
| DWL-2230AP | | | xStack PoE Access Point, 802.3af, 802.11g |
|
| DWL-7130AP | | | xStack Access Point, 802.11a/g |
|
| DWL-7230AP | | | xStack PoE Access Point, 802.3af, 802.11a/g |
|
| DXS-3227 | | | xStack 24-Port Gigabit Wireless-Ready Switch + (4) Combo SFP Ports + (1) Fixed XFP Port + (2) Optional 10-Gig Copper/Fiber Uplinks (AP License Required) |
|
| DXS-3227P | | | xStack 24-Port PoE Gigabit Wireless-Ready Switch + (4) Combo SFP Ports + (1) Fixed XFP Port + (2) Optional 10-Gig Copper/Fiber Uplinks (AP License Required) |
|
| DXS-3250 | | | xStack 48-Port Gigabit Wireless-Ready Switch + (4) Combo SFP Ports + (2) Optional 10-Gig Copper/Fiber Uplinks (AP License Required) |
|
| DWS-3227 | | | xStack 24-Port Gigabit Unified Wireless Switch + 10 Gigabit Uplinks with 10AP license |
|
| DWS-3227P | | | xStack 24-Port Gigabit Unified Wireless Switch with PoE + 10 Gigabit Uplinks with 10AP license |
|
| DWS-3250 | | | xStack 48-Port Gigabit Unified Wireless Switch + 10 Gigabit Uplinks with 10AP license |
|
* Maximum wireless signal rate derived from IEEE Standard 802.11b, and 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.
