Description
This VoIP Phone Adapter converts your existing analog telephone into an IP Phone. This translates into big savings on your phone bill.
D-Link®, an industry leader in networking, introduces

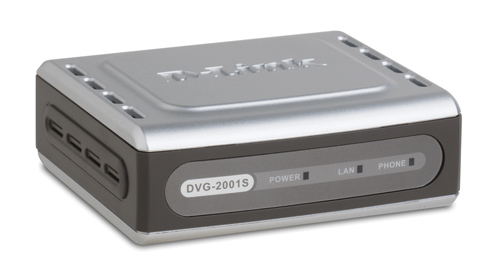

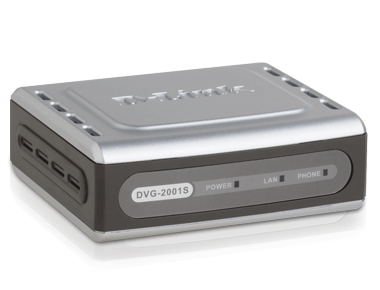

DVG-2001S VoIP Phone Adapter for the home environment. The DVG-2001S converts any existing analog (cord or cordless) telephone into an IP Phone. Also by plugging in a FAX machine, the DVG-2001S will enable users to send and receive fax the same way as a traditional analog telephone line.
The DVG-2001S supports the SIP protocol, which is widely deployed by VoIP providers on the market. It also supports the most popular audio CODECs to ensure compatibility and voice quality.
The DVG-2001S VoIP Phone Adapter comes with one FXS port to connect to the existing analog telephone and one Fast Ethernet port to connect to the broadband router.
With a built-in secured provisioning feature, VoIP service providers can configure service settings such as a server address, CODEC and STUN settings via HTTPS/TFTP directly to the DVG-2001S.
For additional security, all of the configuration settings are encrypted. Only the VoIP service providers/resellers with the authenticated password and user name can access it.
The DVG-2001S features both the VAD (Voice Activity Detection) and CNG (Comfort Noise Generation) to reduce the bandwidth consumption and to sustain voice quality.
The DVG-2001S VoIP Phone Adapter has a built-in QoS setting to provide voice priority in IP networks and prevent dropped calls. By delivering a consistent quality of service, resellers will avoid having frustrated customers from switching to another VoIP service provider.
The DVG-2001S is the ideal VoIP telephone adapter solution that will help VoIP service providers or resellers with all of the required attributes to grow and retain customers by delivering a robust and consistent VoIP solution.
Features
- Enable VoIP Instantly
- Secured Remote Web-Based Access For Configuration
- Integrated QoS To Prevent Dropped Calls
Specifications
| Specifications | | Standards | | | Connection Port | | | RJ-11, FXS Port | | | RJ-45 Ethernet Port |
| | Ethernet Port | | | IEEE 802.3 for 10M Ethernet | | | IEEE 802.3u for 100M Ethernet |
| | Telephony Support | | | SIP Call Control Protocol | | | Supports Audio CODEC| | G.711 (A-law and U-law) | | | G.726 | | | G.729A | | | G.168 (Echo Cancellation) |
| | | DTMF Relay |
| | Device Management | | | TFTP Client | | | HTTP Web Interface |
| | Configuration/Management | | | DHCP (Dynamic Host Configuration Protocol) RFC2131 | | | Embedded Web Server HTTP1.0 (RFC1945) | | | Auto-Provisioning Via Automated Centralized Configuration File | | | Configuration Restore/Backup | | | TELNET | | | TFTP Client | | | Performance Monitor DSP/Ethernet Statistics |
| | Quality of Service (QoS) | | | TOS-Type of Service Supports 3 Levels:| | Normal | | | Signaling | | | RTP Packets |
|
| | Security | | | SIP Authentication with Password Encryption | | | HTTP Digest Authentication | | | Configuration Download Using HTTPS and SSL/TLS Clients Certification Encryption and Authentication | | | Encryption of Configuration File | | | VoIP NAT Traversal (SIP/STUN) |
| | Fax Support | | | LEDs | | | Power ON/OFF | | | LAN Link & Activity | | | Phone ON/OFF Hook & Ringing |
| | Power | | | External AC Power Adapter | | | Output: 12V AC, 1.2A |
| | Temperature | | | Operating:0°C to 40°C | | | Storing: -10°C to 55°C |
| | Humidity | | | Certifications | | | EMC: FCC Class B, VCCI Class B, CE Class B | | | UL/CUL |
| | Dimensions | | | 90mm x 82.46mm x 31mm (WxDxH) |
| | Warranty | |
|
