Description

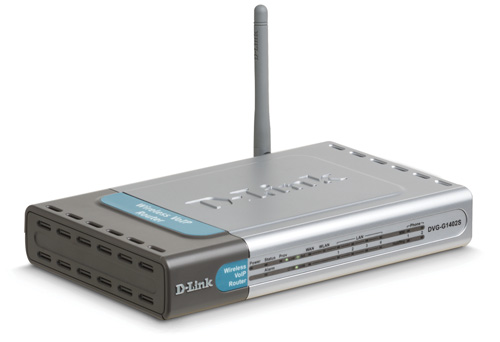

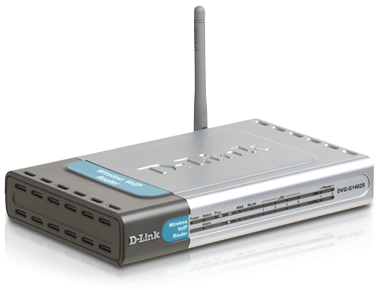

The DVG-G1402S Wireless Broadband Phone Service VoIP Router enables standard phones for voice calls over the Internet. It maximizes existing Broadband connection for low-cost calling solution.
D-Link®, an industry leader in networking, introduces the
DVG-G1402S, an 802.11g wireless router with embedded VoIP functionality. The DVG-G1402S is designed for VoIP service providers and resellers to bundle their existing VoIP services and create a consistent, reliable, and flexible VoIP Networking Solution.
The DVG-G1402S is a router with 802.11g wireless that facilitate users to easily network all of their computers and other networking devices together and share Internet access. The DVG-G1402S also enables end users to use their existing analog telephones with VoIP phone service. It comes with two FXS ports to allow end users the flexibility to either connect up to two analog phones or an analog phone and a FAX machine for small office environment.
The DVG-G1402S Wireless VoIP Router supports the SIP voice protocol, which is the widely deployed by VoIP providers on the market. It also supports the basic telephony features such as call waiting and caller ID.
After selecting a VoIP service provider, the DVG-1402S can be easily provisioned via secured HTTP/TFTP. For security, all configuration settings are protected and only VoIP service provider or reseller with authenticated user name and password can access the settings.
The DVG-G1402S supports multiple audio CODECs to ensure consistent voice quality and to eliminate echoes. The integrated QoS provides three levels of voice packet control to ensure reliable call quality and to prevent dropped calls and voice “cracking”.
The DVG-G1402S Wireless VoIP Router provides all of the necessary elements to create a robust voice and data network for home or SOHO environments by combining VoIP with network router.
The DVG-G1402S combines VoIP and networking solution to simplify the home networking infrastructure. Above all, the DVG-G1402S will help customers to control their budget by not having to purchase all of the hardware individually.
Features
- 802.11g Wireless Connectivity
- Connect Up To 2 VoIP Lines
- Integrated QoS To Prevent Dropped Calls And Deliver Superior Voice Quality
Specifications
| Specifications | | Standards | | | IP, TCP, UDP, ARP, HTTP, 802.11g/b |
| | Connection Port | | | (2) RJ-11, FXS Ports | | | (4) RJ-45 LAN Ethernet 10/100 Ports | | | RJ-45 WAN Ethernet 10/100 Port | | | Serial Port |
| | Ethernet Port | | | IEEE 802.3 for 10M Ethernet | | | IEEE 802.3u for 100M Ethernet | | | IEEE 802.11b/g |
| | Wireless Support | | | WEP (64/128/256 bits) | | | WPA | | | ESS-ID |
| | Telephony Support | | | SIP Call Control Protocol | | | Supports Audio CODEC: G.711 (A-law and U-law), G.723.1, G.726, G.729A, G.168 (Echo Cancellation) | | | DTMF Relay G.711 (In Band), RFC2833 |
| | Device Management | | | TFTP Client | | | Web Interface Management |
| | Configuration/Management | | | DHCP (Dynamic Host Configuration Protocol) RFC2131 | | | Embedded Web Server HTTP1.0 (RFC1945) | | | Auto-Provisioning Via Automated Centralized Configuration File | | | Configuration Restore/Backup | | | TELNET | | | TFTP Client (Remote Access) | | | Performance Monitor DSP/Ethernet Statistics |
| | Quality of Service (QoS) | | | TOS-Type of Service Supports 3 Levels: Normal Signaling RTP Packets |
| | Security | | | SIP Authentication with Password Encryption | | | HTTP Digest Authentication | | | Configuration Download Using HTTPS and SSL/TLS Clients Certification Encryption and Authentication | | | VoIP NAT Traversal (SIP/STUN) | | | NAT/Firewall (NAPT, TCP/UDP, DMZ, ALGs) | | | VPN Pass-Through | | | Packet Filtering by IP Address, Port Number, and Protocol | | | MAC Filter |
| | Fax Support | | | FAX Relay, PCM (G.711), T.38 |
| | LEDs | | | Power ON/OFF | | | LAN Link & Activity | | | Phone ON/OFF Hook & Ringing | | | WAN Speed | | | WLAN Link & Activity | | | Status/Alarm |
| | Power | | | External AC Power Adapter | | | Output: 12V AC, 1.2A |
| | Temperature | | | Operation: 0° C to 40° C | | | Storage: -10° C to 55° C |
| | Humidity | | | 5% to 95% Non-Condensing |
| | Certifications | | | EMC: FCC Class B, CE Class B | | | UL/CUL |
| | Dimensions (WxDxH) | | | 7.5" x 4.66" x 1.22" | | | 192.5mm x 118.4mm x 31mm |
| | Warranty | |
|
