Description

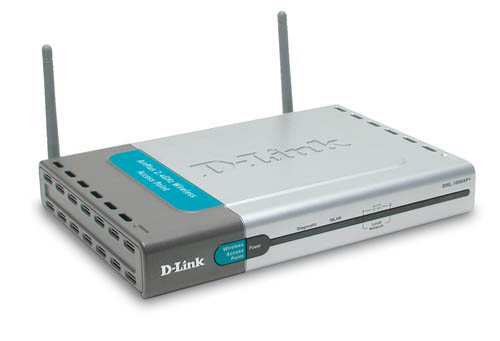

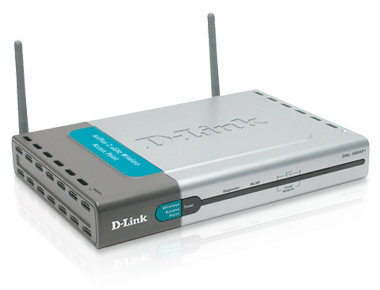

The D-Link AirPremier DWL-1000AP+ Access Point, is capable of transfer rates of up to 22Mbps with 802.1x support for improved wireless security and can be configured to perform in any one of five modes as wireless access point, as a point-to-point bridge with another DWL-1000AP+, as a point-to-multi-point wireless bridge, as a wireless client, or as a wireless repeater.
D-Link, the industry pioneer in wireless networking, introduces another performance breakthrough in wireless connectivity - the
D-Link AirPremier™ DWL-1000AP+ Access Point capable of transfer data with a maximum wireless signal rate of up to 22Mbps
* with 802.1x support for improved wireless security.
The DWL-1000AP+ is an enterprise wireless access point featuring advanced silicon chip design from Texas Instruments, utilizing their patented Digital Signal Processing™ technology providing more secure wireless connectivity and expansion for emerging enterprises.
The DWL-1000AP+ can be configured to perform in any one of five modes as wireless access point, as a point-to-point bridge with another DWL-1000AP+, as a point-to-multi-point wireless bridge, as a wireless client, or as a wireless repeater.
In access point mode, the DWL-1000AP+ offers a load-balancing feature that maximizes the wireless bandwidth available to wireless clients by sharing the load within a group of access points. Additionally, the DWL-1000AP+ provides a redundancy feature to allow it to be configured to backup a primary access point. These advanced features along with 802.1x support makes the DWL-1000AP+ an ideal solution for hotspot deployments, for creating and extending wireless local networks in offices or other workplaces where wireless security is required.
The DWL-1000AP+ is fully compatible with the IEEE 802.11b standard making it interoperable with all existing 802.11b compliant devices. When the wireless network is comprised of other D-Link products such as the AirPlus DWL-520+ Wireless PCI Adapter, DWL-650+ Wireless Cardbus Adapter, transfer rates can be a high as 22Mbps*!
* Maximum wireless signal rate derived from IEEE Standard 802.11b specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate.
Features
- 5 Different Operation Modes Including Repeating Mode
- Load Balancing for Improved Bandwidth
- Backup Mode for A.P. Redundancy
Specifications
| Standards | - IEEE 802.1x
- IEEE 802.11b
- IEEE 802.3
- IEEE 802.3u
| | Ports | (2) 10/100 Mbps Fast Ethernet | Wireless Signal Rates* With Automatic Fallback | - 22Mbps
- 11Mbps
- 5.5Mbps
- 2 Mbps
- 1 Mbps
| | Encryption | 64-, 128-, 256-bit WEP | | Media Access Control | CSMA/CA with ACK | | Frequency Range | 2.4 GHz to 2.4835 GHz | | Operating Range** | - Indoors: Up to 328 feet (100 meters)
- Outdoors: Up to 1,312 feet (400 meters)
| | Modulation Techniques | - Barker (1Mbps/0db)
- Barker (2Mbps/3db)
- CCK (5.5Mbps/5.5db)
- PBCC (5.5Mbps/8.5db)
- CCK (11Mbps/8.5db)
- PBCC (11Mbps/4.5db)
- PBCC (22Mbps/8.5db)
| | Power Input | External Power Supply: DC 5V, 2.0A | | LEDs | - Power
- Diagnostic
- WLAN (Wireless Local Area Network)
- (2) Local Network (Ethernet)
| | Output Power | 17dBm (50mW) ± 2dB | | External Antenna Type | 2.0dB gain with reverse SMA connector | | Device Management | - Web-Based - Internet Explorer or Netscape Navigator v6 or later
- Access Point Manager
| | Temperature | - Operating: 32˚F to 131˚F (0˚C to 55˚C)
- Storing: -4˚F to 167˚F (-20˚C to 75˚C)
| | Humidity | 95% maximum, non-condensing | | Certifications | | | Dimensions | - L=9.25 inches (233mm)
- W=6.5 inches (165mm)
- H=1.38 inch (35mm)
| | Weight | ~2.0 lbs (907g) | | Warranty | 3 Year |
|
* Maximum wireless signal rate derived from IEEE Standard 802.11b specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate.
** Environmental conditions may adversely affect wireless signal range.
