Description

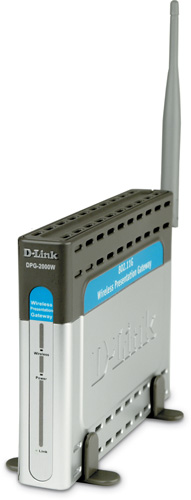

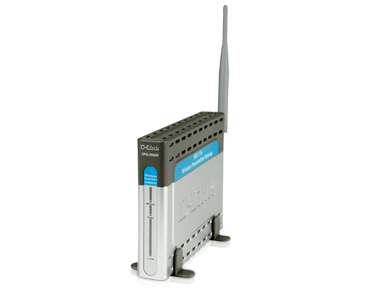

DPG-2000W is a Wireless 802.11g Presentation Gateway that enables wireless presentations among multiple users.
D-Link
AirPlus G
DPG-2000W is an 802.11g
Wireless Presentation Gateway that connects via a standard VGA cable to virtually any projector or monitor. The DPG-2000W uses 802.11g technology for fast and responsive display of presentations on monitors or onscreen via projector. Share your presentations, applications, and images on your computer in a group setting with the DPG-2000W.
The DPG-2000W includes one click connection software that allows multiple presenters to control the DPG-2000W for seamless delivery of presentations. The presentation session manager software also automatically assigns an IP address to the DPG-2000W to match your wireless settings for added convenience and easier access.
In addition, a web-based admin utility allows banner page customization, wireless configuration, and firmware upgrades. The user customizable banner page allows display of information such as meeting agendas and conference logos before and between presentations. To ensure wireless security, the administrator can configure the wireless settings.
The DPG-2000W Wireless Presentation Gateway enables interactive discussions, conferences, seminars and business meetings and is a great application for any office environment.
* Maximum wireless signal rate derived from IEEE Standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.
Features
- Real Time Display of Powerpoint Presentations, JPEG images, and Applications
- 802.11g Technology for Fast and Responsive Display
- Works with both PC and Mac®
- Works with Virtually any VGA Projector/Monitor
Specifications
| Specifications | | Standards | | | Protocol | | | RF Frequency Range | | | 2.4 – 2.4835 GHz (US and Europe) |
| | Wireless Signal Rate* | | | Antenna | | | 5dBi external dipole antenna with reverse SMA connector and built-in ceramic diversity antenna |
| | Transmission Power | | | 14dBm typical at antenna input |
| | Receiving Sensitivity* | | | Wireless Signal Range* | | | 300 to 1,000 ft, depending on environment |
| | Resolution | | | Device Interface | | | Security | | | Management | | | Operating Temperature | | | Operating Humidity | | | Dimensions | | | Certification | | | Warranty | |
|
* Maximum wireless signal rate derived from IEEE Standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect actual range.
