Description

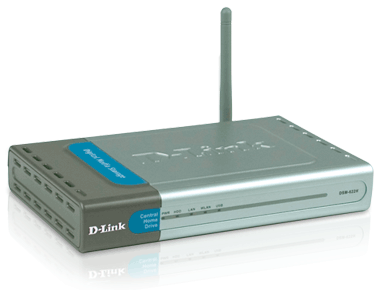

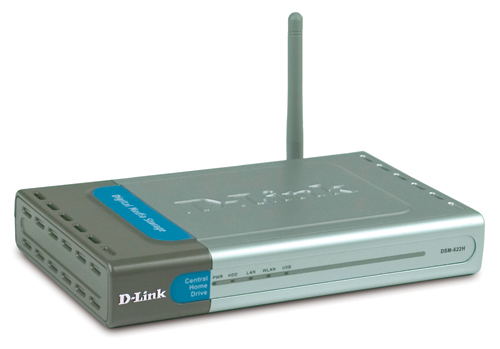

The D-Link DSM-622H Storage Media is a wireless network attached storage device for the digital home. It allows home users to access a central drive for sharing and storing family photos, digital music and other types of files.
D-Link, an industry leader in networking, introduces the
MediaLounge™ Wireless G Central Home Drive DSM-622H. Add the MediaLounge™ 20GB DSM-622H drive to the home or office network for storing documents, files, and digital content such as music, video, and photos.
The Wireless G Central Home Drive DSM-622H provides storage space to store and share digital photos, videos, and music files with everyone on your network. Digital content on the Wireless G Central Home Drives can also be shared with other UPnP™ AV compatible streaming media devices such as the D-Link DSM-320 Wireless Media Player.
With its versatile design, the Wireless G central Home Drive DSM-622H can be taken anywhere as a portable device and connected to a network with UPnP™ media devices for sharing digital content.
For Windows-based wireless networks, Microsoft® Windows® Connect Now Technology (WCN) simplifies the process of configuring wireless settings on the drive. Save on network configuration time and get to your digital content faster with Windows® UPnP™ and Mac Rendezvous™ support. These features make setting up the Wireless G Central Home Drive a lot more convenient. As a central storage location for digital media, the Wireless G Central Home Drive is an organized solution for the network.
The Wireless G Central Home Drive DSM-622H also features USB connectivity for expanding storage capabilities as your network needs change and grow. And with both wired Ethernet and 802.11g wireless connectivity, the Wireless G Central Home Drive DSM-622H can be integrated quickly into an existing network.
Free up disk space on the computer and make digital files more accessible to everyone on your network with the MediaLounge™ Wireless G Central Home Drives!
* Must be purchased separately.
Features
- Add Additional Storage Space by Connecting a USB Drive*
- Shares Digital Content with Other UPnP™ AV Media Devices Throughout Your Home Network
- Convenient File Access with both Windows® UPnP™ and Mac® Rendezvous™ Support
Specifications
| Specifications | | Standards | | | IEEE 802.3 | | | IEEE 802.3u | | | IEEE 802.11g | | | IEEE 802.11b | | | IEEE 802.11 | | | UPnP™ AV 1.0 | | | UPnP™ (Windows XP, Me) | | | Rendezvous™ (Mac OS X) |
| | Ports | | | Microprocessor | | | Intel® XScale™ IXP 420 Network Processor 266 Mhz |
| | RAM | | | Security | | | Wireless Frequency Range | | | Wireless Operating Range* | | | Outdoors: Up to 1,312 feet (400 meters) |
| | Wireless Signal Rates** With Automatic Fallback | | | 54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18 Mbps, 12 Mbps, 11 Mbps, 9 Mbps, 6 Mbps, 5.5 Mbps, 2 Mbps, 1 Mbps |
| | Modulation Technology | | | Orthogonal Frequency Division Multiplexing (OFDM) | | | Complementary Code Keying (CCK) |
| | Receiver Sensitivity | | | 54 Mbps OFDM, 10% PER, -68 dBm | | | 48 Mbps OFDM, 10% PER, -68 dBm | | | 36 Mbps OFDM, 10% PER, -75 dBm | | | 24 Mbps OFDM, 10% PER, -79 dBm | | | 18 Mbps OFDM, 10% PER, -82 dBm | | | 12 Mbps OFDM, 10% PER, -84 dBm | | | 11 Mbps CCK, 8% PER, -82 dBm | | | 9 Mbps OFDM, 10% PER, -87 dBm | | | 6 Mbps OFDM, 10% PER, -88 dBm | | | 5.5 Mbps CCK, 8% PER, -85 dBm | | | 2 Mbps QPSK, 8% PER, -86 dBm | | | 1 Mbps BPSK, 8% PER, -89 dBm |
| | Device Management | | | Web-Based. Internet Explorer v6 or Netscape Navigator® v6 or other Java- enabled browsers |
| | Wireless Transmit Power | | | 15 dBm (32 mW) 2dBi gain |
| | External Antenna Type | | | One external 2.0dB gain with reverse SMA connector | | | One built-in antenna |
| | LEDs | | | Power | | | Ethernet | | | LinkHDD/status | | | Wireless LAN | | | USB |
| | Power | | | Output: 5V, 3A | | | Max Power 15W, 100-240 V |
| | Temperature | | | Operating: 0ºC to 55ºC | | | Storage: -20ºC to 70ºC |
| | Humidity | | | Certifications | | | Dimensions | | | 116mm X 192mm X 30mm (4.57in X 7.56in X 5.12in) |
| | Weight | | | Warranty | |
|
* Environmental conditions may adversely affect wireless signal range.
** Maximum wireless signal rate based on IEEE Standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate.Press Releases
