Description
This Hub can turn one USB port into four. Magic.

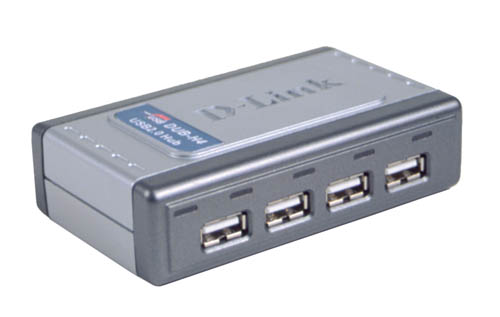

The D-Link® 4-Port USB 2.0 Hub (DUB-H4) provides four additional USB 2.0 ports to your PC or Mac, allowing you to connect USB devices such as digital cameras, external hard drives, flash drives, and printers. Providing data rates of up to 480Mbps*, this 4-port hub is the ideal solution for transferring data between your computer and external USB storage devices.
SIMPLE PLUG-AND-PLAY
Designed to provide quick and easy access, the DUB-H4 is equipped with four type “A” downstream ports for connecting USB peripherals or other USB hubs. The DUB-H4 does not require any software or complicated installation process. It is a Plug-and-Play device that provides seamless connectivity to both PCs and Macs. You can simply connect the DUB-H4 to your computer and start connecting your USB devices.
BACKWARD COMPATIBLE WITH USB 1.1**
The DUB-H4 is backward compatible with USB 1.1** devices, ensuring connectivity between your computer and legacy USB devices. Diagnostic LEDs located on the front of the device provide power state and port status.
The D-Link 4-Port USB 2.0 Hub (DUB-H4) is an excellent choice for adding more USB ports to your computer for connecting your existing peripherals as well as adding the latest USB cameras and external storage devices.
* For comparison purposes only. Maximum transfer rate based on USB 2.0 specifications. Actual data throughput will vary.
** Using a USB 1.1 port will affect device performance.
Features
- Connect More USB Devices to Your PC or Mac
- Transfer Data at up to 480Mbps*
- Works with Both USB 2.0 and 1.1** Devices
Specifications
| Specifications | | Standards | | • | USB 2.0/1.1* | | • | OHCI (Open Host Controller Interface) | | • | EHCI (Enhanced Host Controller Interface) |
| | Ports | | • | One Upstream USB Type “B” Receptacle | | • | Four Downstream USB Type “A” Receptacle |
| | Connectivity | | • | Up to 127 Devices by Cascading Multiple Hubs |
| | Wiring Topology | | | Diagnostic LEDs | | • | Self-powered | | • | Port Status |
| | Temperature | | • | Operating: 32°F to 104°F | | • | Storage: -4°F to 104°F |
| | Humidity | | • | Operating: 5% to 95% Non-condensing | | • | Non-operating: 5% to 95% Non-condensing |
| | Compliance | | | Dimensions | | • | Item (WxDxH): 4.5” x 2.5” x 1.13” | | • | Packaging (WxDxH): 6.9” x 3.25” x 11.4” |
| | Weight | | • | Item: 0.17 lbs. | | • | Packaging: 0.9 lbs. |
| | Warranty | | | Minimum System Requirements | | • | Computer with:| • | Windows Vista™***, Windows® XP SP2, or Windows® 2000 SP4 | | • | Mac OS® X 10.4**** or Higher | | • | USB 1.1* Port |
|
| | Package Contents | | • | 4-Port USB 2.0 Hub | | • | AC Adapter | | • | USB 2.0 Cable | | • | Quick Installation Guide |
|
|
* Using a USB 1.1 port will affect device performance.
** 1-Year Warranty available only in the U.S.A and Canada.
*** Computers must adhere to Microsoft’s recommended system requirements. Please contact Microsoft for details.
**** Computers must adhere to Apple’s recommended system requirements. Please contact Apple for details.
