Wireless N Dual Band Router

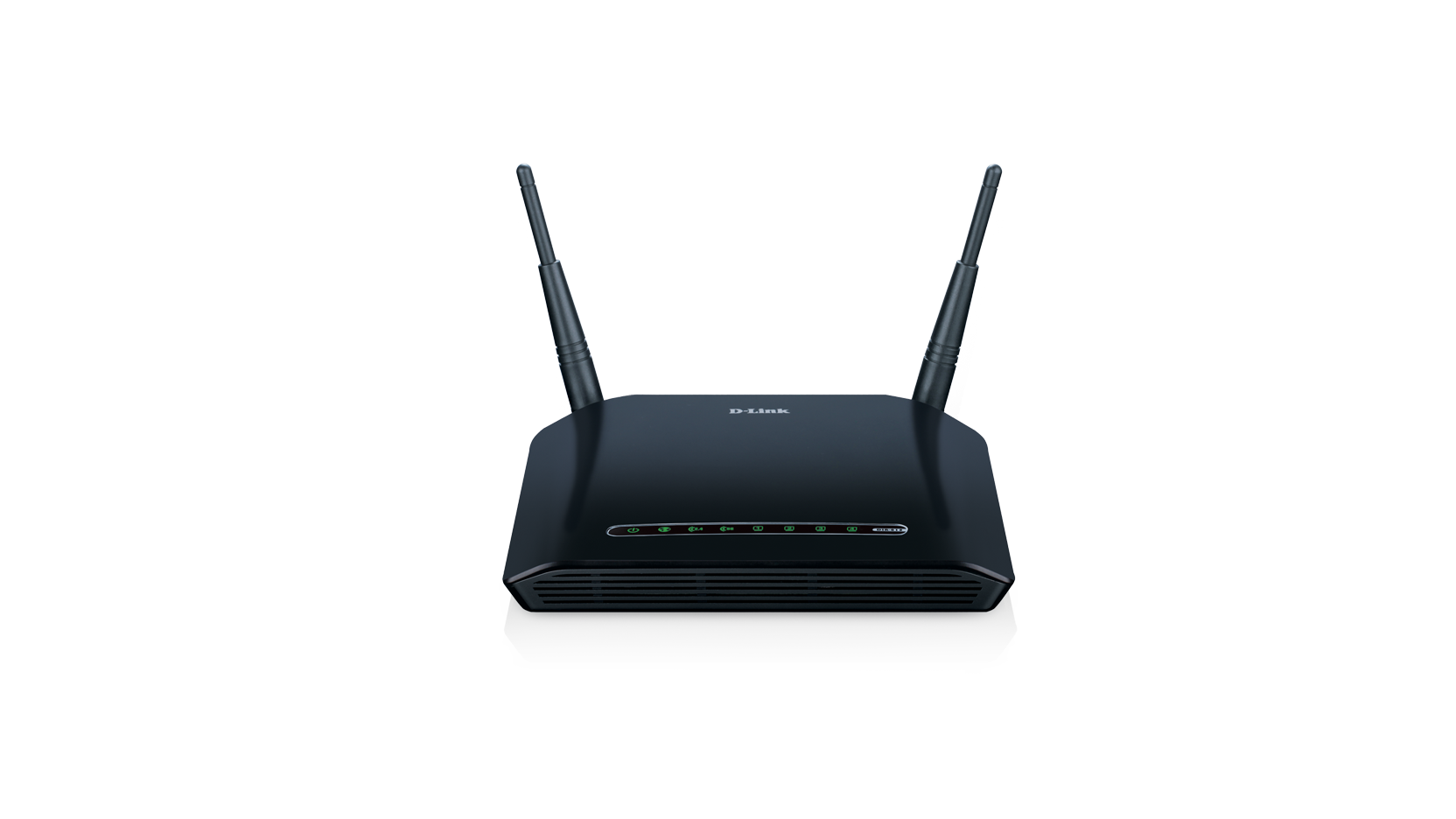

DIR-815

  • Status produktu: Brak wsparcia
Exceptional Performance
Powered by Wireless N technology, this high-performance router provides superior coverage designed to reduce dead spots for users who demand higher performance networking. Delivering incredible wireless performance, network security, and coverage, the Wireless N Dual Band Router (DIR-815) is ideal for networking in larger homes and offices. The D-Link® Wireless N Dual Band Router (DIR-815) features simultaneous wireless bands with a faster wireless network than previous generation wireless G devices, enabling you to create a faster Wi-Fi network with superior home coverage. Connect the DIR-815 to a cable or DSL modem and provide high-speed Internet access to multiple computers, game consoles, and media players. Create a secure wireless network to share photos, files, music, printers, and more, from greater distances throughout your entire home or office. With D-Link’s award-winning QoS engine that prioritizes time-sensitive online traffic, this router enables smooth Internet phone calls (VoIP) and responsive gaming.

Dual Band Advantage
Dual Band is two Wi-Fi networks in one router. The dual band technology in the DIR-815 supports both 2.4GHz and 5GHz wireless signals simultaneously. You can check e-mail and browse the Internet using the 2.4GHz band while playing games and streaming HD movies on the clearer 5GHz band. This prevents both signals from getting overloaded and avoids interference and lag when you’re watching movies or gaming.

Easy To Secure

The DIR-815 supports the latest wireless security features to help prevent unauthorized access, be it from over a wireless network or from the Internet. Support for WPA™ and WPA2™ standards ensure that you will be able to use the best possible encryption, regardless of your client devices. In addition, the DIR-815 Router utilizes dual active firewalls (SPI and NAT) to prevent potential attacks from across the Internet.

Why Wireless N Is Better

This DIR-815 uses powerful 802.11n technology with multiple intelligent antennas to maximize the speed and range of your wireless signal to significantly outperform previous-generation Wireless G MIMO devices*. The antennas on the DIR-815 make use of your home’s environment by bouncing multiple wireless signals off walls and ceilings to work around obstructions and help eliminate dead spots.

Think Green
D-Link Green™ devices are about providing eco-friendly alternatives without compromising performance. They are designed to help conserve energy, protect our environment from harmful substances, and reduce waste by using recyclable packaging.

Conserves Energy

Automatically powers down ports that have no link
Budgets power output for different Ethernet cable lengths
Includes wireless LAN scheduling, which can shut down your wireless network when not in use for further power savings
Reduces energy consumption by using an Energy Star® qualified power adapter



Protecting The Environment

Complies with the European Union's RoHS directive that restricts the use of certain hazardous materials
Uses recyclable packaging to help reduce waste that goes into the environment



* Maximum wireless signal rate derived from IEEE Standard 802.11 specifications when used with related Wireless N 150 devices. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range. Wireless range and speed rates are D-Link RELATIVE performance measurements based on the wireless range and speed rates of a standard Wireless G product from D-Link. Maximum throughput based on D-Link Wireless N devices.

Standards

  •   IEEE 802.11n
  •   IEEE 802.11g
  •   IEEE 802.11a
  •   IEEE 802.3
  •   IEEE 802.3u

Interfaces
  •   4 Fast Ethernet LAN ports
  •   1 Fast Ethernet WAN port

Antenna type
  •   2 external dual band antennas

Security
  •   WPA™ & WPA2™ (Wi-Fi Protected Access)
  •   Wi-Fi Protected Setup™ (WPS) - PIN & PBC

Device management and monitoring


  •   Microsoft Internet Explorer 6 or higher, or Firefox 1.5 or higher
  •   Web-based management
  •   D-Link Network Monitor Yahoo! Widget
  •   D-Link Internet Usage Meter Yahoo! Widget

Advanced firewall features
  •   Network Address Translation (NAT )
  •   Stateful Packet Inspection (SPI)
  •   VPN Pass-through / Multi-sessions PPTP / L2TP / IPSec

Dimensions (W x D x H)

  •   156 x 120 x 31 mm (6.1 x 4.7 x 1.2 inches)

Weight

  • 212 grams (0.5 lbs)

Certifications
  •   FCC Part 15 Subpart B, C, and E
  •   IC
  •   IPv6 Ready Gold
  •   Wi-Fi®
  •   CE
  •   C-Tick
  •   Compatible with Windows 7
Urządzenie zostało wycofane ze sprzedaży dnia: 10/04/2013
Wsparcie dla produktu skończy się dnia: 10/04/2015
How to connect to wireless in Windows 8
How to connect to wireless in Windows 7
How to connect to wireless using an iPhone
How to remove the Graphical Authentication login on your router
How to configure Parental Controls on your router
How to configure IP reservation on your router
How to open a range of ports on your router
How to change your routers IP address
How to open a single port on your router
How to disable UPnP on your router
Jak skonfigurować połączenie wi-fi na moim routerze?
Jak zresetować router?
Jak zaktualizować oprogramowanie układowe (firmware) na moim routerze?
Wersja Data Typ Rozmiar pliku
Datasheet (English) - PDF 1.02mb Pobierz
Wersja Opis Data Typ Rozmiar pliku
Manual (English) Manual (English) - PDF 6.33mb Pobierz
Wersja Opis Data Typ Rozmiar pliku
1.00 Quick Installation Guide - PDF 0.46mb Pobierz
Urządzanie D-Link wykorzystuje oprogramowanie innego producenta, wraz z oprogramowaniem bazującym na licencji GNU, tj. Powszechna Licencja Publiczna („GPL”) lub Mniejszej Powszechnej Licencji Publicznej („LGPL”). Warunki działania licencji GPL oraz LGPL wraz z informacjami uzyskania dostępu do kodu GPL oraz LGPL wykorzystanego we wskazanym produkcie, znajdują się tutaj:

http://tsd.dlink.com.tw/GPL.asp

Kod GPL oraz LGPL wykorzystany w produkcie jest rozpowszechniany BEZ ŻADNEJ GWARANCJI i podlega prawom autorskim jednemu lub kilku autorom. Aby dowiedzieć się więcej, zapoznaj się z warunkami licencji GPL oraz LGPL dla tego produktu.
Wersja Opis Data Typ
Firmware fixes security vulnerabilities 1.04B02 Firmware fixes security vulnerabilities.
Instructions included.
30.04.2013 - Pobierz
Wersja Opis Data
DCC Utility 1.15520 DCC Utility - Pobierz
GPL Source Code 1.01 GPL Source Code - Pobierz
Wersja Opis Data
DEU_CE_B1_Doc CE Declaration 22.05.2012 Pobierz
DEU_CE_A1_Doc CE Declaration 29.06.2011 Pobierz
