HD PoE Day/Night Fixed Network Camera

DCS-3112

  • Status produktu: Wycofany ze sprzedaży

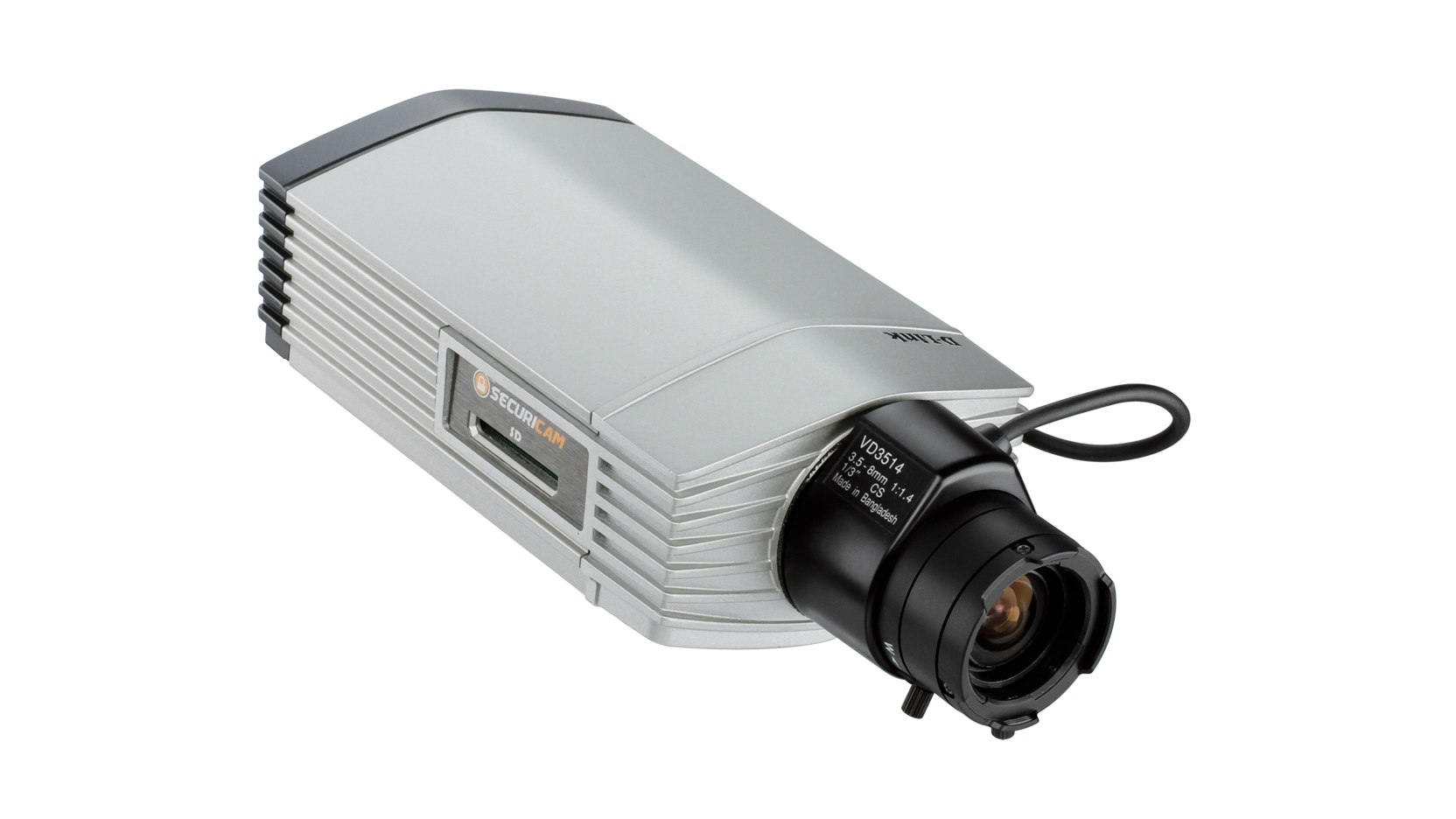

The D-Link DCS-3112 is a high-end HD Day and Night Network Camera, equipped with a 1/4” Megapixel Progressive Scan CMOS sensor and a 3.5-8 mm DC auto iris lens. The camera can capture HD video at resolutions of up to 1280 x 720/1280 x 1024 with frame rates up to 30 fps. Snapshots and video can be saved to a network drive, or to onboard storage through the built-in SD Card slot.

Pobierz kartę produktu.

Lista sklepów
High Resolution Surveillance

The D-Link DCS-3112 is a high-end HD Day and Night Network Camera, equipped with a 1/4” Megapixel Progressive Scan CMOS sensor and a 3.5-8 mm DC auto iris lens. The camera can capture HD video at resolutions of up to 1280 x 720/1280 x 1024 with frame rates up to 30 fps. Snapshots and video can be saved to a network drive, or to onboard storage through the built-in SD Card slot.

Multiple Video Streams

The DCS-3112 supports simultaneous streaming of H.264, MPEG-4, and MJPEG video to provide both high-quality and bandwidth-efficient compression formats. MJPEG delivers excellent file integrity, ideal for situations which require high image detail. H.264 and MPEG-4 produce a small file size, useful for extended recording or for use in low-bandwidth networks. Additionally, the DCS-3112 supports multicast H.264 and MPEG 4 streaming, allowing users to view the camera feed by subscribing to a multicast IP address on the network.

Removable IR-Cut filter

The DCS-3112 comes with a ICR Filter which can be manually applied via the web, or set to automatically adjust based on lighting conditions. This feature allows the camera to capture crisp colour images during the daytime, and grayscale images at dark.

Flexible Connectivity

The DCS-3112 incorporates Power over Ethernet (PoE), which allows it to be easily installed in a variety of locations, even when no power outlet is nearby. The DCS-3112 also includes input and output ports that allow connectivity to external devices such as IR sensors, switches, and alarm relays. An RS-485 interface provides connectivity to an optional pan/tilt enclosure which effectively adds pan/tilt functionality to the DCS-3112. An additional 12 V interface provides power for an optional LED illuminator.

Open Network Video Interface Forum (ONVIF) compliant

The Open Network Video Interface Forum (ONVIF) is standards relating to open IP video networking. The DCS-3112 is ONVIF compliant and therefore interoperable with other manufacturer’s products on the same network such as cameras, storage systems, video analytics products and Video Management Systems. For more information on ONVIF and compatible D-Link network cameras, please click here.

Centralised management with D-ViewCam™

The included D-Link D-ViewCam™ (DCS-100) is a sophisticated video management software which enables you to manage up to 32 network cameras, set e-mail alert notifications, create recording schedules, and trigger motion detection to record directly to your hard drive or network folder. D-ViewCam™ also allows you to upload a floor plan of your premises, and create a realistic layout according to the locations of your cameras, further simplifying the management process.

Actual product appearance may differ from the image displayed on this page

Sugerowane urządzenia

Gigabitowy Router Dual-Band HD Wi-Fi 900 Mb/s
DIR-857
Dowiedz się więcej
Router Wi-Fi N600
DIR-645
Dowiedz się więcej
ShareCenter Pro 4-Bay 1U Rackmount Unified Storage
DNS-1550-04
Dowiedz się więcej
Wireless N Unified Services Router
DSR-500N
Dowiedz się więcej
UTM Firewall
DFL-2560
Dowiedz się więcej

Technical Specifications

Hardware Profile
  • Sony Exmor 1/4” 1.3 Megapixel progressive CMOS sensor
  • Minimum Illumination: 0.4 lux (Color); 0.04 lux (B/W)
  • Built-in Infrared-Cut Removable (ICR) Filter module
  • 10X digital zoom
  • DC iris varifocal length: 3.5 mm to 8.0 mm
  • Aperture: F1.4
  • Angle of view:
  • (H) 35.4° to 77.6°
  • (V) 26.6° to 57.6°
  • (D) 44.3° to 97.9°
Image Features
  • Configurable image size, quality, frame rate, and bit rate
  • Time stamp and text overlays
  • Configurable motion detection windows
  • 3 Configurable privacy masks zone
  • Configurable white balance, shutter speed, brightness, saturation, contrast, sharpness

Video Compression
  • H.264/MPEG-4/MJPEG simultaneous format compression
  • JPEG for still images
  • H.264/MPEG-4 multicast streaming

Video Resolution
  • 16:9 - 1280x720, 800x450, 640x360, 480x270, 320x176, 176x144
  • 4:3 - 1280x1024, 1280x960, 1024x768, 800x600, 640x480, 480x360, 320x240, 176x144
  • all resolutions support frame rates of up tp 30 fps

Audio Support
  • G.726

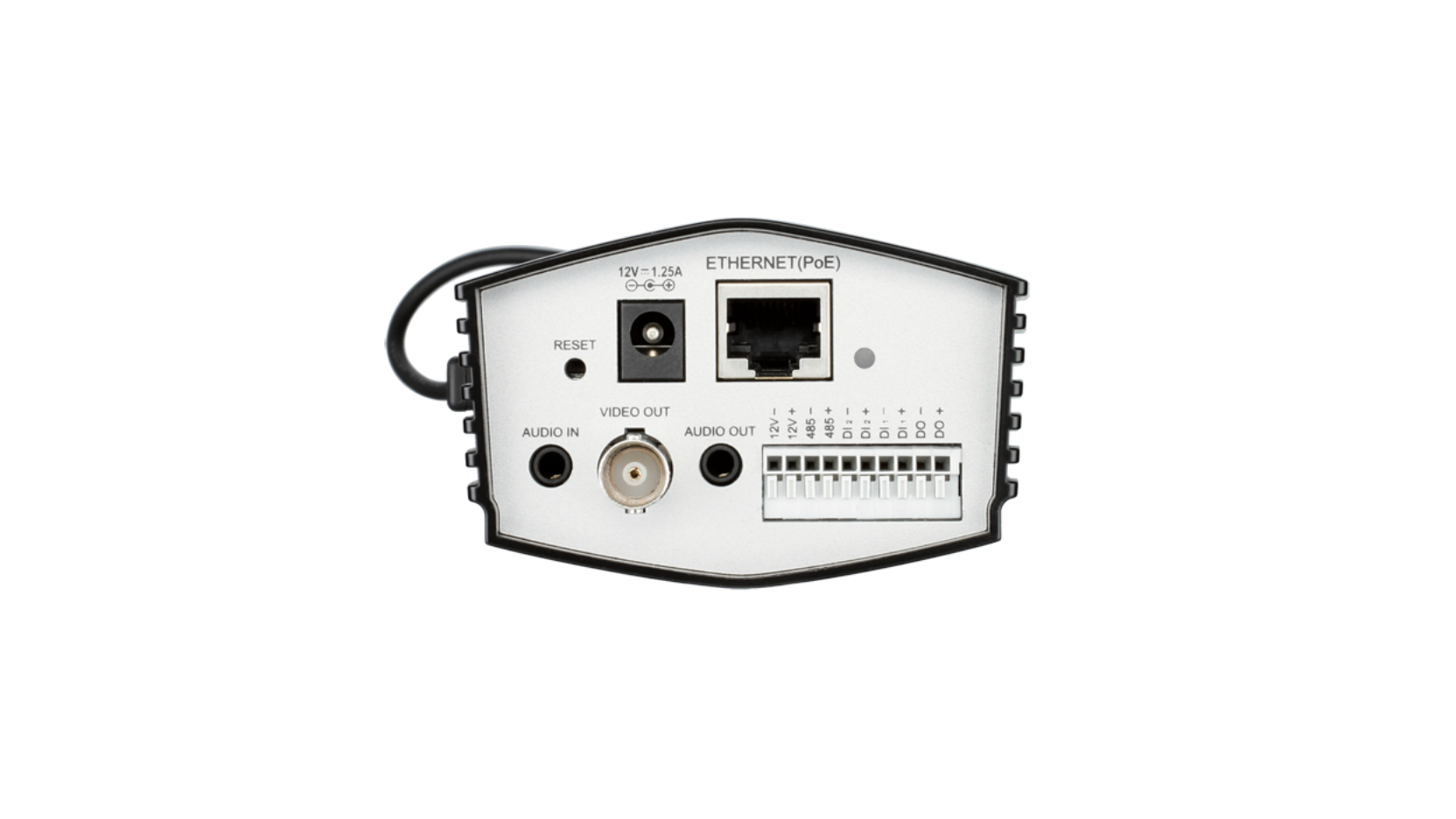

External Device Interface
  • 10/100 Base-TX Ethernet port with PoE
  • 2 DI / 1 DO
  • 12 V DC, 200 mA Output
  • RS-485
  • SD card
  • Audio input / output
  • Video output

Network Protocols
  • IPv4
  • TCP/IP
  • UDP
  • ICMP
  • DHCP Client
  • NTP Client (D-Link)
  • DNS Client
  • DDNS Client (D-Link)
  • SMTP Client
  • FTP ClientHTTP / HTTPS
  • Samba Client
  • PPPoE
  • UPnP Port Forwarding
  • RTP/RTSP/RTCP
  • IP filtering
  • 3GPP
  • IGMP
  • ONVIF compliant

Security
  • Administrator and user group protection
  • Password authentication
  • HTTP and RTSP digest encryption

System Requirements for Web Interface
  • Operating System: Microsoft Windows 7/Vista/XP/2000
  • Browser: Internet Explorer, Firefox, Netscape, Opera

Event Management
  • Motion detection
  • Event notification and upload snapshots/video clips via HTTP, SMTP, or FTP
  • Supports multiple HTTP, SMTP, and FTP servers
  • Multiple event notifications
  • Multiple recording methods for easy backup

Remote Management
  • Configuration accessible via web browser
  • Take snapshots/video clips and save to local hard drive or NAS via web browser

Mobile Support
  • Pocket PC, or mobile phone with 3GPP playback support

D-ViewCam™ System Requirements
  • Operating System: Microsoft Windows 7/Vista/XP
  • Web Browser: Internet Explorer 6 or higher
  • Protocol: Standard TCP/IP

D-ViewCam™ Software Functions
  • Remote management/control of up to 32 cameras
  • Viewing of up to 32 cameras on one screen
  • Supports all management functions provided in web interface
  • Scheduled motion triggered, or manual recording options

Power
  • Input 12 V DC 1.25 A, 50/60 Hz
  • 802.3af PoE
  • Max. Power Consumption 3.6 watts

Temperature
  • Operation: 0 to 40 °C
  • Storage: -20 to 70 °C

Humidity
  • 20% to 80% non-condensing

Weight
  • 560 g

Certifications
  • CE (Class A)
  • CE LVD (EN60965-1)
  • FCC (Class A)
  • ICES-003
  • C-Tick

Dimensions
  • 80.0 x 52.9 x 180.4 (W x H x D)
