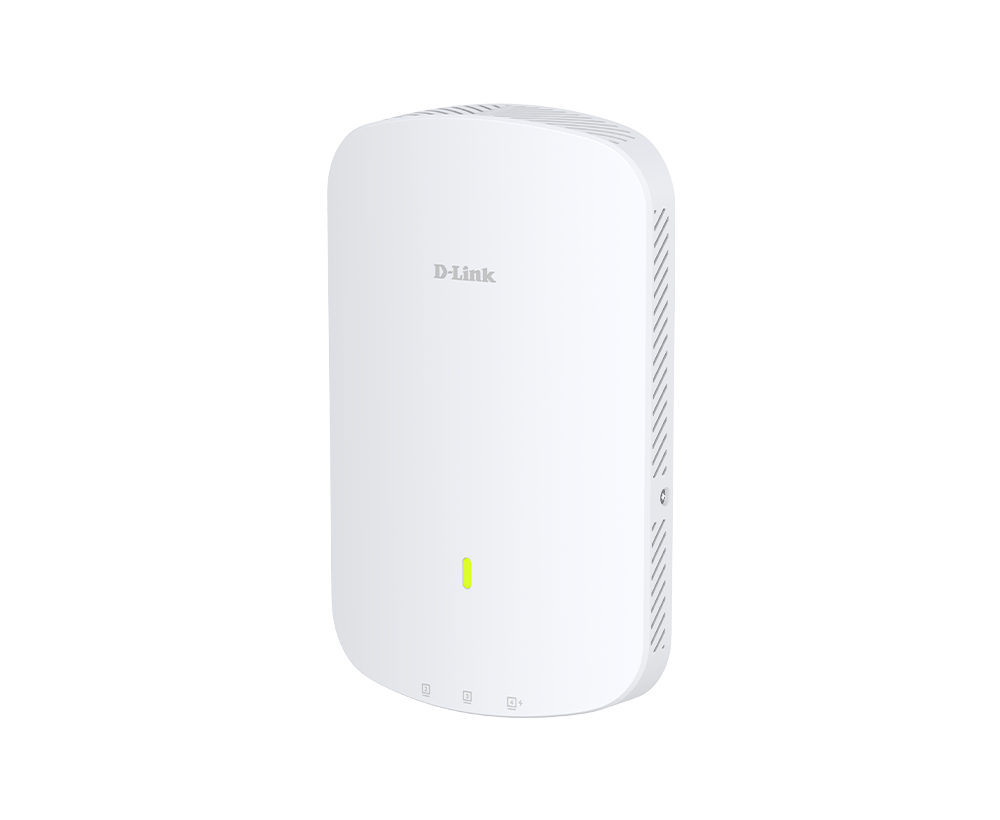

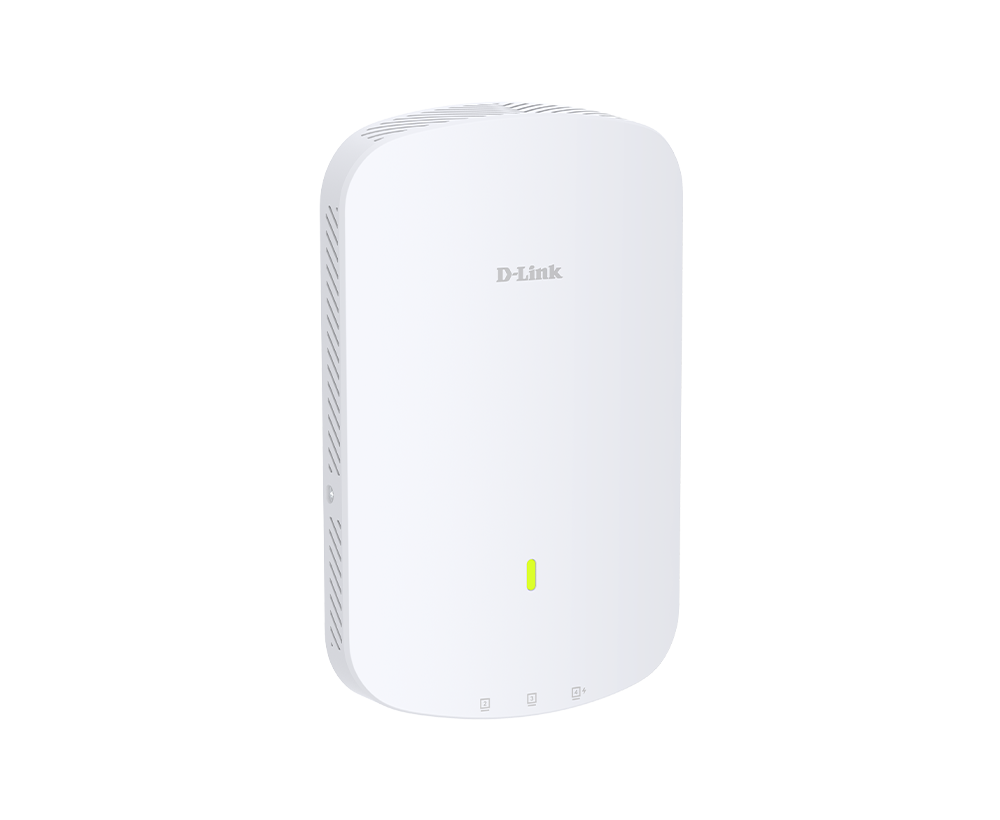

AX3000 Wi-Fi 6 Wall-Plate Access Point
DAP-X3060W
- Status produktu (A1 v100WW): W sprzedaży
- Wi-Fi 6 AX3000, up to 3.0 Gbps
- High efficiency, low latency performance
- 2x2 MIMO with band steering and airtime fairness
- 3 x downlink gigabit ports, one for PoE passthrough
- 802.3at PoE for easy, power-free installation
- Enhanced Open secures public networks
- WPA3 encryption for enhanced Wi-Fi security
- Customizable Captive Portal for user access
- Compact wall-plate design fits into a room or office
- Centrally managed via Nuclias Network Controller
Lista sklepów
User Benefits
Ultra-Fast Wi-Fi 6
Delivers AX3000 dual-band speeds up to 574 Mbps (2.4 GHz) and 2402 Mbps (5 GHz) for faster Wi-Fi experience
Effortless PoE Installation
802.3at PoE-powered for easy, single-cable installation without extra power sockets, perfect for hospitality and office spaces
Expand with PoE Out
Three Gigabit downlink ports for wired expansion and one PoE passthrough port to power devices like IP phones or cameras
Customizable Guest Access
Supports captive portal with per-SSID captive portals for branded guest Wi-Fi, ideal for hotels, dorms, and public venues
Enterprise-Grade Security
Ensures secure, segmented access with WPA3, Enhanced Open, VLAN/SSID mapping, and MAC control for secure and segmented connectivity
Centralized Management
Easily automate, monitor, and scale your network with centralized management via Nuclias Network Controller
Reliable In-Room Wi-Fi
Designed for in-room coverage in hotels, dormitories, and meeting spaces, the wall-plate Access Point (AP) delivers strong, stable Wi-Fi throughout any room. PoE-powered for simple single-cable installation, it easily mounts on US or EU standard junction boxes for flexible, seamless deployment.
Ultra-Fast AX3000 Performance
Experience ultra-fast Wi-Fi 6 performance with speeds up to 574 Mbps (2.4 GHz) and 2402 Mbps (5 GHz), ensuring high capacity, low latency, and seamless connectivity—perfect for streaming, video conferencing, and multi-device environments in hospitality and enterprise networks.
Mbps
Channels
2.4G / 5G

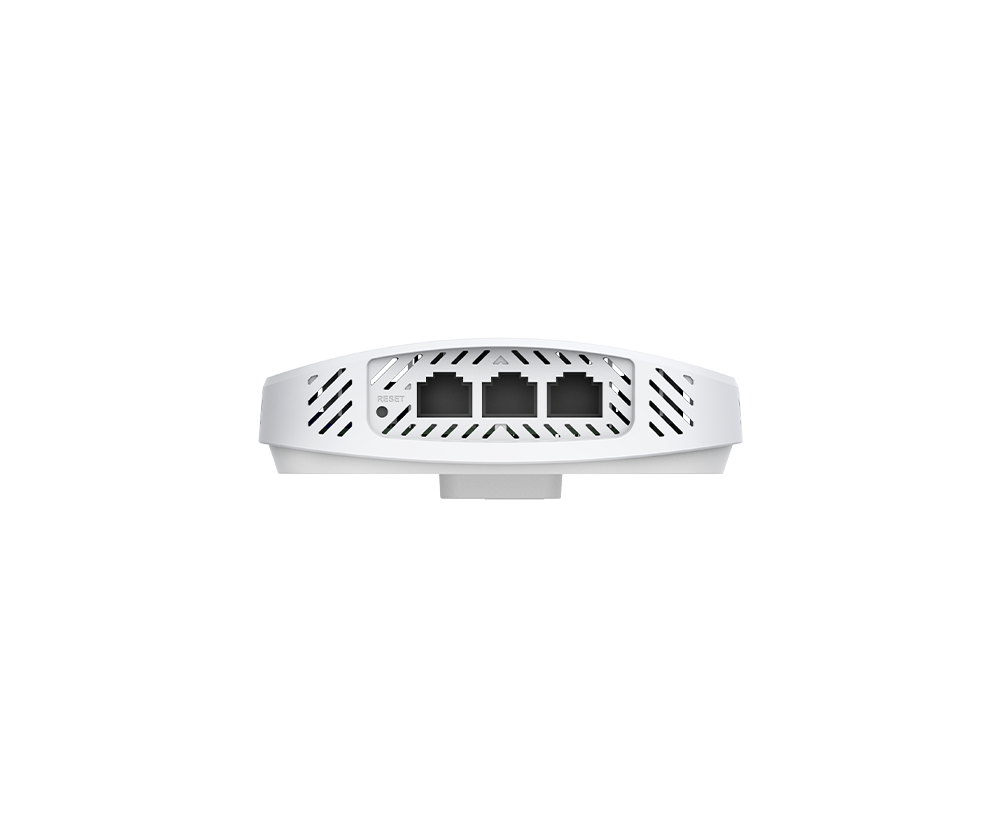

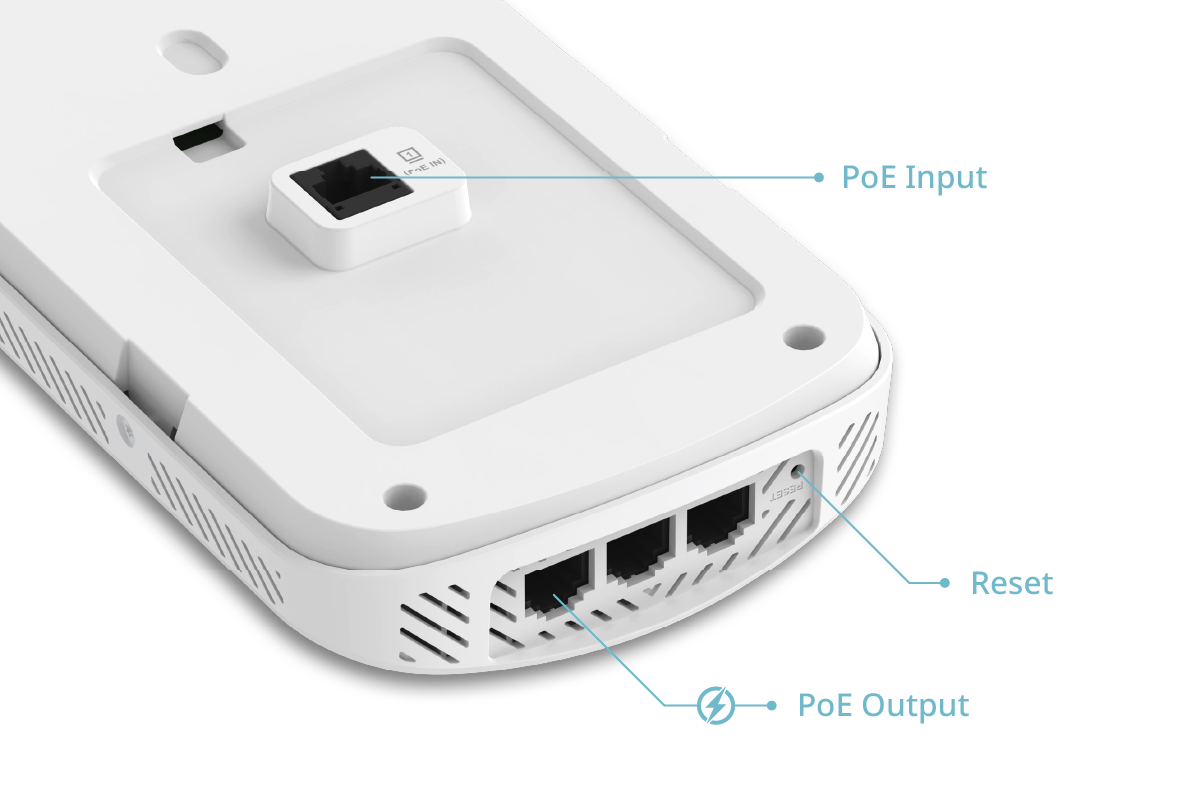

Full Gigabit Ports with PoE Out
Equipped with one uplink and three downlink Gigabit ports, the Access Point (AP) extends wired connectivity for VoIP phones, PCs, printers, or smart TVs. One downlink port supports PoE passthrough, allowing you to power an additional device without the need for a separate power supply.

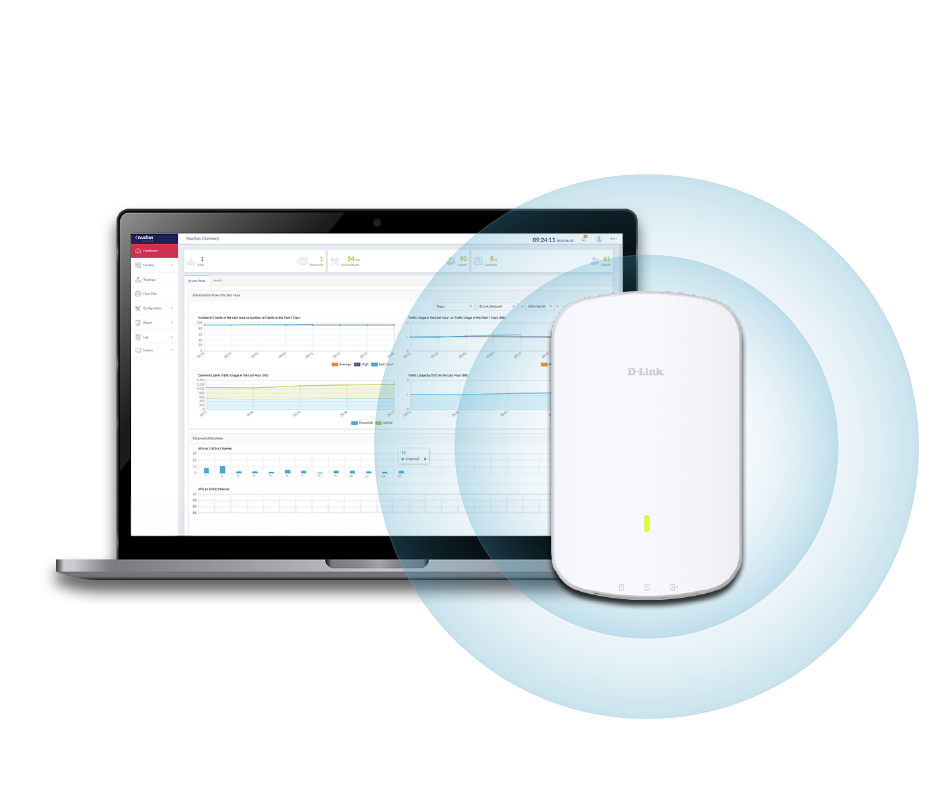

Centralized Network Control
The DAP-X3060W integrates effortlessly with D-Link’s Nuclias Network Controller and management platform, providing centralized, remote network control from anywhere. This solution simplifies management, automation, and scalability, while built-in analytics and reporting deliver actionable insights down to each access point for smarter, data-driven decisions.
Sugerowane urządzenia

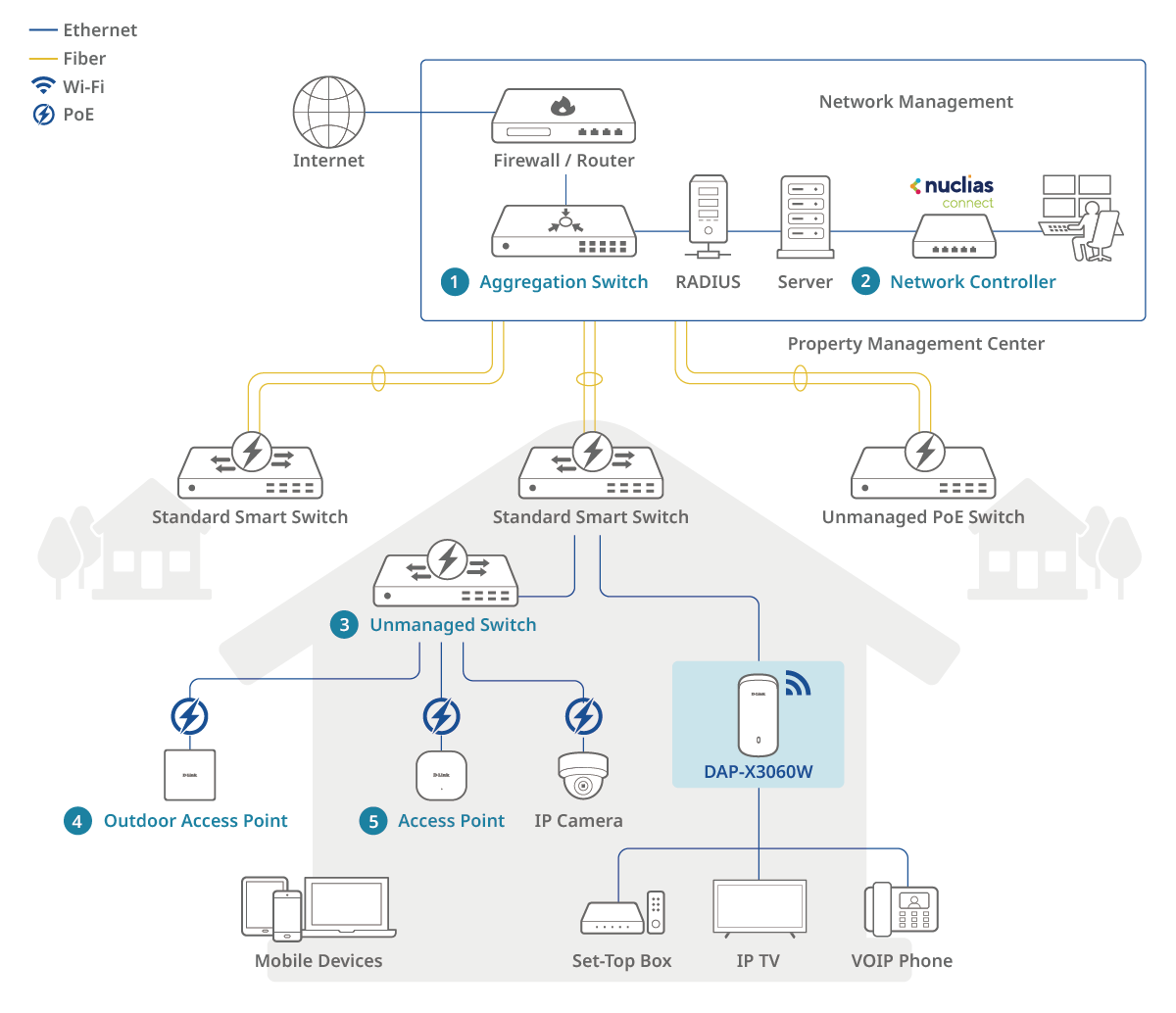

Dormitory (Education)
User benefits :
- Supports multiple devices simultaneously
- Extra LAN and PoE Out ports for PCs, TVs, and consoles
- Wall-plate PoE design for easy dorm deployment
- VLAN per SSID and captive portal for user segregation
- WPA3 and MAC ACL safeguard academic and student data
Learn more :
- Aggregation Switch : DXS-3130-32S
- Network Controller : DNH-1000
- Unmanaged Switch : DMS-108P
- Outdoor Access Point : DAP-X3060OU
- Ceiling Mount Access Point : DAP-X3060
Hotel (Buildings)
- Fast, reliable connectivity for live streaming and conferences
- Captive portal and per-SSID VLAN for secure, branded guest Wi-Fi
- Extra LAN and PoE Out ports for IP phones, TVs, or printers
- PoE wall-plate design fits US/EU junction boxes
- WPA3 and MAC control protect guest and business networks
Learn more :
- Aggregation Switch : DXS-3130-32S
- Network Controller : DNH-3000
- Standard Smart Switch : DMS-1250 Series
- Unmanaged Switch : DMS-108P
- Ceiling Mount Access Point : DAP-X3060

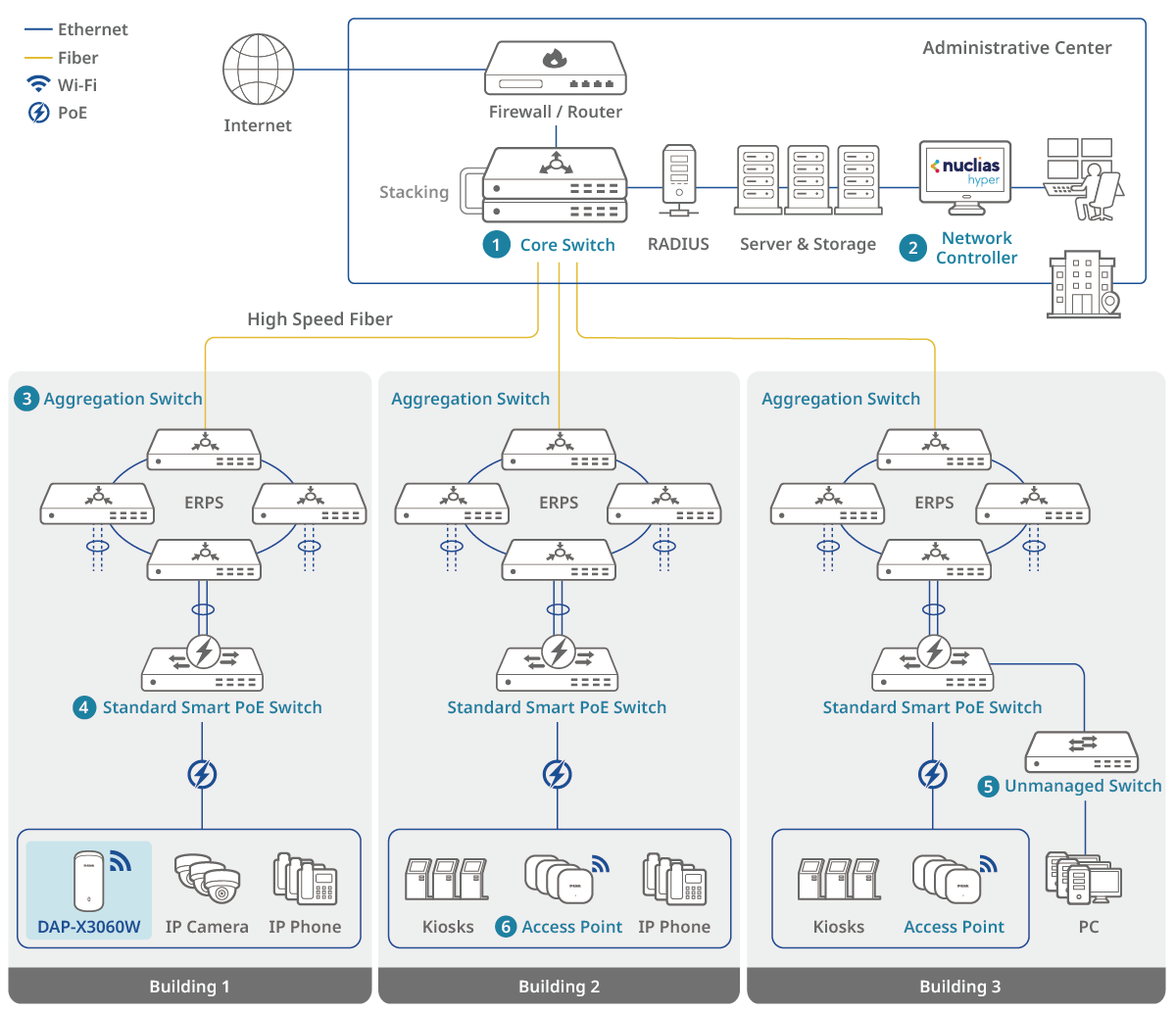

High-Rise Community (Buildings)
- Ideal for 4K, calls, and multi-device use
- LAN ports + PoE passthrough for TVs and devices
- PoE wall-plate fits US/EU boxes for easy install
- VLAN and MAC ACL isolate resident traffic
- Captive portal enables secure guest Wi-Fi
Learn more :
- Core Switch : DQS-3630-56S ( Coming Soon )
- Network Controller : DNC-5000
- Aggregation Switch : DXS-3130 Series
- Standard Smart PoE Switch : DMS-1250-18P
Unmanaged Switch : DMS-1016
- Ceiling Mount Access Point : DAP-X3060
Dane techniczne
|
Interfejsy:
|
1 x Gigabit Ethernet PoE LAN port (uplink) 3 x Gigabit Ethernet LAN port (downlink) (One PoE passthrough port to power a connected device) |
|---|---|
|
Typ anteny
|
2 x Dual-band internal antennas |
|
IEEE Standard
|
IEEE 802.11ax/ac/n/g/b/a IEEE 802.3u/ab/an IEEE 802.3at PoE |
|
Security Protocol
|
WPA/WPA2/WPA3™ Personal/Enterprise SSID broadcast disable MAC address access control WEP 64/128-bit Enhanced Open Internal RADIUS server |
|
Operating Frequency
|
2.4 - 2.483 GHz 5.15 - 5.35 GHz 5.47 - 5.85 GHz |
|
Device Management
|
Nuclias Connect Web (HTTP/HTTPS) Telnet/SSH |
|
Wymiary:
|
195.68 x 120.72 x 40.2 mm |
|
Temperatura pracy:
|
0 – 40°C (32 – 104°F) |
|
Wilgotność robocza:
|
10% – 90% (bez kondensacji) |
|
Wilgotność przechowywania:
|
5% – 95% (bez kondensacji) |
|
Zasilanie
|
802.3at PoE |
|
Rzeczywista wydajność może się różnić w zależności od ustawień, okablowania, temperatury, konfiguracji sieci, interfejsu, kompatybilności urządzeń, warunków środowiskowych i lokalnych oraz innych podobnych czynników. Odniesienia do mocy, szybkości sygnału lub przetwarzania, zasięgu lub odległości sygnału, szyfrowania danych, pojemności pamięci, właściwości wyświetlacza lub innych wskaźników wydajności oparte są na optymalnych warunkach wynikających z norm branżowych i mają charakter wyłącznie informacyjny. Specyfikacje mogą ulec zmianie bez uprzedniego powiadomienia. |
|
