Wireless N Simultaneous Dual-Band PoE Outdoor Access Point

DAP-3690

  • Status produktu: Wycofany ze sprzedaży

The DAP-3690 is a robust, high power outdoor access point designed for harsh conditions, it is the ideal solution for creating hot spots or extending wireless networks outdoors.


Pobierz kartę produktu.

Lista sklepów

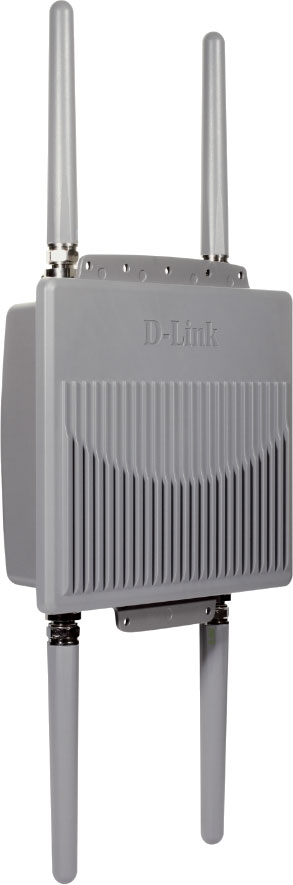

Simplified outdoor connectivity

The DAP-3690 is a high-quality outdoor Access Point, with high-power radio design is the ideal solution for providing wireless connectivity in all elements.

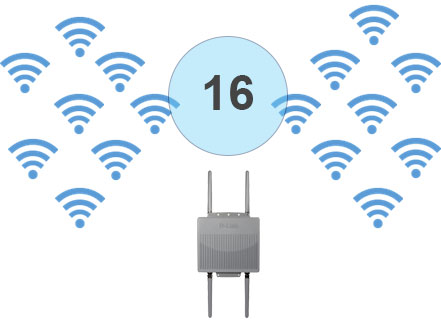

Broadcast 16 independent SSIDs simultaneously

Supports up to 16 SSIDs, 8 per Band

Flexible Wireless

The DAP-3690 is a robust and versatile outdoor access point, designed and built with quality in mind to withstand the harshest environments and capable of being deployed anywhere from manufacturing plants and stadia, to school campuses and golf courses, virtually any venue requiring a robust wireless solution.

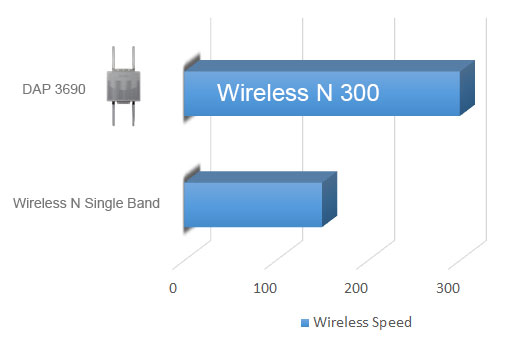

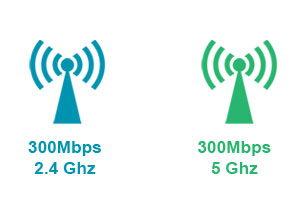

Simultaneous Dual-Band Wireless

Supports up to 300 Mbps for the 5Ghz band and up to 300Mbps for the 2.4Ghz band.

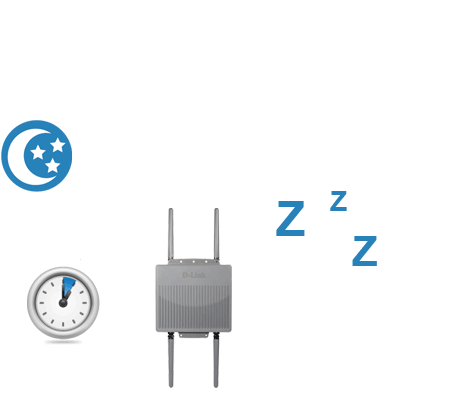

Smart Design

The DAP-3690 has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power and increasing network security.

Manage up to 1000 APs

Manage up to 1000 access points located around the world from one virtual controller residing in your network or in the cloud.

Product Comparison

Wireless N


  DAP-2310 DAP-2360 DAP-2690 DAP-3690
Wireless Standard B, G, N B, G, N B, G, N B, G, N
Frequency 2.4GHz 2.4GHz 2.4GHz, 5GHz 2.4GHz, 5GHz
2.4GHz Throughput 300Mbps 300Mbps 300Mbps 300Mbps
5GHz Throughput - - 300Mbps 300Mbps
Aspect Indoor Indoor Indoor Outdoor
Range* 100m 100m 100m 100m

Wireless AC


  DAP-2660 DAP-2695
Wireless Standard B, G, N, AC B, G, N, AC
Frequency 2.4GHz, 5GHz 2.4GHz, 5GHz
2.4GHz Throughput 300Mbps 300Mbps
5GHz Throughput 867Mbps 1300Mbps
Aspect Indoor Indoor
Range* 100m 100m

* Range indicates the maximum distance where the highest throughput can be achieved, anything beyond this distance results in a loss of throughput.

Technical Specifications

Standards

  • IEEE 802.11a
  • IEEE 802.11n
  • IEEE 802.11g
  • IEEE 802.3ab
  • IEEE 802.3at
  • IEEE 802.3u
  • IEEE 802.3


Network management

  • Telnet, Secure Telnet (SSH)
  • Web Browser Interface
  • HTTP, Secure HTTP (HTTPS)
  • SNMP Support
  • D-View Module - Private MIB
  • AP Manager II
  • AP Array


Security

  • WPA/WPA2-Personal/Enterprise
  • 64/128-bit WEP
  • SSID Broadcast Disable
  • MAC Address Access Control
  • Rogue AP Detection
  • 802.1x Authentication
  • Wireless LAN Partition


VLAN/SSID support

  • Multiple SSID supports up to 16 (8 per radio)


Quality of Service (QoS)

  • 4 Priority Queues
  • WMM Wireless Priority


Wireless Frequency Range

  • 2.4 GHz (2.4 GHz to 2.4835 GHz)
  • 5 GHz (5.15 GHz to 5.35 GHz, 5.47 GHz to 5.85 GHz)


Operating modes

  • Access Point (AP)
  • WDS with AP
  • WDS
  • Wireless Client


Dipole antenna gain

  • 5 dBi @ 2.4 GHz
  • 7 dBi @ 5 GHz

Maximum Output Power1

  • 20 dBm @ 2.4 GHz (dual chain)
  • 23 dBm @ 5 GHz (dual chain)


LEDs

  • Power
  • LAN
  • 5 GHz
  • 2.4 GHz


Maximum Power Consumption

  • 18 watts max. with PoE (with heater OFF)
  • 24 watts max. with PoE (with heater ON)


Power Voltage

  • 48V DC +/- 10% for PoE


Temperature

  • Operating: -40 to 60 °C
  • Storage: -40 to 65 °C


Humidity

  • Operating: 10% to 90% non-condensing
  • Storage: 5% to 95% non-condensing


Weight

  • 2.53 kg (without antennas)


Dimensions (W x H x D)

  • 250 x 220 x 70 mm


Accessories Provided

  • Four embedded surge arrestors
  • PoE base unit (PoE injector)
  • Grounding wire
  • Wall mounting kit
  • Pole mounting kit


Certifications


  • FCC
  • CE
  • IC
  • C-Tick
  • NCC
  • UL
  • Wi-Fi
  • IP67

1. The maximum power setting will vary according to individual country regulations.
