AC3150 MU-MIMO Ultra Wi-Fi Router

DIR-885L

Share


HD Streaming & Gaming on Multiple Devices

The DIR-885L delivers premium performance for homes and users who demand faster Wi-Fi speeds. This router is packed with the latest technology - ideal for HD streaming and gaming on multiple devices.

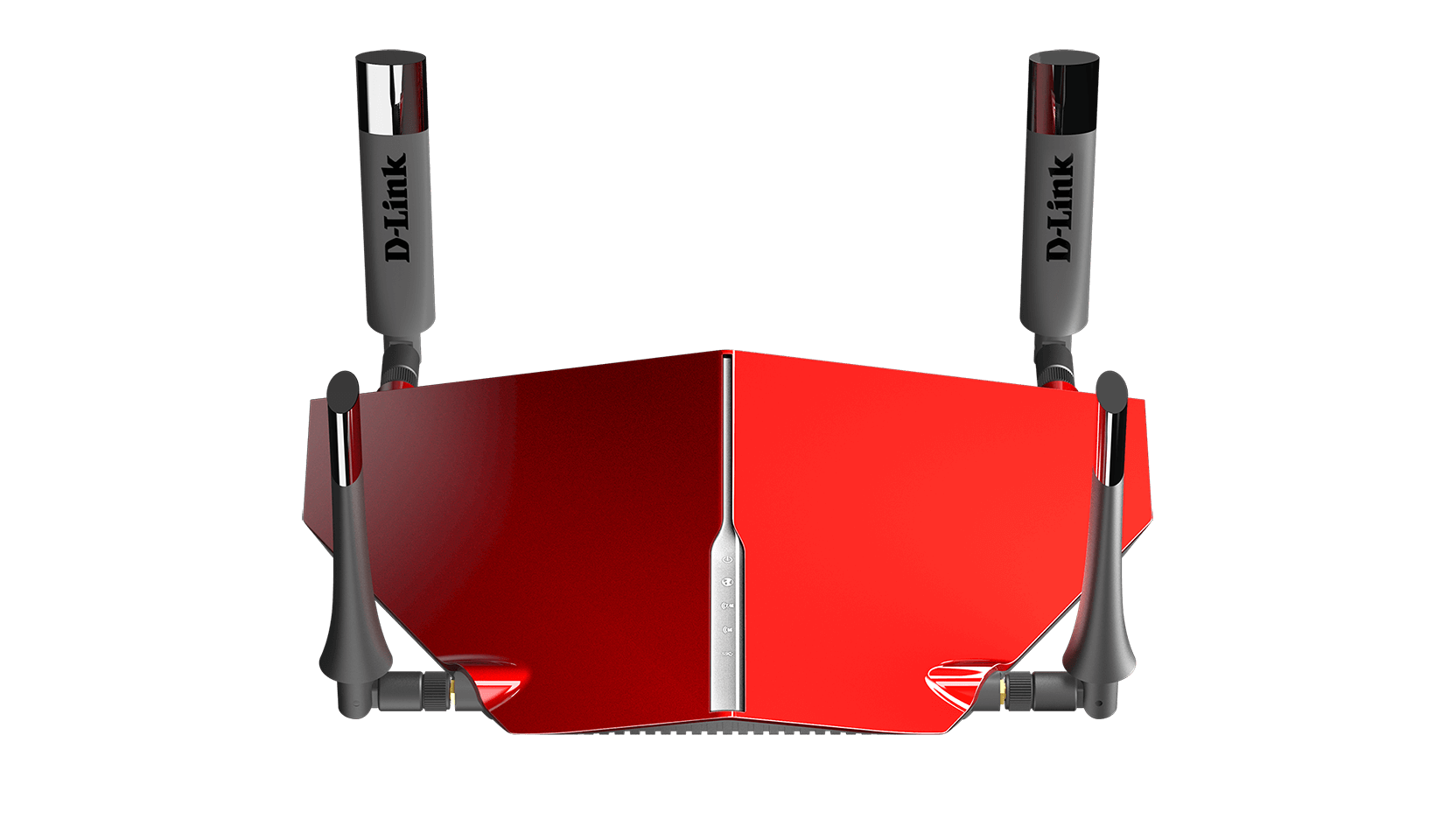

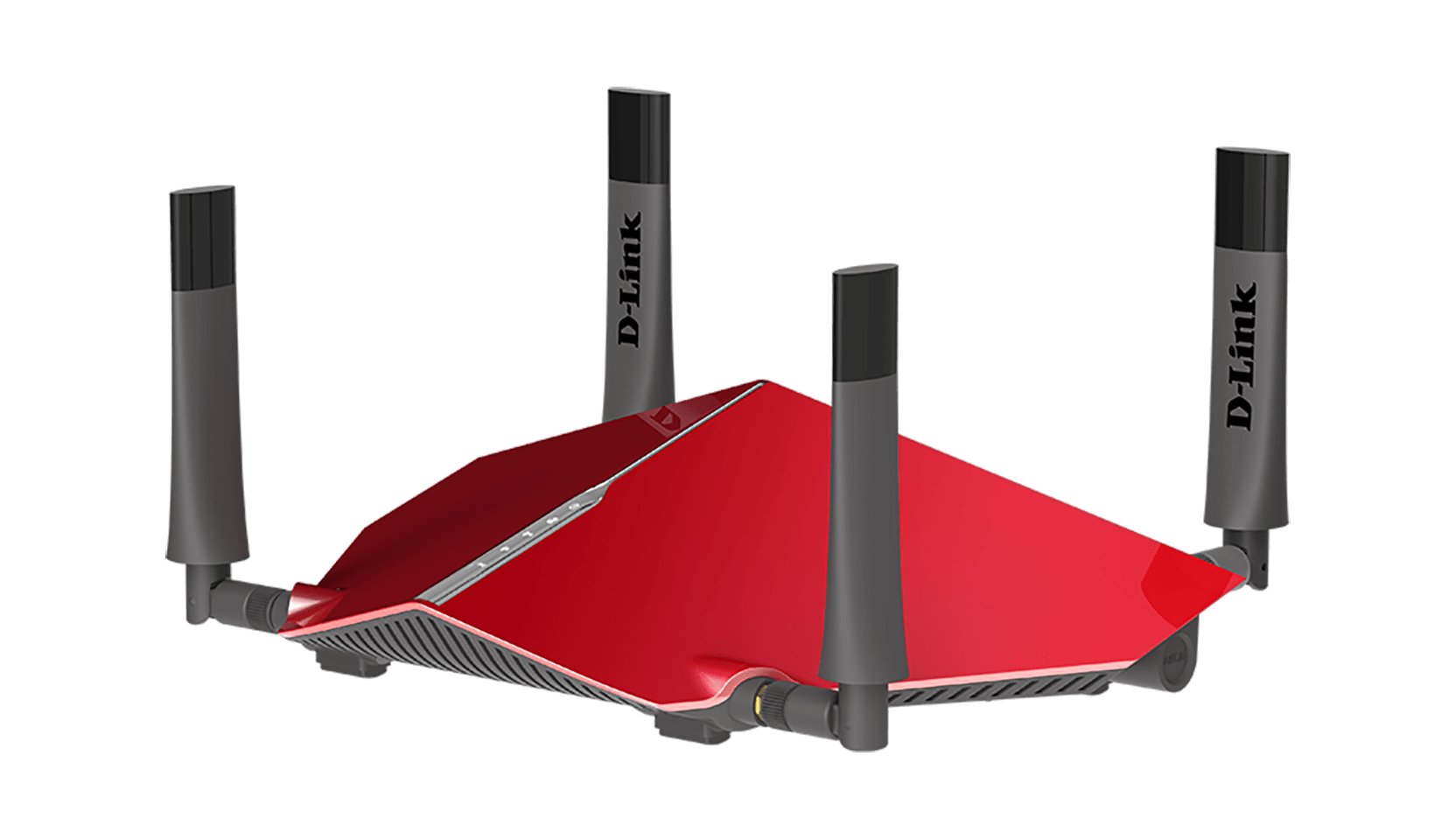

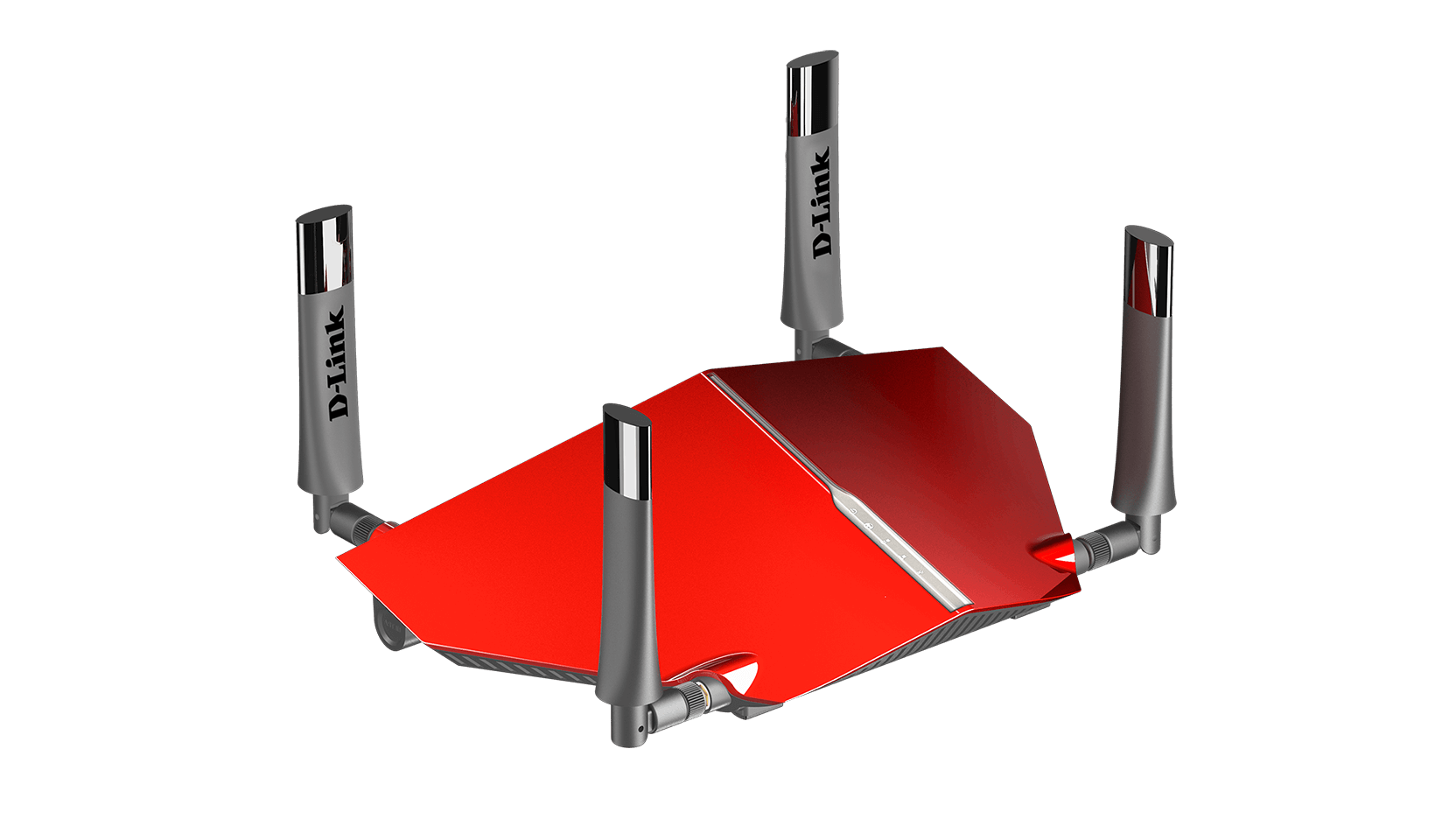

DIR-885L AC3150 MU-MIMO Ultra Wi-Fi Router

Key Features

  • Dual core

    1.4GHz Dual Core Processor

    Faster processing power for supporting apps

  • Data streams

    4x4 Data Streams

    Supports 4 simultaneous data streams for
    increased throughput.

  • MU-MIMO

    MU-MIMO Technology

    High-bandwidth Wi-Fi signal to multiple devices at the same time.

  • Smart connect

    SmartConnect

    Allocates the best possible band for optimal performance.

  • smartbeam

    Advanced AC SmartBeam

    Focused Wi-Fi signals for faster more reliable connections.

  • Dual band

    Dual-Band

    2.4GHz and 5GHz bands.

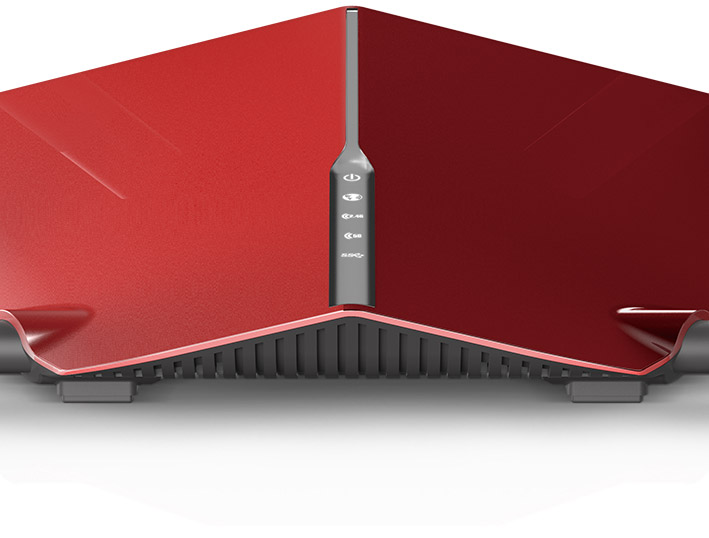

Dual-band with a Kick

Dual-band wireless router with 4x4 data streams for faster Wi-Fi AC speeds.
Independent data streams are delivered to each device on the network for speeds of up to 3167Mbps
(1000 Mbps in 2.4GHz + 2167 Mbps in 5GHz).
Best performance for streaming your favourite movies or playing games with friends.


Dual Band with a Kick

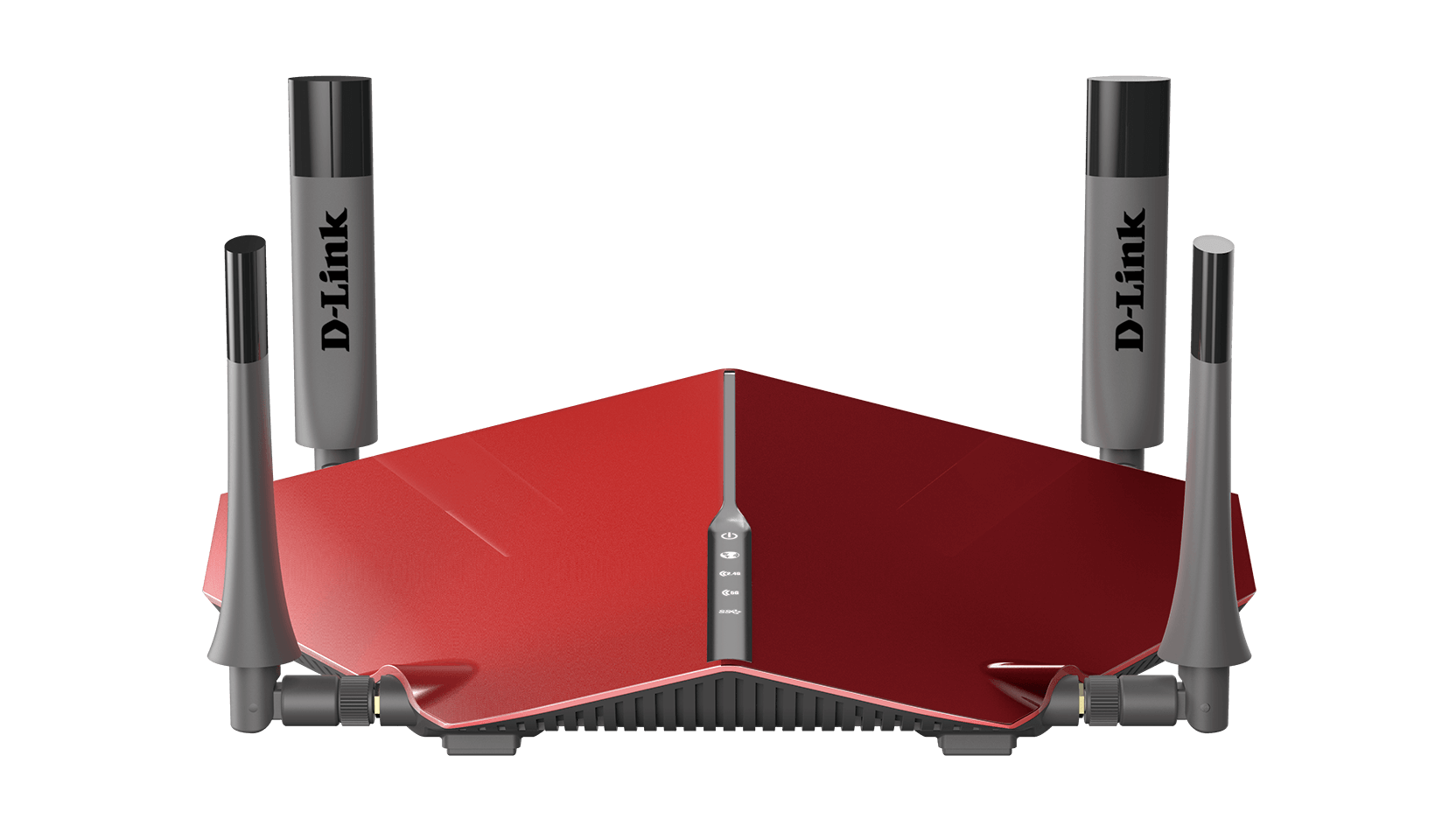

Want Greater Coverage?

Four high-performance external antennas will guarantee you stronger Wi-Fi coverage throughout your home.  More devices that will connect faster to your network and with fewer dead zones.
Want Greater Coverage?

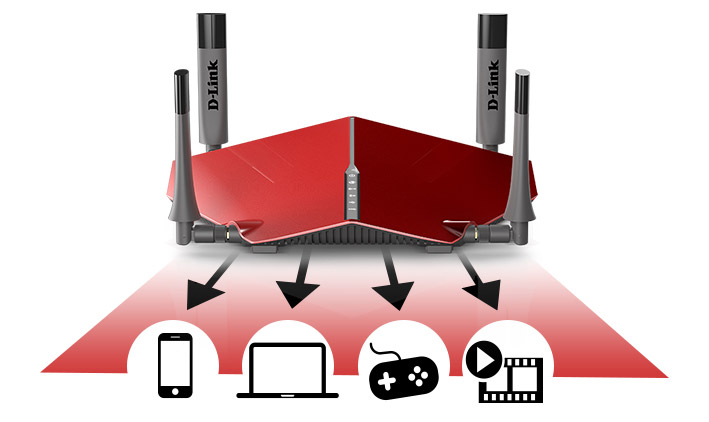

Multi-User MIMO (MU-MIMO)

MU-MIMO technology allows multiple devices to get high‑bandwidth Wi-Fi signal at the same time. Data can be distributed more efficiently, giving you the fastest Wi-Fi speeds possible. You can stream HD media faster, transfer large files really fast and enjoy lag-free gaming.
Read more >

Multi-User MIMO (MU-MIMO)

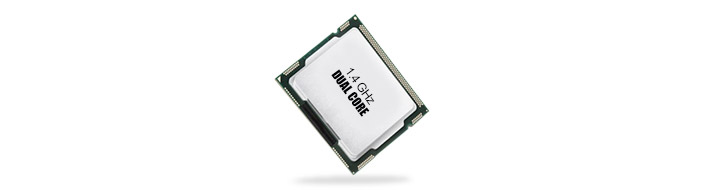

Extreme Processing Power

Want your router to handle multiple tasks at incredible speeds? A 1.4 GHz dual-core processor boosts multitasking computing power and improves throughput speeds for all of your applications.


More Processing Power


Smart Connect

Not all Wi-Fi bands are the same, but you don’t need to worry about that.
With Smart Connect Technology, the DIR-885L Ultra Wi-Fi Router connects each device on your network to the best, clearest band available automatically.
Smart Connect

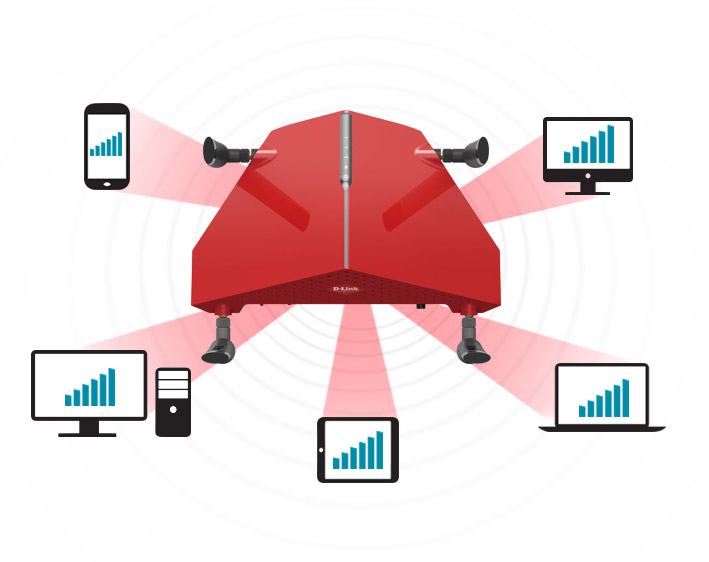

Smart Beam Forming

Improves coverage by directing bandwidth to your devices as you move around your home. You can stream HD video, surf the web, skype your friends and play online games from wherever you are so you’ll always get the best experience.

Smart Beam Forming





Really fast wired performance

Connect up to 4 wired devices and enjoy the best online experience for
HD Streaming and Gaming
Really fast wired performance

  • Router
    Extender

    Select between router or extender mode

  • WPS Button

    One button setup

  • USB 3.0 Port

    Share media from a USB storage
    device

  • 4 Gigabit
    LAN ports

    Connects up to 4 wired devices

  • Internet Port

    Plug your internet cable
    in here


DD-WRT
Open Source



The DIR-885L Ultra Wi-Fi Router provides a responsive graphical user interface for an exceptional experience right out of the box. Advanced users have the option to utilise Open Source firmware to modify their router further with DD-WRT*. For more information visit – www.dd-wrt.com.

* Please note that installing custom firmware will void the product warranty and is done so at your own risk.

DD-WRT Open Source


Additional Features


Speed



Speed

11AC Wi-Fi - Wi-Fi speeds of up to to 3167Mbps (1,000 Mbps on 2.4GHz + 2,167 Mbps on 5Ghz).

1.4 GHz Processor - Fast and reliable wireless, Ethernet and USB 3.0 performance.

Gigabit Ethernet Ports - Ensures the best wired online experience for HD streaming and gaming.





Range



Range
Improved Home Coverage - Four high-performance external antennas extend wireless range further than with Wireless N.







Performance



Performance
Traffic Prioritisation - Advanced QoS engine guarantees the best performance for high priority programs, games and video streaming.

Dual-Band Technology - Decreases wireless interference and congestion, allowing you to connect more devices.

Band Steering - Automatically assigns devices to the less crowded 5 GHz network to increase bandwidth efficiency and availability.

Advanced AC SmartBeam - Unique beamforming technology dramatically enhances wireless signal strength and range.

Airtime Fairness - Automatically adjusts data rates to avoid network buffering when slower devices connect.





Access



Access
DLNA Enabled (Compatible) - Play and share your media on any DLNA devices, such as TVs, gaming consoles, smartphones and more.

3.0 USB Ports - One USB 3.0 port with speeds up to 10x faster than 2.0.

mydlink SharePort App - Remotely stream and share movies, music, pictures and more from your connected USB hard drive.

SharePort Utility - Access and share a USB printer, scanner or storage device over your home network.





Management



Management
Easy To Install - Installation wizard manually walks you through setup in minutes.

Quick Router Setup (QRS) App - Easy setup app for smartphones and tablets.

mydlink Lite App - Free mobile app with ability to monitor, control & troubleshoot your home network.

WPS Push Button Setup - Quickest method of connecting devices with the push of a button.

Zero Configuration - Once router is setup, other D‑Link Zero Configuration devices can easily and instantly connect.





Security



Security
L2TP Over IPSec VPN Server Support - Transmit data securely when connected remotely.

Parental Controls - Create online access schedules and block/allow specific websites and/or devices.

Guest Wi-Fi Network - Enable a public or encrypted wireless guest network to secure and control access to local network devices.

Secure Wi-Fi Encryption - WPA/WPA2 provides highest level of wireless security.



Functions & Features

Connectivity

  • Combined dual-band wireless speeds of up to 3.15 Gbps1
  • MU-MIMO offers high-bandwidth Wi-Fi signal to multiple devices at the same time.
  • Advanced Wireless AC beamforming dramatically enhances wireless signal strength and throughput
  • Enhanced SmartConnect feature prevents older devices from affecting optimal performance
  • Gigabit WAN and LAN ports for high-speed wired connections
  • USB 3.0 port to connect storage drives and printers for sharing

mydlink-enabled

  • Remotely view and manage your network over the Internet
  • mydlink Lite mobile app allows you to access, manage and view your network remotely

Advanced Quality of Service (QoS)

  • Band steering efficiently balances the data load between the 2.4GHz and 5GHz wireless bands
  • Airtime fairness optimally adjusts the data rate of wireless clients for the best performance

Security

  • WPA & WPA2 wireless encryption protects the network from intruders
  • Wi-Fi Protected Setup (WPS) securely adds devices to your network at the push of a button

Technical Specifications

General

Device Interfaces

  • 802.11 ac/n/g/b/a Wireless LAN
  • Four 10/100/1000 Gigabit LAN Ports
  • 10/100/1000 Gigabit WAN Port Mode Switch (Router/Extender)
  • Mode Switch (Router/Extender)
  • One USB 3.0 Port

Standards

  • IEEE 802.11ac
  • IEEE 802.11n
  • IEEE 802.11g
  • IEEE 802.11b
  • IEEE 802.11a
  • IEEE 802.3
  • IEEE 802.3ab
  • IEEE 802.3u
  • IEEE 802.3x

Minimum System Requirements

  • Microsoft Internet Explorer 9 or higher, Firefox 12 or higher, or other Java-enabled browser
  • Ethernet network interface
  • Cable or DSL modem
  • Subscription with an Internet service provider

Functionality

Advanced Features

  • MU-MIMO
  • SmartConnect
  • Guest zone
  • mydlink SharePort™ web access
  • Multi-language web setup wizard
  • Advanced AC SmartBeam
  • Dual active firewall
    • Network Address Translation (NAT)
    • Stateful Packet Inspection (SPI)
  • VPN Passthrough (PPTP/L2TP/IPsec)
  • Advanced QoS
  • QuickVPN - L2TP over IPsec

mydlink Features

  • Remote Management
  • View current upload/download bandwidth
  • View currently connected clients
  • View web browsing history per client
  • Block/unblock client network access
  • Manage wireless network details
  • Accessible through a web browser or iOS or Android mobile app

Mobile App Support

  • mydlink Lite
  • mydlink SharePort
  • QRS Mobile v1.5

Wireless Security

  • WPA & WPA2 (Wi-Fi Protected Access)
  • Wi-Fi Protected Setup (WPS) PIN/PBC

Physical

Dimensions (L x W x D)

  • 289.29 x 191.05 x 74.47 mm (11.39 x 7.52 x 2.93 inches)

Weight

  • 698 g (1.54 lbs)

Power

  • Input: 100 to 240 V AC, 50/60 Hz
  • Output: 12 V DC, 3 A

Temperature

  • Operating: 0 to 40 °C (32 to 104 °F)
  • Storage: -20 to 65 °C (-4 to 149 °F)

Humidity

  • Operating: 10% to 90% non-condensing
  • Storage: 5% to 95% non-condensing

Certifications

  • Wi-Fi Certified
  • Wi-Fi Protected Setup (WPS)
  • Wi-Fi Multimedia (WMM)
  • IPv6 Ready

EMI

  • FCC
  • CE
  • C-Tick
  • IC
  • CSA/LVD
1. Maximum wireless signal rate derived from IEEE standard 802.11ac specifications which are subject to change. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.
