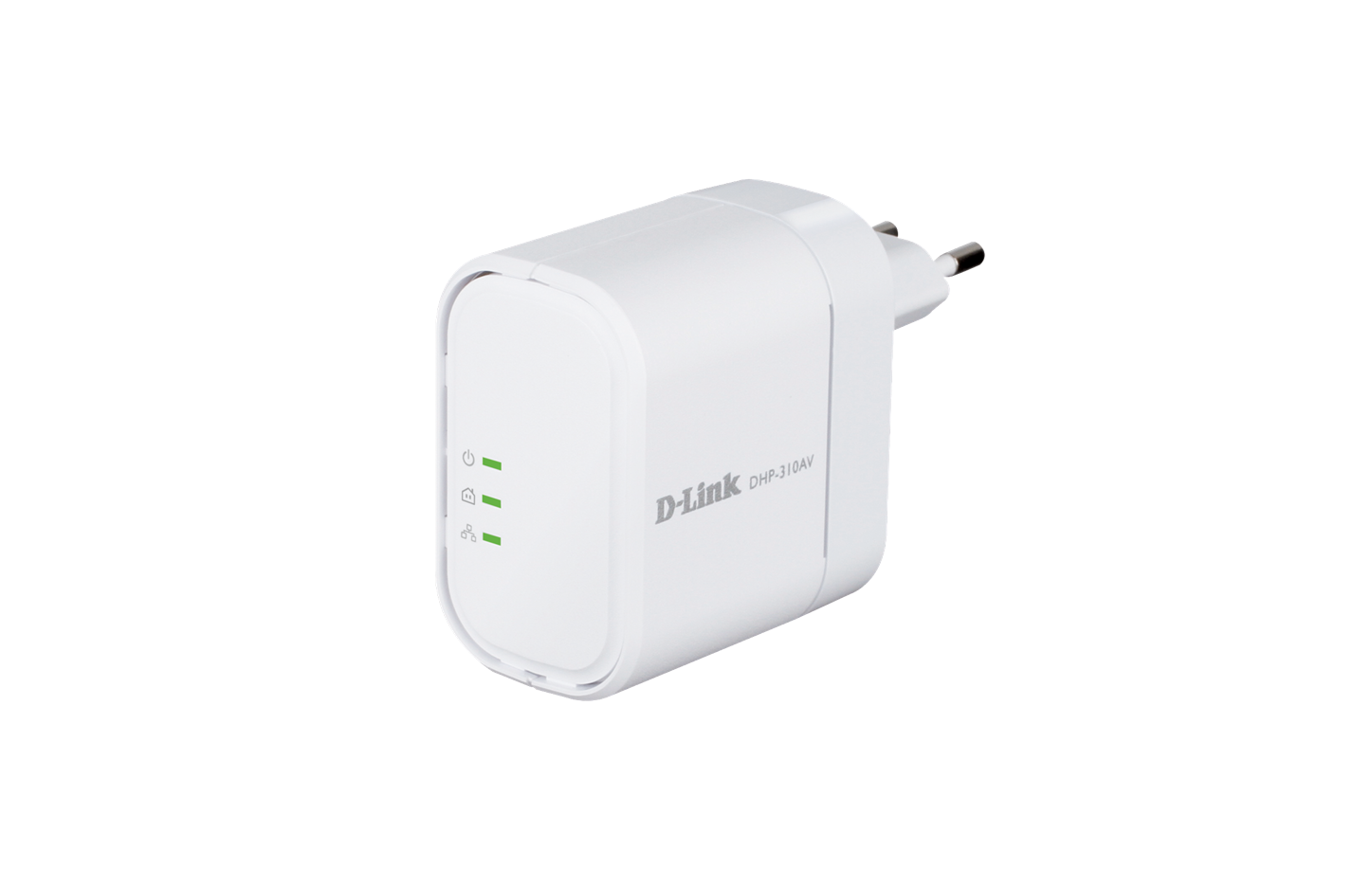

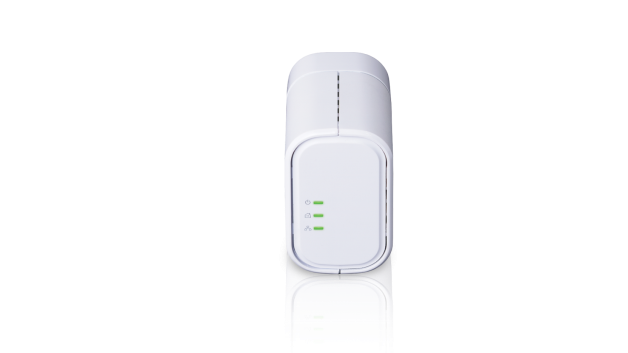

PowerLine Homeplug AV Mini Adapter

DHP-310AV

  • Product Status: Phased Out
Plug the PowerLine Homeplug AV Mini Adapter (DHP-310AV) into existing power outlets and turn your electrical wiring into a home network connection, giving you access to share files, access email, or browse the Internet. With its compact design, the PowerLine AV Mini Adapter only takes up one plug in an outlet, enabling you to plug in other devices too.

Download the datasheet.

List Retailers

Convenient Setup and Secure Operation
The PowerLine Homeplug AV Mini Adapter plugs directly into a power outlet1, so you can extend your home network by plugging one adapter into your router, and another adapter2 into the room you want to extend your connection to. For convenient setup, security can be quickly configured at the push of a button on the device, to protect your network from any intruders. With plug and play installation, the DHP-310AV is an ideal solution for creating a wall-to-wall home network when combined with another PowerLine Adapter.

Compact Design, Award Winning Design
Small and discreet, this adapter does not block access to neighbouring power outlets, allowing it to be plugged in anywhere alongside other devices. Designed to blend into any home environment while still providing the stable and reliable connection you need, this Mini Adapter has already been granted the prestigious Reddot Design Award.

Ideal for Bandwidth-Intensive Applications
The DHP-310AV is capable of delivering wired data transfer rates of up to 200 Mbps. Advanced technology built into this device makes it more resistant to electrical interference from other household appliances, so users can fully benefit from the maximum transmission speeds.This makes it ideal for bandwidth-intensive applications, guaranteeing smooth video streaming, VoIP calls, and lag-free online gaming experiences.

Compatibility
Based on the industry-leading PowerLine Alliance technology, the DHP-310AV is compatible with products implementing the PowerLine AV 500 standard, such as D-Link’s DHP-500AV/-501AV, and DHP-P500AV/P501AV. It is furthermore compatible with other brands’ devices based on the PowerLine AV standard.

D-Link Green™
The DHP-310AV is part of D-Link Green, D-Link’s program for providing eco-friendly alternatives without compromising performance: if data transmission does not occur over a certain period of time, the adapter will automatically go into sleep mode to save power.

1Power outlets and electrical wiring must all be part of the same electrical system. At least one additional PowerLine Homeplug AV Adapter is required to create a network.
2 Sold separately

Product Awards

For DNS-320L Network Storage, DCS-6010L Fisheye Camera, DHP-W310AV Wireless Powerline Adapter and DWR-910 Petit Router
Four of D-Link’s latest products, the DNS‑320L Network Storage, DCS‑6010L Fisheye Camera, DHP‑W310AV Wireless Powerline Adapter, and DWR‑910 Petit Router have been awarded the 2012 red dot product design award. The red dot design award is the largest and most renowned international accolade for industrial design. Each year, prominent designers and experts from all over the world evaluate products based on criteria such as degree of innovation, functionality, and overall quality. This year, over 4500 products vied for this coveted distinction.

Related Products

PowerLine Homeplug AV Mini Starter Kit
DHP-311AV
Find out more
PowerLine AV Network Adapter
DHP-306AV
Find out more
PowerLine AV Network Starter Kit
DHP-307AV
Find out more
Powerline AV Wireless N Extender
DHP-W306AV
Find out more
PowerLine AV 500 Adapter
DHP-500AV
Find out more

Technical Specifications

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • HomePlug AV

PowerLine interface
  • Power plug (country-dependent)

Ethernet interface
  • 10/100BASE-TX Ethernet port with Auto MDI/MDIX
  • RJ-45 connector

Input Power
  • 100V ~ 240V, 50/60 Hz, 0.1A
  • 4 W maximum

PowerLine modulation scheme
  • OFDM symbol modulation

PowerLine frequency band
  • 2 MHz to 30 MHz

Data rates
  • PowerLine: up to 200 Mbps (PHY rate)
  • Ethernet: 10/100 Mbps (autonegotiation)

Security
  • 128-bit AES link encryption

Minimum system requirements (For PC Utility Software)
  • Windows 7/Vista/XP SP3
  • Ethernet interface (100 Mbps)

LEDs
  • Power
  • PowerLine
  • LAN

Dimensions (L x W x H)
  • 61 x 42.4 x 68 mm

Weight
  • 125.6 g

Operating temperature
  • 0 to 40 ºC

Operating humidity
  • 10% to 90% non-condensing

Certifications
  • FCC
  • CE EMC Class B
  • UL
  • CE LVD
