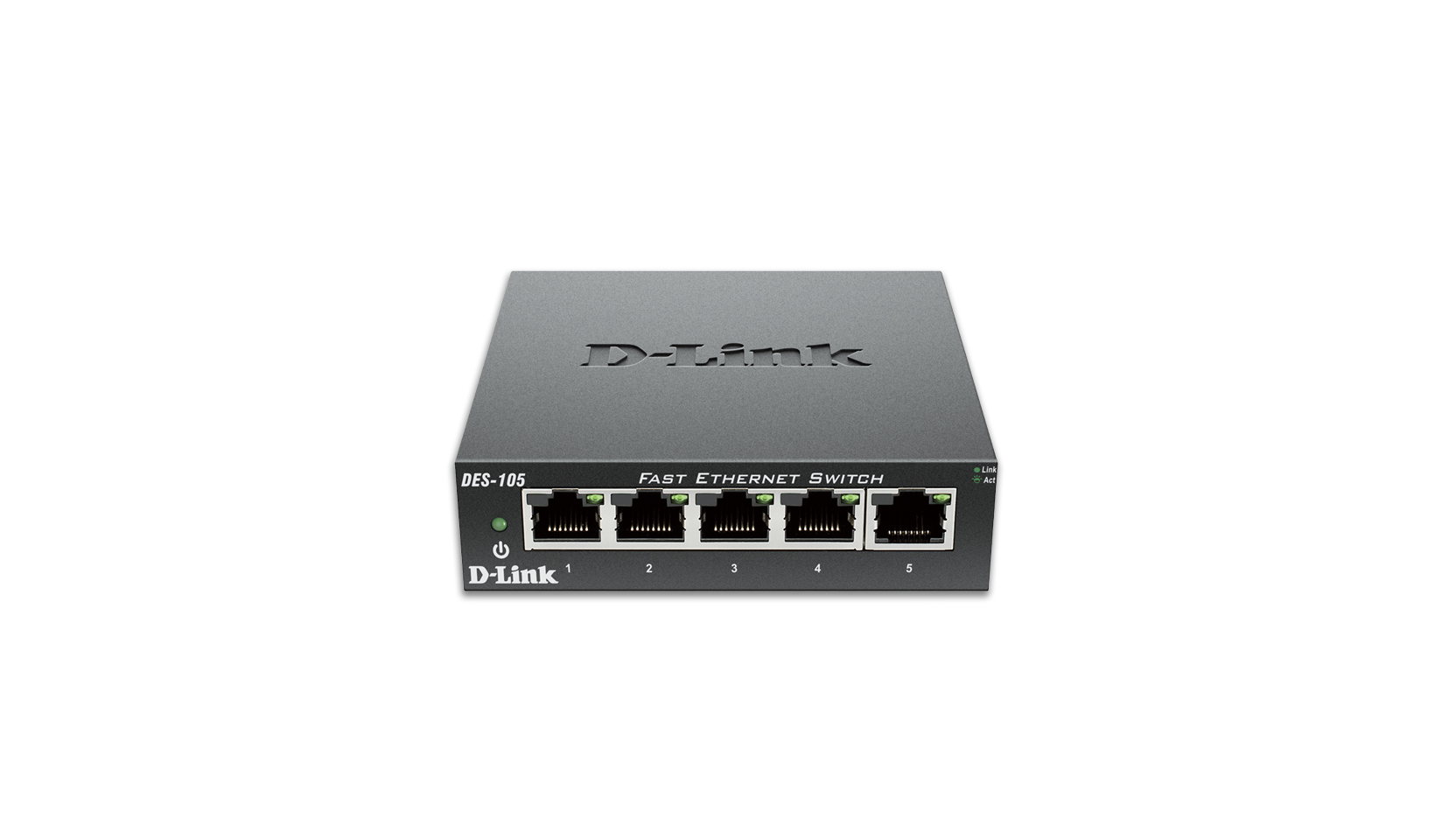

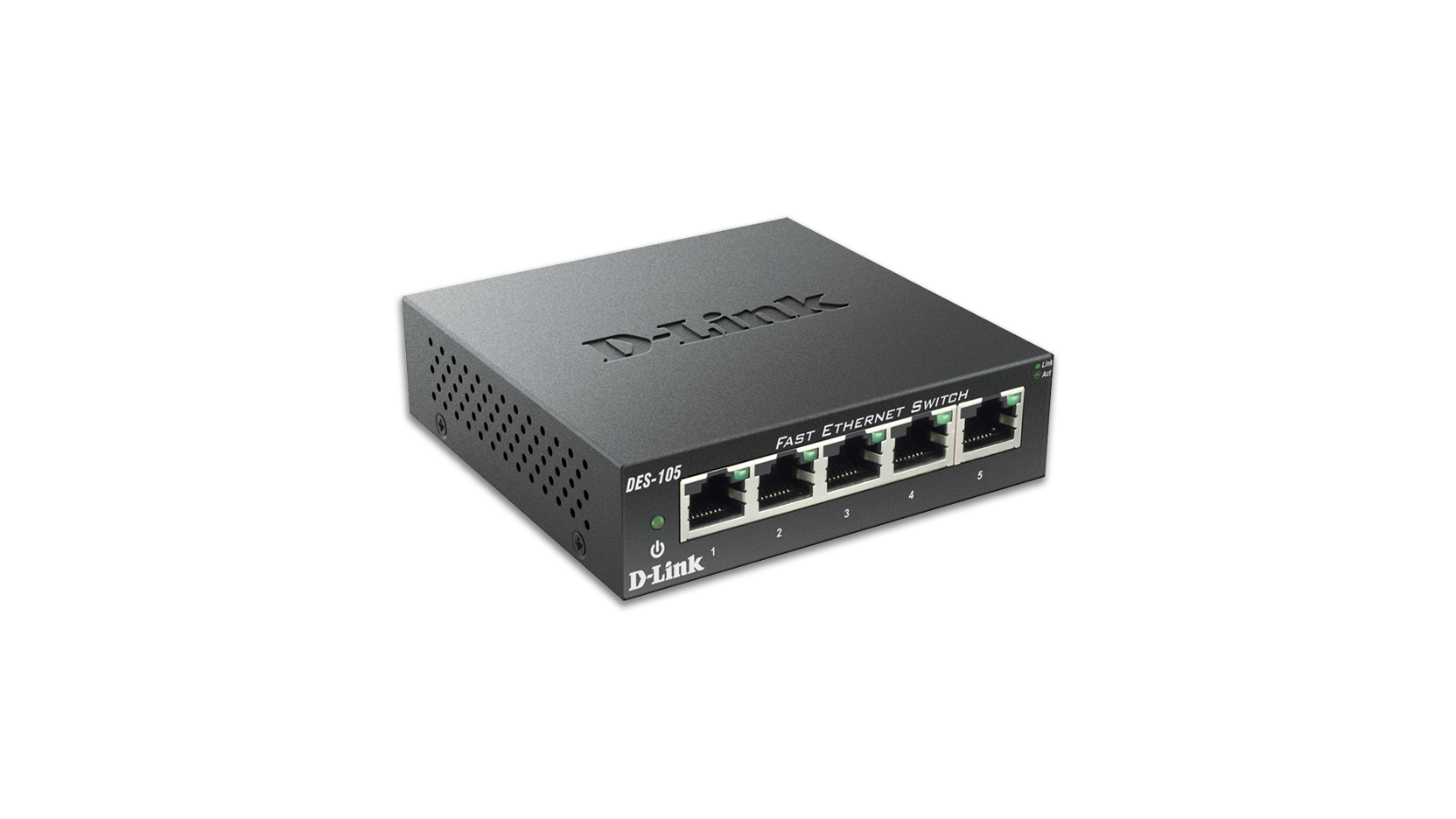

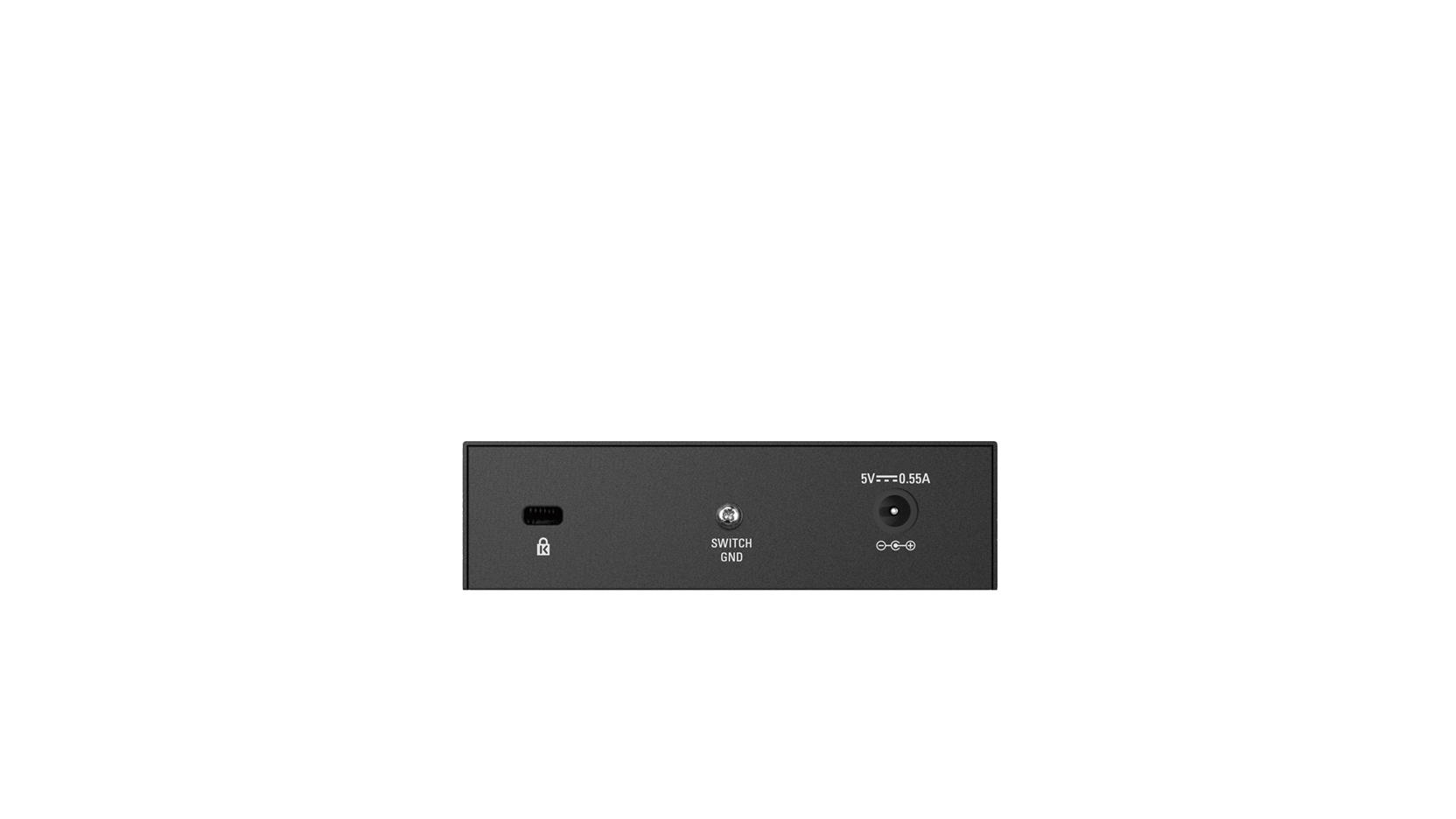

5-Port Fast Ethernet Unmanaged Desktop Switch

DES-105

  • Product Status (Revision A): Live

The DES-105 5-Port Fast Ethernet Unmanaged Desktop Switch is a 5-port 10/100 Mbps Fast Ethernet switch that allows you to quickly set up a wired network. Connect the DES-105 to multiple computers together to share files and folders, or connect it to a router to share an Internet connection.


Download the datasheet.

Where to buy

The DES-105 5-Port Fast Ethernet Unmanaged Desktop Switch is a 5-port 10/100 Mbps Fast Ethernet switch that allows you to quickly set up a wired network. Connect the DES-105 to multiple computers together to share files and folders, or connect it to a router to share an Internet connection.

Auto-Sensing 10/100 Ports

The DES-105 uses auto-sensing 10/100 Mbps ports, allowing a small workgroup to flexibly connect to Ethernet and Fast Ethernet devices to create an integrated network. These ports detect the network speed and auto-negotiate between 10BASE-T and 100BASE-TX, as well as between full and half-duplex, allowing you to get the maximum speed possible for each device connected to your network.

Auto MDI/MDIX Crossover

All of the ports on the DES-105 support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables. In addition, the DES-105 features multiple front, easy-to-access Ethernet ports with two colour LED indicators per port to easily distinguish link status.

Flow Control for Secure Transmission

When a port reaches its receiving buffer capacity, the 802.3x flow control feature activates to minimize dropped packets. By minimizing the number of dropped packets, the switch provides a more reliable connection for all of your connected devices while surfing the web, playing games, or accessing media.

Think Green

The DES-105 is a plug-and-play networking switch that offers D-Link’s Green Technology to save energy and reduce heat, which in turn extends product life without sacrificing performance or functionality. The switch supports IEEE 802.3az Energy-Efficient Ethernet (EEE) which detects when a connected computer is shut down or when there is no Ethernet traffic, in which the switch will proceed to power down the idle port, saving a substantial amount of power.

Type
Unmanaged
Number of ports
5 to 14 ports
Main type of ports
100BASE-TX Fast Ethernet
Switching capacity
1 Gbps
Fanless
Supported
D-Link Green
Supported
802.3az Energy-Efficient Ethernet support
Supported
Form Factor
Desktop
Housing
Metal
Jumbo frame
Supported
MAC address
2K
Number of QoS queues per port
2
Version Date Type File Size
Datasheet (English) - PDF 0.82mb Download
Version Description Date Type File Size
Manual (English) Manual (English) - PDF 0.20mb Download
Version Description Date Type File Size
1.01

QIG

25.02.2013 PDF 0.40mb Download
Version Description Date
Reach 1.1 RevC2 - 11.01.2022 Download
CE doc 1.40 RevC2 CE document 06.10.2021 Download
Reach 1.00 RevC2 - 07.06.2021 Download
CE doc 1.30 RevC2 CE document 20.01.2020 Download
CE doc 1.20 RevC2 CE document 06.08.2019 Download
CE doc 1.10 Revision C2 CE document 09.11.2018 Download
Switching Cheat Sheet - 09.10.2014 Download
CE doc Revision B1 CE document 12.09.2012 Download
CE doc Revision B2 CE document 12.09.2012 Download
