Wireless Dual-Band Outdoor Unified Access Point

DWL-6700AP

  • Product Status: Live

The DWL-6700AP has a sleek, weatherproof housing design with an embedded antenna so it can be easily mounted onto a pole or wall. Its ability to operate between -30°C to 50°C, protecting against exposure to heat, cold or rain makes this an ideal outdoor wireless access point.


Download de datasheet.

Alle Verkooppunten

This Wireless Dual-Band Outdoor Unified Access Point is an access point specially designed for medium distance wireless network bridging services, providing WDS/backhauling networking applications on its 5 GHz band. Featuring the 5 Ghz 8 dBi MIMO directional patch antenna, providing up to 1.5km wireless bridging distance. With WDS support, network administrators can set up multiple DWL-6700APs throughout a facility and configure them to bridge with one another using the 5 GHz band while also providing network access to individual clients on the 2.4GHz band.

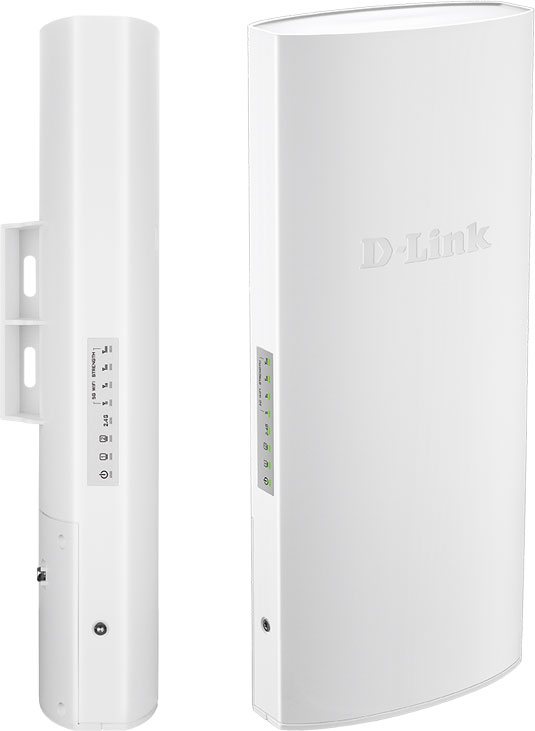

Convenient Design

The DWL-6700AP has a sleek, weatherproof housing design with an embedded antenna so it can be easily mounted onto a pole or wall. Its ability to operate between -30°C to 50°C, protecting against exposure to heat, cold or rain makes this an ideal outdoor wireless access point.

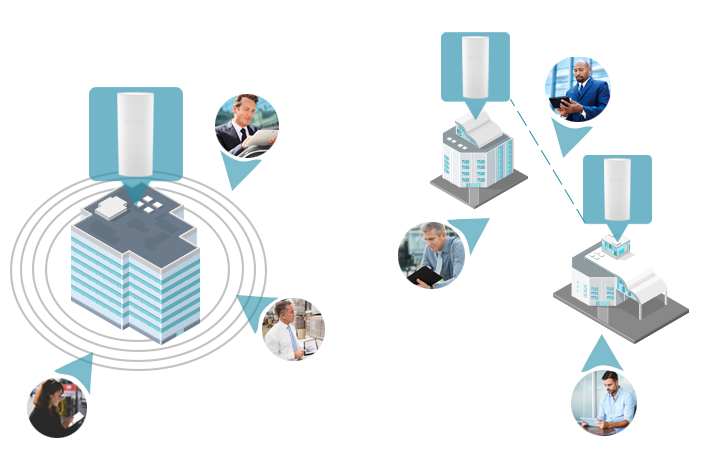

Roaming

Combining the DWL-6700AP with a Unified Wireless Switch or Controller allows you to create a wireless network that enables people to move freely around a building without losing connectivity.

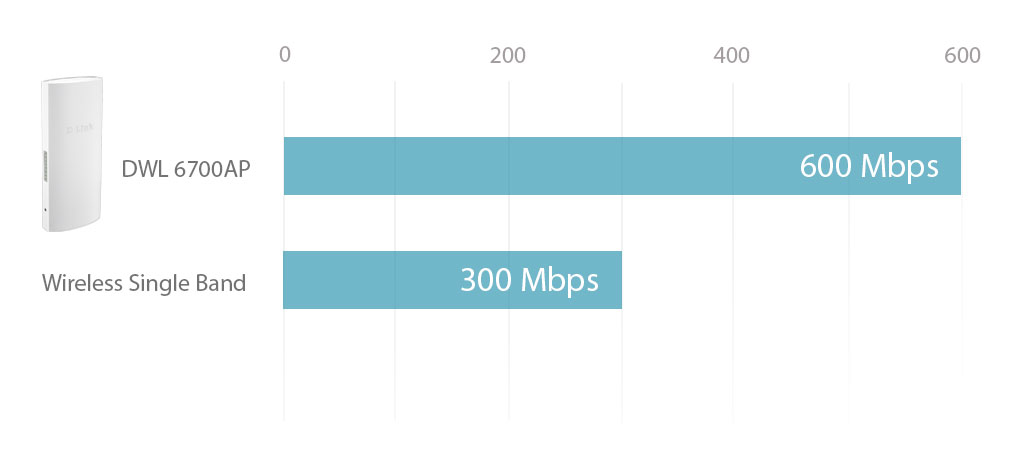

Performance without Compromise

Using the latest generation of dual-band Wireless N technology, the DWL-6700AP delivers great wireless performance and coverage of up to 1.5km in a compact design.

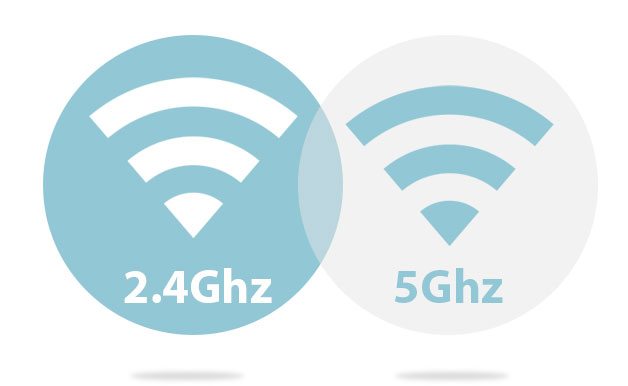

Simultaneous Dual-Band Wireless

Delivers reliable wireless performance with maximum wireless signal rates of up to 300 Mbps in both the 2.4 GHz and 5 GHz mode.

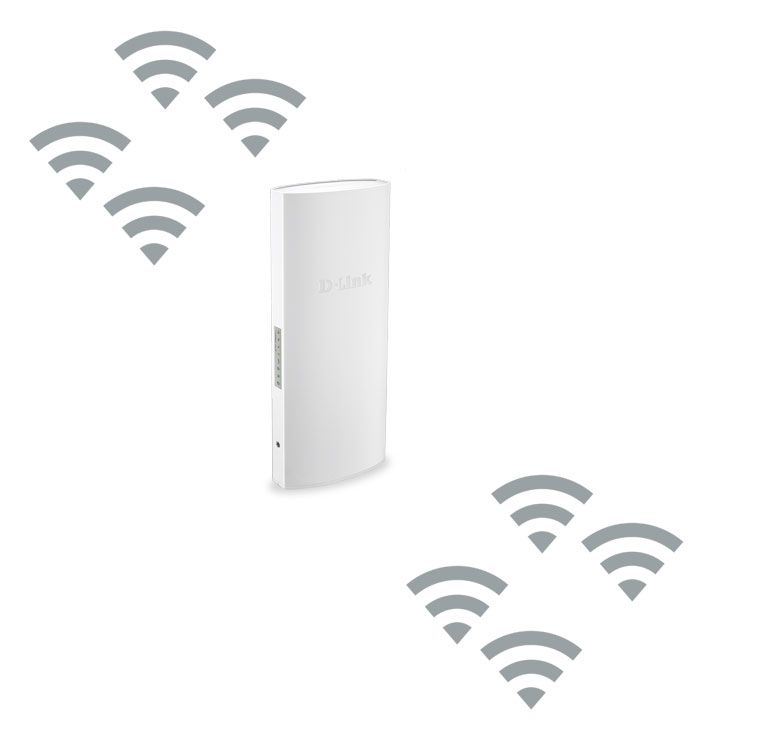

Broadcast on 8 SSIDs Simultaneously

Supports up to 8 SSIDs, 4 per radio, including Station Isolation

Centrally Manage your Wireless Network

Can be centrally managed. when working in conjunction with D-Link Unified Switches/Wireless Controllers, This allows a large number of APs to be deployed and managed easily and efficiently.

Product Comparison


  DWL-2600AP DWL-3600AP DWL-6700AP DWL-8610AP
Wireless Standard B, G, N B, G, N B, G, N B, G, N, AC
Frequency 2.4GHz 2.4GHz 2.4GHz, 5GHz 2.4GHz, 5GHz
2.4GHz Throughput 300Mbps 300Mbps 300Mbps 450Mbps
5GHz Throughput - - 300Mbps 1300Mbps
Aspect Indoor Indoor Outdoor Outdoor
Range* 100m 100m 1.5km 100m
Suggested number of users Up to 25
users
Up to 40
users
Up to 75
users
Up to 250
users

* Range indicates the maximum distance where the highest throughput can be achieved, anything beyond this distance results in a loss of throughput.

Unified Wireless N PoE Access Point
Find out more
Unified Wireless N PoE Access Point
Find out more
Unified Wireless N Simultaneous Dual-Band PoE Access Point
Find out more
Unified Wireless N Simultaneous Dual-Band PoE Access Point
Find out more
Unified Wireless AC1750 Dual-Band Access Point
Find out more

Technical Specifications

Technical Specifications



General



Interfaces

  • 802.11a / b / g / n
  • Two 10/100 LAN ports (PoE in from either LAN1 or LAN2)
  • Factory reset button



Wireless Frequency

  • 2.4 GHz band: 2.4 GHz-2.4835 GHz
  • 5 GHz band: 5.15-5.25GHz, 5.25-5.35GHz, 5.470-5.725GHz, 5.725-5.825GHz



Data Transfer Rate

  • 802.11n: 6.5 Mbps-300 Mbps
  • 802.11a/g: 54, 48, 36, 24, 12, 9, and 6 Mbps
  • 802.11b: 11, 5.5, 2, and 1 Mbps



Antenna

  • 5 Ghz: Two integrated 8 dBi directional antennas
  • 2.4 GHz:  Two integrated 3 dBi omnidirectional antennas



Power Method

  • Powered by PoE2 only (from either LAN1 or LAN2, non-standard PoE 24 V / 1 A)



Functionality



Operating Channel

  • 2.4 GHz - 13 channels
  • 5 GHz - 19 non-overlapping channels



Web-based User Interface

  • HTTP / HTTPS



Security



SSID Security

  • Up to 8 SSIDs, 4 per radio
  • 802.1Q VLAN
  • Station Isolation



Wireless Security

  • WPA-Personal/Enterprise
  • WPA2-Personal/Enterprise
  • AES and TKIP



Authentication

  • MAC Address Filtering
  • RADIUS



Physical



Dimensions

  • 280 x 115 x 50 mm (11.02 x 4.53 x 1.97 in.)



Weight

  • 495 grams (1.09 lbs)



Power Adapter (PoE injector)

  • Input: 100 to 240 V AC
  • Output: 24 V DC, 1 A



Power over Ethernet

  • 10 / 100 Mbps PoE (from either LAN1 or LAN2, non-standard PoE 24 V / 1 A)



Enclosure

  • Plastic housing
  • IP-55 rated



Temperature

  • Operating: -30 to 50 °C (-22 to 122 °F)
  • Storage: -30 to 65 °C (-22 to 149 °F)



Humidity

  • Operating: 10% to 90% non-condensing



Certifications

  • ESD protection: 4 KV
  • Surge protection: 6 KV
  • CE
  • EN 301 893 V1.7.1 (2012-06) (DFS/TPC)
  • EN 300 328 V1.8.1 (2012-06)
  • FCC
  • IC
  • cUL
  • LVD
  • C-Tick
  • NCC
  • Wi-Fi
  • TELEC



1 300 Mbps is the maximum wireless signal rate as specified by the IEEE 802.11n standard. Actual data throughput will vary. The network and other factors, including volume of network traffic, building materials, and nearby radio interference may lower actual data throughput.

2 Non-standard PoE 24V / 1A.
