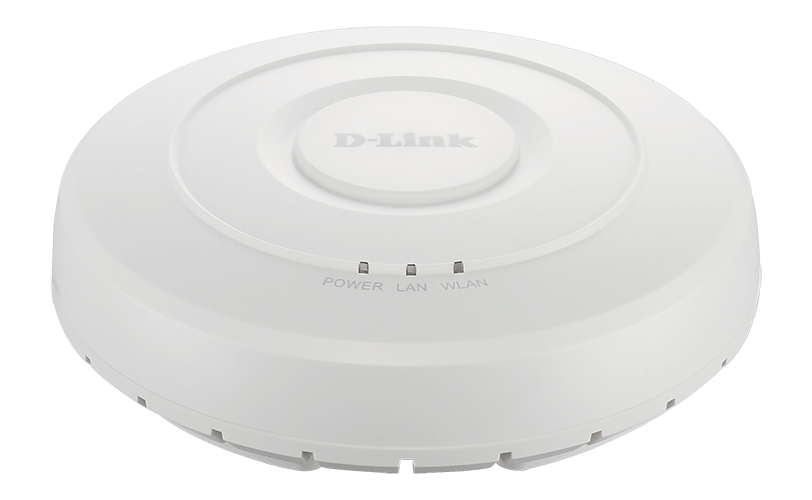

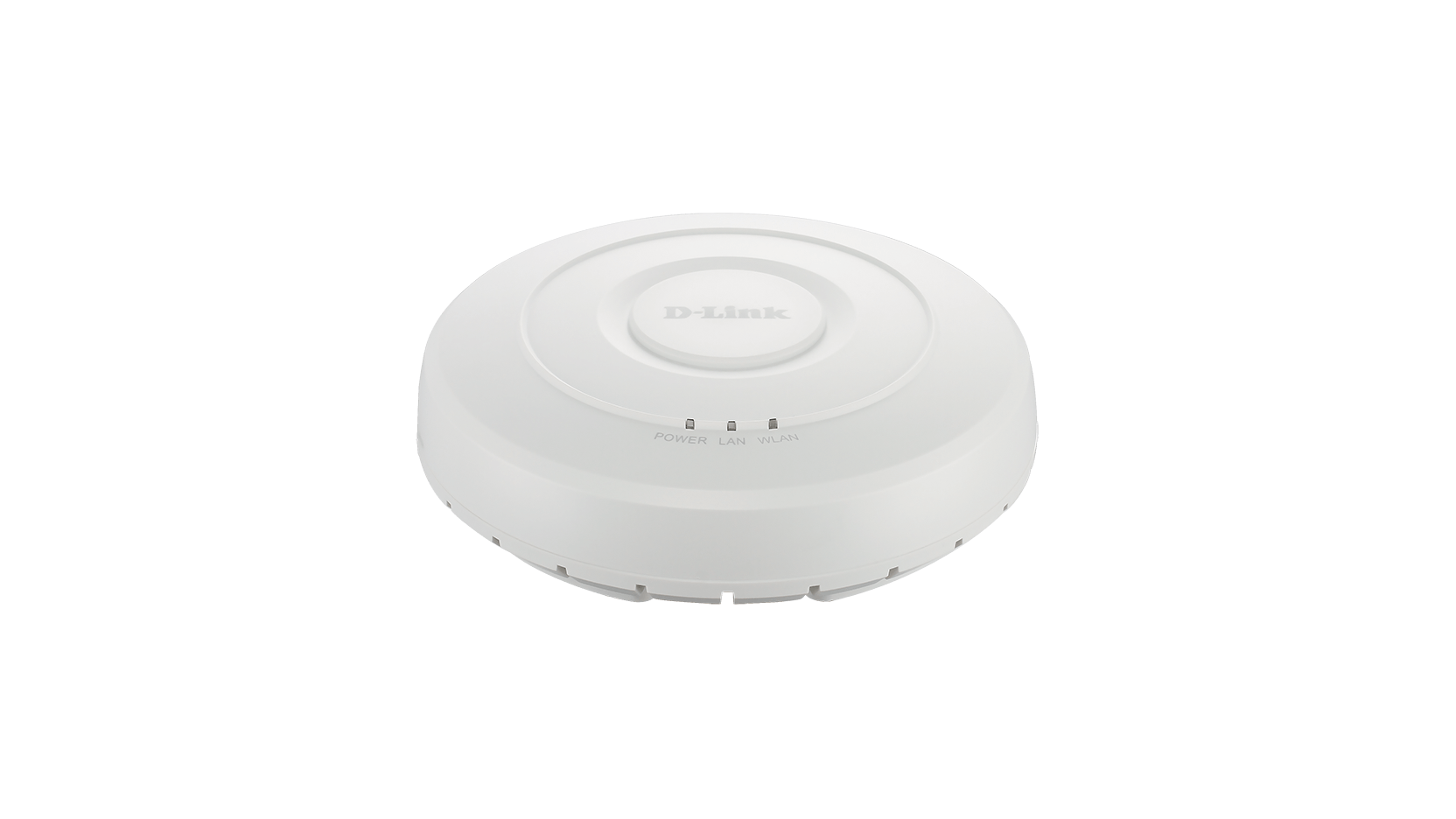

Wireless Selectable Dual-Band Unified Access Point

DWL 3610AP

  • Product Status: Live
The DWL-3610AP Wireless Selectable Dual-Band Unified Access Point is designed for small to medium businesses and enterprises, providing unparalleled bandwidth and flexibility for medium to large scale Wi-Fi networks. With selectable dual-band support, DWL-3610AP allows you choose the most suitable band for your network.

Download de datasheet.

Alle Verkooppunten
DWL-3610AP Wireless AC Selectable Dual-Band Unified Access Point


Versatile Selectable
Access Point.

The DWL-3610AP Wireless  Selectable Dual-Band Unified Access Point provides high bandwidth and flexibility for medium to large scale Wi-Fi networks.


Key Features

Selectable band

Selectable band1

Universal 2.4 GHz or less congested 5 GHz wireless band

Wireless controller

Wireless controller

Compatible with D‑Link's  Wireless controller and Unified Switch

AP-Array support

AP-Array support

Multiple APs can be set to form self-configuring clusters

Automatic RF Management

Automatic RF Management

Automaticly set non-interfering channels

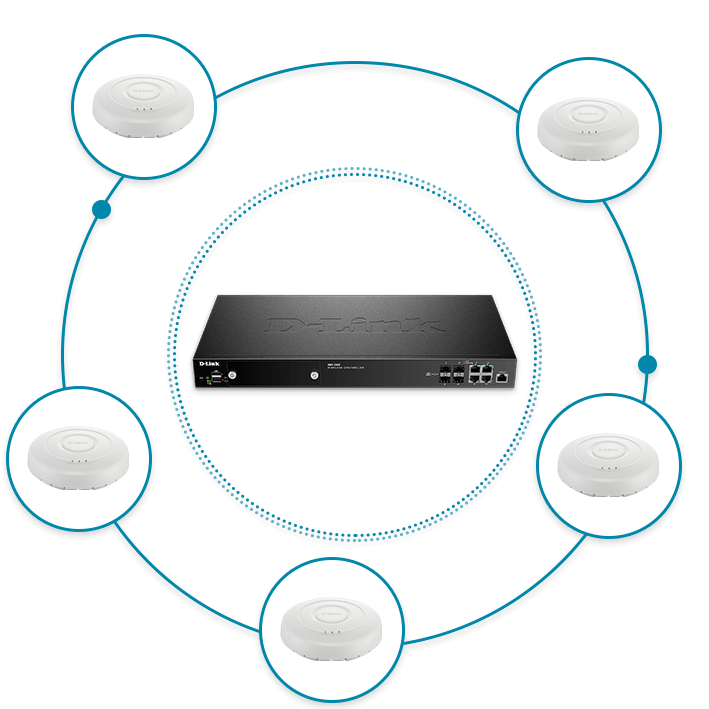

Standalone, Clustered or Centrally Managed

Standalone, Clustered or Centrally Managed

The DWL-3610AP can be used as a standalone Access Point, clustered or centrally managed via a D-Link Wireless Controller or Unified Switch. Central management allows for a large number of APs to be deployed and managed easily and efficiently.

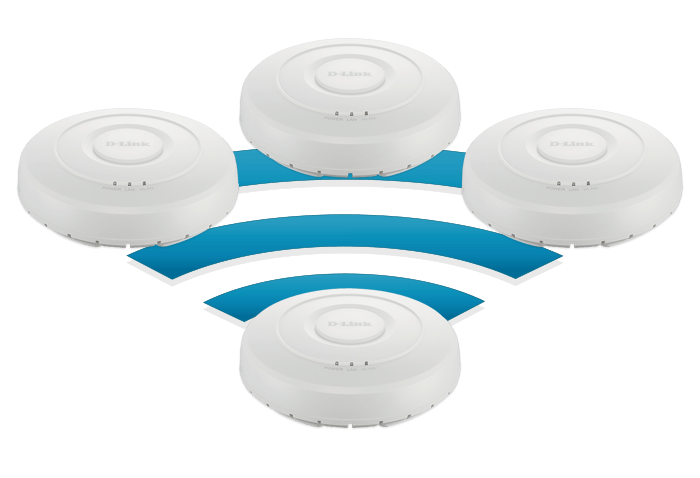

AP Array

AP Array

The DWL-3610AP self-configuring cluster allows a small number of access points to be set to form a self-configuring cluster. Once the administrator configures one access point, the same configuration is automatically applied to all remaining APs.




Automatic RF Management

Access points in close proximity usually experience interference between channels where RF Management is not implemented.

When a DWL-3610AP senses a neighbour nearby, it will automatically select a non-interfering channel. This greatly reduces RF interference and allows APs to be deployed more densely.

To further minimise interference, when a nearby AP is on the same channel, the DWL-3610AP will automatically lower its transmission power3.

When, for whatever reason, the nearby AP is no longer present, the DWL-3610AP will increase its transmission power to expand coverage.

Greater Reach and Flexibility

Greater Reach and Flexibility

The internal omnidirectional antenna eliminates dead spots and fills hard-to-reach places. Selectable radio mode allows the DWL-3610AP to work on either the 2.4 GHz band or 5 GHz band. Airtime fairness ensures that equal airtime is given to each client, providing increased performance even if slower devices are connected.



Quality of Service

The DWL-3610AP supports 802.1p Quality of Service (QoS) for enhanced throughput and better performance of time-sensitive traffic like VoIP and video conferencing.

Furthermore, when a number of DWL-3610AP units are in close proximity to each other, an access point will refuse new clients once its resources are fully utilised, allowing the association request to be picked up by a neighbouring unit, distributing the load over multiple APs.

Quality of Service


1. The access point can only operate on an individual band at any given time. It does not broadcast both bands simultaneously. If you are looking for a concurrent dualband access point please look at DWL-6610AP.
2. Maximum wireless signal rate derived from IEEE standard 802.11 specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.
3. This feature is available when Unified AP is used in conjunction with D-Link’s line of Unified Wireless Switches/controllers.

Gerelateerde Producten

Wireless Controller
Meer lezen
Wireless Controller
Meer lezen
Gigabit L2+ Unified Managed Switches
DWS-3160-24TC, DWS-3160-24PC
Meer lezen
Wireless AC1200 Dual-Band Outdoor Unified Access Point
Meer lezen
Unified Wireless AC1750 Dual-Band Access Point
Meer lezen

Technical Specifications

Functions & Features


Ideal for Business

  • Self-configuring cluster feature
  • Up to 16 virtual access points may be created from a single access point
  • Flexible QoS with Wi-Fi Multimedia (WMM)
  • IEEE 802.3af Power over Ethernet (PoE)

High-Performance Connectivity

  • One Gigabit Ethernet LAN port
  • Airtime fairness

Trusted Wireless Security Feature

  • WPA/WPA2 Personal
  • WPA/WPA2 Enterprise
  • MAC address filtering
  • Rogue AP detection


Technical Specifications



  • 802.11b/g/n 2.4 GHz wireless
  • 802.11a/n 5 GHz wireless
  • 10/100/1000BASE-T LAN (PoE) port


  • Internal omnidirectional antennas
  • 3 dBi for 5 GHz, 3 dBi for 2.4 GHz


Operating Frequency

  • 2400 to 2483.5 MHz
  • 5150 to 5850 MHz

Operating Channels

  • 1 to 13 channels for 2.4 GHz band (per country code)
  • 36 to 165 channels for 5 GHz band (per country code)

System Management

  • Web-based user interface (HTTP/HTTPS)
  • Serial console (RJ-45)
  • SNMP (v1/v2c/v3)
  • Telnet/SSH
  • Configuration Group Sync
    •  AP Cluster, up to 10 APs


SSID Security

  • Up to 16 SSIDs
  • 802.1Q VLAN
  • Station Isolation

Wireless Security

  • WPA Personal/Enterprise
  • AES and TKIP

Detection & Prevention

  • Rogue and valid AP classification


  • MAC address filtering



  • 160 x 45 mm (6.30 x 1.77 in.)


  • 0.26 kg (0.57 lbs)

Power Supply

  • 12 V/1 A external power adapter
  • 802.3af PoE

Max Power Consumption

  • 6.2 watts


  • Bottom cover – plastic
  • Top cover – plastic


  • Operating: 0 to 40 °C (32 to 104 °F)
  • Storage: -20 to 65 °C (-4 to 149 °F)


  • Operating: 10% to 90% non-condensing
  • Storage: 5% to 95% non-condensing


  • CE
  • FCC
  • IC
  • cUL+UL
  • LVD
  • RCM
  • NCC
  • BSM
