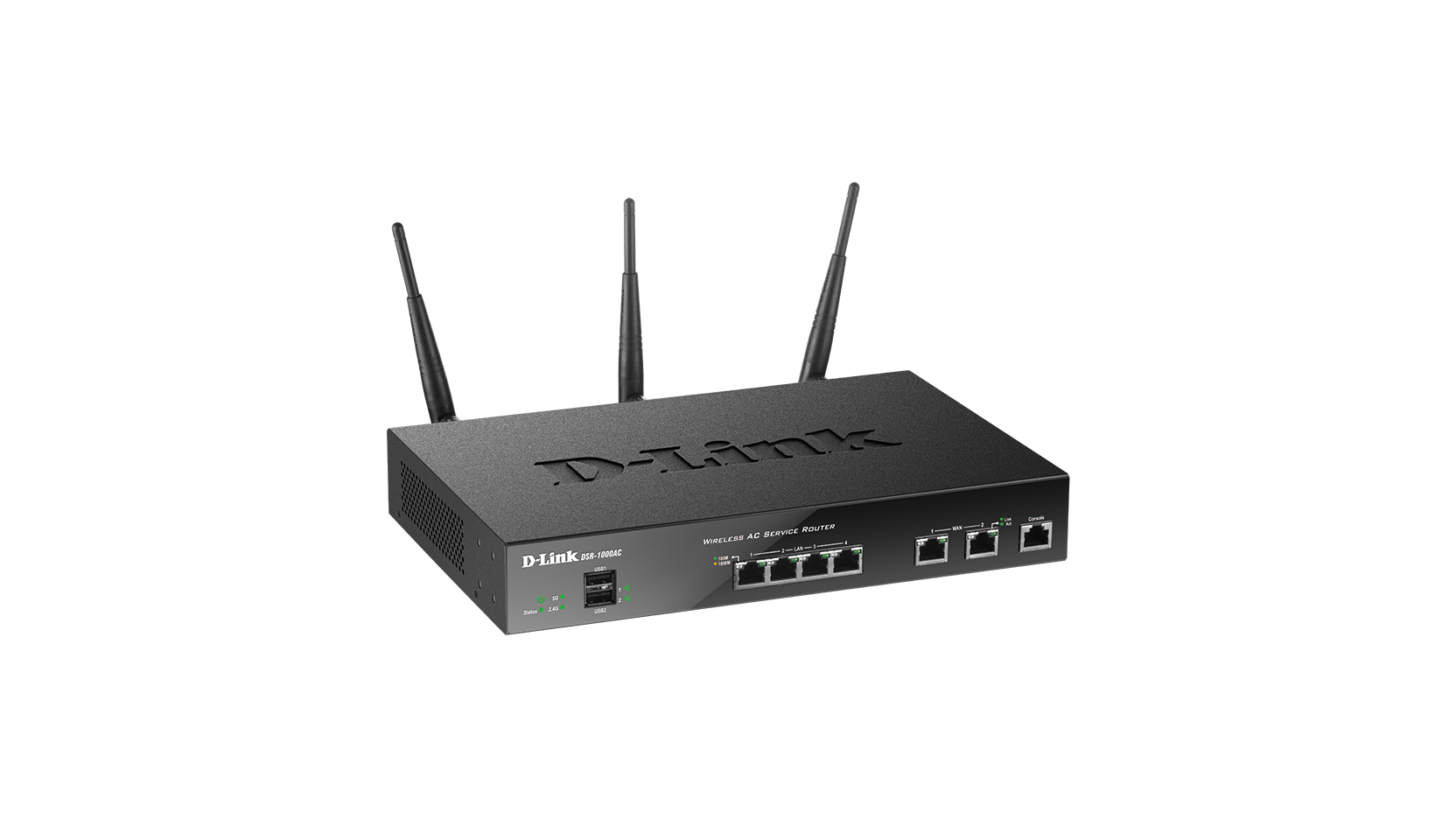

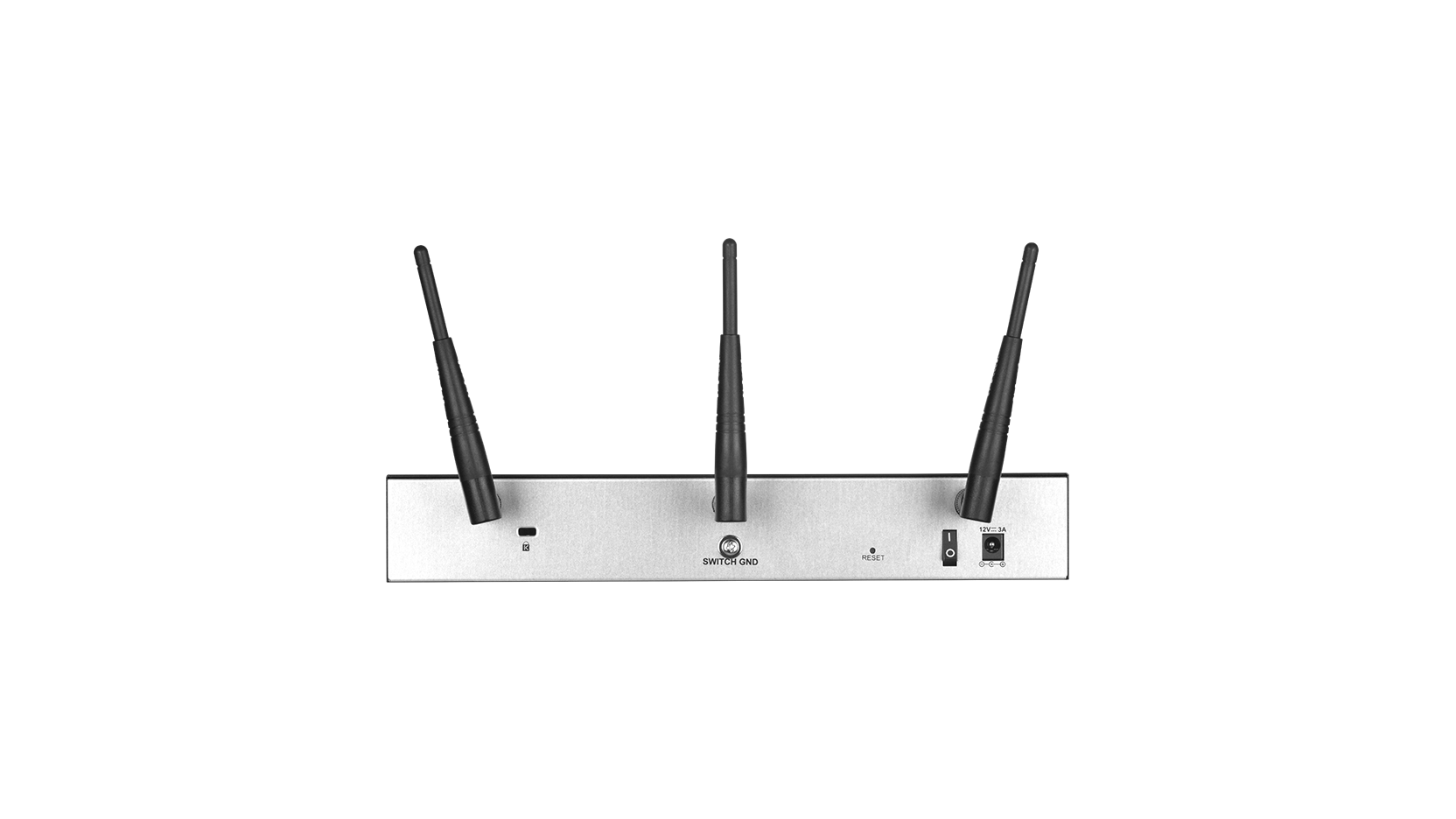

Wireless AC Unified Services VPN Router

DSR-1000AC

  • Product Status:
The D-Link DSR-1000AC Wireless AC Unified Services VPN Router provide secure, high-performance networking solutions to address the growing needs of small and medium businesses. Next generation wireless performance provides wireless speeds of up to 1300 Mbps.

Download de datasheet.

Alle Verkooppunten

The DSR-1000AC Wireless AC Unified Services VPN Router provides a secure, high-performance networking solutions to address the growing needs of small and medium businesses. Next generation wireless performance provides wireless speeds of up to 1300 Mbps.

Comprehensive Management Capabilities

The DSR-1000AC includes dual WAN Gigabit Ethernet ports to provide high availability for your WAN or Internet connections. Traffic can be load-balanced across the links with Outbound Load Balancing, increasing the performance and availability of business applications. It supports mobile broadband networks via an optional USB modem1, such as 3G or 4G2 dongles.


Web Authentication Capabilities

Captive Portal allows employees and guest users to be easily authenticated and authorised by accessing a customised landing page. Users can be authenticated by a local database, RADIUS, LDAP, Microsoft Windows Active Directory, NT Domain and POP3 server. A maximum of four servers can be configured at any one time.


Complete and Robust VPN Features

A fully featured virtual private network (VPN) provides your mobile workers and branch offices with a secure link to your network. The DSR-1000AC is capable of Secure Sockets Layer (SSL) VPN tunnels, as well as Generic Routing Encapsulation (GRE) tunnels, empowering your mobile users by providing remote access to a central corporate database. Site-to-site VPN tunnels use IP Security (IPSec) Protocol, Point-to-Point Tunneling Protocol (PPTP), or Layer 2 Tunneling Protocol (L2TP) to facilitate branch office connectivity through encrypted virtual links. OpenVPN allows mobile users to connect to the intranet via encrypted links with their PC, laptops or mobile devices.

1 The following portable modem are supported: DWM-152 A1/A2/A3, DWM-156 A1/A2/A3/A5/A6/A7, DWM-157
2 Available with future firmware upgrade.

Gerelateerde Producten

Wireless N Unified Service Router
DSR-250N
Meer lezen

Technical Specifications

Technical Specifications



General



Ethernet Interface

  • 2 10/100/1000 Mbps WAN Ports
  • 4 10/100/1000 Mbps LAN Ports



Wireless Interface

  • 802.11 ac/a/b/g/n (Concurrent dual band)
  • 3 Detachable 2 dBi Omni-Directional Antennas



USB 2.0 Port

  • 2



Console Port

  • RJ-45



Performance3



Firewall Throughput2

  • 950 Mbps



VPN Throughput (3DES)4

  • 250 Mbps



Concurrent Sessions

  • 100,000



New Sessions (per second)

  • 1000



Firewall Policies

  • 600



Internet Connection Type

  • Static/Dynamic IP
  • PPPoE/L2TP/PPTP
  • Multiple PPPoE



Firewall System

  • Static Route
  • Dynamic Route
    • RIP v1/v2, OSPF, OSPFv3
  • Dynamic DNS
  • Inter-VLAN Route
  • NAT, PAT
  • Static URL, Keywords, Dynamic WCF (License is required)
  • Intrusion Prevention System (IPS)
    • Signature Package Included in Firmware
  • Authentication
    • Internal User Database, Radius, POP3, LDAP, AD, NT Domain



Networking

  • DHCP Server/Client
  • DHCP Relay
  • IEEE 802.11q VLAN
  • VLAN (port-based)
  • IP Multicast
    • IGMP Proxy, IGMP Snooping
  • IPv6
  • Route Failover
  • Outbound Load Balancing
  • 3G/4G5 Redundancy via Optional USB Modem1



Wireless

  • Multiple Service Set Identifier (SSID)
  • Service Set Identifier (SSID) to VLAN Mapping
  • Standard
    • 802.11 ac/a/b/g/n
  • Wireless Security
    • Wired Equivalent Privacy (WEP)
    • Wi-Fi Protect Setup (WPS)
    • Wi-Fi Protected Access – Personal (WPA-PSK)
    • Wi-Fi Protected Access – Enterprise (WPA-EAP)
    • Wi-Fi Protected Access version 2 – Personal (WPA-PSK)
    • Wi-Fi Protected Access version 2 – Enterprise (WPA-EAP)



Virtual Private Network (VPN)

  • VPN Tunnels
    • 155
  • IPSec Tunnels
    • 70
  • SSL VPN Tunnels
    • 20
  • PPTP/L2TP Tunnels
    • 25
  • GRE
    • 20
  • OpenVPN Tunnels
    • 20
  • Encryption Methods
    • DES, 3DES, AES, Twofish, Blowfish, CAST-128, NULL
  • SSL Encryption Methods
    • RC4-128, 3DES, AES
  • IPSec/PPTP/L2TP/OpenVPN Server
  • IPSec NAT Traversal
  • Dead Peer Detection
  • IP Encapsulating Security Payload (ESP)
  • IP Authentication Header (AH)
  • VPN Tunnel Keep Alive
  • Hub and Spoke

Bandwidth Management

  • Maximum Bandwidth Control
  • Priority Bandwidth Control
    • Port-based QoS
    • 3 Classes



System Management

  • Web-based User Interface
  • Command Line
  • SNMP v1, v2c, v3



Physical & Environment



Power Supply

  • External Power Supply Unit
  • DC 12 V/3 A



Max. Power Consumption

  • 23.1 W



Dimensions (L x W x H)

  • 180 x 280 x 44 mm (7.09 x 11.02 x 1.73 inches)



Operation Temperature

  • 0 to 40 °C (32 to 104 °F)



Storage Temperature

  • -20 to 70 °C (-4 to 158 °F)



Operation Humidity

  • 5% to 95% non-condensing



EMI/EMC

  • FCC Class B, CE Class B, RCM, IC, VCCI



Safety

  • cUL, LVD (EN60950-1)



3rd Party Certification

  • IPv6 Ready, Wi-Fi, VPNC AES Interop, VPNC Basic Interop



MTBF

  • 360,000 hours

1 The following portable modem are supported: DWM-152 A1/A2/A3, DWM-156 A1/A2/A3/A5/A6/A7, DWM-157 A1/B1, DWM-158 D1, DWP-156 A1/B1, DWP-157 A1/B1, Huawei E1550, E173, E303 and EC306.

2 Firewall throughput is measured using UDP traffic with a 1,518 bytes packet size, adhering to RFC2544.

3 Actual performance may vary depending on network conditions and activated services.

4 VPN throughput is measured using UDP traffic with the packet size 1420 bytes and encryption method 3DES plus SHA-1, adhering to PFC2544.

5 Available with future firmware upgrade.
