32-Bit Gigabit Ethernet Adapter

DGE-500T

  • Estado del producto: Activo

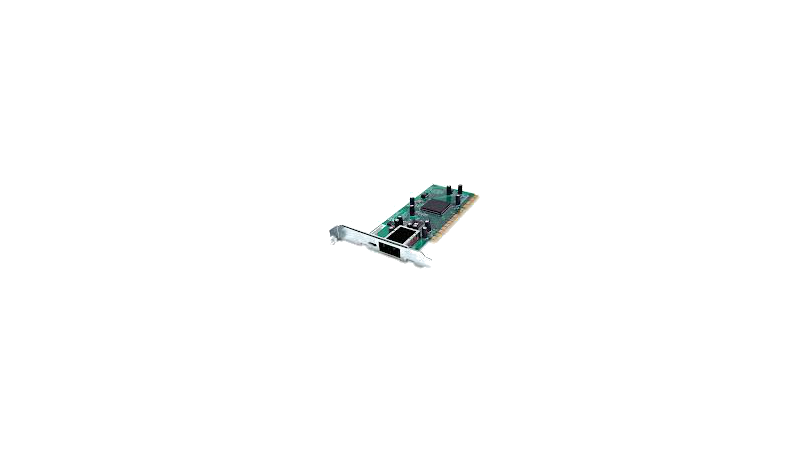

The D-Link DGE-500T is a 32-bit PCI 10/100/1000Mbps NWay Gigabit LAN adapter. The DGE-500T provides extremely fast data transfer rates up to 1000Mbps for high bandwidth usage in areas such as network servers, data storage devices, and high-speed video conferencing in the home or office environments.

The DGE-500T is IEEE 802.3, IEEE 802.3u and IEEE 802.3z compliant. It is designed with the newest networking technologies such as Auto MDI-II/MDI-X crossover capabilities, and multicasting support to utilize network bandwidth more efficiently. The DGE-500T is 2.1 and 2.2 PCI compliant. The DGE-500T supports Full Duplex operation for 20/200/2000Mbps data rates and flow control.

The DGE-500T RJ-45 Ethernet port is designed to automatically detect a straight- through or a crossover Cat5 cable. The DGE-500T comes with a built-in 8 KB Transmit and 32 KB Receive data FIFOs. The DGE-500T supports Plug-and-Play installation and is compatible with Windows 98, ME, 2000, NT 4.0 Operating systems.

* Specifications are subject to change without notice.

Specs

Standards
  • IEEE 802.3 10BASE-T Ethernet
  • IEEE 802.3u 100BASE-TX FAST Ethernet
  • IEEE 802.3z 1000BASE-T Gigabit Ethernet
  • ANSI / IEEE 802.3 NWay Auto-negotiation
  • IEEE 802.3x Full Duplex Flow Control

Protocol
  • CSMA/CD

Host Interface
  • PCI 2.1, 2.2 specification
  • 32 bit compatible RJ-45 network

Data Transfer Rate
  • Ethernet 10 Mbps (half-duplex) 20Mbps (full-duplex)
  • Fast Ethernet 100 (half-duplex) 200Mbps(full-duplex)
  • Gigabit 1000Mbps (full-duplex) 2000Mbps (full-duplex)

Network Cables
  • Gigabit Ethernet 4-pair UTP Cat5e 100-ohm STP

Led Indicator
  • 10 Link
  • 100 Link
  • 1000 Link
  • FDX, Collision, Activity
  • Data

RJ-45 Port
  • Auto MDI-II/MDI-X port

Power Consumption
  • 10 watts. (max.)

Temperature
  • Operating: -10° ~50° C
  • Storage: -10° ~70° C

Humidity
  • Operating: 10%~90%
  • Storage: 5%~90%

Dimensions
  • 164 X 69 mm (WxH)

EMI
  • FCC Class B
  • CE Mark B
  • VCCI-B

* Specifications are subject to change without notice.
