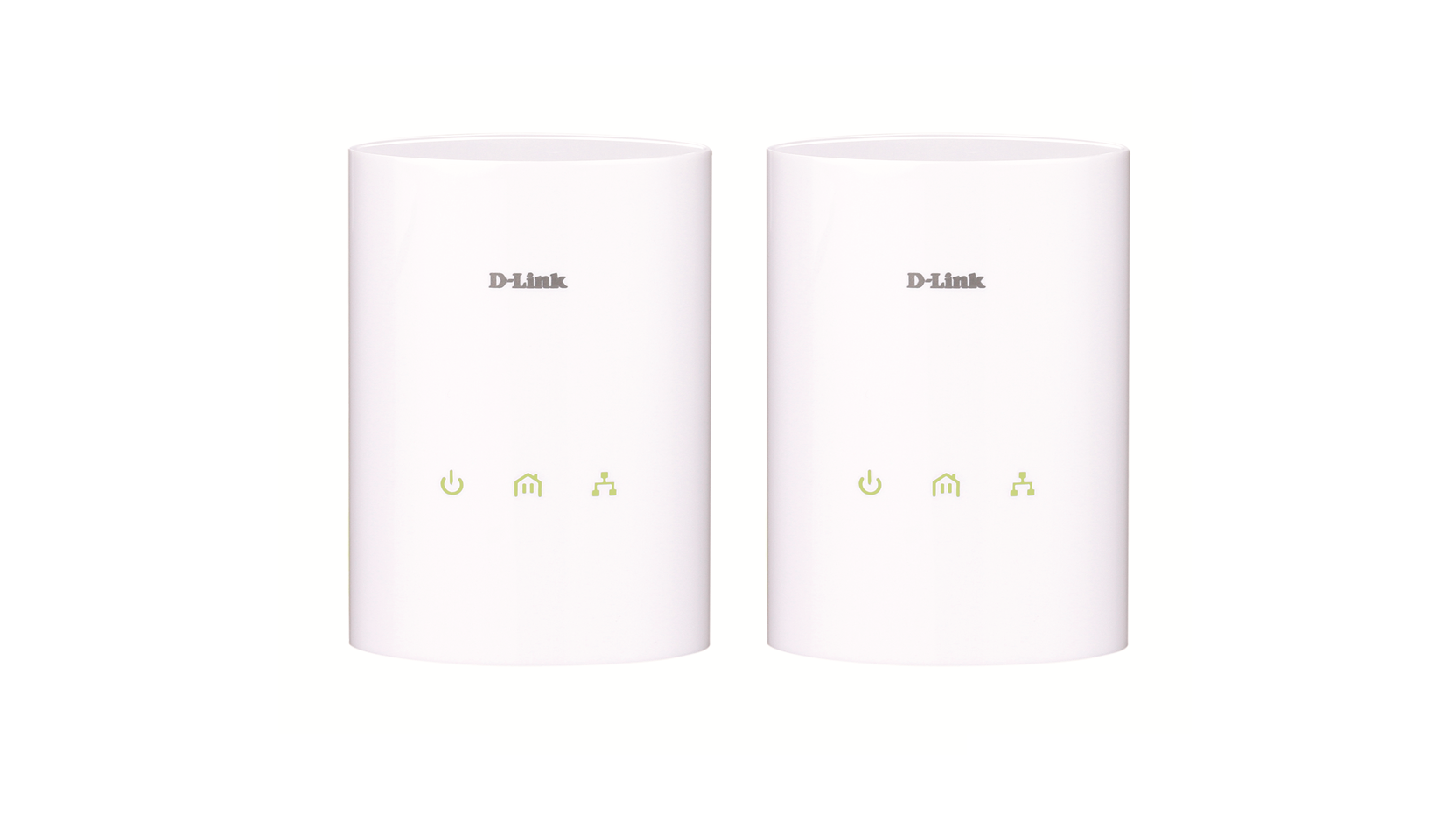

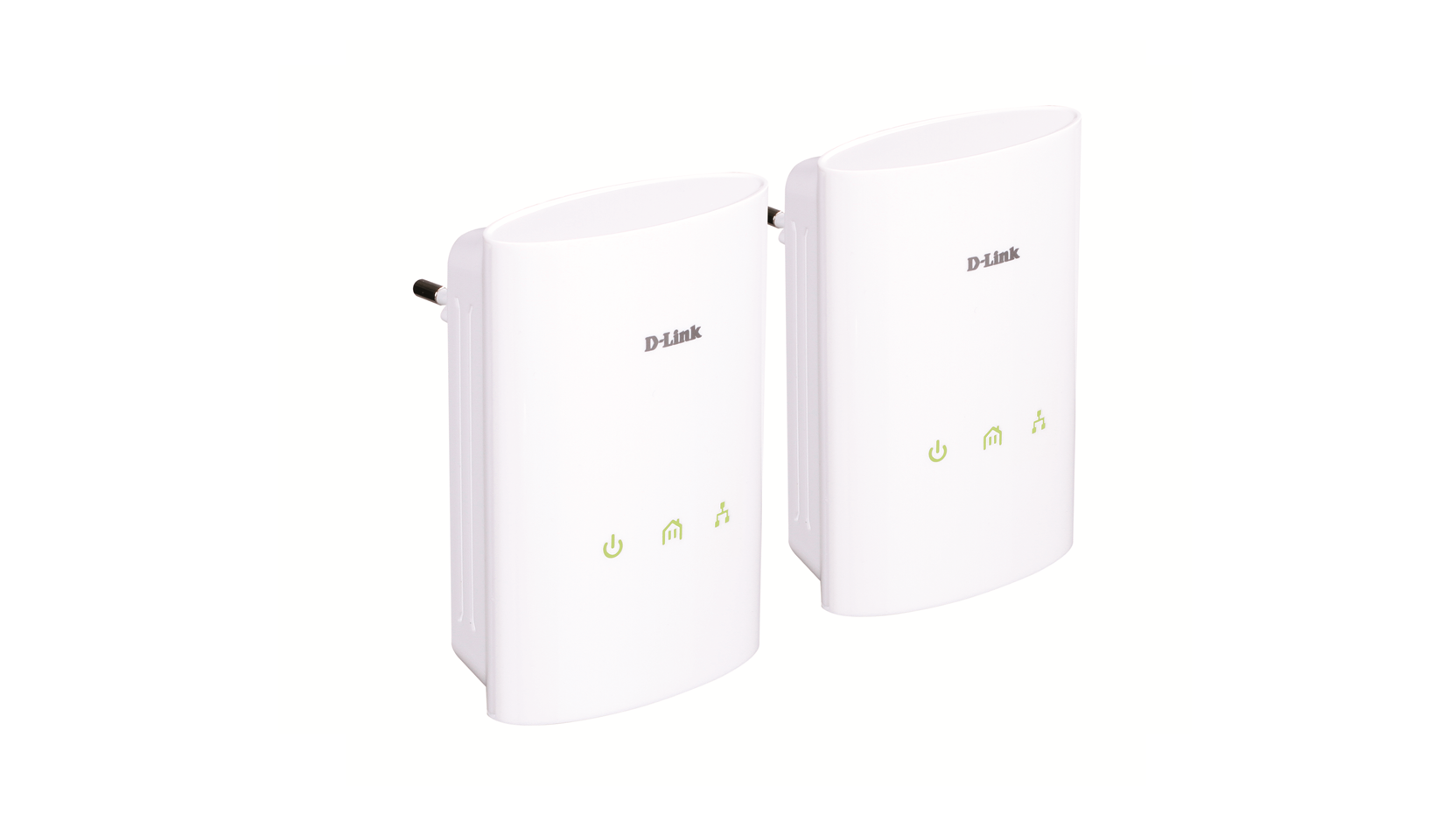

PowerLine AV Network Starter Kit

DHP-307AV

  • Product Status: Phased Out
The D-Link PowerLine AV Network Starter Kit allows you to create or expand your home network using your existing electrical wiring. By simply attaching one adapter from your router into your existing electrical system, you can turn every power outlet into a possible network connection making the PowerLine AV Network Starter Kit and ideal solution for buildings with concrete walls or multi-storied floors.

Download the datasheet.

List Retailers
Use Existing Wiring To Create A Home Network
The D-Link PowerLine AV Network Starter Kit (DHP-307AV) allows you to create or expand your home network using your existing electrical wiring1. By simply attaching one adapter from your router into your existing electrical system, you can turn every power outlet into a possible network connection1.

Expand Your Network Without Running Wires
D-Link PowerLine AV Network Adapter technology extends your network's range by utilizing your home's existing electrical wiring1. This device is also ideal for homes or small offices where concrete walls, successive floors in multi-storied buildings, or other architectural impediments could inhibit a wireless signal. Connect multiple devices in the farthest corners of your home by attaching a switch or wireless access point to a D-Link PowerLine AV Network Adapter.

Conveniently Connect
D-Link's PowerLine AV Network Adapter transmits data reliably by intelligently adapting to the strongest signal channels. With increased speeds of up to 200Mbps2 D-Link's PowerLine AV Network Adapter are ideal for streaming HD video, intense online gaming, and VoIP calling. Plus, D-Link's PowerLine AV Network Adapter incorporate 128-bit AES encryption for securing your connection to help keep your data safe from intruders.

With hassle-free plug & play installation, D-Link's PowerLine AV Network Starter Kit (DHP-307AV) is an ideal solution to create a wall-to-wall home network.

Homeplug AV Benefits
  • Speeds up to 200Mbps2
  • Stream HD content across your network
  • Connect multiple computers, game consoles, and multimedia devices to the Internet
  • Expand your wireless LAN by connecting an access point to achieve stronger wireless signals in remote areas
  • Supports secure encryption for enhanced network security
  • Simple plug & play installation


1 Power outlets and electrical wiring must all be part of the same electrical system. Certain electrical conditions in your home, such as wiring condition and configuration, may affect the performance of this product. Additional PowerLine HD adapters required to add new devices to the network. Connecting this product to a power strip with a surge protector may adversely affect the performance of this product. For best results, plug adapter directly into a power outlet.
2 Maximum throughput based on theoretical transmission PHY rate. Actual data throughput will vary. Network conditions and environmental factors, including volume of traffic and network overhead, may lower actual data throughput rate. Interference from devices that emit electrical noise, such as vacuum cleaners and hair dryers, may adversely affect the performance of this product. This product may interfere with devices such as lighting systems that have a dimmer switch or a touch-sensitive on/off feature or short wave radios.

Related Products

PowerLine AV Network Adapter
DHP-306AV
Find out more
PowerLine Homeplug AV Mini Adapter
DHP-310AV
Find out more
PowerLine Homeplug AV Mini Starter Kit
DHP-311AV
Find out more
Powerline AV Wireless N Extender
DHP-W306AV
Find out more
PowerLine AV 500 Adapter
DHP-500AV
Find out more

Technical Specifications

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • HomePlug AV
Ethernet Interface
  • 10/100Base-TX Ethernet Port with Auto MDI/MDIX
  • RJ-45 Connector

Maximum Data Rate

  • 200Mbps

Powerline Frequency Band

  • 2Mhz to 30Mhz

Powerline Madulation Scheme

  • OFDM Symbol Modulation

Security

  • 128-bit AES Data encryption
LEDs
  • Power
  • Powerline
  • Ethernet
Power Saving
  • Power saving mode supported
Operating Temperature
  • 30° to 104° F (0° to 40° C)

Operating Humidity

  • 10% to 95% non-condensing
Power Supply
  • 110~240VAC, 50/60Hz
EMC Certification
  • CE EMC Class B
  • FCC Part 15 Class B

Safety Certfication

  • UL
  • CE LVD

Dimensions (L x W x H)

  • 2.68" x 2.43" x 1.64"
Weight
  • 0.28lbs (1 DHP-310AV)


1Maximum throughput based on theoretical transmission PHY rate. Actual data throughput will vary. Network conditions and environmental factors, including volume of traffic and network overhead, may lower actual data throughput rate. Interference from devices that emit electrical noise, such as vacuum cleaners and hair dryers, may adversely affect the performance of this product. This product may interfere with devices such as lighting systems that have a dimmer switch, short wave radios, or other powerline devices that do not follow the HomePlug Powerline Alliance standard.
2 Power outlets and electrical wiring must all be part of the same electrical system. Certain electrical conditions in your home, such as wiring conditions and configuration may affect the performance of this product. A minimum of two D-Link PowerLine AV Network Adapters are required to create a network. Connecting this product to a power strip with a surge protector may adversely affect the performance of this product. For best results, plug adapter directly into a power outlet.
3 24/7 Basic Installation Support is available only in the USA for the first 30 days from date of original purchase.

FAQ

  • Why is my powerline ethernet adapter slower than advertised? Read Answer
  • Why won't my two DHP powerline devices connect together? Read Answer
Version Date Type File Size
Datasheet (English) - PDF 1.02mb Download
Version Description Date Type File Size
Manual Manual - PDF 0.94mb Download
Version Description Date Type File Size
1.00 Quick Installation Guide Revision A1 - PDF 0.43mb Download
Version Description Date
Firmware Upgrade Utility

Firmware Upgrade Utility

01.04.2011 Download
Version Description Date
CE Declaration CE Declaration 19.03.2010 Download
