Wi Fi Pan Tilt Day Night Camera

DCS-5000L

  • Product Status: Live

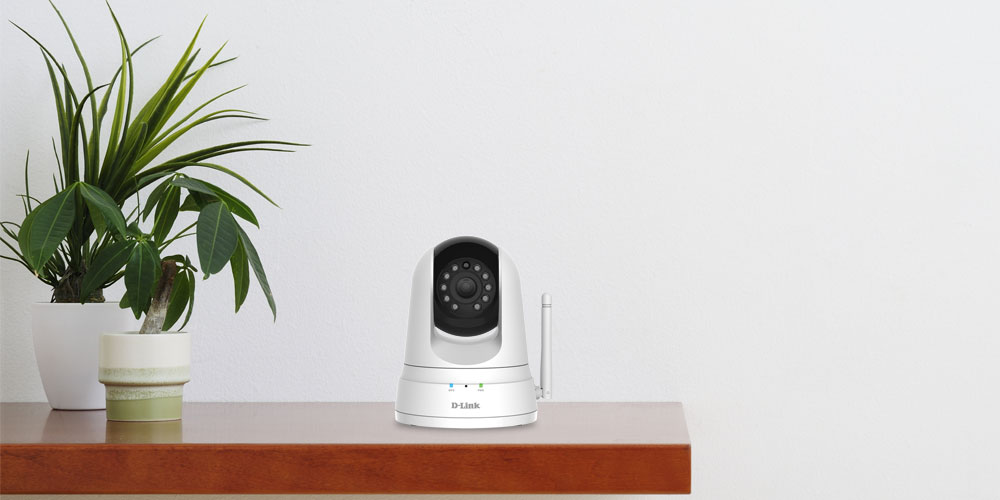

The DCS-5000L Wi-Fi Pan & Tilt Day/Night Camera provides a range of features to help you effectively monitor large areas of your home or small office at all hours of the day. The pan/tilt function allows the camera to patrol a wide area and built-in microphone allows you to hear, while the built-in night vision provides around the clock surveillance regardless of the lighting conditions.

Download the datasheet.

List Retailers

The DCS-5000L Wi-Fi Pan & Tilt Day/Night Camera provides a range of features to help you effectively monitor large areas of your home or small office at all hours of the day.

The pan/tilt function allows the camera to patrol a wide area and built-in microphone allows you to hear.


The built-in night vision provides around the clock surveillance regardless of the lighting conditions, allowing you to see up to 8 metres even in complete darkness.


You can place the DCS-5000L anywhere in your home or small office with the choice of either wired or wireless connectivity. Wireless connectivity gives you the flexibility to move the camera from place to place should your surveillance requirements change.


Using the free mydlink™ Lite app for iOS and Android smartphones and tablets, you can connect and setup the DCS-5000L without turning on a computer. A step-by-step guide has your camera up and running in a matter of minutes. You can quickly and easily view your camera feed from anywhere with a wireless or 3G/4G LTE connection.


Wireless N Day & Night Pan/Tilt Cloud Camera
Find out more
Cloud PTZ Camera
Find out more
Wireless N Network Camera
Find out more
Day/Night Cloud Camera
Find out more
Day/ Night Cloud Camera
Find out more

Technical Specifications

Technical Specifications



Camera



Camera  Hardware Profile

  • 1/5” VGA progressive CMOS sensor
  • 8 metre IR illumination distance
  • Minimum illumination: 0 lux with IR LEDs on
  • Built-in Infrared-Cut Removable (ICR) Filter module
  • 4X digital zoom
  • Lens: Fixed length 2.2 mm
  • Aperture: F2.4
  • Angle of view:
    • (H) 57°
    • (V) 42°
    • (D) 68°
  • Exposure Time: 1/15 to 1/15,000 sec.
  • Built-in microphone



Image Features

  • Configurable image size, quality, frame rate, and bit rate
  • Time stamp and text overlay
  • Configurable motion detection windows
  • Adjustable brightness, saturation, contrast
  • Flip & mirror
  • Pre-event snapshot/recording



Video Compression

  • MJPEG multi-streaming
  • JPEG for still images



Video Resolution

  • 640 x 480 at frame rates up to 20 fps; 320 x 240, 160 x 112 at frame rates up to 30 fps
  • JPEG Quality: Very Low, Low, Medium, High, Very High



Video Features

  • AGC
  • AWB
  • AES



Audio Compression

  • PCM

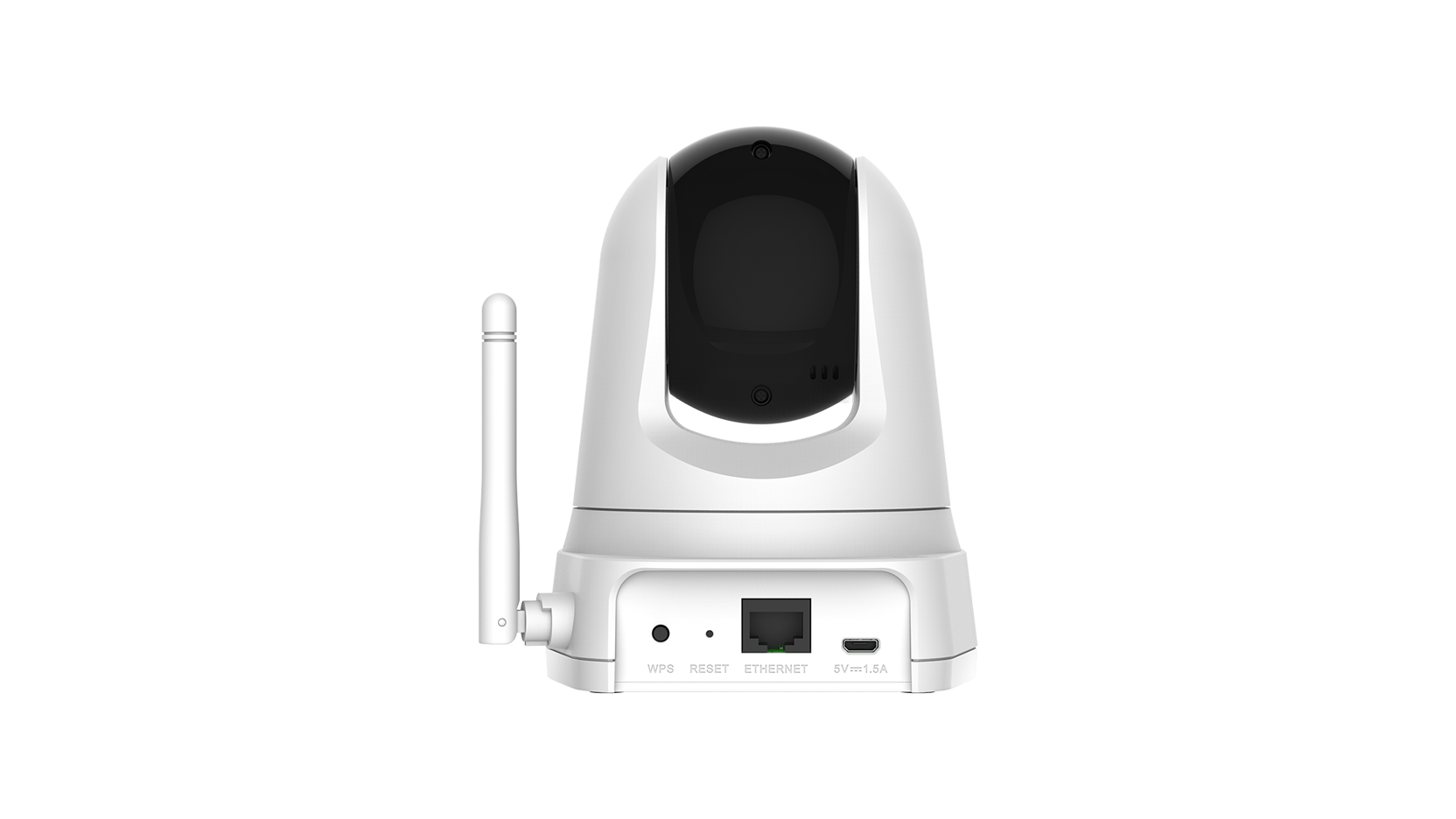

Connectivity

  • 10/100 BASE-T Ethernet port
  • 802.11n/g/b wireless

Pan/Tilt



Pan Range

  • -170° to +170° (total 340°)



Tilt Range

  • -25° to +95° (total 120°)



Angular Velocity

  • 16° per second



Step Setting

  • Pan 1°/2°/3°/4°/5°(default)/10°/15°/20°/25°/30°/per click
  • Tilt: 1°/2°/3°/4°/5°(default)/10°/15°/20°/25°/30°/per click



Network



Connectivity

  • 802.11n/g/b wireless
  • 10/100 BASE-TX Fast Ethernet



Network Protocols

  • IPV4, ARP, TCP, UDP, ICMP
  • DHCP Client
  • NTP Client (D-Link)
  • DNS Client
  • DDNS Client (D-Link)
  • SMTP Client
  • FTP Client
  • HTTP Server
  • PPPoE
  • UPnP Port Forwarding
  • LLTD



Security

  • WPS
  • WEP
  • WPA-PSK, WPA2
  • HTTP digest encryption
  • Password authentication



Advanced Features



Event Management

  • Event notification and uploading of snapshots via e-mail (SMTP) or FTP
  • Motion Detection



Remote Access



Remote Management

  • Configuration accessible via web browser



Mobile support

  • mydlink Lite app for iOS and Android
  • mydlink+ app for iOS and Android



General



System Requirements for Web Interfaces

  • Operating system: Microsoft Windows Vista/7/8/101, Mac OS X 10.7
  • Browser: Internet Explorer 8/Firefox 12/Safari 6/Chrome 202 or higher with Java and/or ActiveX installed and enabled (mydlink portal only)



Weight

  • Device: 292.8 grams (0.65 lbs)
  • Stand: 60.8 grams (0.13 lbs)



Power

  • Input: 100-240 V AC, 50/60 Hz
  • Output: 5 V DC, 1.5 A Micro-USB



Power Consumption

  • 4.8 watts



Temperature

  • Operating: 0 to 40 °C (32 to 104 °F)
  • Storage: -25 to 70˚ C (-13  to 158 ˚F)



Humidity

  • Operating: 20% to 85% non-condensing
  • Storage: 5% to 95% non-condensing



Certifications

  • CE
  • CE LVD
  • FCC
  • C-Tick



Dimensions

  • 116.4 x 109.1 x 133.6 mm (4.58 x 4.30 x 5.26 inches) (Camera only)
  • 116.4 x 109.1 x 230.0 mm (4.58 x 4.30 x 9.06 inches) (Including mounting bracket)

1 Microsoft Edge is not supported.

2 mydlink Portal only.

FAQ

  • How to install mydlink plugin on Mac OS 10.12 Read Answer
Version Date Type File Size
Datasheet - - - Download
Version Description Date Type File Size
Product manual

Product manual

22.04.2016 PDF 4.83mb Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date
1.02.02 Firmware 23.05.2016 Download
Version Description Date
Setup Wizard Find the latest Setup Wizard on our Mydlink site.
Make sure to select the correct model and version.
13.01.2016 Download
Version Description Date
DEU_DoC_RevA1 DCS-5000L CE DoC 04.08.2017 Download
DNR_2020_04P_Cam_Support_list DNR-2020-04P Camera Support List 22.09.2016 Download
