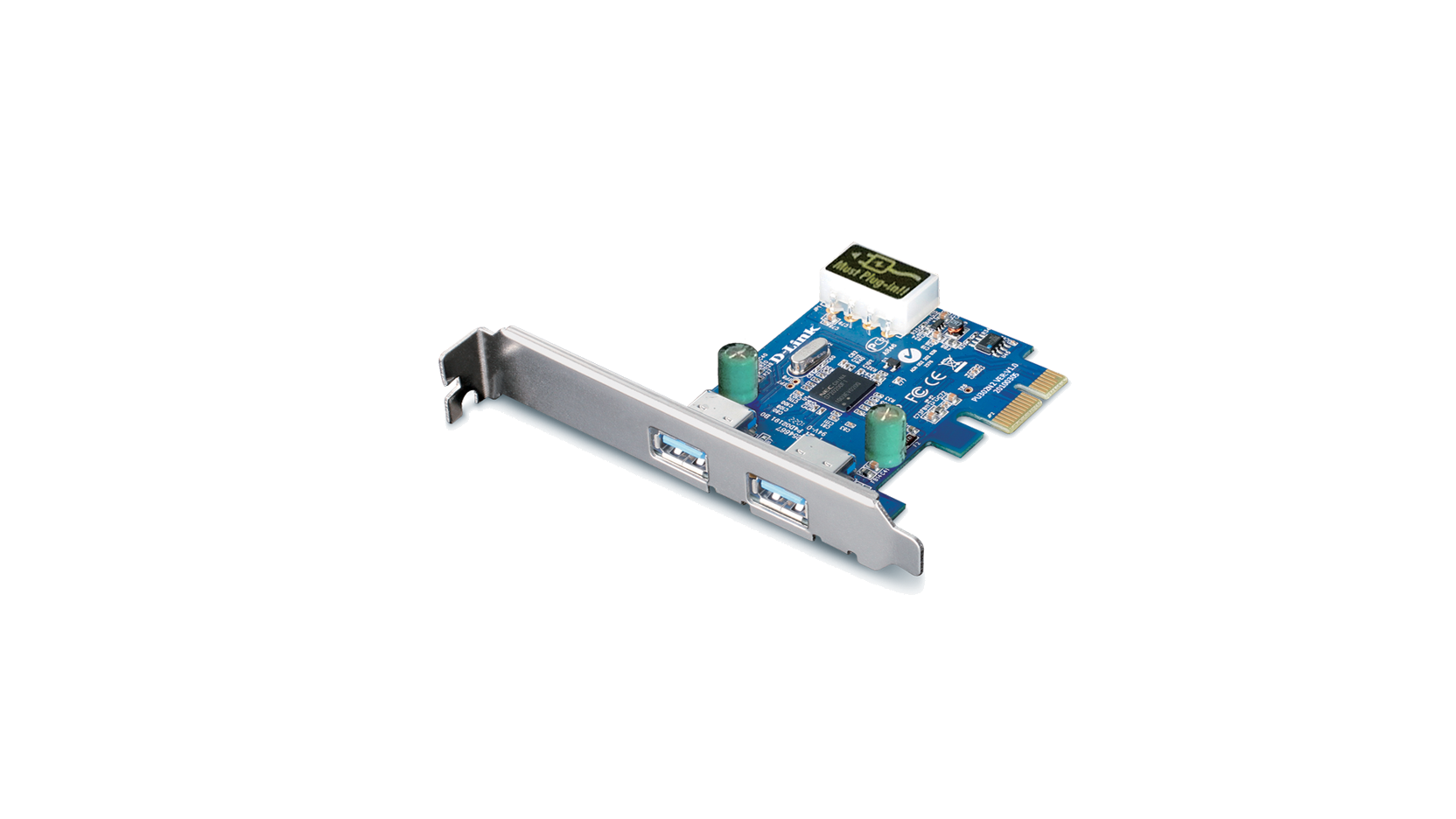

2-Port USB 3.0 PCI Express Card
- Product Status: Phased Out
The D-Link 2-Port USB 3.0 PCI express card (DUB-1310) adds 2 USB 3.0 ports to your PC, allowing you to connect USB devices such as external storage, digital cameras, printers, and more. Providing data rates of up to 5Gbps - 10 times faster than USB 2.0¹. You can transfer your photos, music, and HD movies to a USB 3.0 external storage device faster than ever before.
- Easy installation for your PC
- SuperSpeed USB 3.0- 10x faster than USB 2.0
- Backward compatible with USB 2.0 and USB 1.1
- Add two SuperSpeed USB ports to your PC
Superspeed USB 3.0 Capabilities
Connect your PC to USB 3.0 devices to transfer data at blazing speeds of up to 5 Gbps1 - up to 10 times faster than USB 2.0. You can back up your photos, music, and HD movies to an external storage device faster than ever before. SuperSpeed USB delivers maximum power efficiency to save the energy cost. You can also charge USB 3.0 devices faster using the DUB-1310.
Plug and Play Connectivity
Just run the Setup CD and then slide the DUB-1310 into an available PCI Express slot; it’s that simple to add 2 USB 3.0 ports to your PC.
Connect All Your Peripherals
Backward compatibility with USB 2.0 and USB 1.12 means that you can connect any USB device to the DUB-1310. If you need more ports, you can connect additional USB hubs to support up to 127 devices.
1 Maximum transfer rate based on USB 3.0 specifications. Actual data throughput will vary.
- 1 PCI Express port
- 2 USB 3.0 type A ports
- USB specification version 3.0
- USB specification version 2.0
- USB specification version 1.1 1
- USB specification version 1.0
- OHCI (Open Host Controller Interface)
- EHCI (Enhanced Host Controller Interface)
- PCI Express 2.0
- SuperSpeed: 4.8 Gbps
- Hi-Speed: 480 Mbps
- Full Speed: 12 Mbps
- Low Speed: 1.5 Mbps
- Up to 127 devices by cascading multiple hubs
- Windows XP SP3/Vista/7
- Available PCI Express port
- Maximum 900 mA. per port (when connected to the PC's internal power supply)
Dimensions (L x W x H)
- 75.8 x 61.5 x 2.0 mm
- 43 grams
- 0 to 40 °C (32 to 104 °F)
- -20 to 60 °C (-4 to 140 °F)
- 0% to 80% (non-condensing)
- D-Link 2-Port SuperSpeed USB 3.0 PCI Express Card
- Low profile bracket
- USB 3.0 cable
