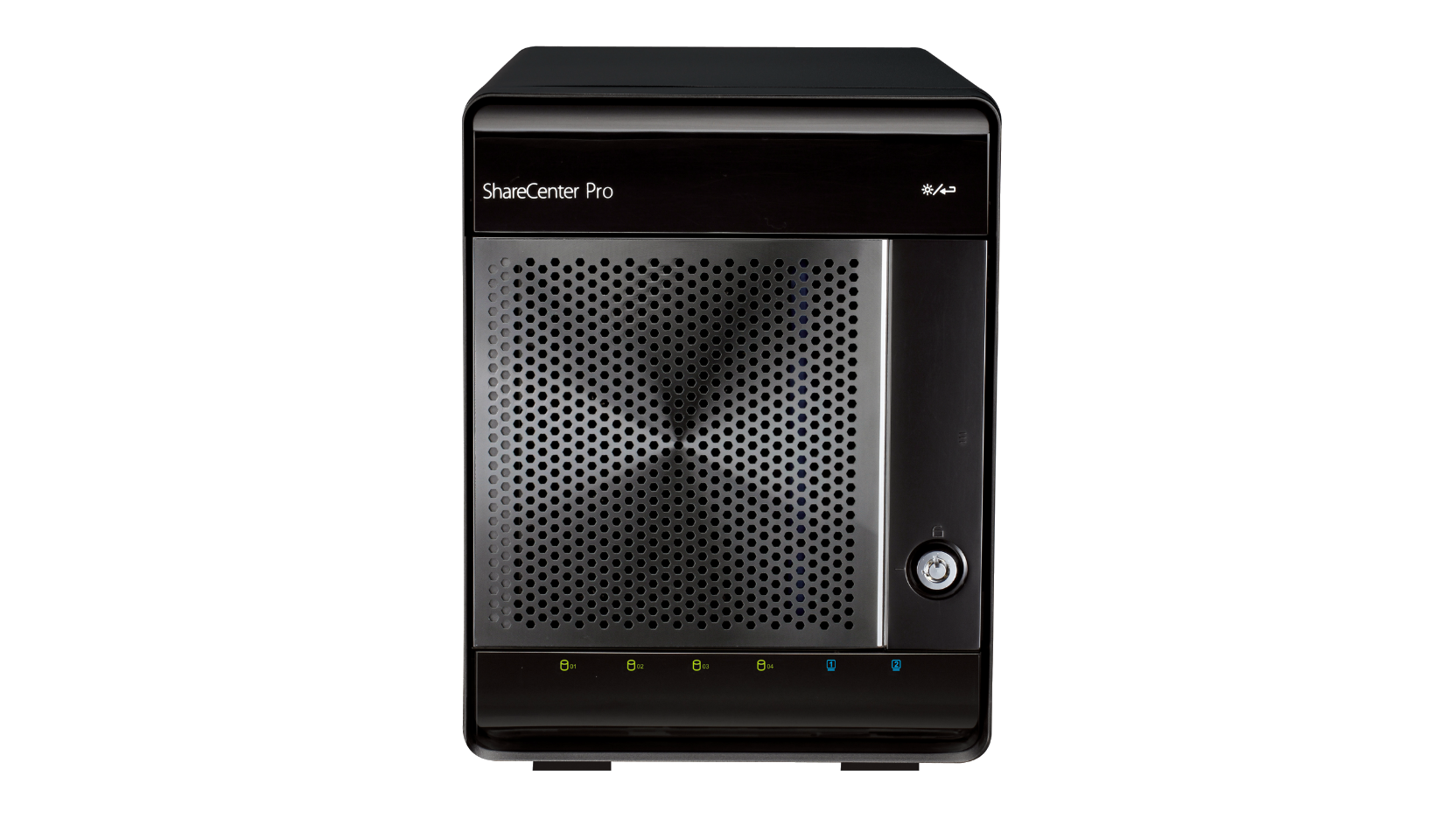

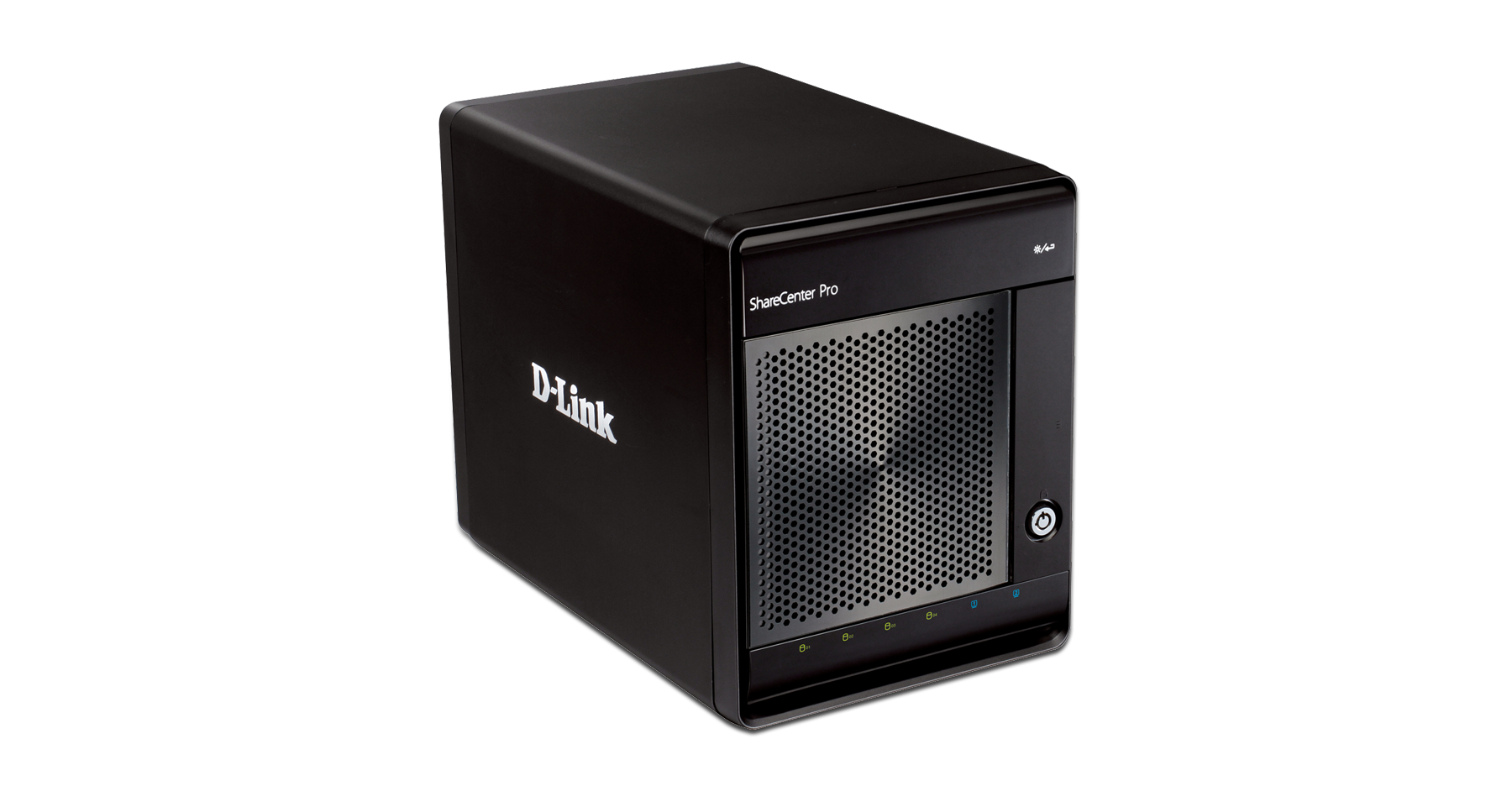

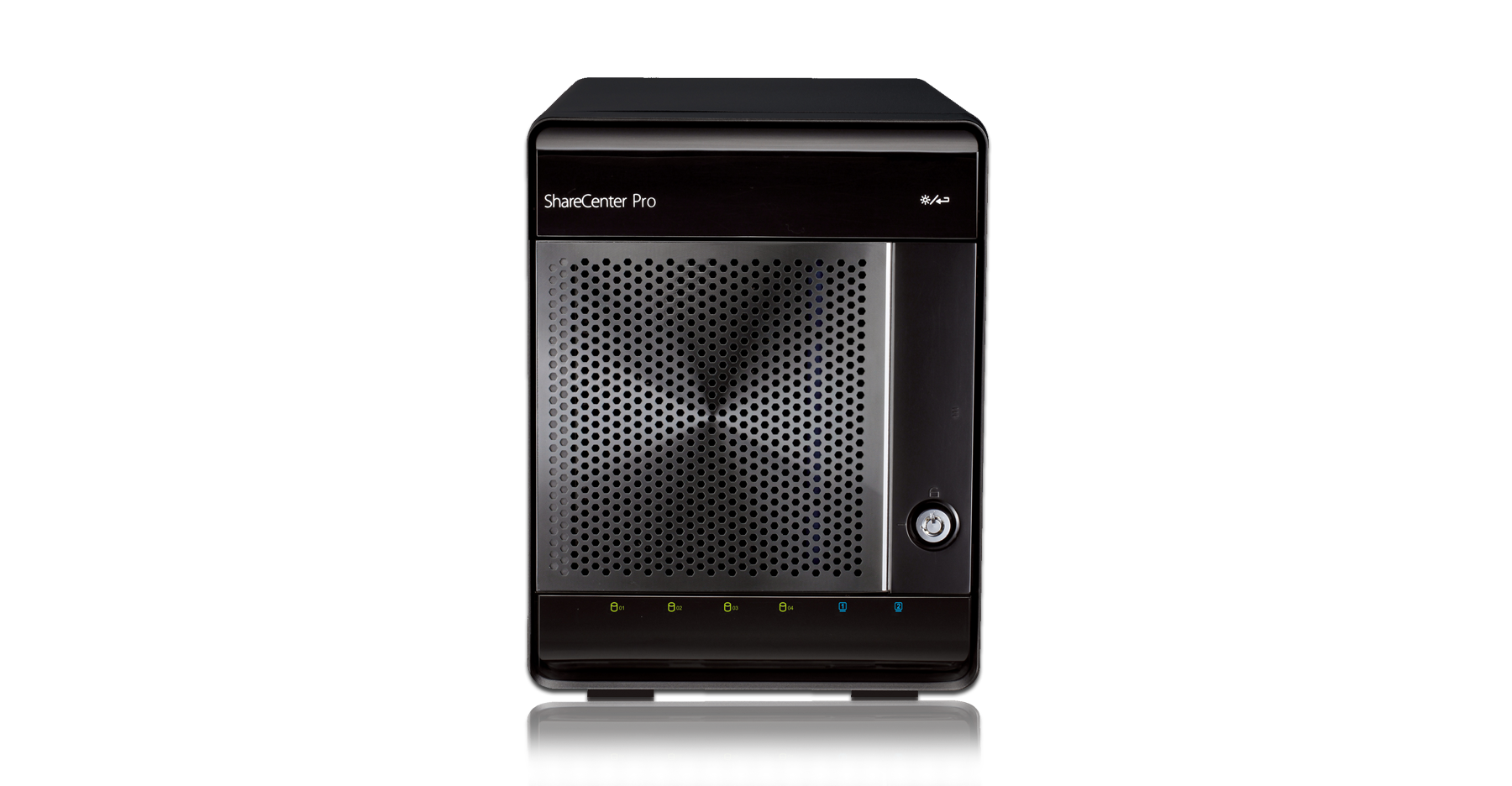

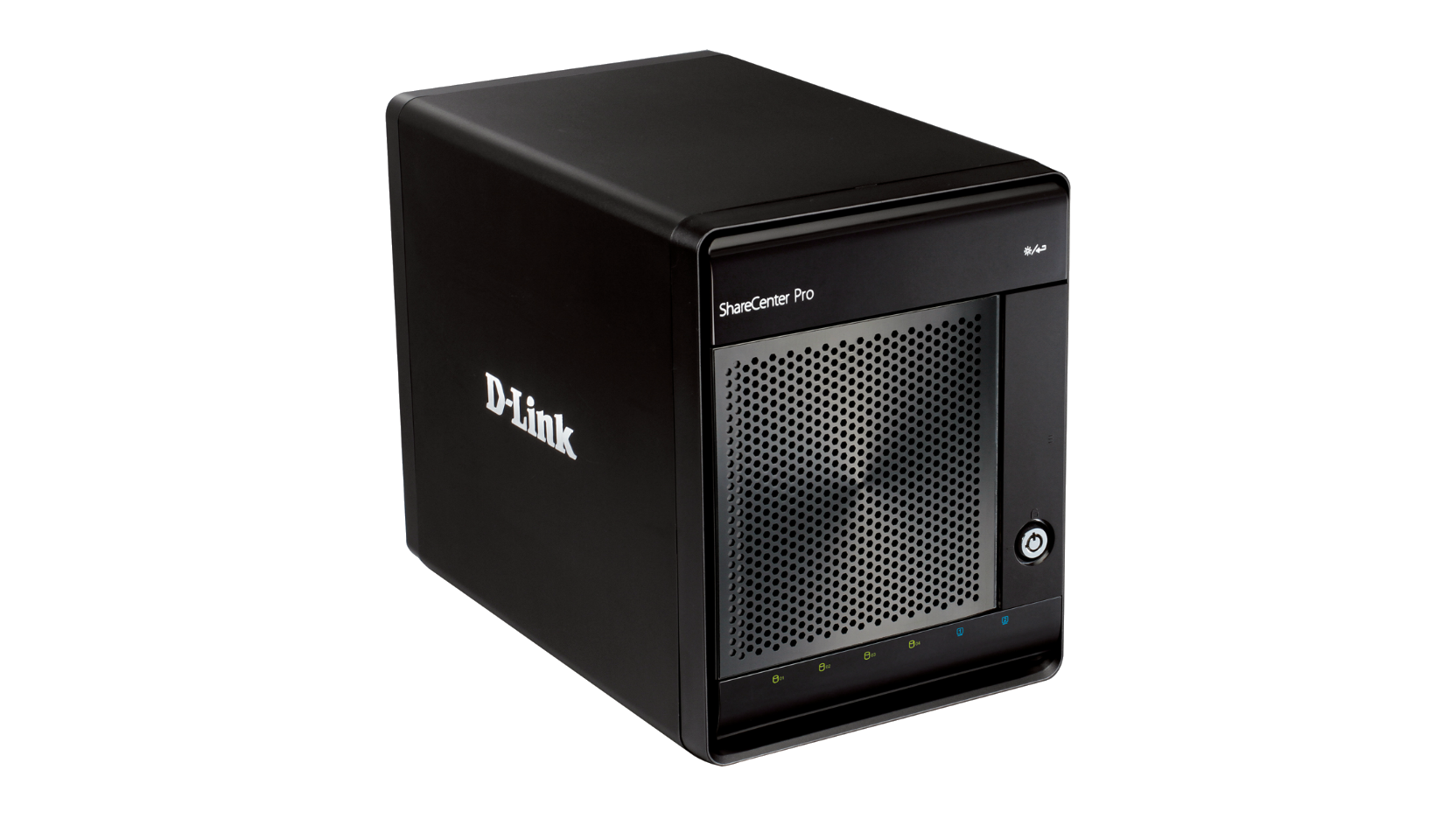

ShareCenter Pro 4-Bay Network Storage Enclosure

DNS-1100-04

  • Product Status: Phased Out
Small and medium businesses face an ever-increasing need for data consolidation and document sharing. The D-Link ShareCenterTM Pro 1100 NAS addresses these growing data storage requirements, and provides a multitude of additional options for managing and securing important files.

Download the datasheet.

List Retailers
Small and medium businesses face an ever-increasing need for data consolidation and document sharing. The D-Link ShareCenterTM Pro 1100 NAS addresses these growing data storage requirements, and provides a multitude of additional options for managing and securing important files.

File Sharing

The DNS-1100-04 integrates a NAS file server which takes full advantage of the accelerated performance provided by iSCSI. Files can be shared across the network or over the Internet via FTP or an intuitive web file manager, to users with the appropriate credentials.

NAS File Server

Small Businesses will appreciate the DNS-1100-04 NAS file server which takes advantage of the accelerated performance of the dual-core CPU. Providing up to 7200 MIPS of computing power and 512MB of cache memory, the DNS-1100-04 is able to provide the storage throughput required for your business and its future growth. Virtual Disk Drive (VDD) expansion allows the ShareCenter Pro 1100 to attach up to eight external iSCSI storage targets found on the local network, and use them as virtual disks for additional storage volumes.

A Variety of Backup Options

The DNS-1100-04 offers several backup options which allow administrators and users to control how, when, and where their data is stored. Remote backup will keep a copy of your files on a remote NAS over the Internet for extra data protection, and volume snapshots can backup a whole volume in a few minutes in contrast with traditional backup schemes that can take hours.

iSCSI for IP Networks

iSCSI offers exceptionally fast access performance thanks to block-level data transfer. iSCSI targets appear as a local drive on a client PC. Operations such as configuration, provisioning, and backup can be handled by the administrator in the same way they would be for directly attached storage. By utilising existing Ethernet technology, the cost associated with separate host bus adapters and the per-Gigabyte cost for storage can be significantly reduced.

Advanced Security

Account management features include the ability to manage users/groups and Read/Write permissions. Create users, groups, and iSCSI targets with password authentication. Additionally, VLAN tag support combined with AES encryption keeps files secure. iSCSI implements a Challenge Handshake Authentication Protocol (CHAP) to guarantee secure access to the storage system.

Share Printers and USB Storage

USB connectivity provides the option to establish a printer server, monitor a UPS, or connect USB devices such as hard drives and flash storage.

RAID for Efficiency and Redundancy

The DNS-1100-04 features 4 Serial ATA (SATA) disk drive bays supporting RAID levels 0, 1, 10, 5 or JBOD configurations. IT administrators can quickly deploy a network storage solution using inexpensive SATA disk drives, and can add more drives depending on storage needs. Additionally, S.M.A.R.T. disk diagnostics helps to ensure hardware integrity and warns of possible failures before they occur.

Green Features Save Energy

The DNS-1100-04 SharecenterTM Pro 1100 is part of D-Link Green, D-Link’s programme for providing eco-friendly alternatives without compromising performance: if the hard drives are not used in a configurable period of time, or data is not being transmitted, the SharecenterTM Pro1100 will enter stand-by mode to save power. The silent fan will adapt its speed depending on the hard drives temperature. Additionally, the scheduled on/off function allows the device to be automatically switched off when it is not in use.

Actual product appearance may differ from the image displayed on this page

Related Products

DGS-3200 xStack 10-Port Gigabit L2 Managed Switch
DGS-3200-10
Find out more
Full HD PoE Day/Night Network Camera
DCS-2210
Find out more
Full HD Wireless Day/Night Network Camera
DCS-2230
Find out more
HD PoE Day/Night Fixed Network Camera
DCS-3112
Find out more
HD WDR PoE Day/Night Fixed Network Camera
DCS-3710
Find out more

Technical Specifications

Networking
  • IEEE 802.3
  • IEEE 802.3ab
  • IEEE 802.3u
  • TCP/IP
  • CIFS/SMB
  • iSCSI
  • DDNS
  • NTP
  • FTP / FXP w/ TLS/SSL
  • NFS
  • HTTP/HTTPS
  • Jumbo Frames
  • SNMP
  • SMTP

Supported Hard Drive Type
  • SATA – Any Capacity
  • 3.5” Internal

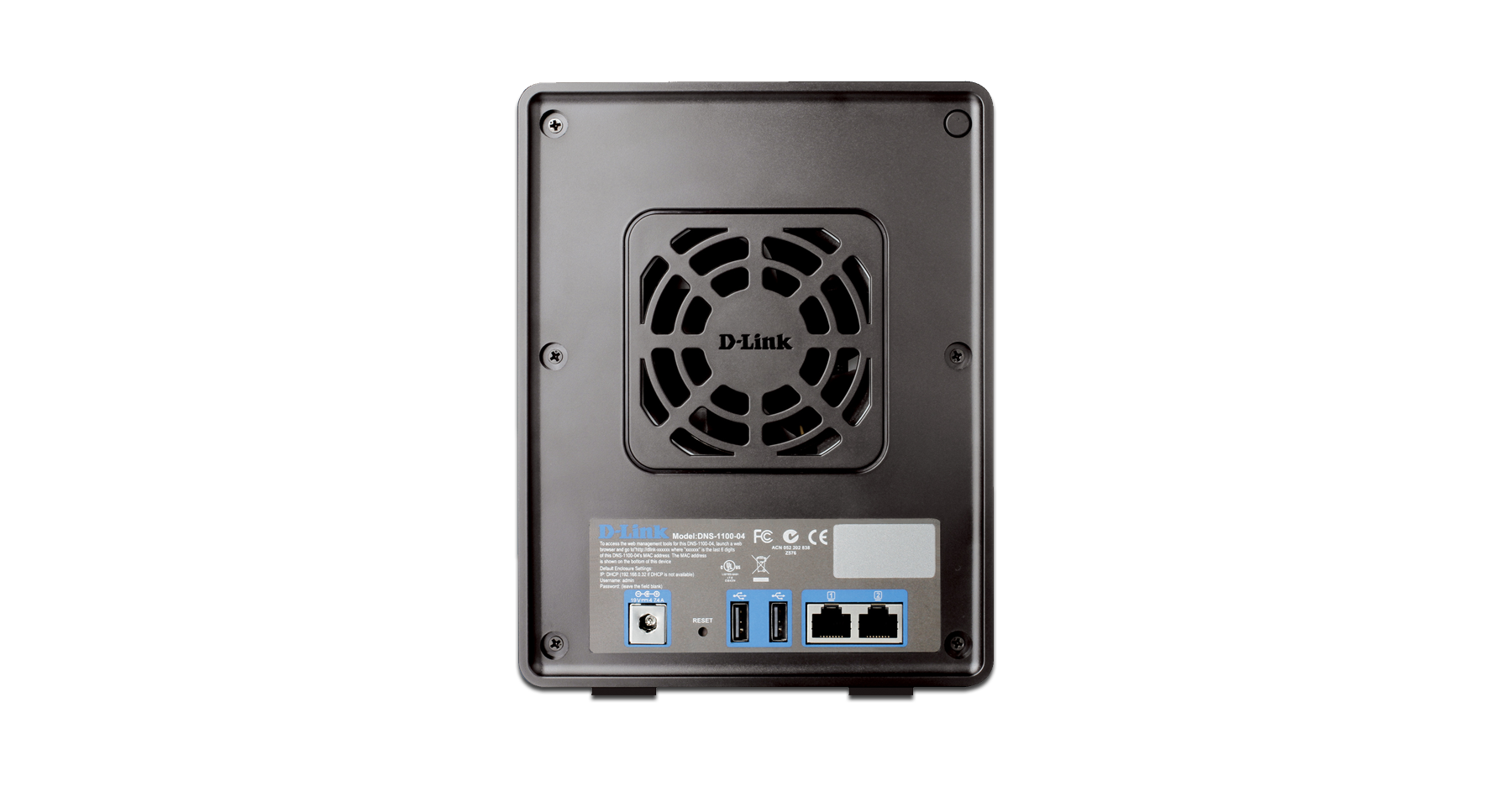

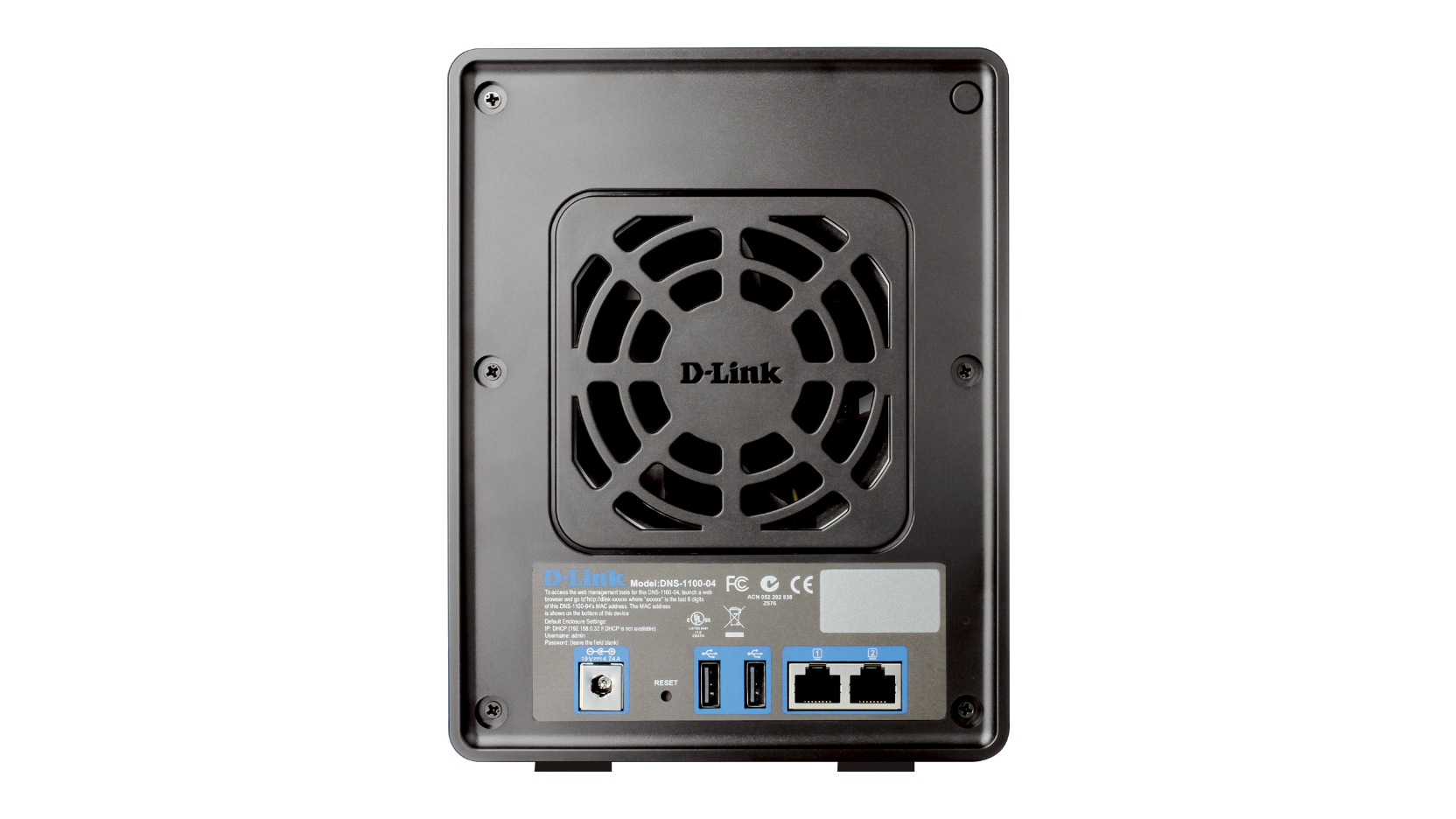

Ports
  • 2 x 10/100/1000 Gigabit Ethernet Port
  • 2 x USB Port
  • Power

Display
  • 128 x 32 OLED Display Screen

Drive Management
  • Multiple Hard Drive Configurations: RAID 0/1/10/5/6, JBOD, Standard
  • SMART/Scandisk
  • User/Folder Quota management

Device Management
  • IE7, Chrome, Firefox
  • Real Time Clock (RTC) support
  • Easy Search Utility
  • UPS Monitoring
  • E-Mail Alerts
  • Power Management
  • USB hard disk
  • USB printer

File Sharing
  • Max. User Account: 4096 (Samba) / 10000 (ADS)
  • Max. Group: 512 (Samba) / 10000 (ADS)
  • Max. Shared Folder: 1000

Multi-language File Name Support
  • Samba: Unicode
  • FTP Client: Unicode, Croatian, Cyrillic (Kyrgyz Republic), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Simplified Chinese, Slovenian, Spanish, Swedish, Traditional Chinese, Turkish

Power Supply
  • External power adapter supply
  • DC 19 V / 4.74 A switching

Power Consumption
  • Full load: 63.1 W

Temperature
  • Operating: 0 to 40 ˚C (32 to 104 ˚F)
  • Storage: -20 to 70 ˚C (-4 to 158 ˚F)

Operating Humidity
  • 5% ~ 90% (Non-condensing)

Dimensions (L x W x H)
  • Item: 205 x 162 x 257.4 mm.
  • Packaging: 379 x 266 x 407 mm.

Weight
  • Item: 3.0 Kg.
  • Packaging: 4.7 Kg.
