Wireless AC750 Dual-Band Multi-WAN Router

DWR-118

  • Stato del prodotto: In produzione
  • 4G LTE/3G USB dongle support
  • Load sharing and fail-safe Internet with concurrent fixed line and mobile Internet support
  • Wireless AC750 (450 Mbps on 5 GHz + 300 Mbps on 2.4 GHz)
  • Fast Ethernet WAN + 4 x Fast Ethernet LAN

Download the datasheet.

Elenco negozi

Wireless AC750 Dual-Band Multi-WAN Router

The DWR-118 Wireless AC750 Dual-Band Multi-WAN Router allows you to share superfast 4G LTE/3G mobile Internet simultaneously to your smartphone, tablet, notebook and desktop computer. Universal 4G LTE/3G USB dongle support from any mobile operator1, this router is the ideal solution for setting up an Internet connection to share with your colleagues or your family and friends when you are on holiday.


Reliable, Uninterrupted and Faster Internet Connection

Create a load sharing and fail-safe Internet connection with simultaneous 4G LTE/3G mobile Internet and fixed broadband Internet support. A Gigabit Ethernet WAN port allows you to attach a DSL/Cable modem as the primary or backup link, while auto-failover ensures an uninterrupted connection by automatically connecting to your 4G LTE/3G network whenever the WAN link is lost. Load sharing function allows the Internet connections to be combined to give you faster Internet speeds. The built-in QoS management feature also prioritises traffic to ensure that the most important data receives optimum bandwidth.

Incredible Wireless Speeds

The DWR-118 supports the latest, high-speed 4G LTE mobile broadband technology, allowing you to achieve blazing fast mobile broadband speeds. In addition to this, the Wireless AC750 Dual-Band Multi-WAN Router’s AC technology means that you can connect wireless clients to the router at up to 433 Mbps2, with the enhanced range and reliability of the dual-band 802.11ac wireless standard.

Advanced Network Security

The DWR-118 ensures a secure Wi-Fi network through the use of WPA/WPA2 wireless encryption. Simply press the WPS button to quickly establish a secure connection to new devices. The DWR-118 also utilises dual-active firewalls (SPI and NAT) to prevent potential attacks and intrusions from across the Internet.

Simple to Install and Use

The Wireless AC750 Dual-Band Multi-WAN Router can be installed quickly and easily almost anywhere. The intuitive setup wizard will get you set up and connected in no time. This router is great for situations where an impromptu wireless network is required, or where conventional wired network access is unavailable. The DWR-118 can even be installed on buses, trains, or boats, allowing passengers to access the Internet while commuting.

1 4G LTE/3G dongle not included. Please consult D-Link website for a list of compatible 4G LTE/3G USB dongle. Additional 4G LTE/3G USB dongle may be supported with future software updates. Please check regional mobile operators for 4G LTE/3G mobile Internet availability.
2 Maximum wireless signal rate derived from IEEE Standard 802.11g, 802.11n, and 802.11ac specifications when used with related Wireless AC devices. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range. Wireless range and speed rates are D-Link relative performance measurements based on the wireless range and speed rates of a standard Wireless AC product from D-Link.
Chiavetta internet USB 3G HSPA+
La Chiavetta Internet USB 3G HSPA+ DWM-157 ti permette di avere una connessione mobile veloce sul tuo notebook o PC, sia a casa che in ufficio o in viaggio. Questo prodotto è compatibile con qualsiasi rete 3G in tutto il mondo. Con una connessione veloce e conveniente a portata di mano, non dovrai preoccuparti di rimanere isolato quando non sei a casa.
Find out more
Chiavetta Internet 4G LTE
La Chiavetta Internet USB 4G LTE DWM-221 è un modem portatile da viaggio che ti permette di collegarti a Internet ovunque tu sia con un'alta velocità sia in ricezione che in trasmissione e minimi tempi di latenza per una connessione rapida e reattiva ogni volta che sei lontano da casa o dall'ufficio.
Find out more
Router Multi WAN Wireless N300
Find out more
Router 3G portatile a batteria con Hotspot Wi-Fi da 42 Mbps
Il Router 3G portatile a batteria con Hotspot Wi-Fi da 42 Mbps D-Link DWR-830 sfrutta la tua connessione Internet 3G DC-HSPA+ per creare una semplice rete Wi-Fi veloce ovunque ti occorra. Anziché utilizzare una chiavetta Wi-Fi che limita la connessione Internet mobile a un unico dispositivo, il DWR-830 permette di creare un Hotspot Wi-Fi che consente di condividere la connessione Internet tra più dispositivi ovunque vi sia un segnale 3G. Le dimensioni portatili permettono di condividere la connessione ovunque: puoi usarlo al bar per spedire la posta mentre un amico legge le ultime notizie, o collegare contemporaneamente laptop, smartphone e tablet a Internet attraverso un unico servizio Internet mobile.
Find out more
Router 3G a batteria
Find out more

Technical Specifications

Technical Specifications



General

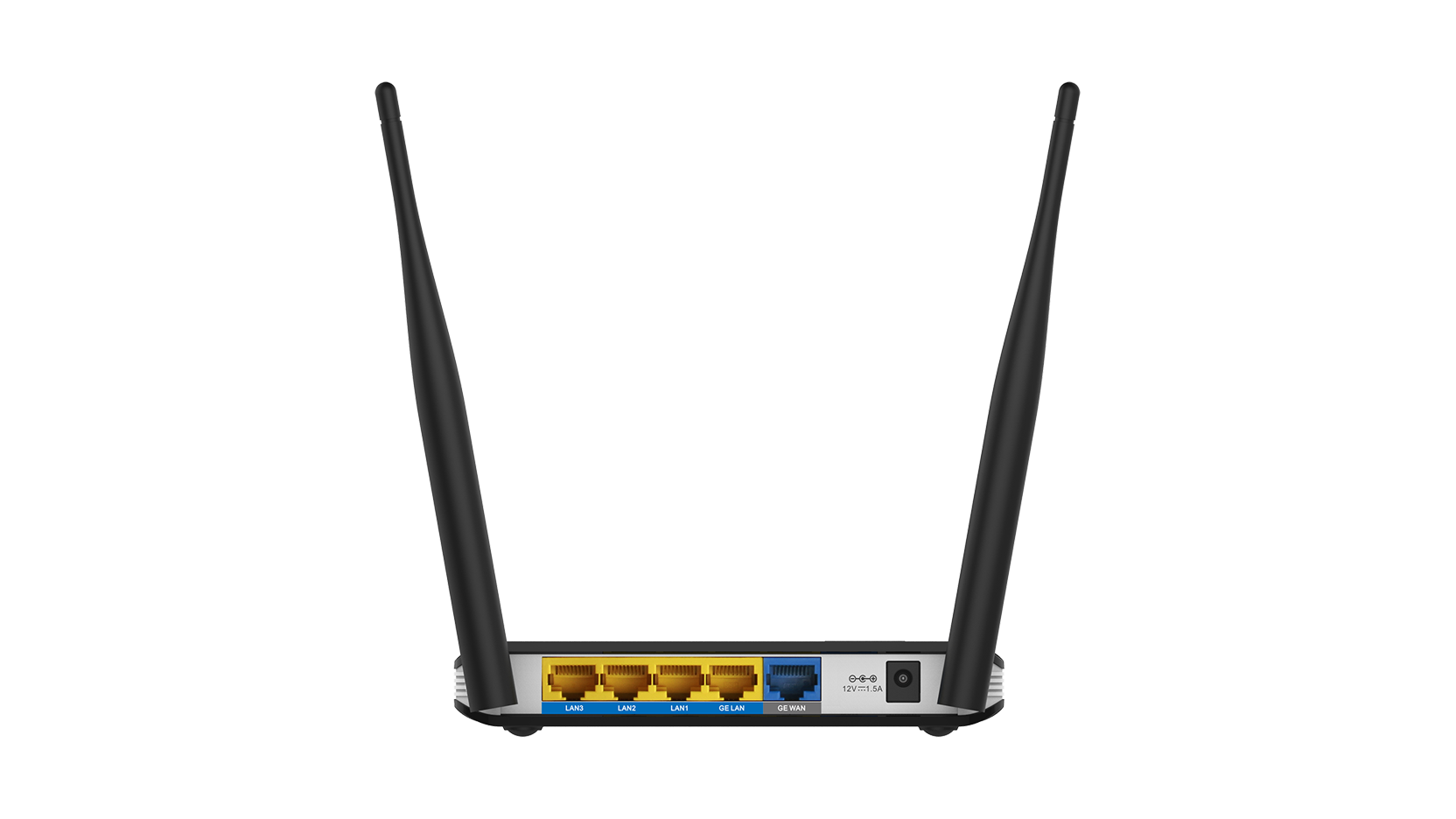

Device Interfaces

  • 1 x Gigabit Ethernet LAN port
  • 3 x Fast Ethernet LAN ports
  • 1 x Gigabit Ethernet WAN port
  • 1 x USB 2.0 port



LED Status Indicators

  • Power
  • Internet
  • WLAN (2.4 GHz & 5 GHz)
  • WAN
  • LAN
  • USB



Antennas

  • 2 x external 5 dBi antennas
  • 1 x internal 5 dBi antenna



Compatible Mobile Networks1

  • EV-DO/CDMA
  • 4G LTE/HSPA+/HSUPA/HSDPA/UMTS



Standards

  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
  • IEEE 802.11ac
  • IEEE 802.3
  • IEEE 802.3u



Wireless Security

  • 64/128-bit WEP
  • WPA & WPA2
  • WPS



Firewall

  • Network Address Translation (NAT)
  • Stateful Packet Inspection (SPI)
  • MAC address filtering
  • Website filtering



VPN

  • L2TP/PPTP/IPSEC VPN passthrough
  • PPTP/L2TP connection



Advanced Features

  • 3G/4G LTE modem backup
  • QoS management
  • Auto WAN failover
  • Load sharing



Physical



Dimensions

  • 148.5 x 113.5 x 25 mm (5.85 x 4.47 x .98 inches)



Weight

  • 350 grams (12.35 ounces)



Power

  • Input: DC 12 V/1.5 A +/- 5%



Temperature

  • Operating: 0 to 40 °C (32 to 104 °F)
  • Storage: -20 to 65 °C (-4 to 149 °F)



Humidity

  • Operating: 10% to 95% non-condensing
  • Storage: 5% to 95% non-condensing



Certifications

  • CE
  • RoHS Certified
  • Wi-Fi Certified
