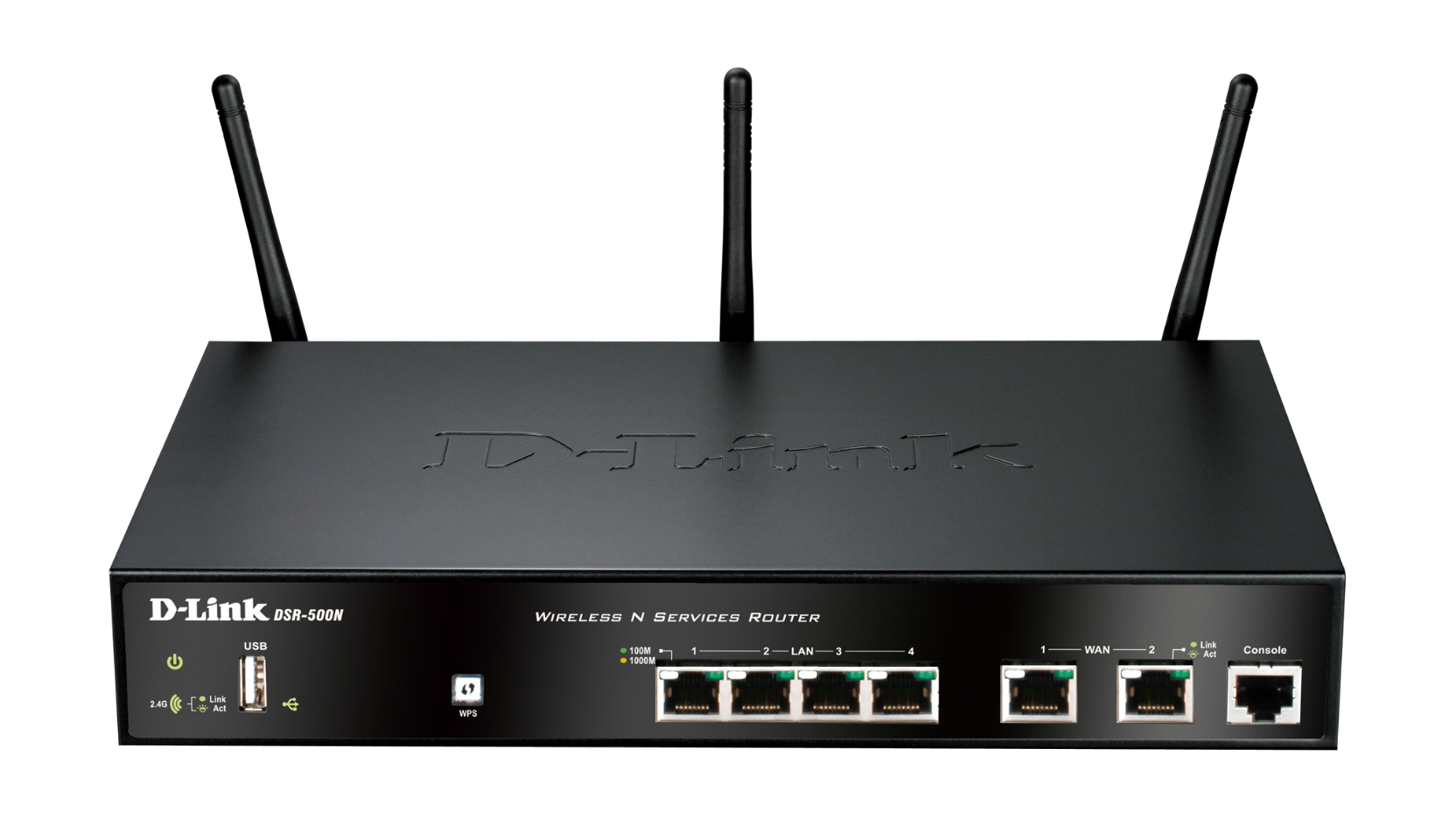

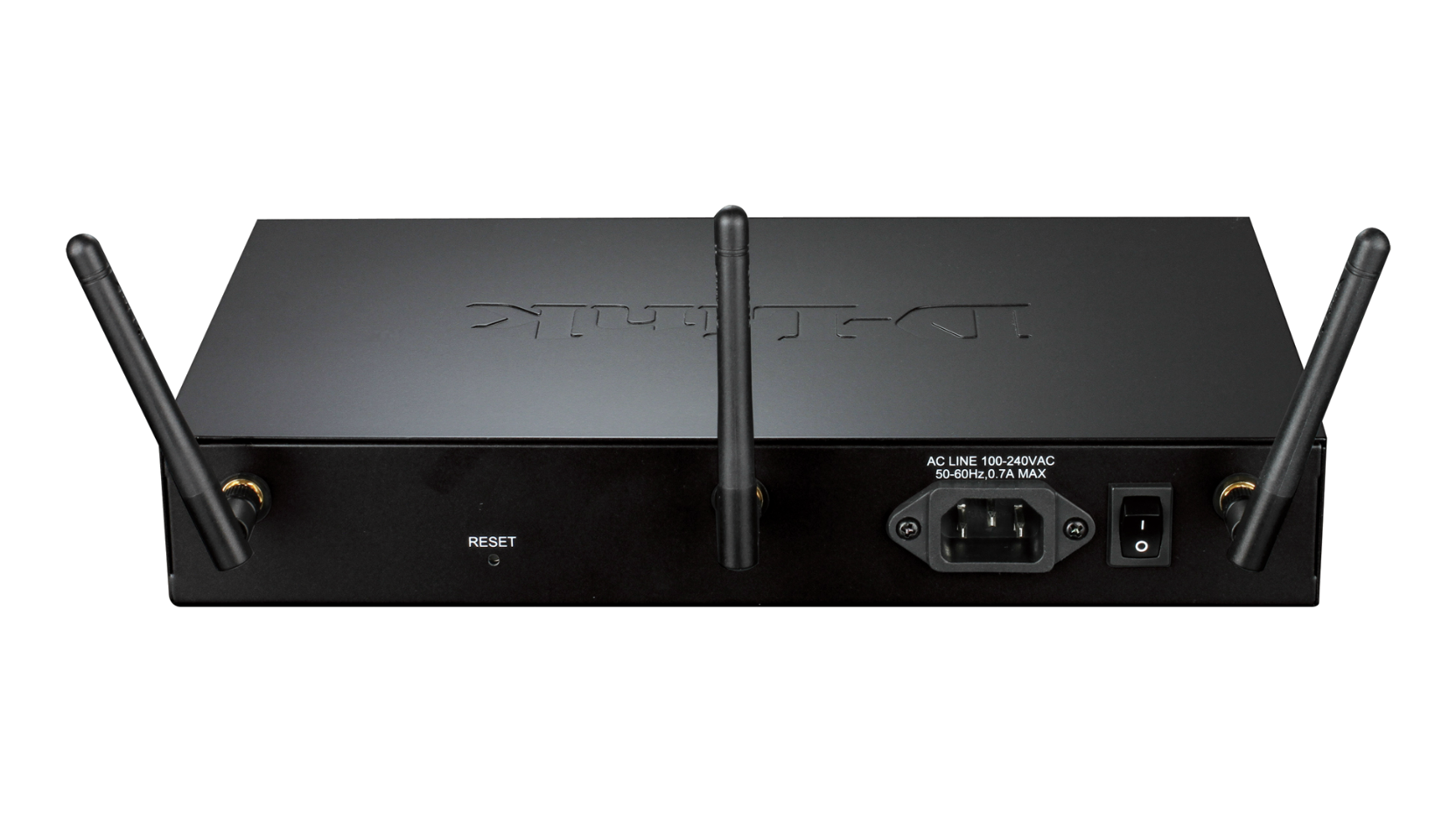

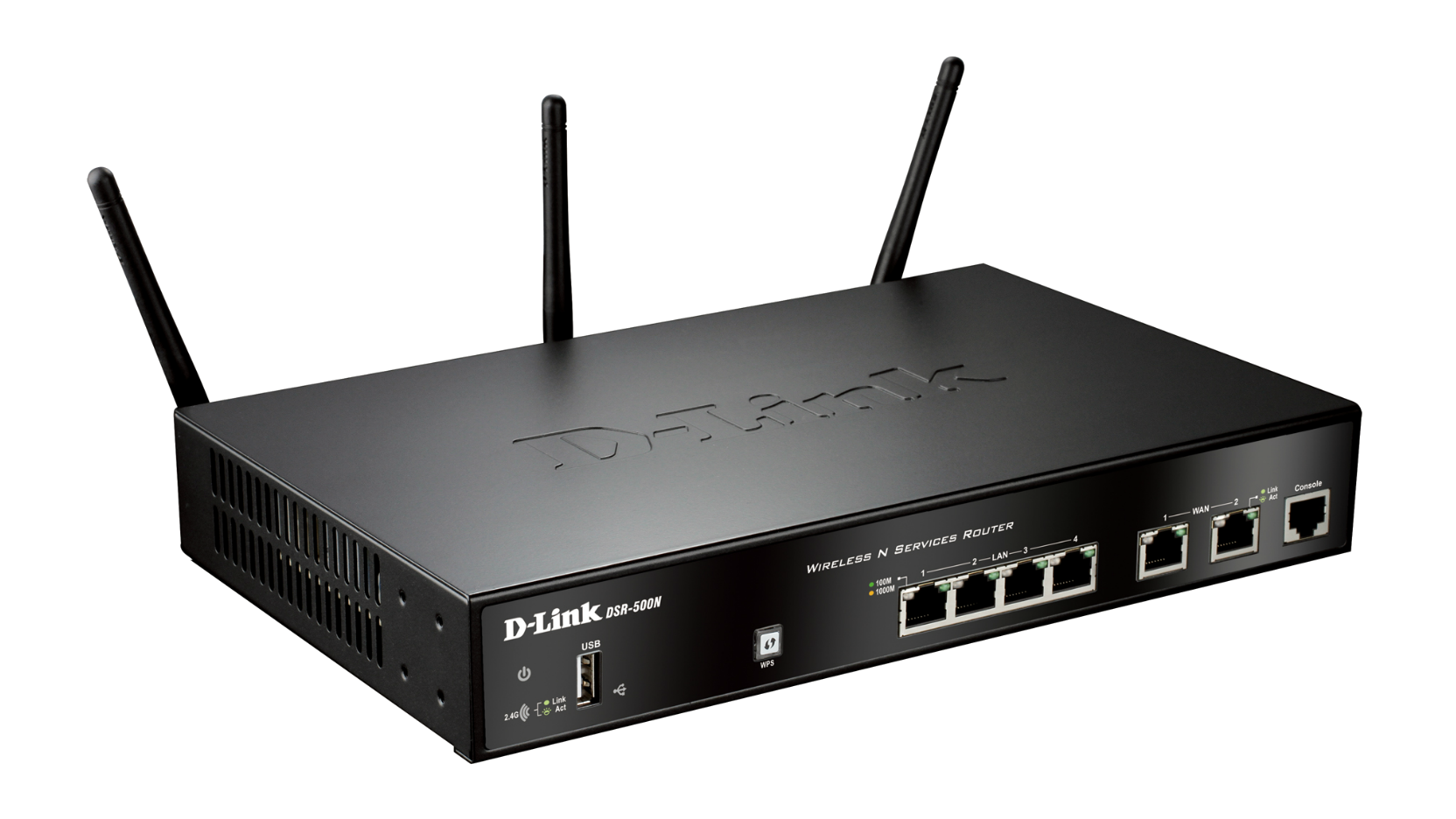

Wireless N Unified Services Router

DSR-500N

  • Stato del prodotto: Obsoleto

Prodotti correlati

Wireless N Dual Band Unified Service Router
DSR-1000N
Maggiori informazioni
Wireless VPN Security Router
DSR-150N
Maggiori informazioni
Wireless N Unified Service Router
DSR-250N
Maggiori informazioni

Technical Specifications

Features

High-Performance VPN

  • Protocols
    • IPSec
    • PPTP/L2TP
    • GRE
    • SSL
  • VPN Tunnels
    • Up to 85 tunnels
  • DES, 3DES, AES

Enhanced Network Services

  • IPv6
  • IEEE 802.1q VLAN
  • Multiple SSIDs
  • Port Monitoring/Bandwidth Control
  • srTCM, trTCM, & policing

Wireless Access and Security

  • IEEE 802.11 b/g/n (2.4 GHz)
  • IEEE 802.1x RADIUS Authentication with EAP-TLS, EAP-TLLS, EAP-PEAP
  • WPS, WEP, WPA-PSK, WPA-EAP, WPA2-PSK, WPA2-EAP

Fault Tolerance

  • WAN Traffic Failover & Outbound Load Balancing

Technical Specifications

General

Ethernet Interface

  • 2 x 10/100/1000 Mbps WAN Ports
  • 4 x 10/100/1000 Mbps LAN Ports

Wireless Interface

  • 802.11b/g/n (Single Band)
  • 3 Detachable 2 dBi Omni-Directional Antennas

USB 2.0 Ports

  • 1

Console Port

  • RJ-45

Performance1

Firewall Throughput2

  • 950 Mbps

VPN Throughput (3DES)3

  • 70 Mpps

Concurrent Sessions

  • 30,000

New Sessions (per second)

  • 300

Firewall Policies

  • 300

Internet Connection Type

  • Static/ Dynamic IP
  • PPPoE/ L2TP/ PPTP
  • Multiple PPPoE

Firewall System

  • Static Route
  • Dynamic Route
    • RIPv1
    • RIP v2
    • OSPF4
  • Dynamic DNS
  • Inter-VLAN Route
  • NAT, PAT
  • Web Content Filtering
    • Static URL
    • Keywords
  • Intrusion Prevention System (IPS)
    • Signature Package Included in Firmware

Networking

  • DHCP Server/ Client
  • DHCP Relay
  • IEEE802.1q VLAN
  • VLAN (Port-Based)
  • IP Multicast
    • IGMP Proxy
  • IPv6
  • Route Failover
  • Outbound Load Balancing
  • 3G Redundancy

Wireless

  • Multiple Service Set Identifier (SSID)
  • Service Set Identifier (SSID) to VLAN Mapping
  • Standards
    • 802.11b/g/n
  • Wireless Security
    • Wired Equivalent Privacy (WEP)
    • Wi-Fi Protect Setup (WPS)
    • Wi-Fi Protected Access – Personal (WPA-PSK)
    • Wi-Fi Protected Access – Enterprise (WPA-EAP)
    • Wi-Fi Protected Access version 2 – Personal (WPA-PSK)
    • Wi-Fi Protected Access version 2 – Enterprise (WPA-EAP)

Virtual Private Network (VPN)

  • VPN Tunnels
    • 85
  • IPSec Tunnels
    • 35
  • SSL VPN Tunnels
    • 10
  • PPTP/L2TP Clients
    • 25
  • GRE4
    • 15
  • Encryption Methods
    • DES, 3DES, AES, Twofish, Blowfish, CAST-128, NULL
  • SSL Encryption Methods
    • RC4-128, 3DES, AES
  • IPSec/PPTP/L2TP Server
  • IPSec NAT Traversal
  • Dead Peer Detection
  • IP Encapsulating Security Payload (ESP)
  • IP Authentication Header (AH)
  • VPN Tunnel Keep Alive
  • Hub and Spoke

Bandwidth Management

  • Maximum Bandwidth Control
  • Priority Bandwidth Control
    • Port-based QoS
    • 3 Classes

System Management

  • Web-based User Interface
    • HTTP, HTTPS
  • Command Line
  • SNMP v1, v2c, v3

Physical & Environment

Power Supply

  • Internal Power Supply Unit
  • DC 12 V/2.5 A

Max. Power Consumption

  • 16.8 W

Dimensions (L x W x H)

  • 180 x 280 x 44 mm (7.09 x 11.02 x 1.73 inches)

Operation Temperature

  • 0 to 40 °C (32 to 104 °F)

Storage Temperature

  • -20 to 70 °C (-4 to 158 °F)

Operation Humidity

  • 5% to 95% non-condensing

EMI/EMC

  • FCC Class B, CE Class B, C-Tick, IC

Safety

  • cUL, LVD (EN60950-1)

3rd Party Certification

  • IPv6 Ready, Wi-Fi, ICSA-Certified Firewall, VPNC AES Interop, VPNC Basic Interop

MTBF

  • 260,000 hours

1 Firewall throughput is measured using UDP traffic with a 1,518 bytes packet size, adhering to RFC2544.
2 Actual performance may vary depending on network conditions and activated services.
3 VPN throughput is measured using UDP traffic with the packet size 1420 bytes and encryption method 3DES plus SHA-1, adhering to PFC2544.
4 Available through future firmware upgrade.
