Modular Redundant Power Supplies

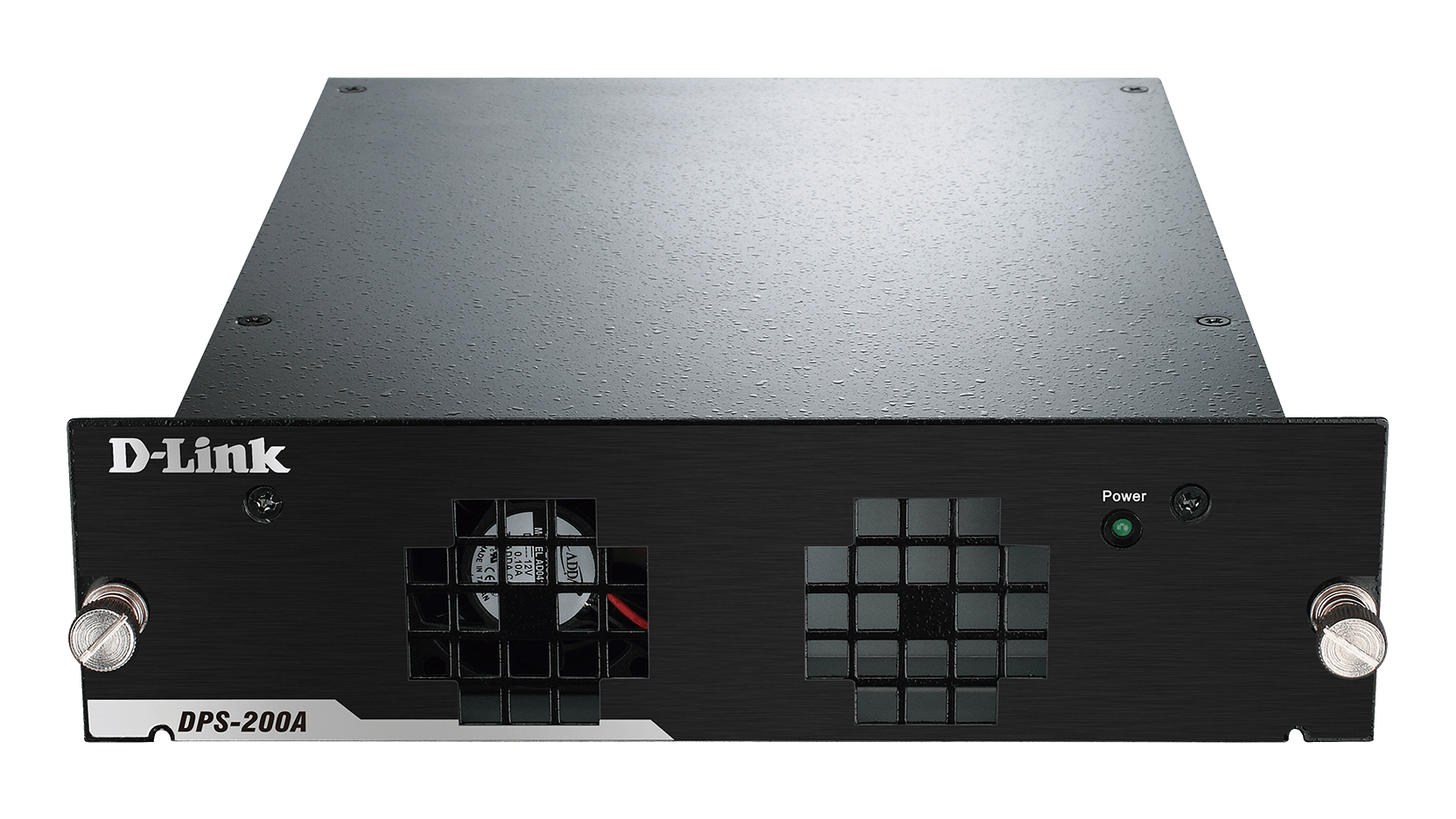

DPS-200A

  • Stato del prodotto: In produzione
The DPS-200A redundant power supply (RPS) are designed to conform to the wattage requirements of D-Link’s Ethernet and Gigabit switches. It is an external RPS unit enclosed in solid metal cases with sockets to connect to an AC power sources on one end and to connect to a switch’s internal power supply on the other end. They provide a low-cost, simple solution to the problem of an inadvertent failure of the internal power-supply of an Ethernet switch, which can result in the shutdown of that switch, the devices attached to its ports or an entire network.

Elenco negozi

The DPS-200A redundant power supply (RPS) are designed to conform to the wattage requirements of D-Link’s Ethernet and Gigabit switches. It is an external RPS unit enclosed in solid metal cases with sockets to connect to an AC power sources on one end and to connect to a switch’s internal power supply on the other end. It provides a low-cost, simple solution to the problem of an inadvertent failure of the internal power-supply of an Ethernet switch, which can result in the shutdown of that switch, the devices attached to its ports or an entire network. Supporting full output power for the switch, these redundant power supplies can maximise the power availability of the switching device.

Redundant Power Backup

Each D-Link RPS is equipped with an integrated detection circuit that continuously monitors the switch’s internal power supply. In the event of a power interruption, the redundant power supply is immediately triggered so that the LAN switch and its connected devices can continue providing service.

This results in a more reliable network infrastructure and protects the network from going down due to failure of a single network device power supply.

Easy and Flexible Deployment

Deployment of a DPS series device does not require any change in the configuration of the LAN switch. Each RPS is equipped with a universal internal power supply  and can be connected to any AC power source from 90 V AC to 264 V AC, 47 Hz to 63 Hz through a standard AC power cable.

Modular Redundant Power Supplies

The DPS-200A is a modular redundant power supply which can be installed as independent power supply units or placed inside a DPS-800 Rack-mount chassis. The chassis are designed for mounting in a standard 19-inch equipment rack. Multiple power supplies can be placed inside a chassis, from which they can connect to the switches mounted in the same rack.

Rack-Mount Chassis

The DPS-800 chassis can accommodate up to two DPS-200A modules to an equipment rack. Using a chassis, users can save space while allowing for clean cabling. All redundant power supply units installed in the chassis connect directly to their power sources, and they are hot-swappable.

xStack Gigabit L2 Stackable Managed Switches
Find out more
10-Port Gigabit L2 Managed Switch
Find out more
Serie di Switch DWS-3160 Gigabit L2+ Unified Managed
Find out more

Technical Specifications

Features

Redundant Power Protection

  • Connect to a variety of D-Link Gigabit switches
  • Provide backup power for switch’s built-in power supply
  • Over-current protection
  • LED status indicators

Flexible Deployment Options

  • Can be installed as stand-alone power supply units or mounted in a 19-inch multi-slot chassis
  • Hot swappable when installed in a chassis
  • Solid metal case housing
Compatible Products
  • DGS-3000-10TC1
  • DGS-3120-24TC
  • DGS-3120-24SC
  • DWS-3160-24TC

1 Requires a DPS-CB150-2PS to connect with the DGS-3000 Series. DPS-CB150-2PS available by project request only.



Technical Specifications

Physical

Dimensions

  • 172 x 257 x 43 mm (6.8 x 10.1 x 1.7 inches)
  • Panel size: 196 x 52 mm (7.7 x 2.04 inches)

Weight

  • 1.51 kg

Input Voltage Range

  • 90 to 264 V AC

Input Frequency

  • 47 to 63 Hz

Max Input Current

  • 1A at 240 V AC

Max Inrush Current

  • 60 A at 230 V AC

Efficiency

  • 75 %

Operating Temperature

  • 0 to 50 °C (32 to 122 °F)

Storage Temperature

  • -45 to 85 °C (-49 to 185 °F)

Operating Humidity

  • 10 to 90% RH

Storage Humidity

  • 10 to 95% RH

MTBF

  • 400,000 hours
