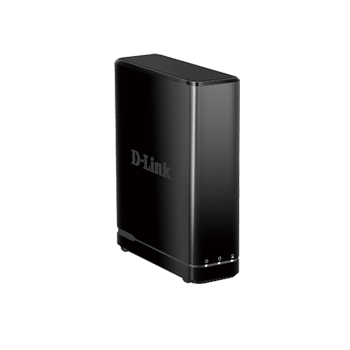

Network Video Recorder mydlink™ con uscita HDMI

DNR-312L

  • Stato del prodotto: In produzione
Il DNR-312L è un dispositivo di archiviazione standalone con uscita HDMI in grado di registrare i contenuti video contemporaneamente da max. 9 videocamere di rete D-Link in risoluzione Full HD 1080p sul proprio hard disk interno dedicato. Grazie alla porta di uscita audio/video HDMI, gli utenti possono vedere, controllare e configurare il DNR-312L senza bisogno di accendere il PC.

Download the datasheet.

Elenco negozi
mydlink Network Video Recorder with HDMI Output DNR-312L

View from Anywhere

View your cameras from anywhere on your phone, tablet, or PC.

View, Record, Playback 9 Cameras at the Same Time

mydlink Network Video Recorder with HDMI Output DNR-312L
mydlink Network Video Recorder with HDMI Output DNR-312L

The More Detail
The Better

Supports HD up to 3 megapixel resolution.

mydlink Network Video Recorder with HDMI Output DNR-312L

Record Months at a Time

Set it and forget it. Your old video is automatically overwritten by new video.

Better Than DVR

NVR means flexible camera placement, even in remote locations.
No need for hard-wired, local-only setups.

mydlink Network Video Recorder with HDMI Output DNR-312L
mydlink Network Video Recorder with HDMI Output DNR-312L

View Multiple Locations

Secure and monitor multiple stores or franchises from one app.

Plug-N-Play Setup

Automatically finds and starts
recording cameras.

Custom Recording Options

mydlink Network Video Recorder with HDMI Output DNR-312L
mydlink Network Video Recorder with HDMI Output DNR-312L

Easy Export

Quickly and easily export video from your NVR, PC, or USB drive to the authorities, and save snapshots to show faces and other details.

mydlink Network Video Recorder with HDMI Output DNR-312L

Visual Floor Plan Display

Import a floor plan to place cameras virtually.

On Screen Display

View details like date/time, motion detection staus, frame rate and bandwidth.

mydlink Network Video Recorder with HDMI Output DNR-312L

Display Options & Auto Cycle

View 1, 4, or 9 cameras at a time, or auto-cycle through your camera views.

mydlink Network Video Recorder with HDMI Output DNR-312L
mydlink Network Video Recorder with HDMI Output DNR-312L

Back It Up Your Way

Schedule back ups or perform them manually, and save footage to your NAS, FTP, or HDD.

mydlink Network Video Recorder with HDMI Output DNR-312L

Two Way Audio

Talk through the mic jack on your mydlink
Video Recorder out to any D-Link
speaker-enabled camera.

mydlink Network Video Recorder with HDMI Output DNR-312L

Better Compression = More Storage

Supports multiple video compression formats including H.264 to maximize recording density.

Videocamera HD Cloud Day/Night Wireless da esterno
Find out more
Videocamera WiFi HD con obiettivo motorizzato Pan Tilt Zoom
Find out more
Router mydlink™ WirelessAC 1900 Mbps Dual-Band Gigabit
Il Router DIR-880L rappresenta il top della connettività wireless potendo raggiungere una velocità combinata di 1,9 Gbps*. La tecnologia AC SmartBeam™ assicura una netta estensione della copertura wireless, mentre un sistema QoS (Quality of Service) avanzato distribuisce la banda Internet disponibile in maniera efficiente e automatica. Il wizard di installazione e configurazione - basato su Web e ottimizzato per l'uso con dispositivi dotati di touch screen - ti aiuta a connetterti con facilità. Il Router è compatibile con mydlink™ permettendoti di controllare e gestire la tua rete via Internet ovunque tu sia, oltre che trasmettere in streaming e condividere file multimediali attraverso la app gratuita mydlink™ SharePort™. Il DIR-880L è un router intuitivo ad alte prestazioni predisposto per IPv6 a garanzia di una rete affidabile oggi e in futuro.
Find out more
Cloud Router Wireless AC1750 Dual-Band Gigabit
Find out more
Cloud Router Wireless AC1200 Dual-Band Gigabit
Find out more

Technical Specifications

Functions & Features

Features

All in One Surveillance Recording Solution

  • Reliable network camera surveillance recorder for home and DIY users
  • Integrated HDMI to display directly to your TV or monitor
  • Simply plug in your USB keyboard and mouse to control and configure
  • View real-time and recorded video of all nine cameras from anywhere in your home or office, or remotely via the Internet

Easy to Set Up and Use

  • Effortless network camera setup and management
  • User-friendly interface provides 9 channels of simultaneous live view, recording, and playback and PTZ control
  • Stand-alone device, eliminates the need for a dedicated computer
  • Continuous or scheduled recording with automatic overwrite function

Flexible and Scalable

  • One-bay SATA 3.5” HDD interface, up to 10 TB of hard disk storage space of recorded video1
  • Supports D-Link network cameras
  • Power fail recovery recording
  • One 10/100/1000 Mbps auto-MDIX Fast Ethernet LAN port
  • M-JPEG, MPEG4 or H.264 video format
  • Record up to 1080p full HD video resolution

Technical Specifications

General

Standards

  • IEEE 802.3/u/z
  • Auto MDI/MDI-X
  • SATA I, II, III

HDD1

  • Reformat Disk
  • Up to 10 TB HDD
  • EXT3 file system

Two Reset Modes

  • Reset firmware GUI button
  • HW reset button (hold for 10 seconds)

Reset Button

  • Reset to factory default

Performance

Flash ROM

  • 128 MB

RAM

  • 1024MB DDR III

Network Interface

  • Gigabit Ethernet LAN port (10/100/1000 Mbps)

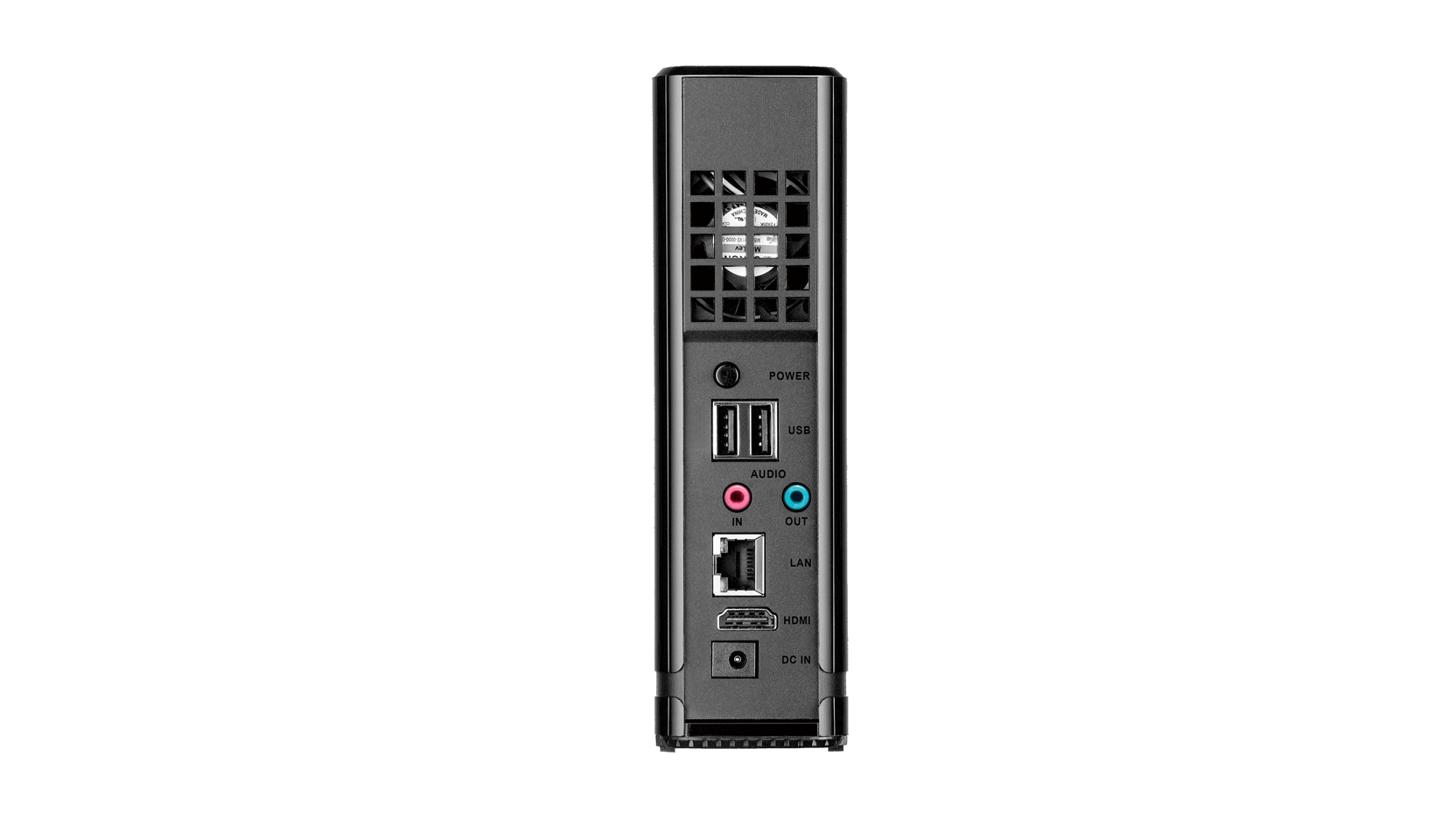

I/O Ports

  • RJ-45 port
  • DC-in jack
  • HDMI
  • 2 x USB 2.0 port (Mouse, UPS, Flash Disk, HDD with external power)
  • 3.5mm audio input x 1, output x 1
  • Power Adapter    DC 12 V/3 A

Software Features

OS

  • Linux

Supported Cameras

  • Supports all D-Link network cameras and megapixel resolution
  • ONVIF Profile S

System Requirements for Web Interface

  • Operating System: Windows 8/7; Mac OS 10.7 or above
  • Browser: Internet Explorer 8, Safari 7 (Mac OS) or above

Recording Performance

  • First video profile:
    • H.264 at 720p at 270 fps or 1080p at 135 fps
  • Secondary video profile:
    • H.264 at VGA at 135 fps

Camera Search

  • UPnP

Audio and Video Recording

  • Synchronised audio & video recording

Compression Format

  • H.264, MPEG-4, M-JPEG

Video Setting

  • Resolution, quality, frame rate, enable audio, go to camera interface

Recording Type

  • Record by schedule, manual, and event-based recording
  • Motion-triggered recording

Remote Live View

  • Support mydlink™ View-NVR mobile app for iOS and Android devices
  • Supports mydlink™ porta
  • Supported via browser

Remote Live View Control

  • Live view, preset/go, patrol, focus, PTZ functions, snapshot, full screen, digital zoom
  • e-map

Remote Playback Control

  • Playback with normal, fast forward/rewind and step forward/rewind

Remote Playback

  • Supported via browser and NVR client
  • Playback system with timeline GUI, search by event, area, cameras, date, and time
  • Browser or NVR Remote Client support four channel simultaneous playback
  • Digital zoom

Overwrite Recording

  • Auto recycling when disk storage is full

File Export

  • Local : Export videos to AVI
  • Remote: Export videos to AVI or ASF file
  • Export images to BMP or JPG file

User Account

  • Additional accounts can be created to allow users system access and specify authorisation for camera channels, PTZ

DDNS

  • D-Link DDNS and DynDns server support

System Time

  • Set the system time (D-Link NTP, input time, sync with computer, Daylight Saving Time)

Remote Backup

  • Remote backup software can backup raw data to redundant storage

System Status

  • Camera status
  • Still picture EMAP support
  • System status

Network Service Protocols

  • IPV4, ARP, TCP, UDP, ICMP
  • DHCP Client
  • NTP Client
  • DNS Client
  • DDNS Client
  • SMTP Client
  • FTP Client
  • HTTP Server
  • IP filtering
  • UPnP
  • HTTPS

User Interface

  • HTTP Web browser
  • mydlink™ portal
  • Smart phone
  • NVR Search utility

Package Contents

  • mydlink™ Network Video Recorder with HDMI
  • Power Adapter
  • Ethernet Cable
  • Quick Installation Guide
  • CD-ROM with:
    • Software
    • Product Documentation

Physical

Weight

  • 0.425 kg (0.93 lbs)

Maximum Power Consumption

  • 30 W

Temperature

  • Operating: 0 to 40 ˚C (32 to 104 ˚F)
  • Storage: -20 to 70 ˚C (-4 to 158 ˚F)

Humidity

  • 5% to 90% non-condensing

Certifications

  • CE
  • FCC
  • RoHS
  • BSMI

Dimensions

  • 141.6 x 49.8 x 173 mm

1. Hard disk not included.
