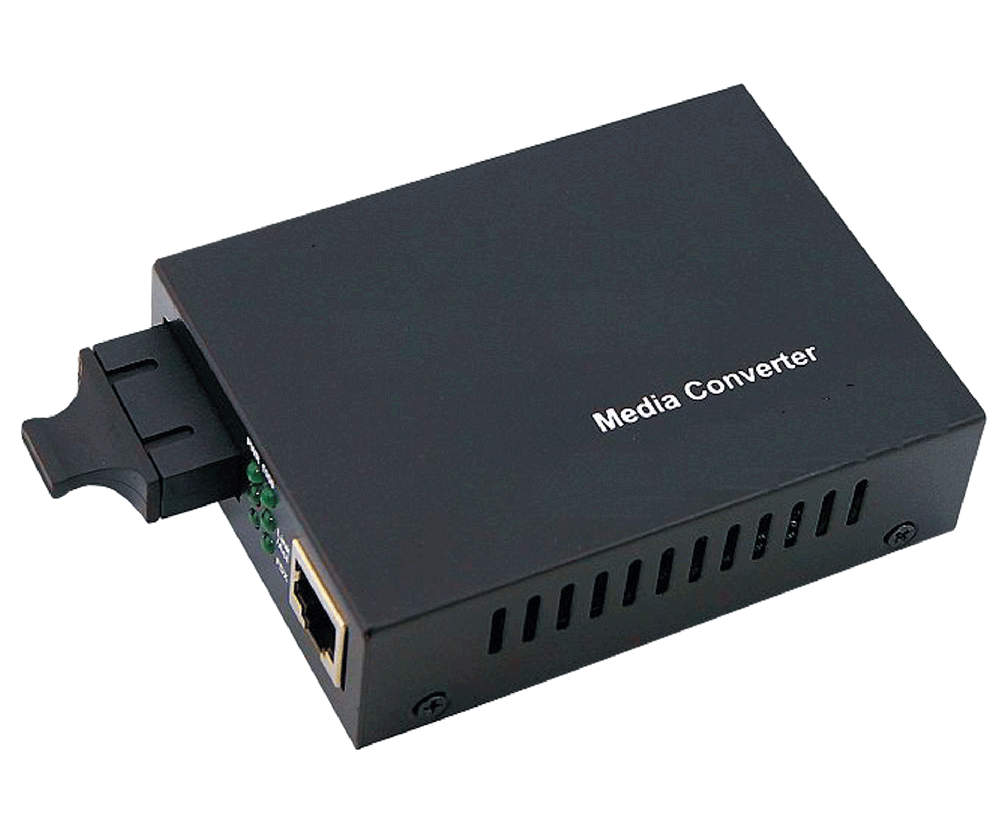

1000BASE-T to 1000BASE-SX (SC) 10 km single-mode Media Converter
DMC-G1000SC
- Product Status (Revision Datasheet v2): Live
- D-Link Media Converter series offers signal conversion in a compact device.
- Send a fiber signal over a variety of distances, with a selection of models suitable for 550 m, 10 km.
- The Standalone Media Converters adhere to industry standards and are compliant with 802.3u & 802.3x.
Where to buy
Seamless Media Conversion
Seamlessly integrate new fiber technology into existing network infrastructure with the D-Link DMC Series Media Converters to support a wide range of new applications and technologies and future-proof your network. Convert copper connections to fiber optic links leveraging existing cabling while avoiding costly across-the-board upgrades.
Copper to Fiber Conversion
The D-Link DMC Media Converters support a large variety of optical fiber types including multi-mode, single-mode or single-strand fiber cable. In addition, the DMC Series supports a wide range of connection distances to suit the needs of specific Ethernet to fiber applications.
Specs
| Description | Converts 1000 Base - T to 1000 Base - LX |
|---|---|
| Fiber wavelength | 1300 nm |
| Max distance | 10 Km |
| Ports | One RJ - 45 and two Fiber port (SC type connector) |
| Mode | Single - mode |
| Used with | Standalone only |
| Auto MDI support | Yes |
| Operating Temperature | 0° C to 50° C |
| Storage Temperature | -20° C to 70° C |
| Operating Humidity | 5% to 90% non - condensing |
| Operating Voltage | AC 240V or DC +5V |
| Forwarding mode | Store and Forward |
| Packet Buffer Memory | 1Mbit |
| External Power Adapter | Yes |
| Power Consumption Max at 240 V | 1.5W |
| Power Consumption Standby at 240 V | 1.3W |
| MTBF - hours | 10,0000 hours |
| Emission EMI and Safety Certifications | CE, FCC |
| Dimensions | 94 × 70 × 26 mm |
