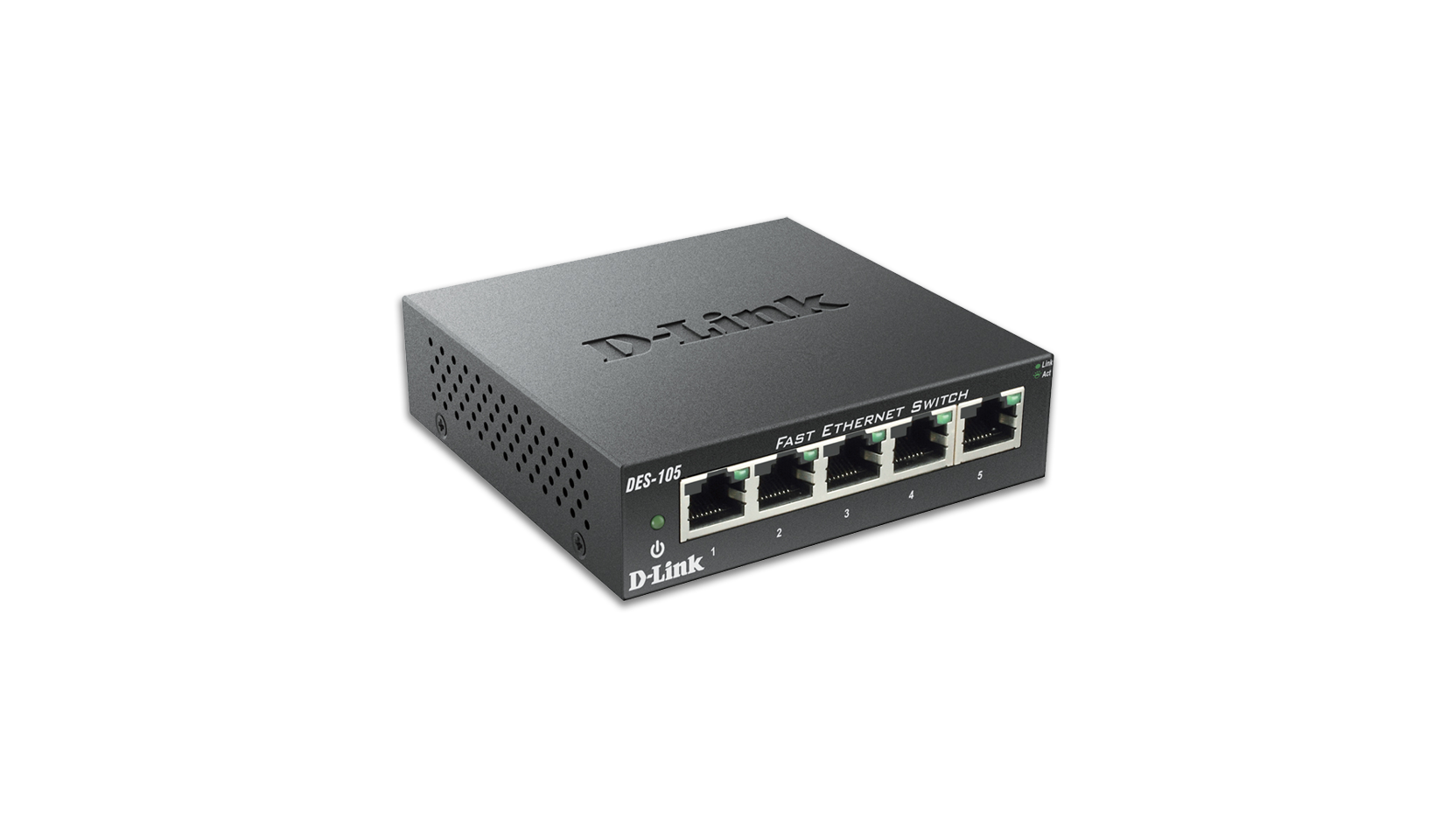

Key Features

  • ƒƒInexpensive Fast Ethernet solution for Home/SOHO
  • ƒƒFive 10/100 Mbps Fast Ethernet ports
  • ƒƒAuto MDI/MDIX crossover for all ports
  • ƒƒStore-and-forward switching scheme
  • ƒƒFull/half-duplex for Ethernet/Fast Ethernet speeds
  • ƒƒIEEE 802.3x Flow Control
  • ƒƒJumbo Frames:
    • 2047 Bytes
  • ƒƒSupports 802.1p QoS
    • 2 Queues, Strict Mode
  • ƒƒRoHS compliant
  • ƒƒPlug-and-play installation



Switching Fabric

  • 1.0 Gbps



Standards

  • ƒƒIEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
  • ƒƒIEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
  • ƒƒANSI/IEEE 802.3 NWay auto-negotiation
  • ƒƒIEEE 802.3x flow control
  • ƒƒIEEE 802.3az Energy-Efficient Ethernet (EEE)



Protocol

  • ƒƒCSMA/CD



Data Transfer Rates

  • ƒƒEthernet:
    • ƒƒ10 Mbps (half duplex)
    • ƒƒ20 Mbps (full duplex)
  • ƒƒFast Ethernet:
    • ƒƒ100 Mbps (half duplex)
    • ƒƒ200 Mbps (full duplex)



Topology

  • ƒƒStar



Media Interface Exchange

  • ƒƒAuto MDI/MDIX adjustment for all ports



Network Cables

  • ƒƒ10BASE-T:
    • ƒƒUTP CAT 3/4/5/5e (100 m max.)
    • ƒƒEIA/TIA-586 100-ohm STP (100 m max.)
  • ƒƒ100BASE-TX:
    • ƒƒUTP CAT 5/5e (100 m max.)
    • ƒƒEIA/TIA-568 100-ohm STP (100 m max.)



LED Indicators

  • ƒƒPer port:
    • ƒƒLink/Activity
  • ƒƒPer device:
    • ƒƒPower



Transmission Method

  • ƒƒStore-and-forward



MAC Address Table

  • 2K



MAC Address Learning

  • ƒƒAutomatic update



Packet Filtering/Forwarding Rates

  • ƒƒEthernet: 14,880 pps per port
  • ƒƒFast Ethernet: 148,800 pps per port



RAM Buffer

  • 384 KBytes per device

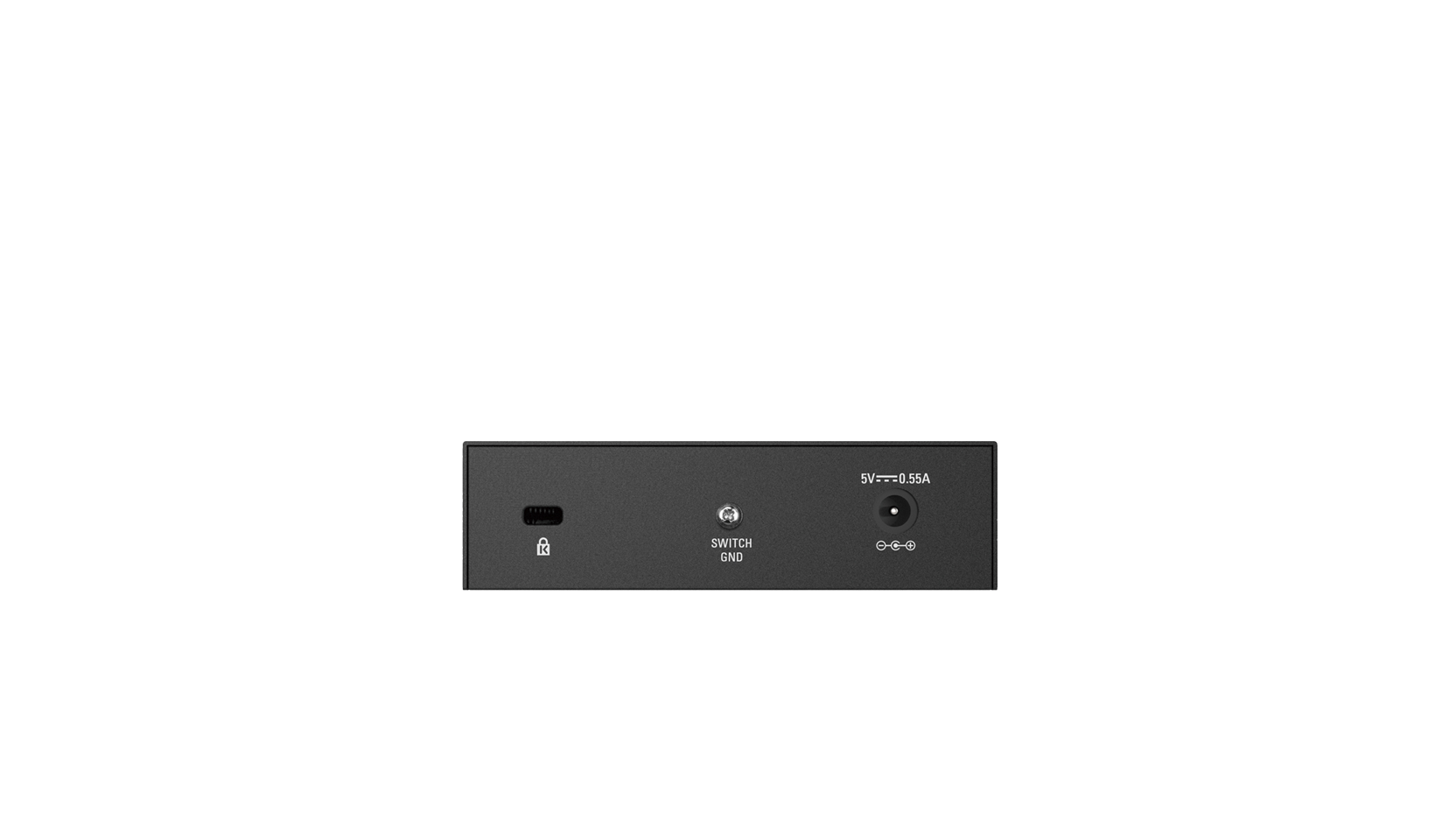

DC Input

  • ƒƒExternal 5 V/1 A Level “V” Power Adapter
