HD PoE Fixed Network Camera

DCS-3010

  • Product Status: Phased Out

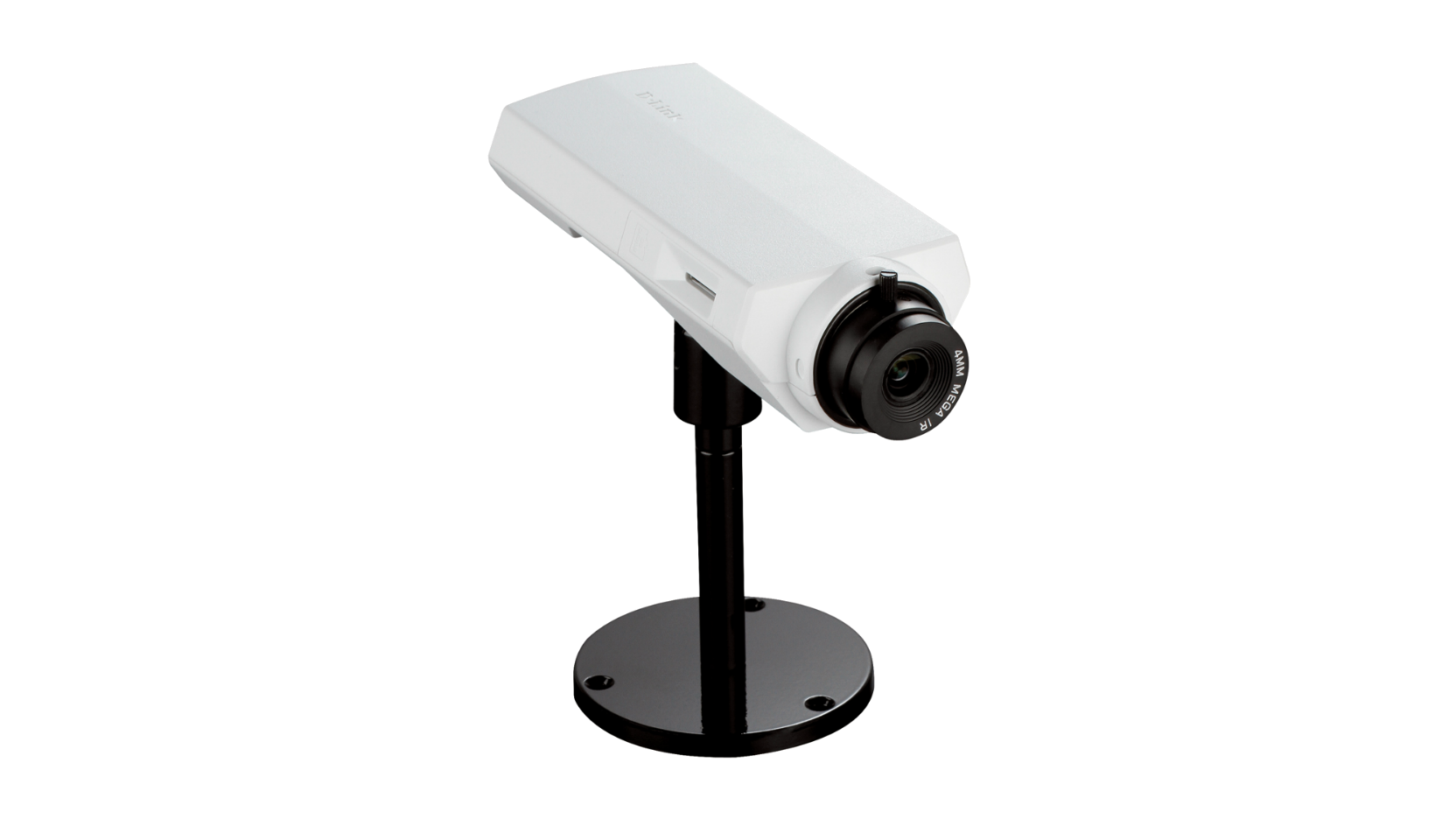

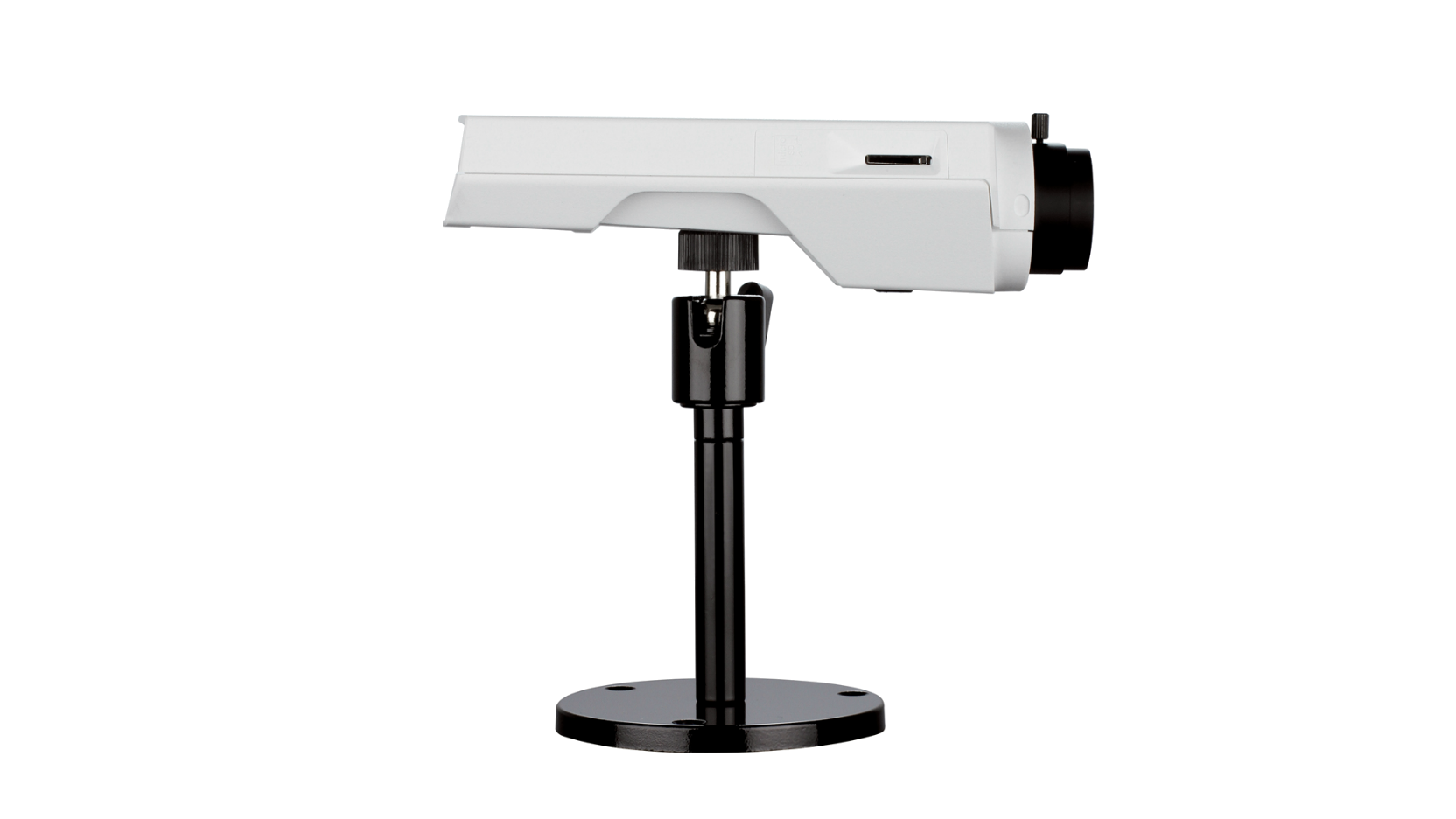

The D-Link DCS-3010 is a full-featured, high-definition, PoE-enabled fixed network camera, equipped with 1/4” megapixel progressive scan CMOS sensor and 4mm fixed iris lens. The camera can capture high resolution videos at resolutions of up to 1280 x 800 with frame rates of up to 30 fps. With this self-sufficient surveillance solution, snapshots and video can be saved to a network drive or to onboard storage with the built-in SD card slot, without requiring a PC. Simultaneous streaming provides both high-quality and bandwidth efficient compression formats, whereas PoE allows easy installation in a variety of locations, even when no power outlet is nearby.


Download the datasheet.

Partner üzleteink

The D-Link DCS-3010 is a full-featured, high-definition, PoE-enabled fixed network camera, equipped with 1/4” megapixel progressive scan CMOS sensor and 4mm fixed iris lens. This camera can capture high resolution videos at resolutions of up to 1280 x 800 with frame rates of up to 30 fps. Snapshots and video can be saved to a network drive, or to onboard storage with the built-in SD card slot.

Multiple Video Streams
The DCS-3010 supports simultaneous streaming of H.264, MPEG-4, and MJPEG video to provide both high-quality and bandwidth-efficient compression formats. MJPEG delivers excellent file integrity, ideal for situations which require high image detail. H.264 and MPEG-4 produce a small file size, useful for extended recording or for use in low-bandwidth networks. Additionally, the DCS-3010 supports multicast H.264 and MPEG-4 streaming, allowing users to view the camera feed by subscribing to a multicast IP address on the network.

Flexible Connectivity
The DCS-3010 incorporates Power over Ethernet (PoE), which allows it to be easily installed in a variety of locations, even when no power outlet is nearby. The DCS-3010 has a built-in microphone as well as external audio input and output, making it useful for remote two-way communication.

A Complete, Expandable Surveillance Solution
The DCS-3010 is a self-sufficient surveillance solution, capable of recording snapshots and videos to a microSD card without requiring a PC or network storage device. If you want to expand your surveillance options, D-ViewCam™ management software is also included, giving you the ability to manage up to 32 cameras with a robust set of features, including multi-camera views and automated e-mail alerts to keep you informed of suspicious or unusual activities

D-ViewCam™ for Management
The included D-Link D-ViewCam™ is sophisticated software which allows users to manage up to 32 network cameras, set e-mail alert notifications, create recording schedules, and use motion detection to directly record important events to a hard drive. D-ViewCam™ also allows users to upload a floor plan to create a realistic layout of the premises where cameras are located, further simplifying the management process.

Open Network Video Interface Forum (ONVIF) Profile S Compliant
ONVIF is an open industry forum for the development of a global standard for the interface of IP based physical security products. ONVIF identifies a standard for how IP products within video surveillance and other physical security areas can communicate with each other ensuring interoperability between products regardless of brand. The DCS-3010 is ONVIF Profile S compliant and therefore interoperable with other manufacturer’s products on the same network such as cameras, storage systems, video analytics products and Video Management Systems. For more information on ONVIF and compatible D-Link network cameras, please click here.

Technical Specifications

Camera

Camera Hardware Profile

  • 1/4” 1 megapixel CMOS sensor
  • 256 Mbytes SDRAM
  • 32 Mbytes of flash memory
  • 4mm fixed lens
  • Aperture F1.5
  • Angle of view
  • 56.9° (H)
  • 35.9° (V)

Image Features

  • Configurable image size, quality, frame rate, and bit rate
  • Time stamp and text overlays
  • 3 configurable motion detection windows
  • 5 configurable privacy mask zones
  • Configurable brightness, saturation, contrast, and sharpness

Video Compression

  • Simultaneous H.264/MPEG-4/MJPEG format compression
  • H.264/MPEG-4 multicast streaming
  • JPEG for still images

Video Resolution

  • 16:9 - 1280 x 800, 1280 x 720, 800 x 450, 640 x 360, 480 x 270, 320 x 176, 176 x 144 up to 30 fps recording
  • 4:3 - 1024 x 768, 800 x 600, 640 x 480, 480 x 360, 320 x 240, 176 x 144 up to 30 fps recording

Audio Support

  • GSM-AMR speech encoding, bit rate: 4.75 kbps to 12.2 kbps
  • G.711 audio encoding, bit rate: 8 kbps to 64 kbps
  • MPEG-4 AAC audio encoding, bit rate: 16 kbps to 128 kbps

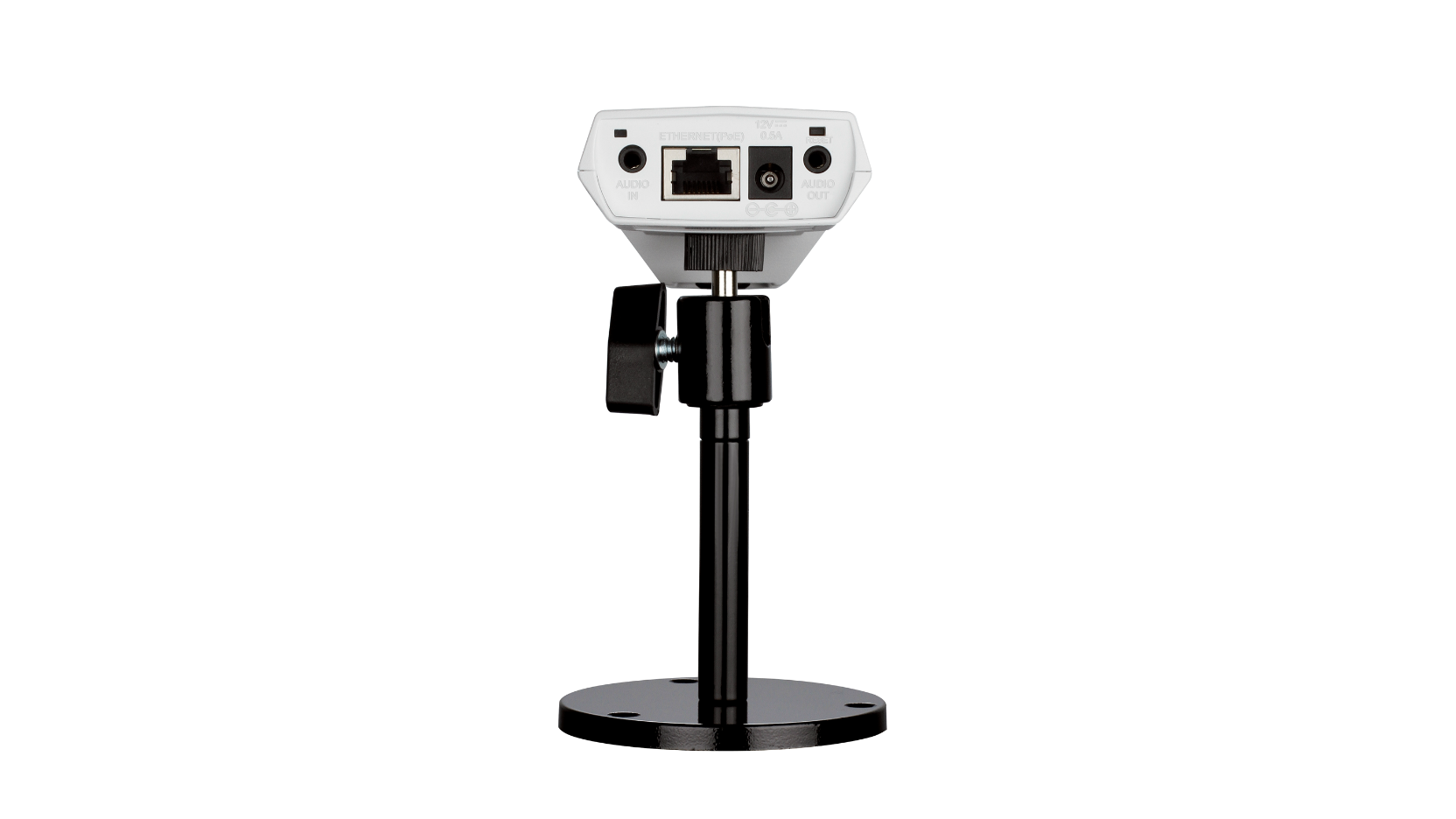

External Device Interfaces

  • 10/100 BASE-TX Fast Ethernet port
  • Supports 802.3af PoE
  • MicroSD/SDHC card slot
  • External audio input/output

Network

Network Protocols

  • IPv4
  • TCP/IP
  • UDP
  • ICMP
  • DHCP client
  • NTP client (D-Link)
  • DNS client
  • DDNS client (D-Link)
  • SMTP client
  • FTP client
  • HTTP / HTTPS
  • Samba client
  • PPPoE
  • UPnP port forwarding
  • RTP / RTSP/ RTCP
  • IP filtering
  • QoS
  • CoS
  • Multicast
  • IGMP
  • ONVIF compliant



Security

  • Administrator and user group protection
  • Password authentication
  • HTTPS streaming
  • HTTP and RTSP digest encryption
  • Remote client access control

System Management

System Requirements for Web Interface

  • Browser: Internet Explorer, Firefox, Chrome

Event Management

  • Motion detection
  • Event notification and uploading of snapshots/video clips via e-mail or FTP
  • Supports multiple SMTP and FTP servers
  • Multiple event notifications
  • Multiple recording methods for easy backup

Remote Management

  • Take snapshots/video clips and save to local hard drive or NAS via web browser
  • Configuration interface accessible via web browser

D-ViewCam System Requirements

  • Operating system: Microsoft Windows 7/Vista/XP
  • Web browser: Internet Explorer 7 or higher
  • Protocol: standard TCP/IP

D-ViewCam Software Functions

  • Remote management/control of up to 32 cameras
  • Viewing of up to 32 cameras on one screen
  • Scheduled motion triggered, or manual recording options
  • Supports all management functions in web interface

Physical

Weight

  • 165 g (0.34 lb)

Power

  • 12 VDC/0.5 A
  • 802.3af PoE

Power Consumption

  • 4.6 W (12VDC)
  • 6.6 W (PoE)

Temperature

  • Operating: 0 to 40 °C (32 to 104 °F)
  • Storage: -20 to 70 °C (-4 to 158 °F)

Humidity

  • Operating: 20% to 80% non-condensing
  • Storage: 5% to 95% non-condensing

Certifications

  • CE
  • CE LVD
  • FCC
  • C-Tick

Dimensions

  • 61.9 x 39.2 x 147.0 mm
