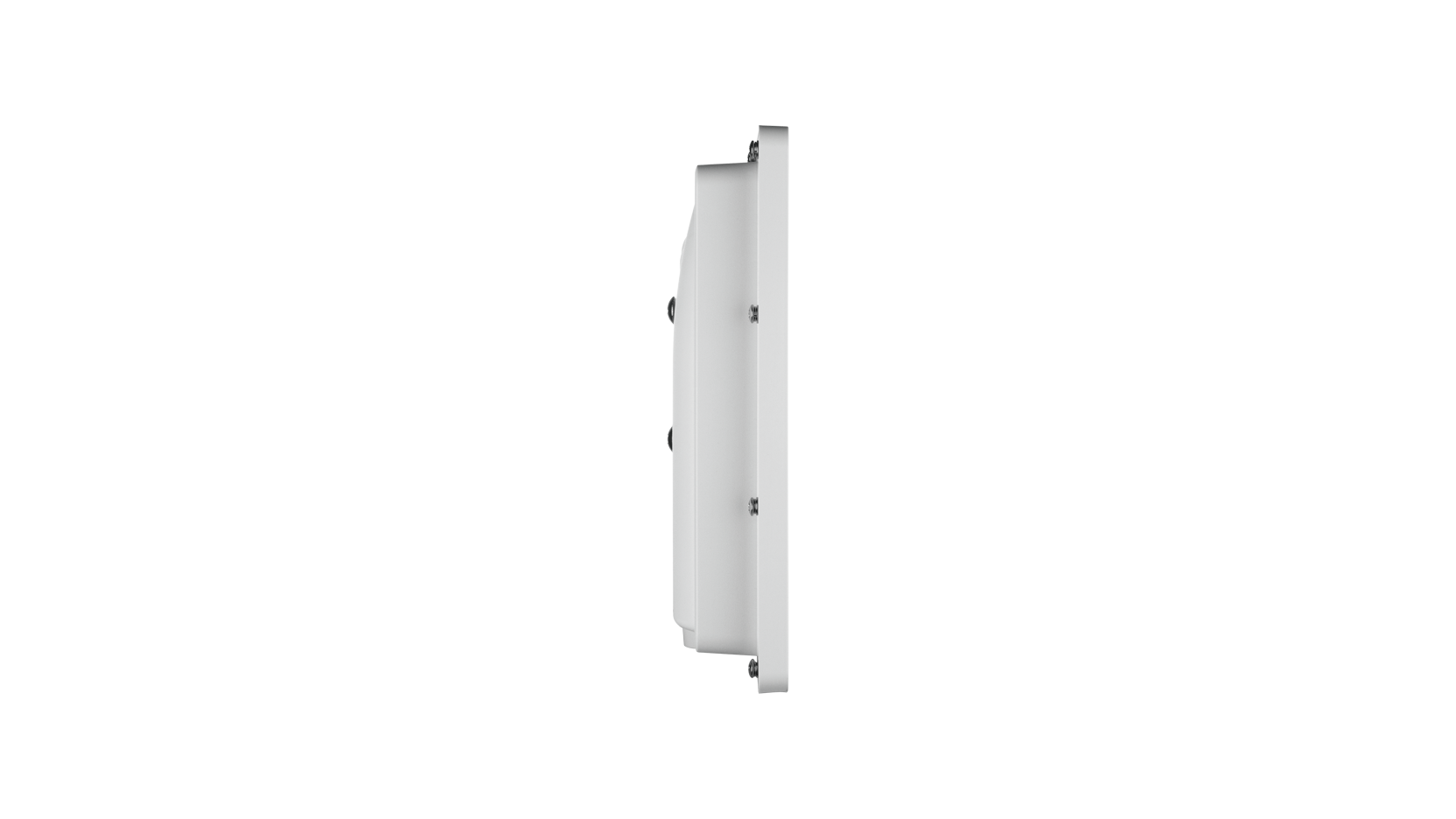

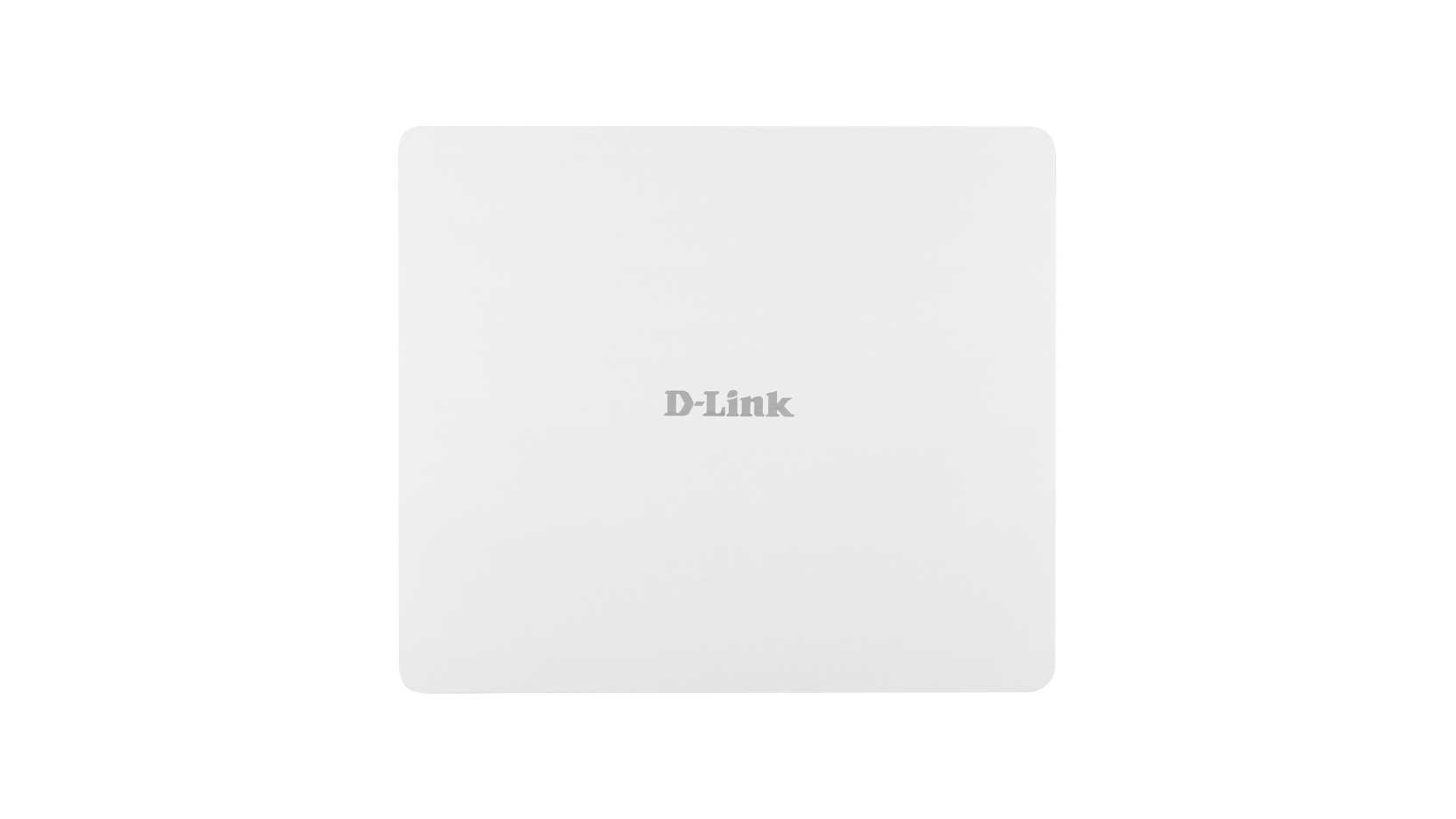

Wireless AC1200 Concurrent Dual-Band Outdoor PoE Access Point

DAP-3662

  • Product Status: Live

The DAP-3662 is a high power outdoor Wireless AC 1200 Access Point designed to withstand the harshest conditions. It is the ideal solution for extending a wireless network or for creating hot spots outdoors.


Download the datasheet.

Partner üzleteink

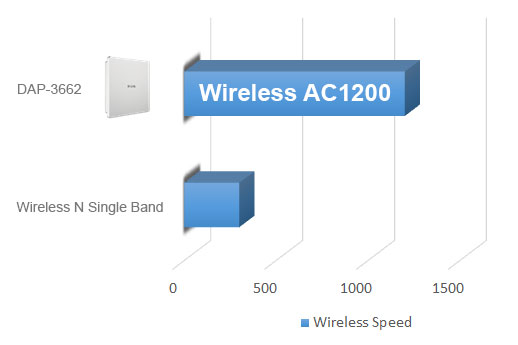

Cutting Edge Performance

Incorporating industry leading Wireless AC Chipset, the DAP-3662 delivers up to 4 times* the performance of Wireless N by supporting simultaneous dual-band operation

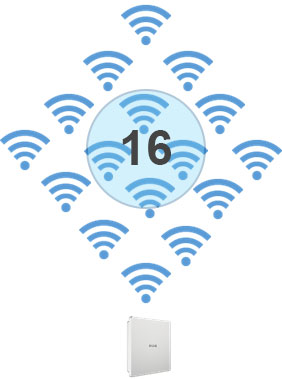

16 Wireless SSIDs simultaneously

Supports up to 16 SSIDs, 8 per Band, including Station Isolation

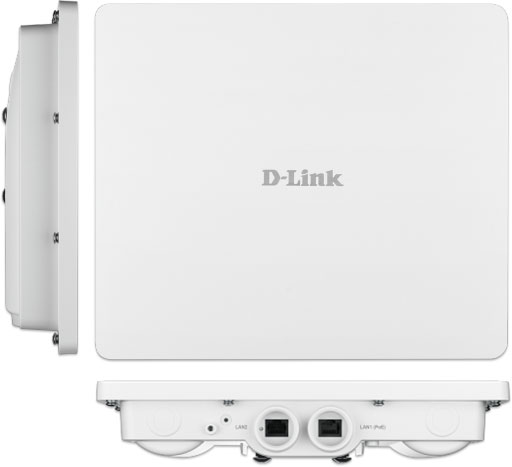

Functionality with Design

The DAP-3662 is a robust, Gore-Tex® coated, versatile high power outdoor Wireless AC1200 Access Point. Built to withstand the harshest of conditions, it's the ideal solution for extending a wireless network or for creating hot spots outdoors.

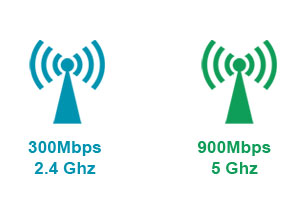

Simultaneous Dual-Band Wireless

Supports up to 900Mbps for the 5Ghz band and up to 300Mbps for the 2.4Ghz band

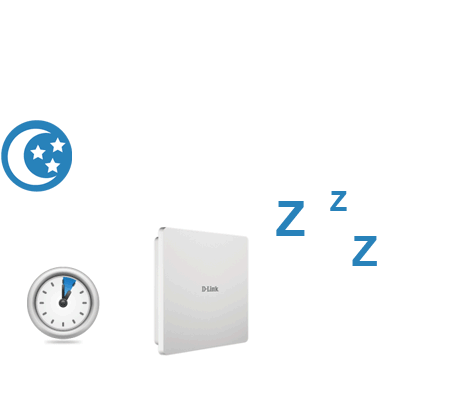

Smart Design

The DAP-3662 has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power and increasing network security.

Free Wireless AP Controller software

D-Link’s free Central WiFiManager is a cloud-enabled wireless Access Point management tool, designed to allow you to create and manage multi-site, multi-tenancy wireless networks regardless of AP location

Manage up to 1000 APs

Manage up to 1000 access points located around the world from one virtual controller residing in your network or in the cloud.

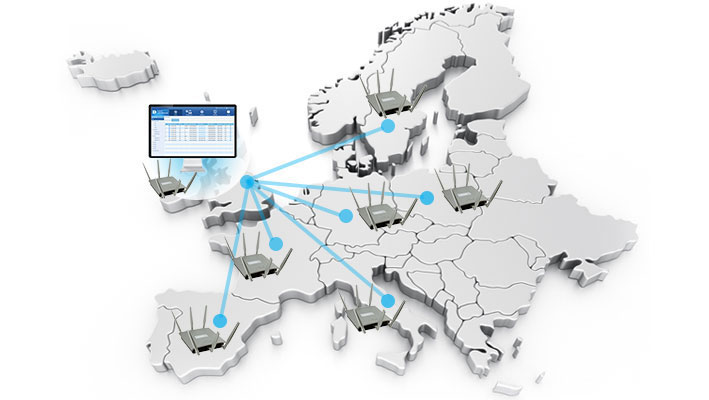

Scalable, flexible, centralised AP management

Manage up to 1000 APs from a central location, regardless of geography.

* When compared to Wireless N300

Technical Specifications

Functions & Features

Features

High-performance Connectivity

  • IEEE 802.11ac wireless1
  • Up to 1200 Mbps1 combined wireless speeds
  • Two Gigabit LAN ports

Made for Outdoor Environments

  • IP68 water and dust-proof housing
  • Weather resistant for temperatures between -30 and 60°C
  • Gore-Tex® Technology repels liquid water while allowing for heat and humidity dissipation

Advanced Software Features

  • Simultaneous dual-band connectivity for increased network capacity
  • Traffic control/QoS
  • Internal RADIUS server
  • Web redirection
  • WPA/WPA2 - Enterprise/Personal
  • WPA2 - PSK/AES over WDS
  • MAC address filtering
  • ARP spoofing prevention
  • WLAN partition

Convenient Installation

  • Supports 802.3af Power over Ethernet

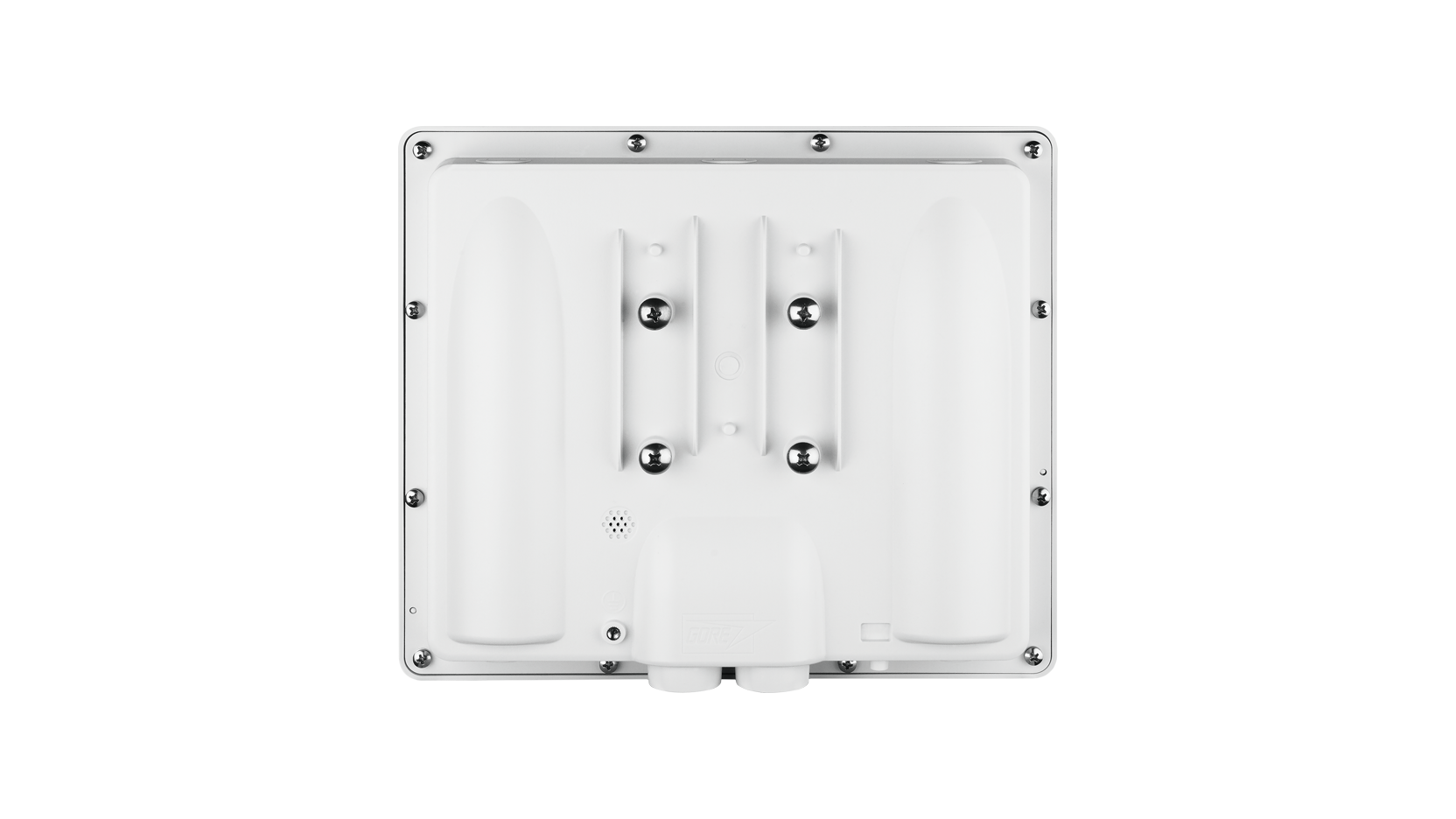

  • Wall and pole mounting hardware included

Technical Specifications

General

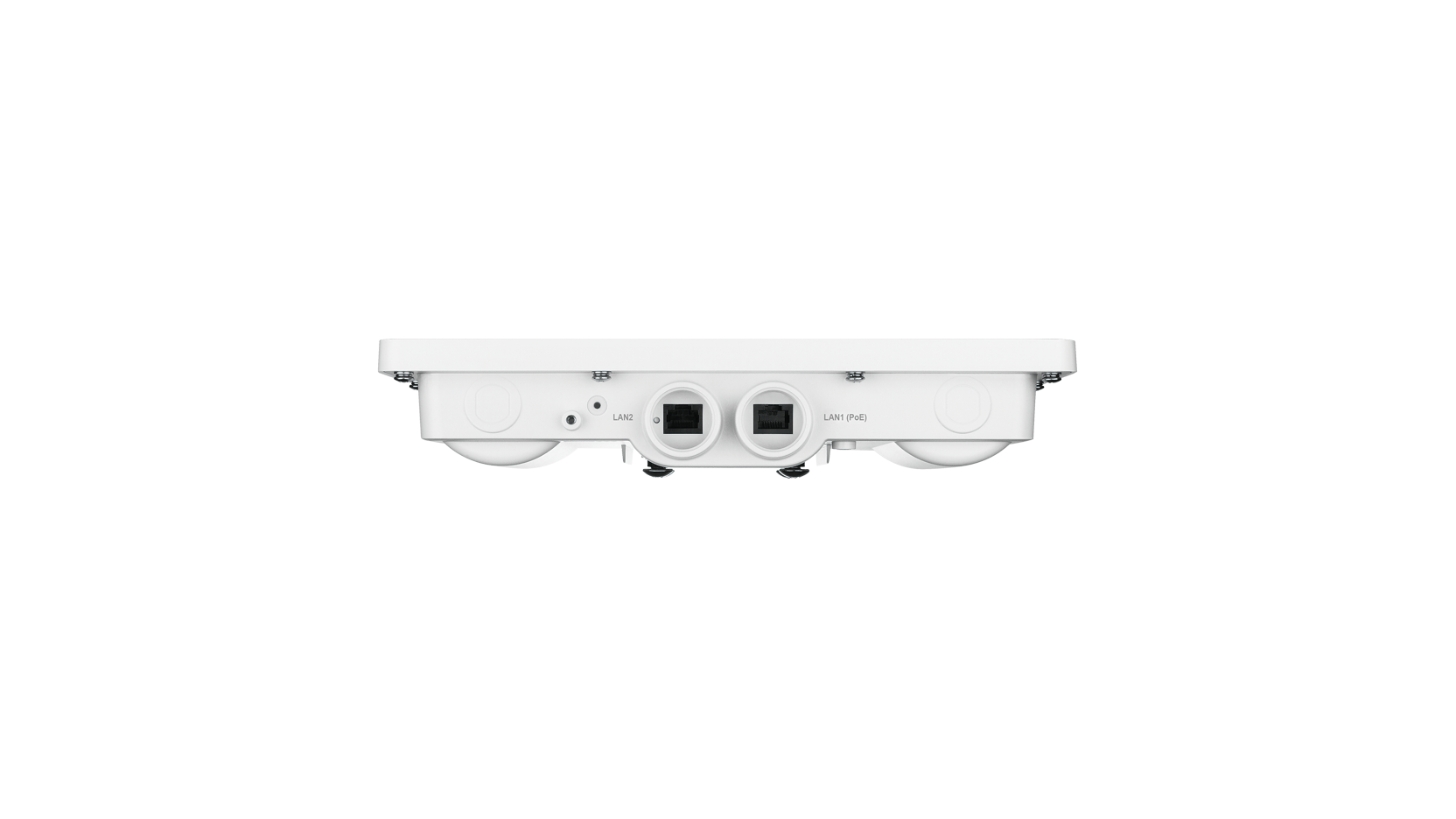

Device Interfaces

  • 802.11a/b/g/n/ac wireless1
  • 2 Gigabit LAN Port (LAN1 supports PoE)

LEDs

  • Power

Standards

  • IEEE 802.11a/b/g/n/ac1
  • IEEE 802.3u/ab/af

Wireless Frequency Range

  • 2.4 GHz band: 2.4 GHz to 2.4835 GHz
  • 5 GHz band: 5.15 to 5.35 GHz, 5.47 to 5.85 GHz2

Antennas

  • Two internal 6 dBi for 2.4 GHz
  • Two internal 6 dBi for 5 GHz

Maximum Output Power3

  • 26 dbm for 2.4GHz
  • 26 dbm for 5GHz

Functionality

Security

  • WPA-Personal
  • WPA-Enterprise
  • WPA2-Personal
  • WPA2-Enterprise
  • WEP 64/128-bit encryption
  • SSID broadcast disable
  • MAC address access control
  • Network Access Protection (NAP)
  • Internal RADIUS server

Network Management

  • Telnet
  • Secure Telnet (SSH)
  • HTTP
  • Secure HTTP (HTTPS)
  • Traffic control
  • SNMP
  • D-Link Central WiFiManager
  • AP Array

Physical

Dimensions

  • 277 x 240 x 50 mm (10.91 x 9.45 x 1.97 inches)

Weight

  • 981 grams (2.16 lbs) with antennas

Operating Voltage

  • 48 V DC +/- 10%, or 802.3af PoE

Maximum Power Consumption

  • 12.5 Watts

Temperature

  • Operating: -30 to 60 °C (-22 to 140 °F)
  • Storage: -30 to 65 °C (-22 to 149 °F)

Humidity

  • Operating: 10% to 90% non-condensing
  • Storage: 5% to 95% non-condensing

Certifications

  • FCC
  • IC
  • CE
  • C-Tick UL
  • Wi-Fi Certified
  • IP68

1. Maximum wireless signal rate derived from IEEE standard 802.11 and 802.11ac specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.
2. Please note that operating frequency ranges vary depending on the regulations of individual countries and jurisdictions. The DAP-3662 may not support the 5.25-5.35 GHz and 5.47-5.725 GHz frequency ranges in certain regions. Compatibility with 802.11ac devices from other manufacturers is not guaranteed. All references to speed and range are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
3. The maximum power setting will vary according to individual country regulations.
